Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

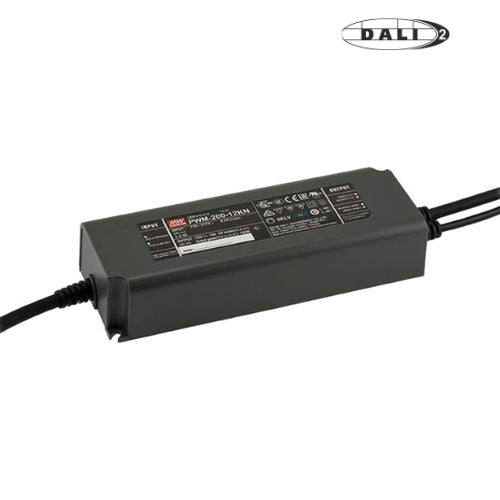

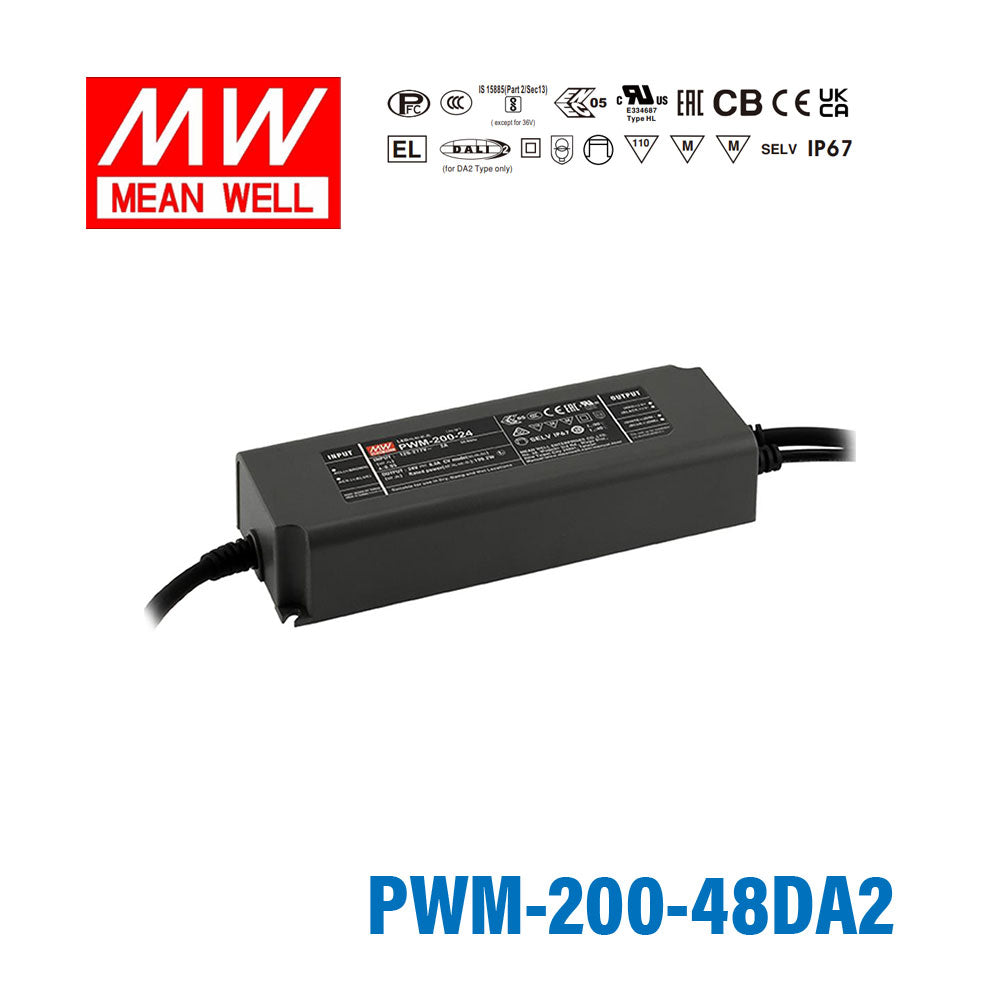

Mean Well PWM-200-48DA2 Power Supply 200W 48V DALI2
$75.87 USD
Unit price /
Unavailable
Description
Description
The PWM-200 is a 200W Mean Well DIN rail power converter with a 195mm profile (input range: 100~305VAC, operating temperature: -40~+85℃).
Key Features
- ✓ 195mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.5 DALI STANDARDS UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, IP67, EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating200 Watt
-
Output Voltage48 Volt
-
Rated Current4.17 Ampere
-
Input Voltage48V~48V
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.48 in
-
Height1.56 in
-
Weight2.27 lb
