Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

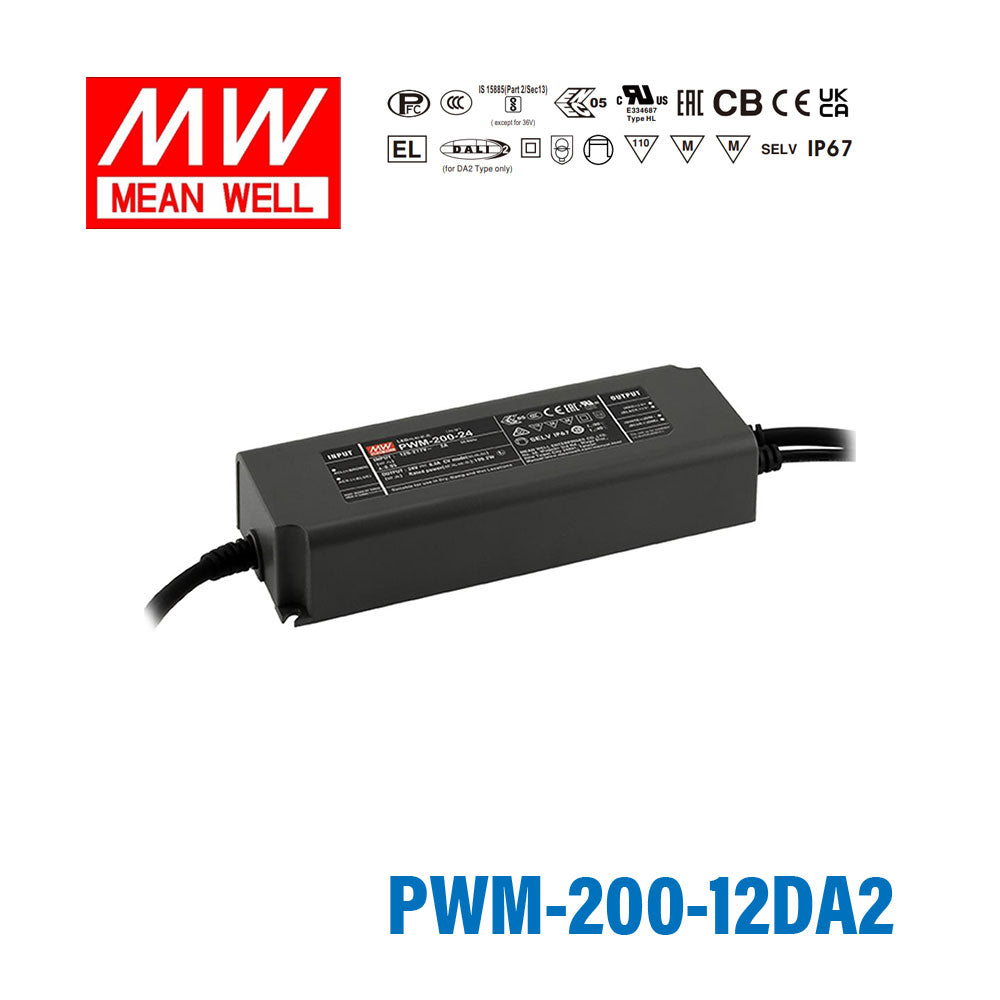

Mean Well PWM-200-12DA2 Power Supply 200W 12V DALI2 15A
$75.87 USD
Unit price /
Unavailable
Description
Description
The PWM-200 is a 200W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 12V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 15A
- ✓ DALI dimming support
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating200 Watt
-
Output Voltage12 Volt
-
Rated Current15 Ampere
-
Input Voltage12V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.68 in
-
Width2.68 in
-
Height1.56 in
-
Weight2.27 lb
