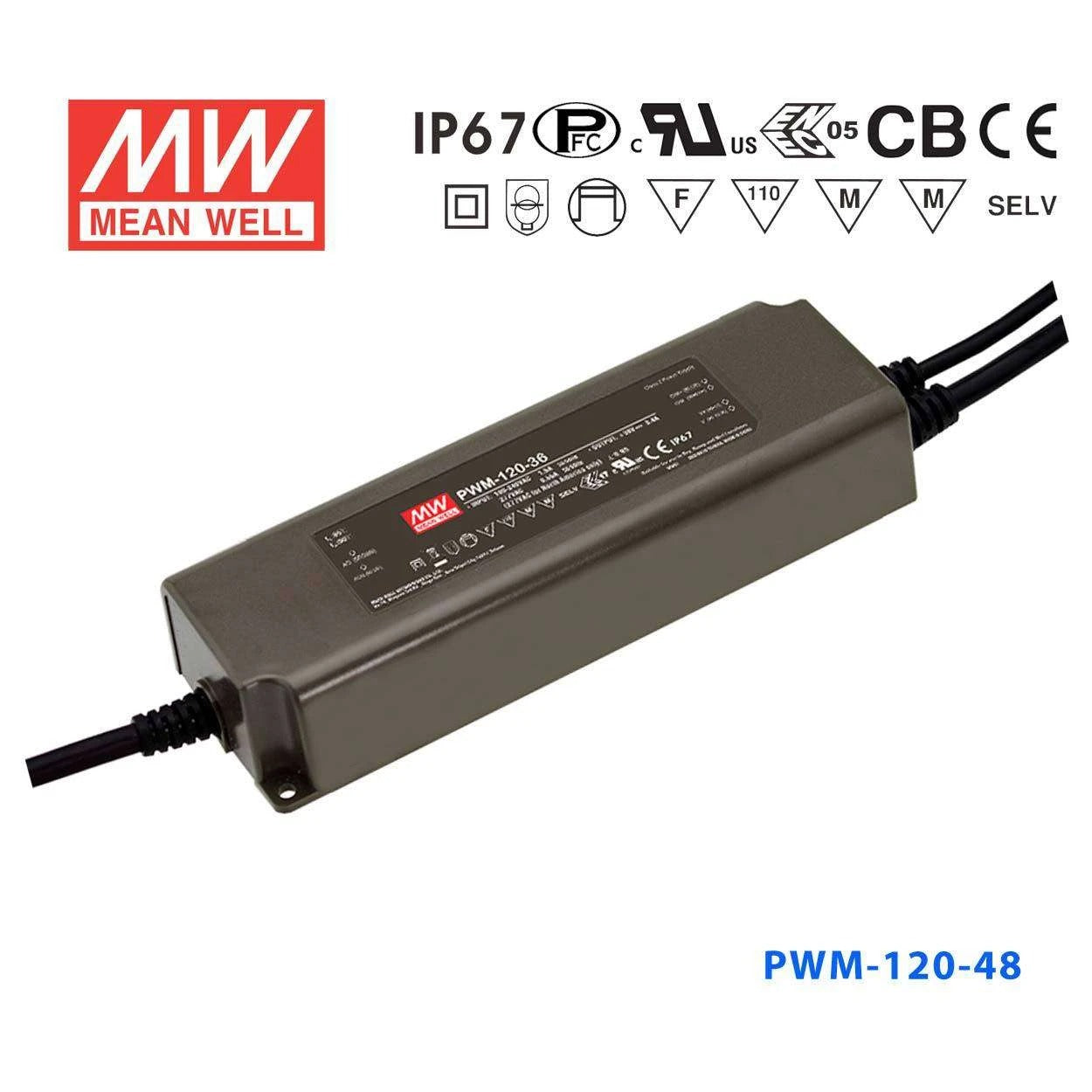

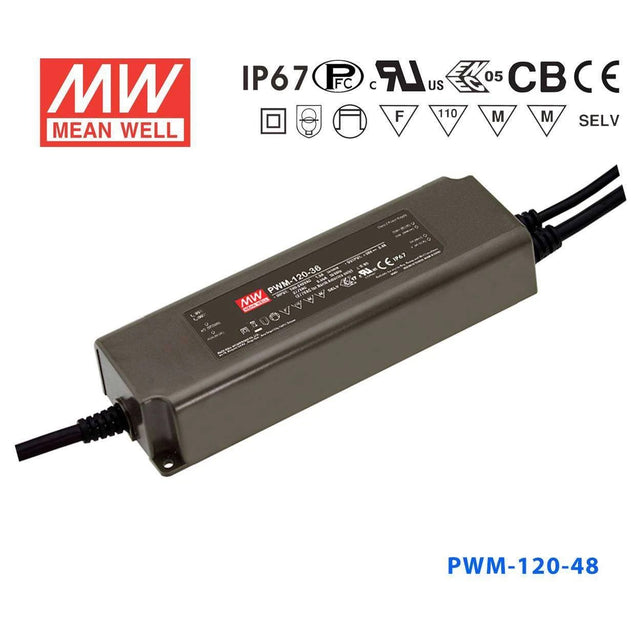

Mean Well PWM-120-48 Power Supply 120W 48V - Dimmable 2.5A
$51.68 USD
Unit price /
Unavailable
Description
Description
The PWM-120 is a 120W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 48V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 48V
- ✓ Rated output current: 2.5A
- ✓ 3-in-1 dimming (0–10V / PWM / resistance)
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.52 in
-
Width2.48 in
-
Height1.48 in
-
Weight2.14 lb
