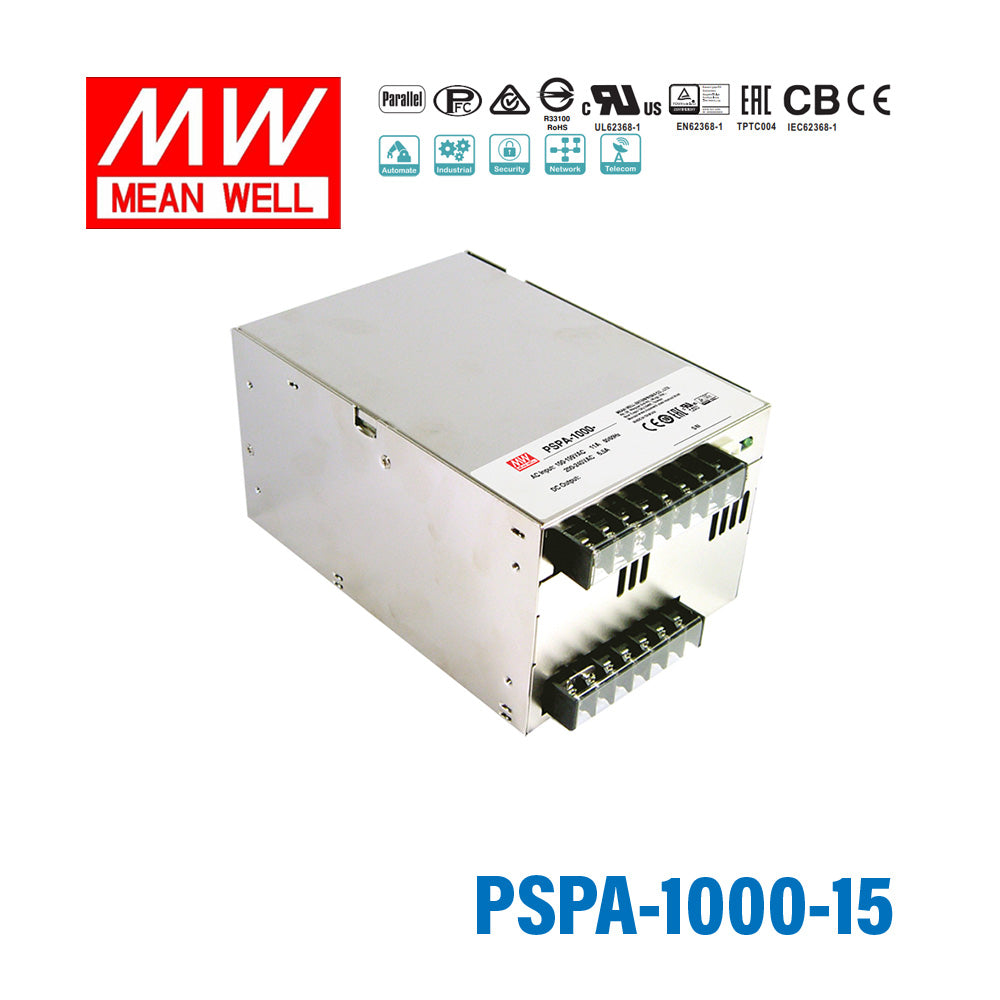

Mean Well PSPA-1000-15 Power Supply 1000W 15V 64A

Name: Mean Well PSPA-1000-15 Power Supply 1000W 15V 64A
Brand: Mean Well
SKU: PSPA-1000-15
Price: 242.48 USD
Availability: InStock

built-in active PFCcurrent sharing up to 4000W(3+1)

SKU PSPA-1000-15

$242.48 USD

Shipping calculated at checkout.

Select model — 2 in this family

PSPA-1000-15

PSP-600-15 600W 15V Backorder$164.26 USD

PSPA-1000-15 1000W 15V Backorder$242.48 USD

Product variants

Available to order

Overview

PSPA-1000-15 is the 15V output model of this series: rated current 64A, rated power 960W, typical efficiency 93%.

PSPA-1000 series is a 1KW single output enclosed type AC/DC power supply. This series operates from 90~264VAC input voltage and offers models with different rated voltage ranging between 12V and 48V. Thanks to high efficiency up to 94% and built-in fan, the entire series is able to work for -20℃ ~ +70℃ ambient temperature. PSPA-1000 is equipped with various built-in functions, such as current sharing, remote ON-OFF control and remote sense, providing great design flexibility for different types of applications.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Current sharing up to 4000W(3+1)
With DC OK Signal output
Built-in remote ON-OFF control
Built-in remote sense function
5 years warranty

Specifications

PSPA-1000-15Specifications from the official datasheet (2024-12-23 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 64A
CURRENT RANGE: 0 ~ 64A
RATED POWER: 960W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 14 ~ 17V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME: 1000ms,50ms/115VAC 1000ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC 0.99/115VAC at full load
EFFICIENCY(Typ.): 93%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <0.5mA/240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.2 ~ 20.6V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

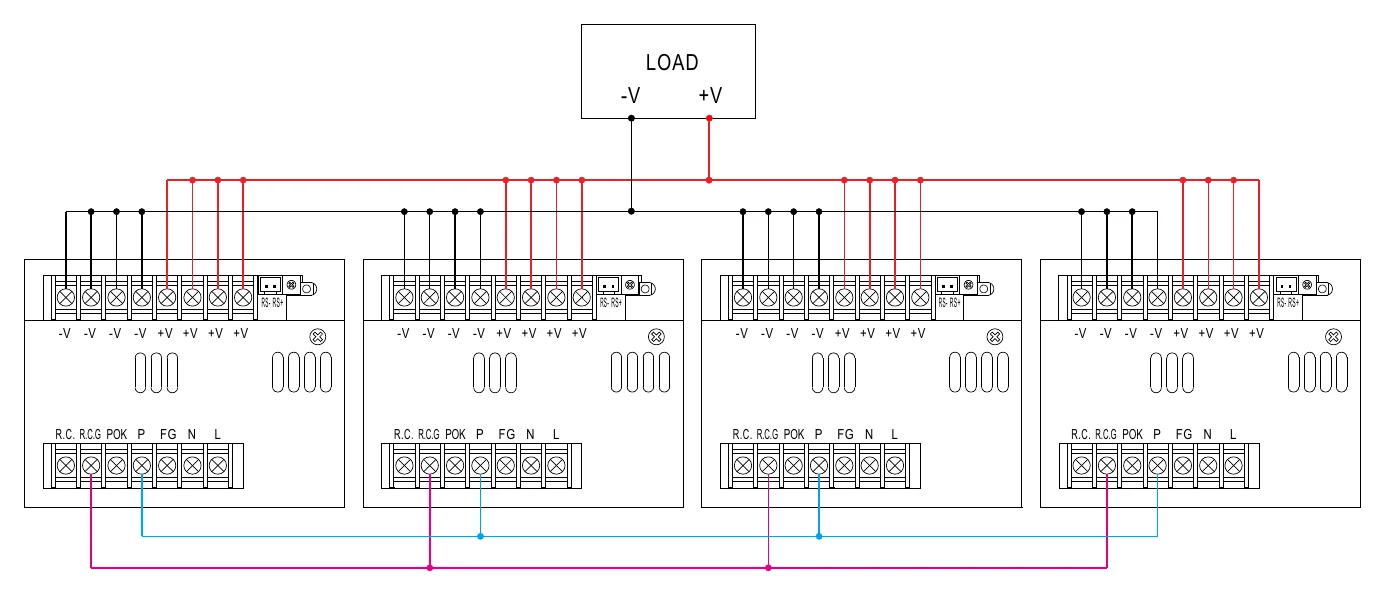

CURRENT SHARING: Up to 4000W or (3+1) units. Please refer to the Function Manual.
REMOTE ON-OFF CONTROL: Power ON : short; Power OFF : open. Please refer to the Function Manual.

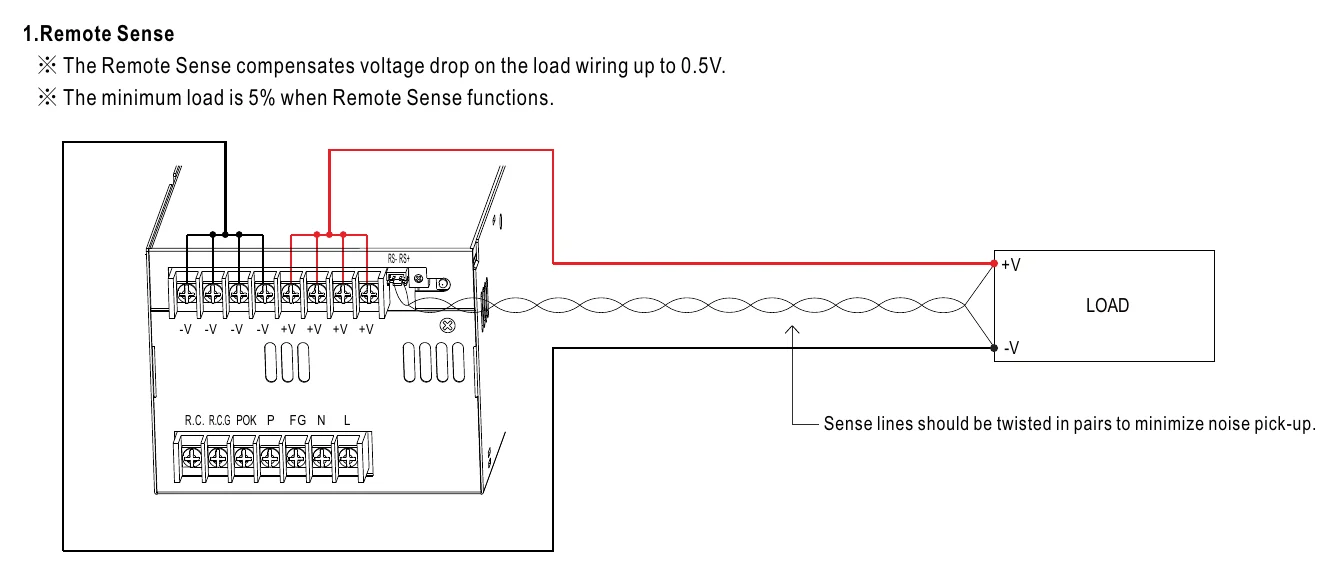

REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual.

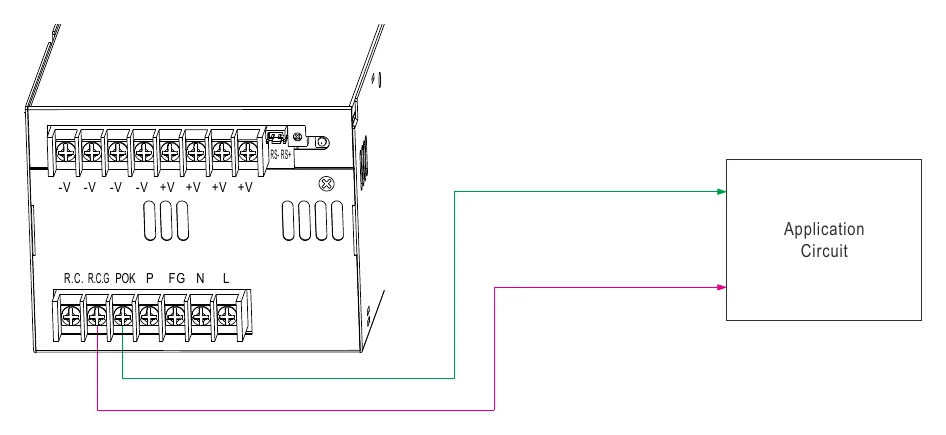

POK SIGNAL: The TTL signal out, PSU turn on = 2.4 ~ 5V ; PSU turn off = 0 ~ 0.4V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), CNS15936 Class B
Radiated BS EN/ EN55032 (CISPR32), CNS15936 Class B
Harmonic Current BS EN/ EN61000-3-2 Class A
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 5}: BS EN/ EN55035, BS EN/ EN61000-6-2, BSMI CNS13438

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Radiated	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Harmonic Current	BS EN/ EN61000-3-2	Class A
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 807.1K hrs min. Telcordia SR-332 (Bellcore) ; 94.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 170*120*93mm (L*W*H)
PACKING: 1.93Kg ; 8pcs/16.4Kg/1.53CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

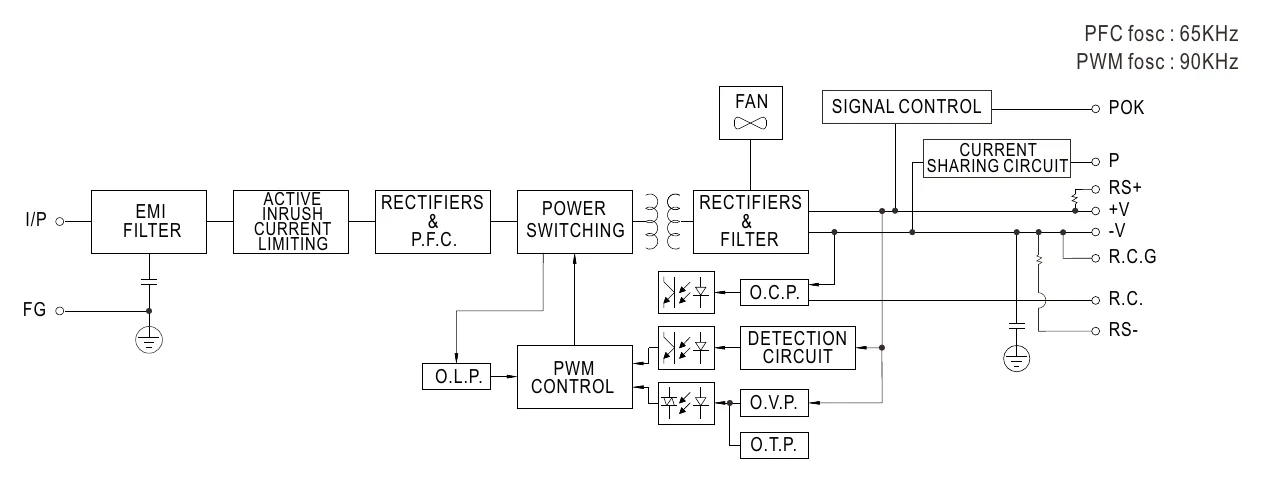

PSPA-1000-15 Block Diagram — Block Diagram

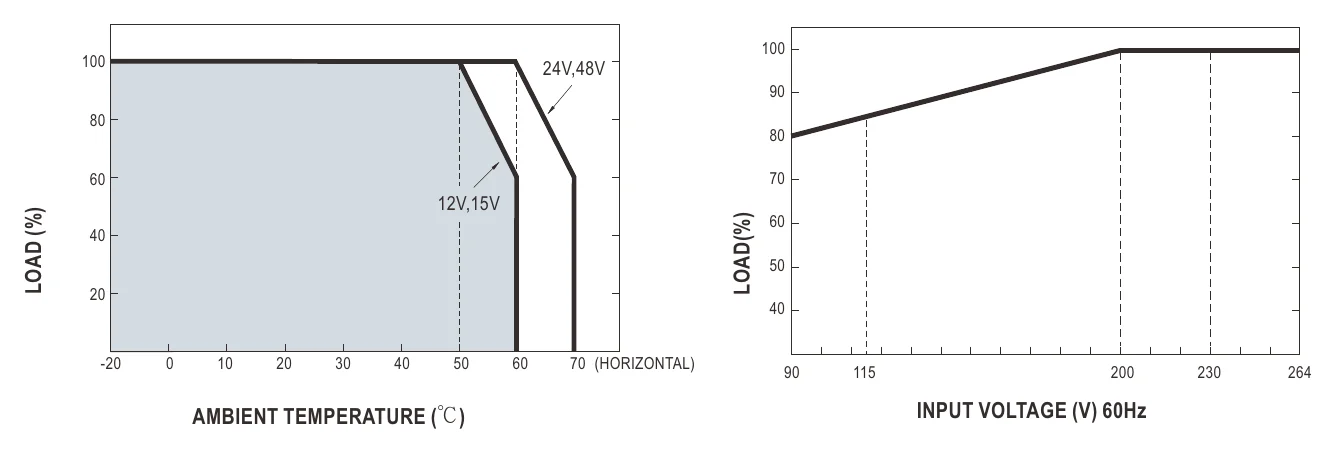

PSPA-1000-15 Derating Curve — Derating Curve

PSPA-1000-15 Function Manual — Function Manual

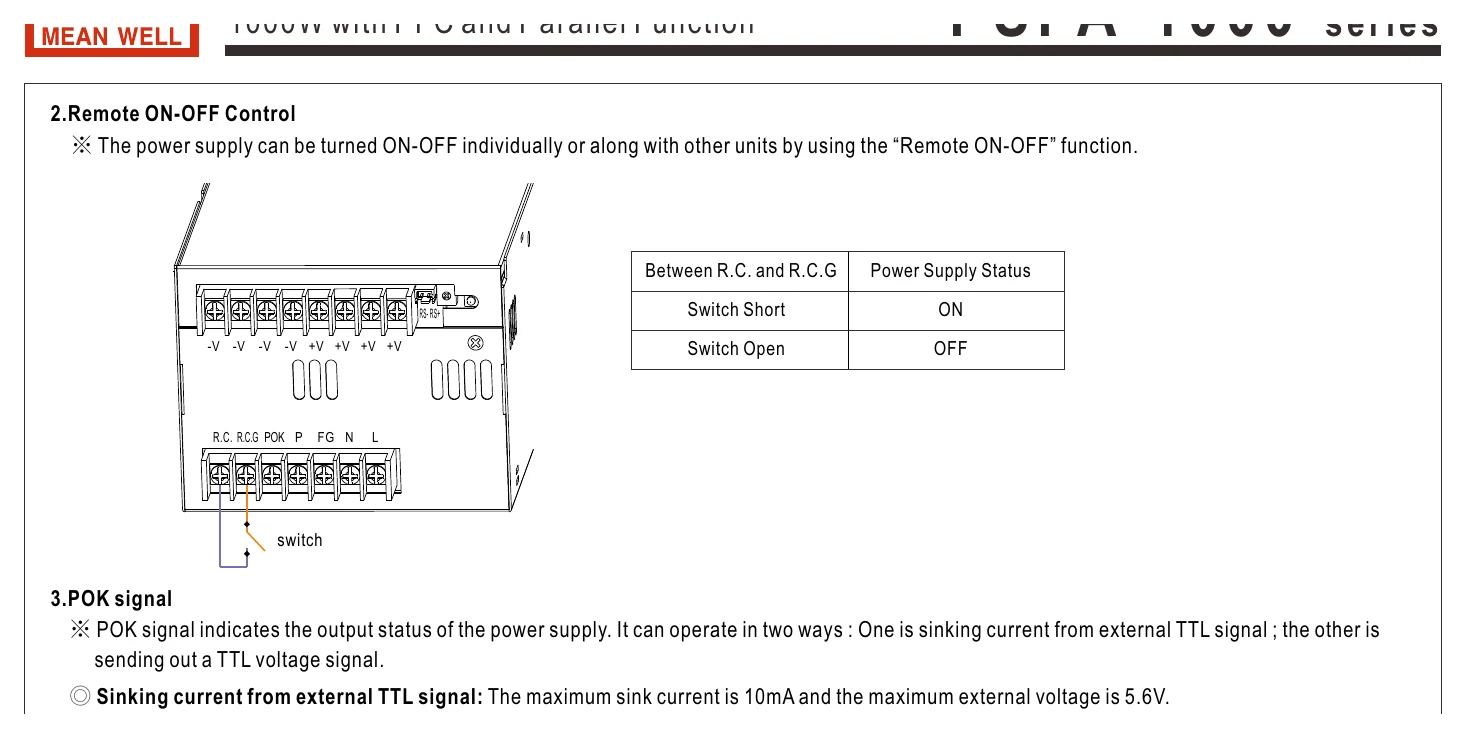

PSPA-1000-15 2.Remote ON-OFF Control — 2.Remote ON-OFF Control

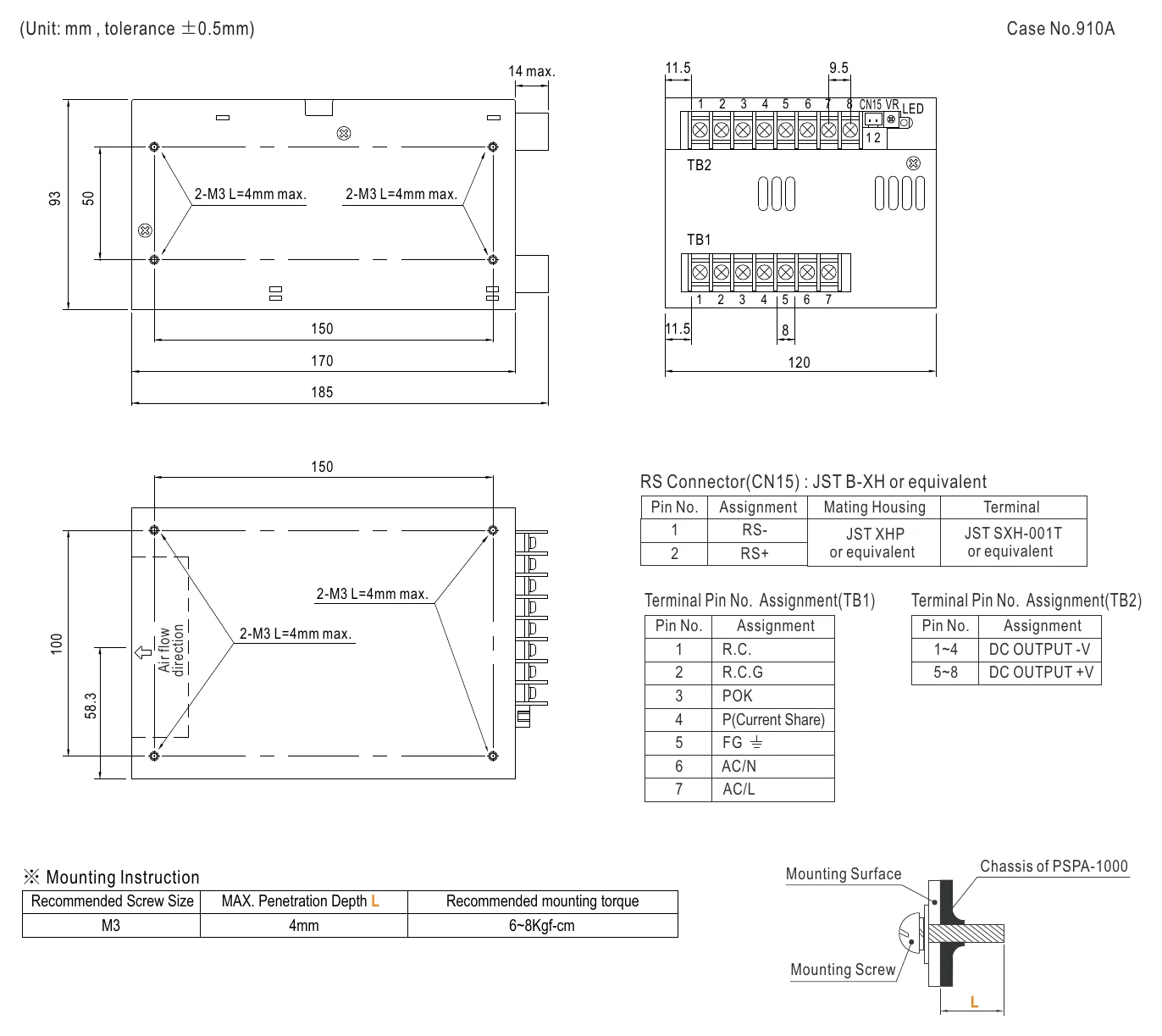

PSPA-1000-15 Mechanical Specification — Mechanical Specification

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Datasheet1

PSPA-1000-15 datasheetPSPA-1000-SPEC.PDF · 2024-12-23 edition PDF Download

Certificates9

Mean Well PSPA-1000-BSMI Certificate PDF Download

Mean Well HRPG-PSPA-1000-TUV Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well HRPG-PSPA-1000-CB(62368) Certificate PDF Download

Mean Well HRPG-PSPA-1000-CB Certificate PDF Download

Mean Well PSPA-1000-EMC Certificate PDF Download

Mean Well PSPA-1000-CE-dec Certificate PDF Download

Mean Well PSPA-1000-UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well PSPA-1000-15 Test Report PDF Download

FAQ

Can I use the PSPA-1000-15 for 15V industrial control equipment?

Yes, if the equipment is specified for 15V DC constant voltage input. This model delivers 960W at 15V with up to 64A, which suits larger 15V control assemblies and centralized DC distribution inside industrial equipment.

Is the PSPA-1000-15 a fit for 15V test and measurement systems?

It can be a good fit for high-power test systems that need stable 15V DC rather than 12V, 24V, or 48V. The supply is rated for 64A output, so it is better suited to heavier 15V loads than smaller current-limited options.

Can this power supply support 15V embedded or industrial electronics platforms?

Yes, for platforms designed around a 15V constant voltage bus. Its 960W output rating and broad 90-264VAC input range make it suitable for larger embedded systems installed across different AC power regions.

Would the PSPA-1000-15 work for a centralized 15V DC bus in an automation cabinet?

It is designed for applications that need a fixed 15V output with substantial current capacity from one enclosure-mounted supply. At 15V and 64A, it supports higher-load 15V automation hardware more directly than the 24V or 48V siblings.

Is the PSPA-1000-15 meant for outdoor deployment?

The operating temperature range is listed as -20°C to +70°C, but these specs do not include an IP rating. That means the provided data supports use in protected indoor or enclosed equipment environments, not exposed outdoor placement.

How does the PSPA-1000-15 compare with the rest of the PSPA-1000 series?

The PSPA-1000-15 is rated for 960W, 15V, and 64A. The other listed models are PSPA-1000-12 at 960W, 12V, 80A; PSPA-1000-24 at 1008W, 24V, 42A; and PSPA-1000-48 at 1008W, 48V, 21A.
