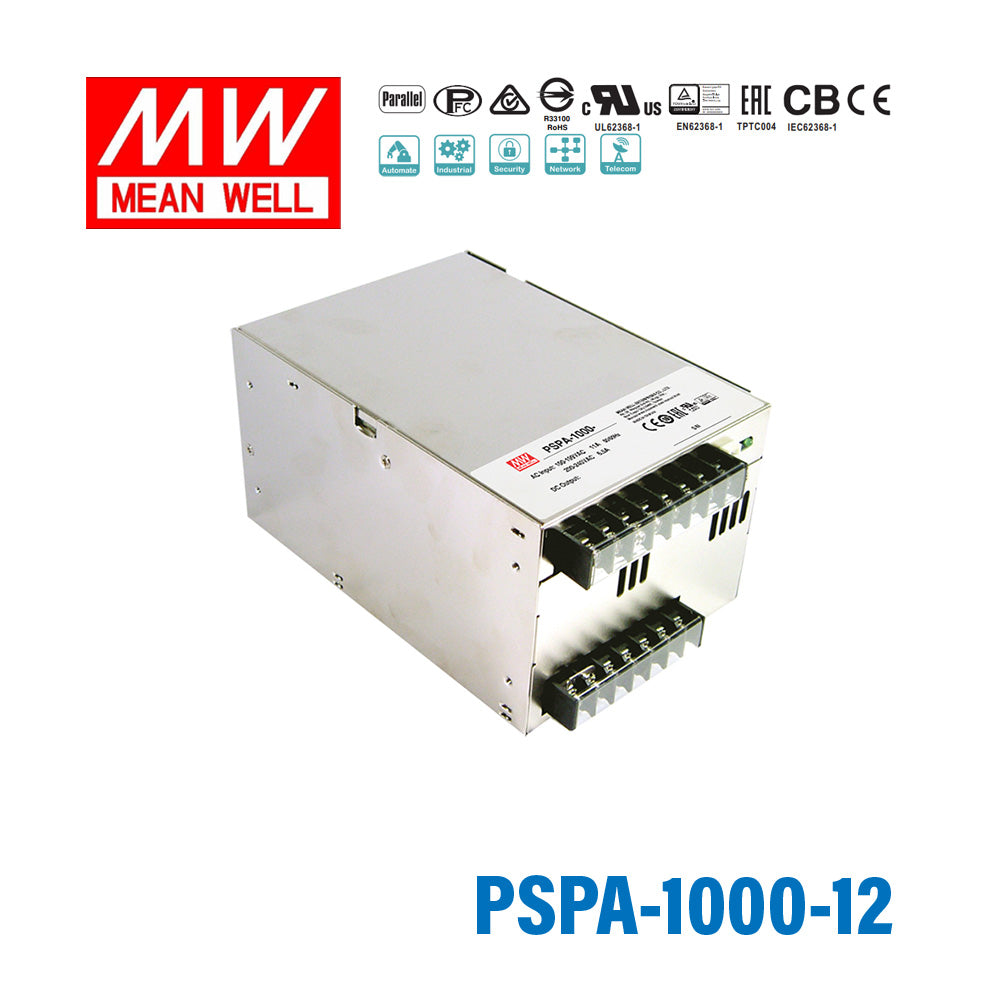

Mean Well PSPA-1000-12 Power Supply 1000W 12V 80A

Name: Mean Well PSPA-1000-12 Power Supply 1000W 12V 80A
Brand: Mean Well
SKU: PSPA-1000-12
Price: 242.48 USD
Availability: InStock

built-in active PFCcurrent sharing up to 4000W(3+1)

SKU PSPA-1000-12

$242.48 USD

Shipping calculated at checkout.

Select model — 2 in this family

PSPA-1000-12

PSP-600-12 600W 12V In stock$164.26 USD

PSPA-1000-12 1000W 12V Backorder$242.48 USD

Product variants

Available to order

Overview

PSPA-1000-12 is the 12V output model of this series: rated current 80A, rated power 960W, typical efficiency 92%.

PSPA-1000 series is a 1KW single output enclosed type AC/DC power supply. This series operates from 90~264VAC input voltage and offers models with different rated voltage ranging between 12V and 48V. Thanks to high efficiency up to 94% and built-in fan, the entire series is able to work for -20℃ ~ +70℃ ambient temperature. PSPA-1000 is equipped with various built-in functions, such as current sharing, remote ON-OFF control and remote sense, providing great design flexibility for different types of applications.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Current sharing up to 4000W(3+1)
With DC OK Signal output
Built-in remote ON-OFF control
Built-in remote sense function
5 years warranty

Specifications

PSPA-1000-12Specifications from the official datasheet (2024-12-23 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 80A
CURRENT RANGE: 0 ~ 80A
RATED POWER: 960W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 11 ~ 14V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 1000ms,50ms/115VAC 1000ms,50ms/230VAC
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC 0.99/115VAC at full load
EFFICIENCY(Typ.): 92%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <0.5mA/240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.5 ~ 16.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

CURRENT SHARING: Up to 4000W or (3+1) units. Please refer to the Function Manual.
REMOTE ON-OFF CONTROL: Power ON : short; Power OFF : open. Please refer to the Function Manual.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual.
POK SIGNAL: The TTL signal out, PSU turn on = 2.4 ~ 5V ; PSU turn off = 0 ~ 0.4V. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), CNS15936 Class B
Radiated BS EN/ EN55032 (CISPR32), CNS15936 Class B
Harmonic Current BS EN/ EN61000-3-2 Class A
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 5}: BS EN/ EN55035, BS EN/ EN61000-6-2, BSMI CNS13438

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Radiated	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Harmonic Current	BS EN/ EN61000-3-2	Class A
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 807.1K hrs min. Telcordia SR-332 (Bellcore) ; 94.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 170*120*93mm (L*W*H)
PACKING: 1.93Kg ; 8pcs/16.4Kg/1.53CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PSPA-1000-12 Block Diagram — Block Diagram

PSPA-1000-12 Derating Curve — Derating Curve

PSPA-1000-12 Function Manual — Function Manual

PSPA-1000-12 2.Remote ON-OFF Control — 2.Remote ON-OFF Control

PSPA-1000-12 Mechanical Specification — Mechanical Specification

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Datasheet1

PSPA-1000-12 datasheetPSPA-1000-SPEC.PDF · 2024-12-23 edition PDF Download

Certificates9

Mean Well PSPA-1000-BSMI Certificate PDF Download

Mean Well HRPG-PSPA-1000-TUV Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well HRPG-PSPA-1000-CB(62368) Certificate PDF Download

Mean Well HRPG-PSPA-1000-CB Certificate PDF Download

Mean Well PSPA-1000-EMC Certificate PDF Download

Mean Well PSPA-1000-CE-dec Certificate PDF Download

Mean Well PSPA-1000-UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Test reports1

Mean Well PSPA-1000-12 Test Report PDF Download

FAQ

Can I use the PSPA-1000-12 for a 12V industrial automation panel with multiple DC loads?

Yes, this unit provides constant voltage 12V output with up to 80A and a 960W power rating. That makes it suitable for centralized 12V automation panels where multiple devices share one high-capacity DC source.

Is the PSPA-1000-12 appropriate for 12V communication or IT equipment racks?

It can be used where the rack equipment is designed for 12V DC constant voltage input. The 960W output capacity and 90-264VAC input range make it suitable for high-power 12V rack or cabinet systems.

Can this model power 12V embedded or edge systems with high current demand?

Yes, if the equipment requires 12V DC and substantial current from a single supply. With 80A available at 12V, it fits dense 12V embedded platforms, compute assemblies, and industrial electronics better than lower-current versions.

Is the PSPA-1000-12 suitable for battery-backed 12V control systems that need a strong DC source?

It is appropriate for 12V control systems that need a regulated constant voltage supply with high current capacity. The 12V output, 80A rating, and active PFC make it a strong match for larger 12V system loads.

Can the PSPA-1000-12 be used in hot industrial environments?

The specified operating temperature range is -20°C to +70°C, which gives it a wider stated temperature range than many enclosed power supplies. No IP rating is listed here, so the temperature rating supports use in protected industrial environments rather than exposed outdoor locations.

How does the PSPA-1000-12 differ from the other PSPA-1000 models?

The PSPA-1000-12 is rated at 960W, 12V, and 80A. Its listed siblings are PSPA-1000-15 at 960W, 15V, 64A; PSPA-1000-24 at 1008W, 24V, 42A; and PSPA-1000-48 at 1008W, 48V, 21A.
