Mean Well

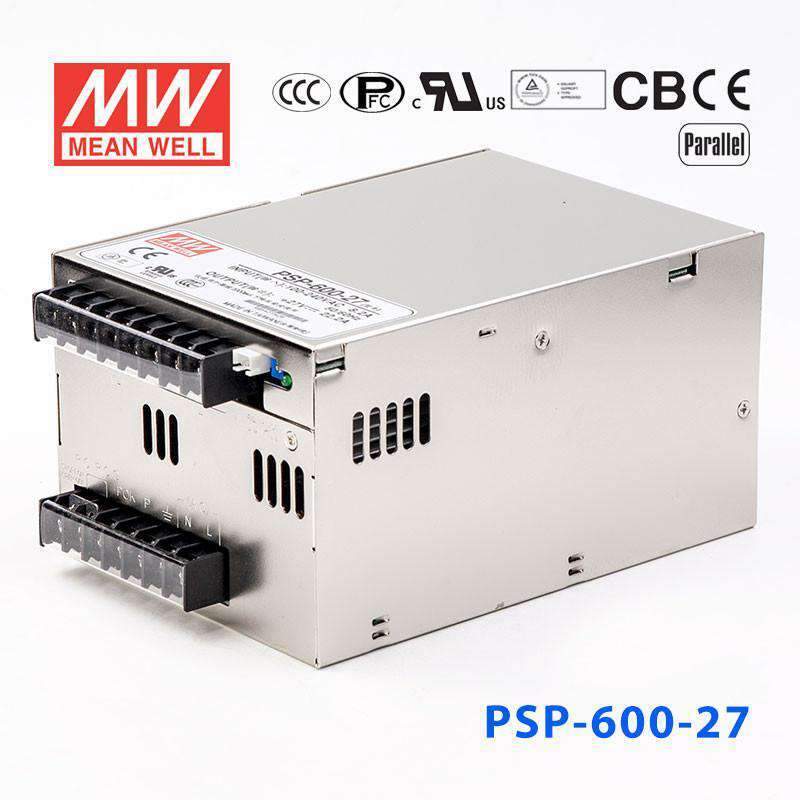

Mean Well PSP-600-27 Power Supply 600W 27V 22.2A

built-in active PFCcurrent sharing up to 2400W(3+1)
SKU PSP-600-27
$164.26 USD
Shipping calculated at checkout.
In stock
|

Overview

PSP-600-27 is the 27V output model of this series: rated current 22.2A, rated power 599.4W, typical efficiency 86%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC fan
  • With DC OK Signal output
  • Current sharing up to 2400W(3+1)
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • Fixed switching frequency at PFC:88KHz PWM:100KHz
  • Operating altitude up to 3000 meters (Note.6)
  • 3 years warranty

Specifications

PSP-600-27Specifications from the official datasheet (2024-12-23 edition)

OUTPUT

DC VOLTAGE
27V
RATED CURRENT
22.2A
CURRENT RANGE
0 ~ 22.2A
RATED POWER
599.4W
RIPPLE & NOISE (max.)Note.2
240mVp-p
VOLTAGE ADJ. RANGE
24 ~ 30V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 50ms at full load
HOLD UP TIME (Typ.)
20ms at full load

INPUT

VOLTAGE RANGENote.5
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
0.95/230VAC 0.99/115VAC at full load
EFFICIENCY(Typ.)
86%
AC CURRENT (Typ.)
6.8A/115VAC 3.4A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<1.3mA/240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
31 ~ 36.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE CONTROL
RC+/RC-: Short = power on ; Open = power off
POK SIGNAL
PSU turn on: 3.3V ~ 5.6V PSU turn off: 0V ~ 1V

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS15936, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1132.9K hrs min. Telcordia SR-332 (Bellcore) ; 142.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
170*120*93mm (L*W*H)
PACKING
1.9Kg; 8pcs/15.5Kg/1.00CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The operating altitude is 2000 meters for CCC, 3000 meters for UL,TUV. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m (6500ft).

Technical drawings

PSP-600-27 Mechanical Specification
Mechanical Specification
PSP-600-27 Block Diagram
Block Diagram
PSP-600-27 Derating Curve
Derating Curve
PSP-600-27 Control Terminal Instruction Manual
Control Terminal Instruction Manual

Downloads

FAQ

Can I use the PSP-600-27 for equipment that specifically requires 27V DC?

Yes, if the equipment is designed for a constant 27V DC input. This model delivers 599.4W at 27V with up to 22.2A, so it fits 27V industrial or embedded loads within those ratings.

Is the PSP-600-27 suitable for 27V control, communications, or monitoring systems?

It can be used where the system calls for regulated 27V DC and the load remains at or below 22.2A and 599.4W. Because it is a constant voltage unit, it is intended for electronics that specify a fixed 27V supply.

Can this model support a higher-power 27V DC load in automation hardware?

Yes, for automation hardware built around 27V DC and staying within 599.4W total output. For larger-capacity applications, up to 4 units can be paralleled, with total output current limited to 22.2A x number of units x 0.9.

What kind of environment is the PSP-600-27 rated for?

The listed operating temperature range is -20°C to +60°C. No IP rating is provided in the supplied specs, so environmental sealing or outdoor suitability is not established by this data set.

What are the sibling options around the PSP-600-27?

The other PSP-600 series models are PSP-600-12 at 600W, 12V, 50A; PSP-600-13.5 at 600.75W, 13.5V, 44.5A; PSP-600-15 at 600W, 15V, 40A; PSP-600-24 at 600W, 24V, 25A; PSP-600-48 at 600W, 48V, 12.5A; and PSP-600-5 at 400W, 5V, 80A.
