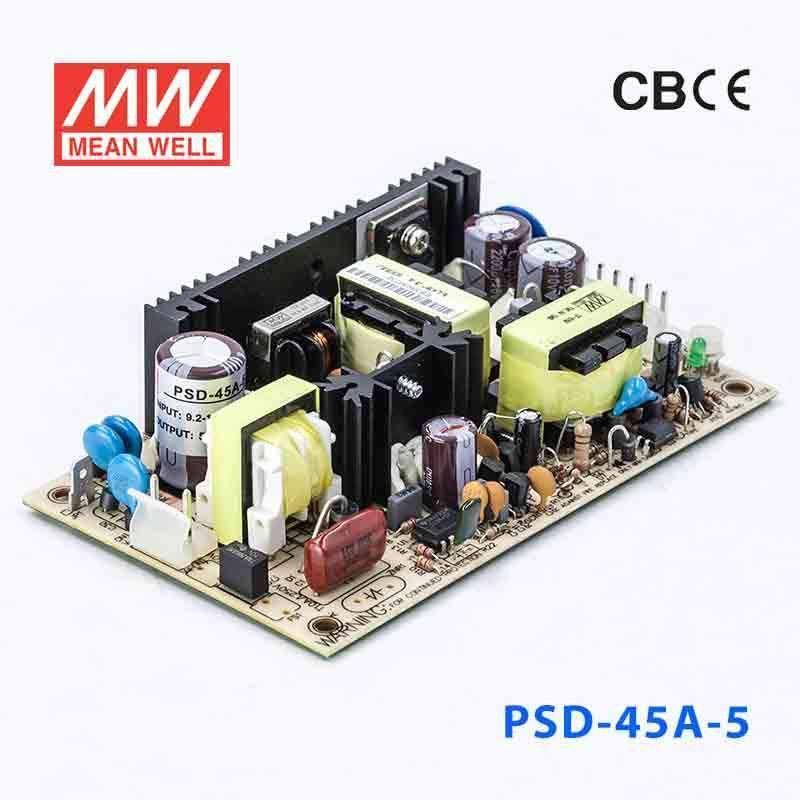

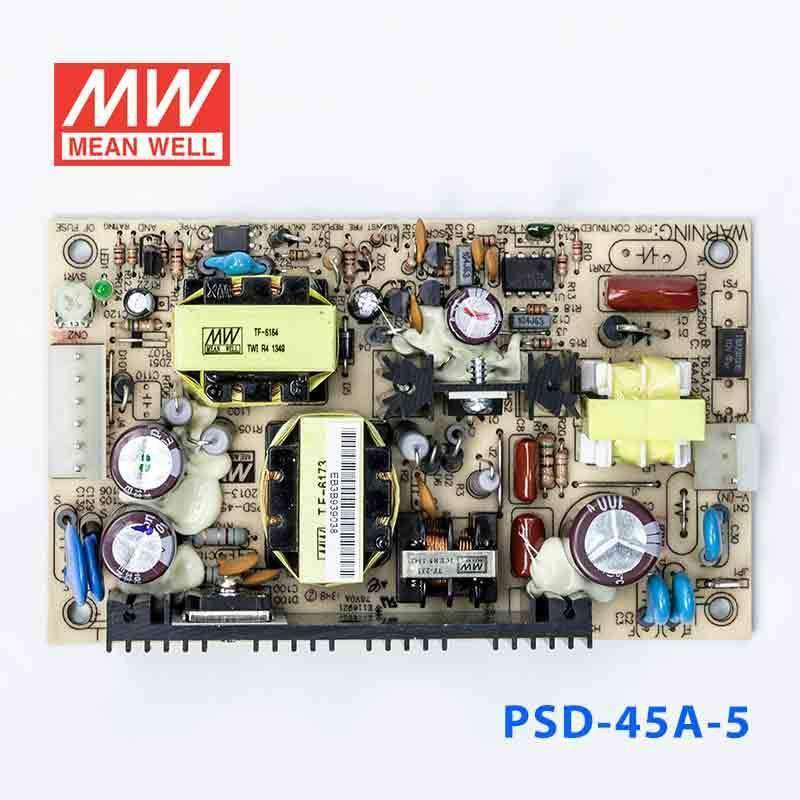

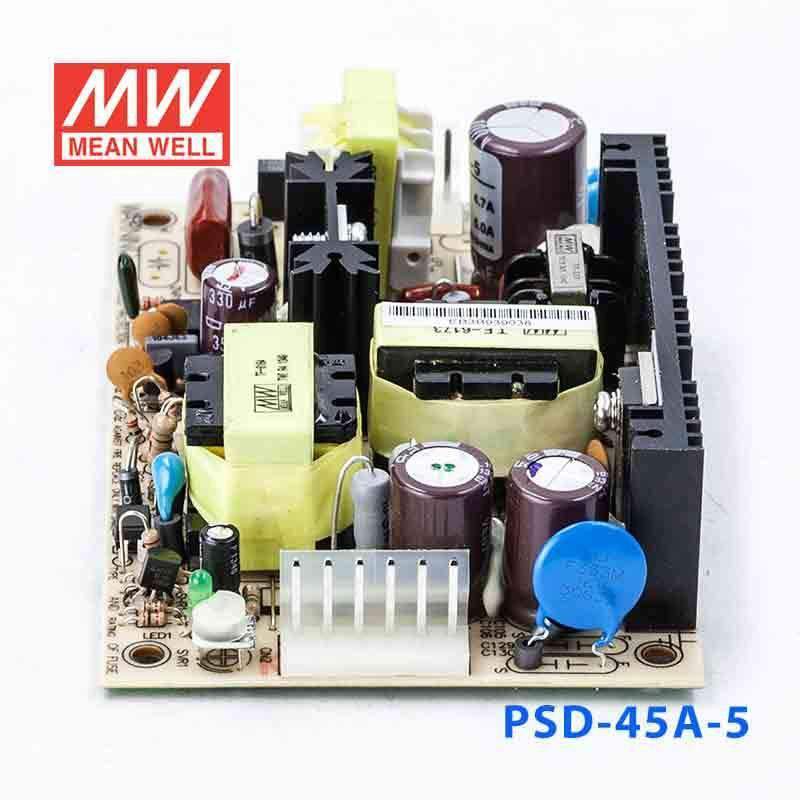

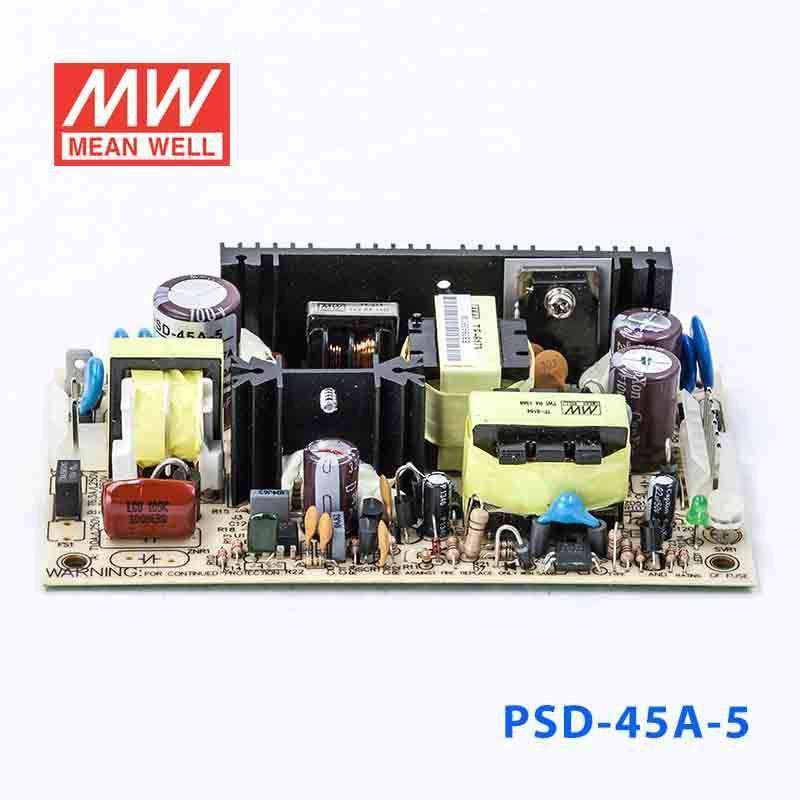

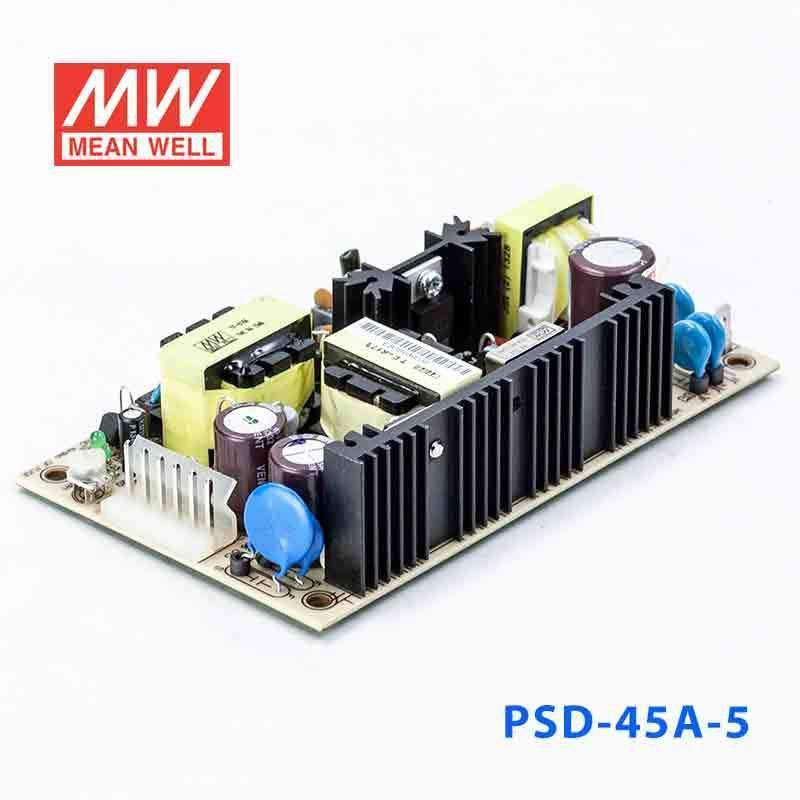

Mean Well PSD-45A-5 DC-DC Converter - 30W - 9~18V in 5V out 6A

Name: Mean Well PSD-45A-5 DC-DC Converter - 30W - 9~18V in 5V out 6A
Brand: Mean Well
SKU: PSD-45A-5
Price: 22.22 USD
Availability: InStock

2:1 wide input range1.5~2KVAC isolation by models

SKU PSD-45A-5

$22.22 USD

Shipping calculated at checkout.

In stock

Overview

PSD-45A-5 is the 5V output model of this series: rated current 6A, rated power 30W, typical efficiency 74%.

Features

2:1 wide input range
Protections:Short circuit/Over load /Over voltage/ Polarity
Cooling by free air convection
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 96KHZ
Low cost
High reliability
2 year warranty

Specifications

PSD-45A-5Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 6A
CURRENT RANGE: 0 ~ 6A
RATED POWER: 30W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ RANGE: 4.5 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ± 2.0%
LINE REGULATION: ± 1.0%
LOAD REGULATION: ± 1.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, ----/12VDC/24VDC at full load; 1500ms,50ms,----48VDC at full load

INPUT

VOLTAGE RANGE: 9.2 ~18VDC (12VDC)
EFFICIENCY(Typ.): 74%
DC CURRENT(Typ.): 3.5A/12VDC 2.5A/24VDC 1.2A/48VDC

PROTECTION

OVER LOAD: 105% -160% rated output power Protection type :shut down, Re-power on after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V/10%load Protection type : Hiccup mode, recovery automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -10 ~ +60℃ (Refer to output load derating curve),20~90%RH non-condensing
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, Period for 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMI CONDUCTION&RADIATION: Compliance to BS EN/EN55032(CISPR32) CLASS B, EAC TP TC 020
EMS IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8,BS EN/EN55035,BS EN/EN61000-6-1 Light industry level, EAC TP TC 020

OTHERS

MTBF: 3067.4K hrs min. Telcordia SR-332 (Bellcore) ; 463.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 127*76*30mm (L*W*H)
PACKING: 0.19Kg;72pcs/15.6Kg/1.28CUFT

Test conditions and notes5

1.All parameters NOT specially mentioned are measured at normal input,rated load and 25℃ of ambient temperature.
2.Ripple & noise are measued at 20 MHz of bandwidth by using a 12inch twisted pair-wire termined with a 0.1uf & 47uf capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
4.The interval of turning ON and OFF the power supply continuously is 2 seconds.
5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PSD-45A-5 Mechanical Specification — Mechanical Specification

PSD-45A-5 Output Derating — Output Derating

Downloads

Datasheet1

PSD-45A-5 datasheetPSD-45-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates2

EMC Certificate (PSD-45)(EN) PDF Download

CB Certificate (PSD-45)(EN) PDF Download

Test reports1

Test Report (PSD-45A-5)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the PSD-45A-5 for 5V embedded controllers or industrial logic boards?

Yes, this model provides a constant 5V output and can supply up to 6A. It is suited to 5V embedded or logic loads when the total requirement stays within its 30W rating.

Is the PSD-45A-5 appropriate for powering multiple 5V sensors or interface modules in one system?

It can be a practical choice for grouped 5V electronics because it offers more current headroom than lower-current 5V versions, up to 6A. The total connected load still needs to remain at or below 30W.

Would this converter work for a compact industrial computer or SBC that needs 5V power?

It can fit 5V computing or embedded hardware when the source is within 9.2-18VDC and the load stays inside 5V, 6A, and 30W. That makes it more suitable for higher-current 5V electronics than small 5W or 15W converters.

Can the PSD-45A-5 power 5V communications or automation accessories in an enclosure?

Yes, for enclosed 5V accessories that need constant-voltage output, this unit provides up to 6A. The main selection check is whether the full accessory load stays within the 30W output capacity.

Is the PSD-45A-5 suitable for outdoor cabinets or harsh plant areas?

Its specified operating temperature is -10°C to +60°C. No IP rating is shown, so the provided specs support temperature evaluation only and do not confirm exposed outdoor or water-ingress environments.
