Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

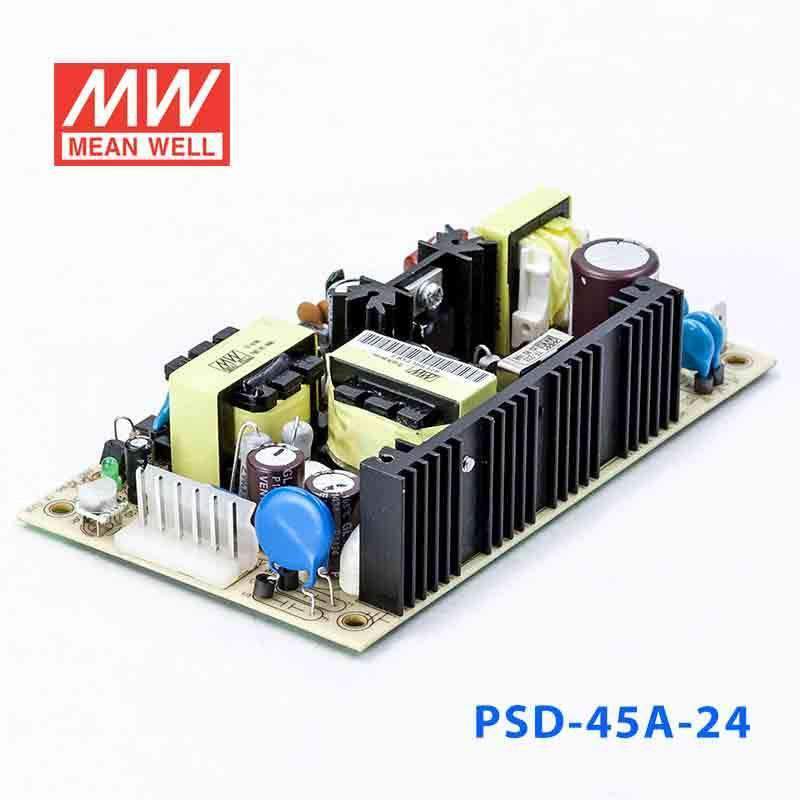

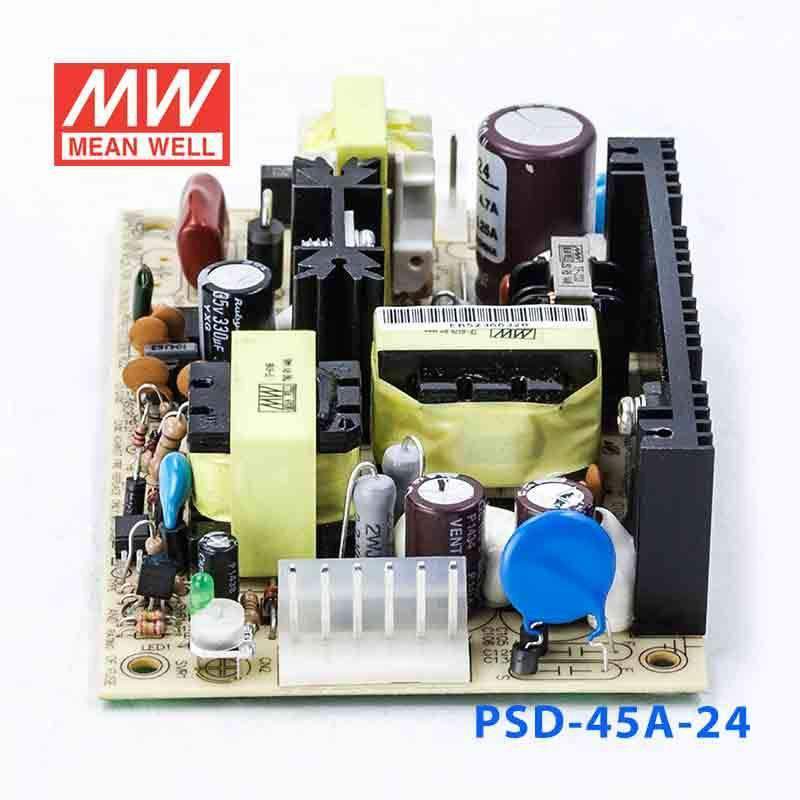

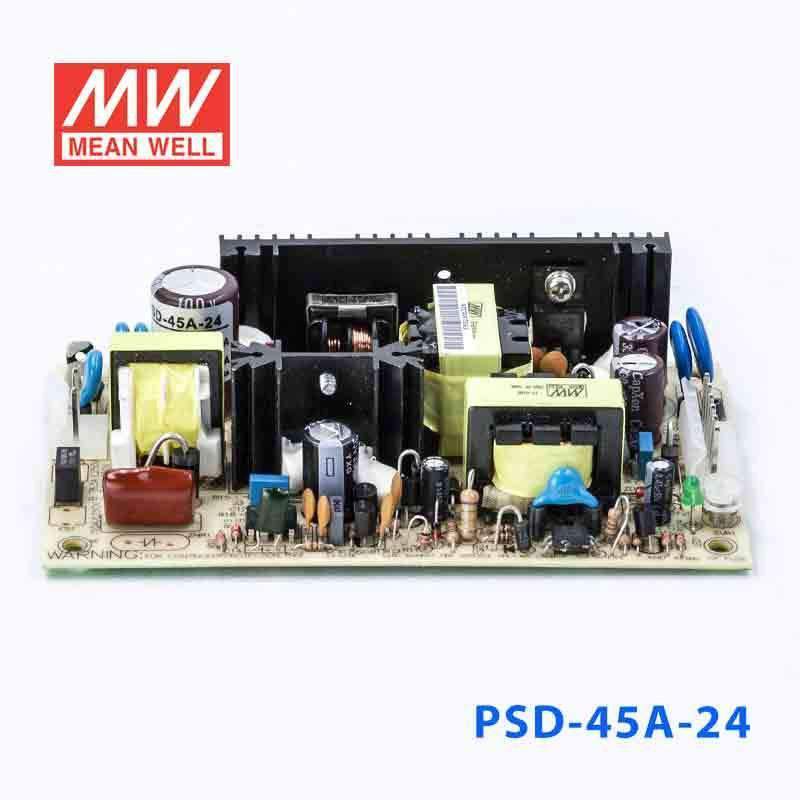

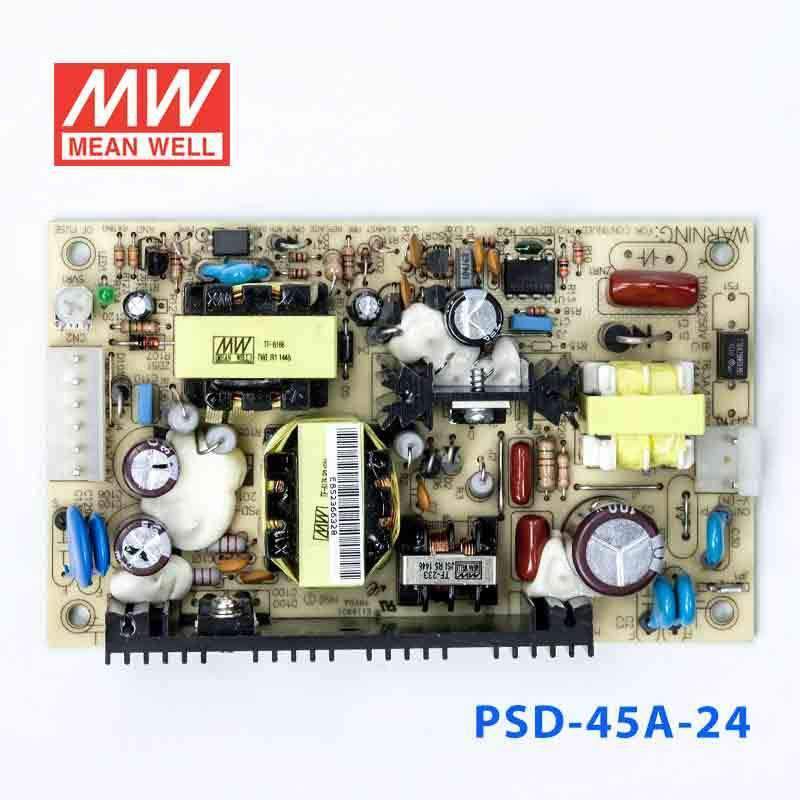

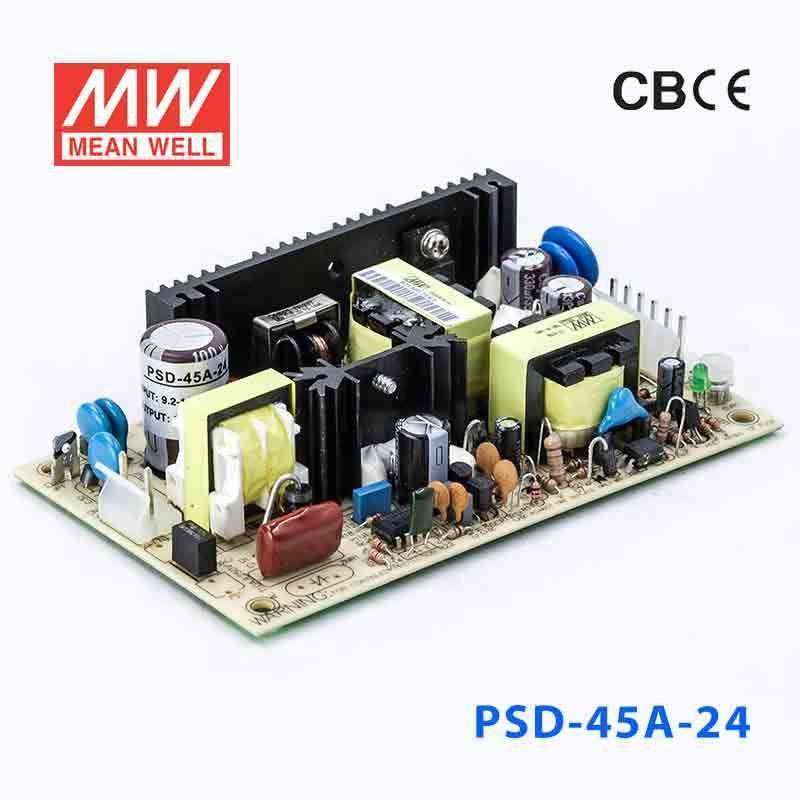

Mean Well PSD-45A-24 DC-DC Converter - 30W - 9~18V in 24V out
$22.22 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 1500VAC I / O isolation |
| Built-in EMI filter, low ripple noise |
| Protections: Short circuit / Overload / Over voltage / Reverse polarity |
| 100% full load burn-in test |
| Low cost |
| Cooling by free air convection |
| Fixed switching frequency at 96kHz |
| 2 years warranty |
General Specification
| DC adjustment range | 5V: 4.5 to 5.5 V, 12 V: 10.8 to 13.2 V, 24 V: 21.6 to 26.4 V |
| Overload protection | 105% ~ 160% shut down, re-power on to recover |
| Over voltage protection | 115% ~ 135% rated output voltage |
| Withstand voltage | I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute |
| Line and load regulation | ± 1% (max.) |
| Working temperature | -10 ~ + 60°C (refer to output derating curve) |
| Connection | 2P, 6P / 3.96mm pitch, Molex 5277-02, 5273-06 |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,6,8, EN55024 |
| Dimension (LxWxH) (mm) | 127x 76x 30 mm |
| Safety standards | EN60950-1 CB approved by TUV |
| Packing | 0.19 kg; 72 pcs / 15.6 kg / 1.35CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage9V~18V
-
Standards MetCB,CE,EAC,EMC,RCM,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5 in
-
Width2.99 in
-
Height1.18 in
-
Weight0.42 lb
