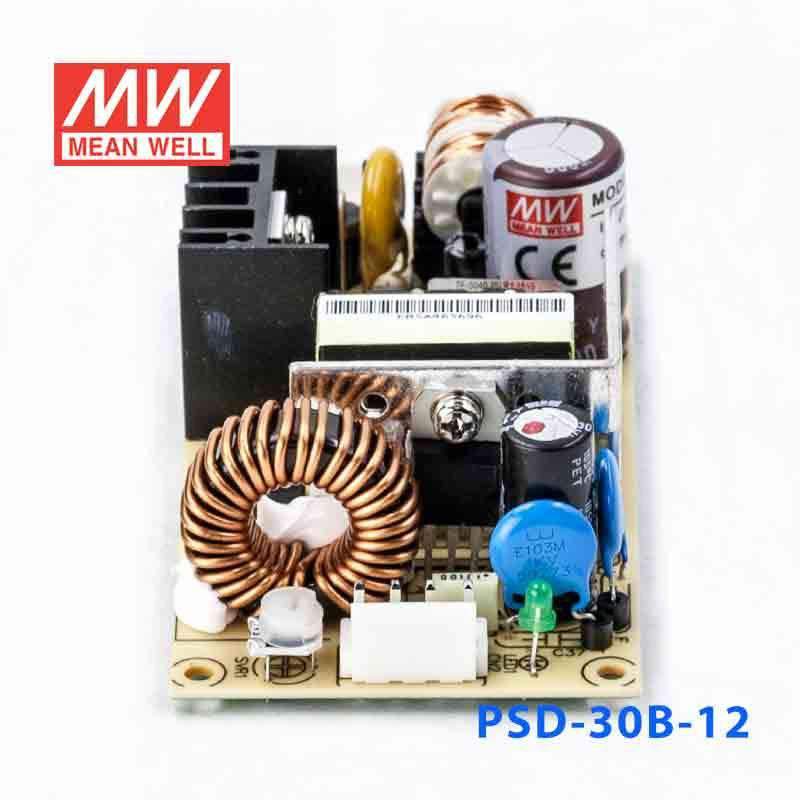

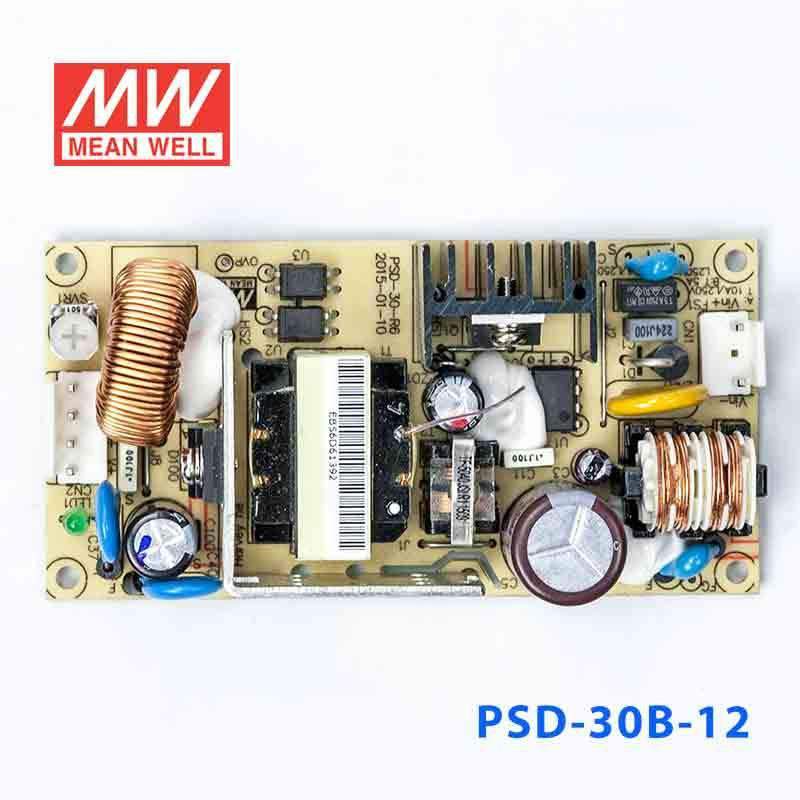

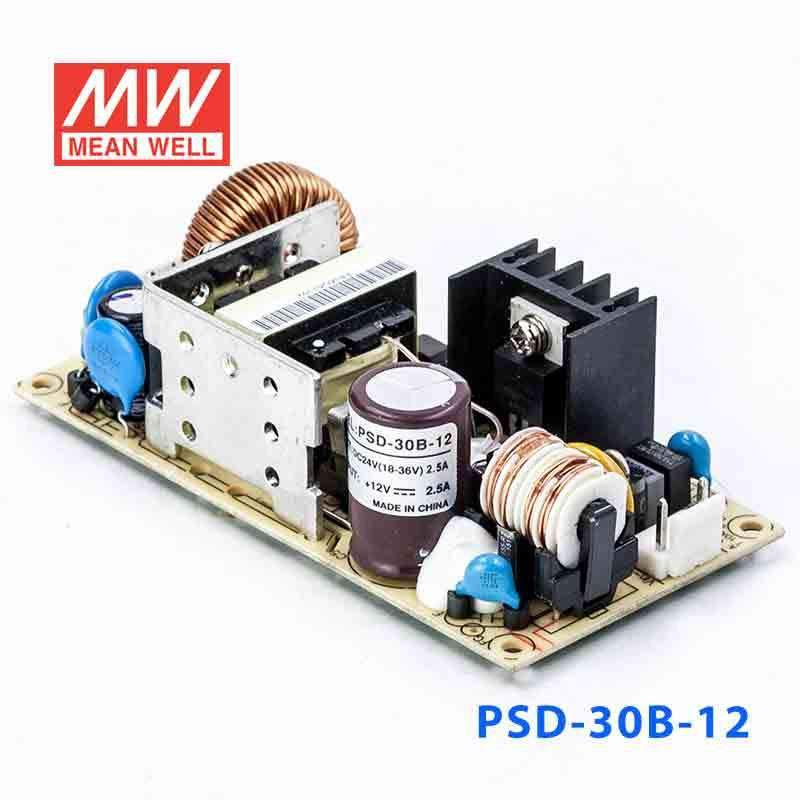

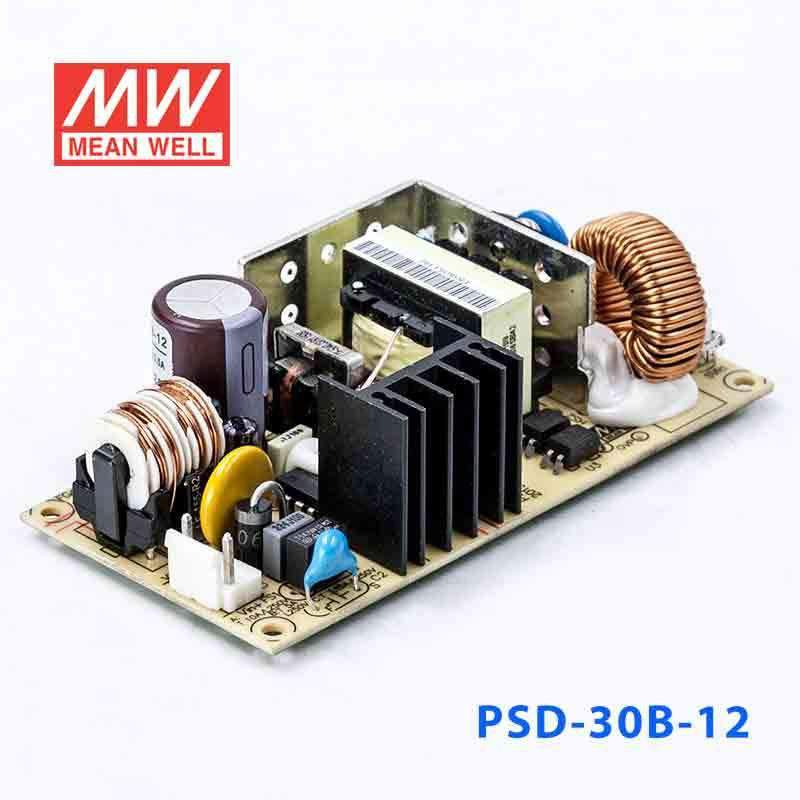

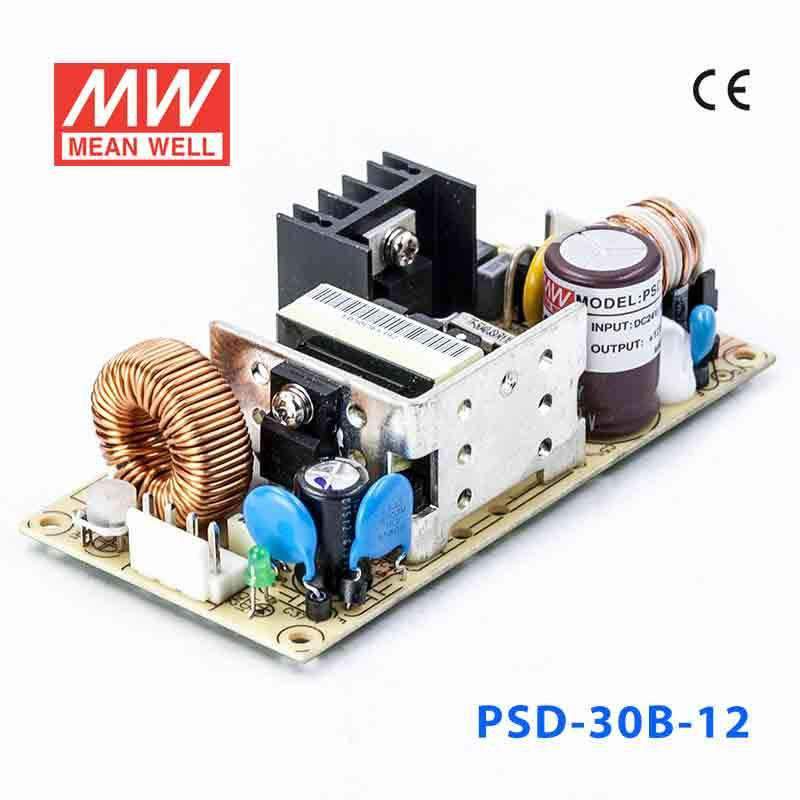

Mean Well PSD-30B-12 DC-DC Converter - 30W - 18~36V in 12V out
$17.22 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 1500VAC I / O isolation |
| Built-in EMI filter, low ripple noise |
| Protections: Short circuit / Overload / Over voltage / Reverse polarity |
| 100% full load burn-in test |
| Low cost, high reliability |
| Cooling by free air convection |
| 2 years warranty |
General Specification
| DC adjustment range | 5V: 4.5 to 5.5 V, 12 V: 11 to 13.5 V, 24 V 22 to 26 V |
| Overload protection | 105% ~ 150% hiccup mode, auto-recovery |
| Over voltage protection | 115% ~ 150% rated output voltage |
| Withstand voltage | I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute |
| Line and load regulation | ± 1% (max.) |
| Working temperature | -20 ~ + 60 ° C (refer to output derating curve) |
| Connection | 3P, 4P / 3.96mm pitch, JST B3P / B4P-VH-B |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,6,8, EN55024 |
| Dimension (LxWxH) (mm) | 101.6x 50.8x 30 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage18V~36V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4 in
-
Width2 in
-
Height1.18 in
-
Weight0.33 lb
