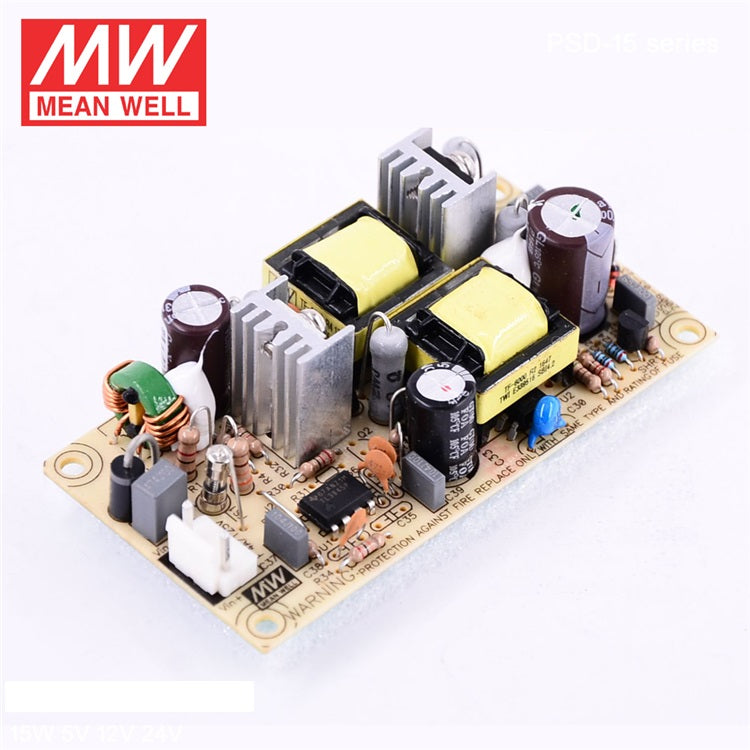

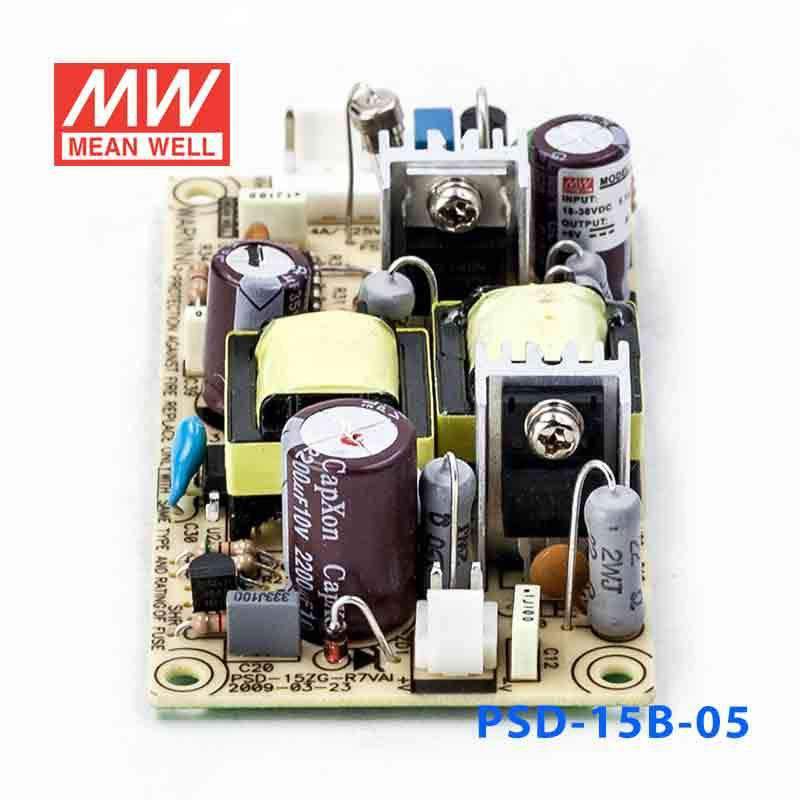

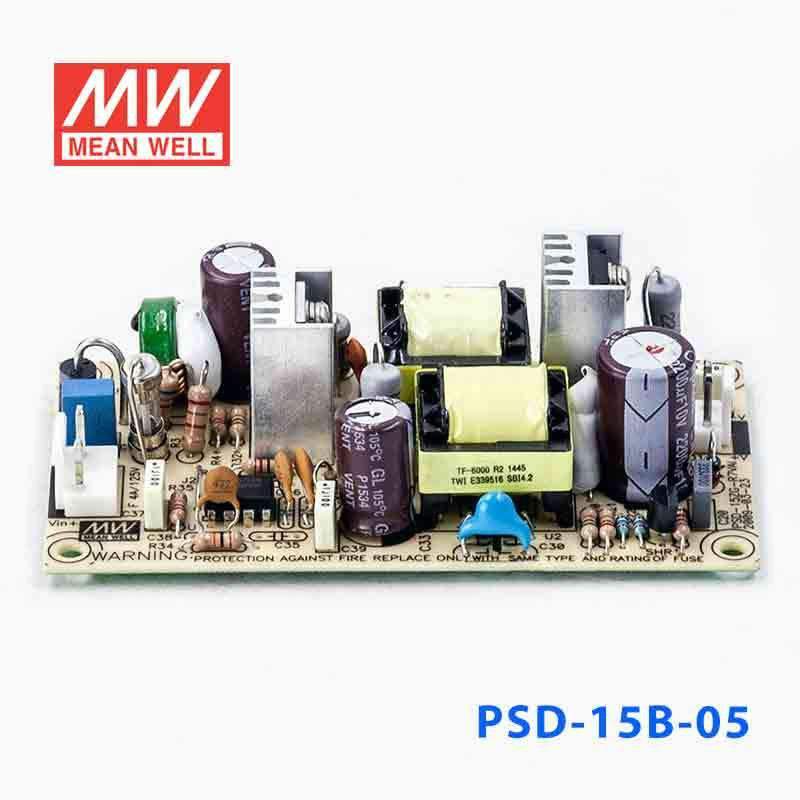

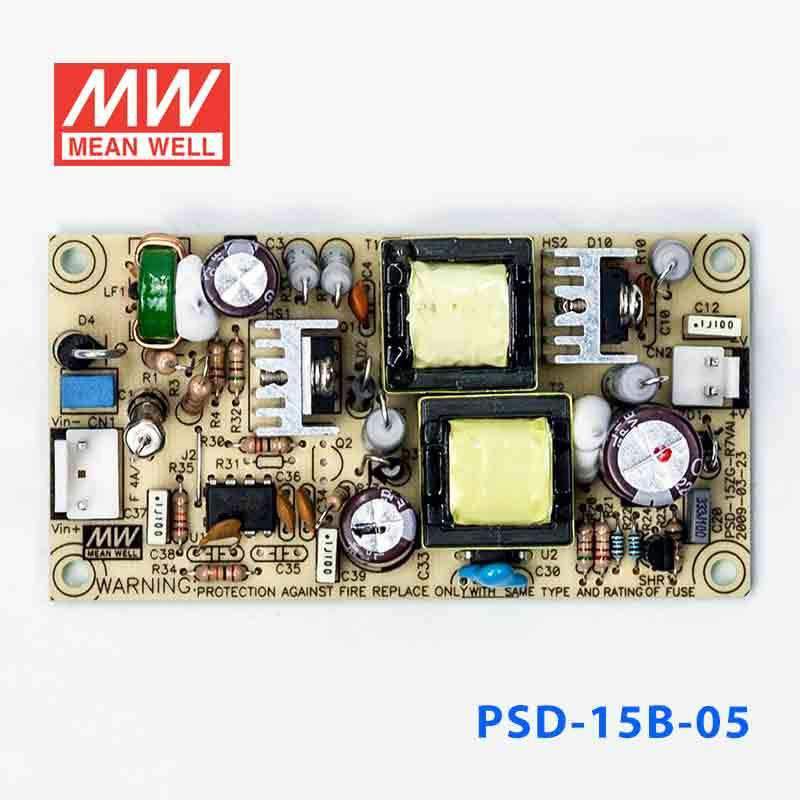

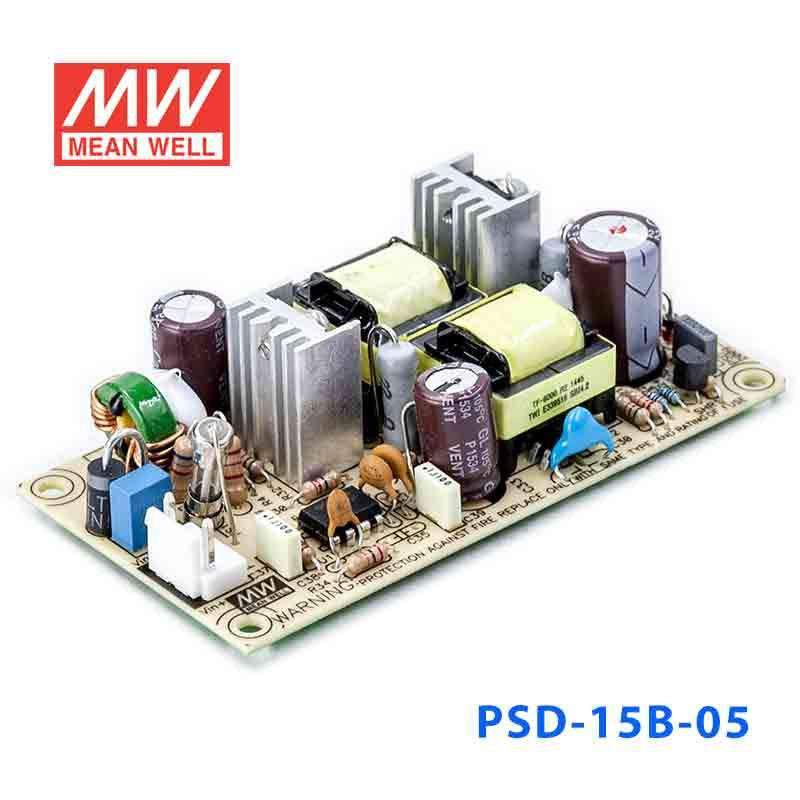

Mean Well PSD-15B-5 Switching Power Supply 15W 5V
$12.84 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 2000VAC I / O isolation |
| Built-in EMI filter, low ripple noise |
| Protections: Short circuit / Overload / Over voltage / Polarity |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 1.0% (max.) |
| Overload protection | 105% ~ 150% hiccup mode, auto-recovery |
| Over voltage protection | 115% ~ 135% rated output voltage |
| Withstand voltage | I / PO / P: 2 k VAC, I / P-FG: 1.5 k VAC, 1 minute |
| Isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -10 ~ + 60°C |
| Safety standards | Meet LVD |
| SEMC standards | EN55022 class B, EN61000-4-2, 3, 4, 6, 8 |
| Connection | 3P, 2P / 3.96mm pitch, JST B3P / B2P-VH |
| Packing | 0.081 kg; 120 pcs / 10.72 kg |
| Dimension (LxWxH) (mm) | 94x 49x 25 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSD Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage9.2V~72V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.7 in
-
Width1.93 in
-
Height0.98 in
-
Weight0.18 lb
