Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

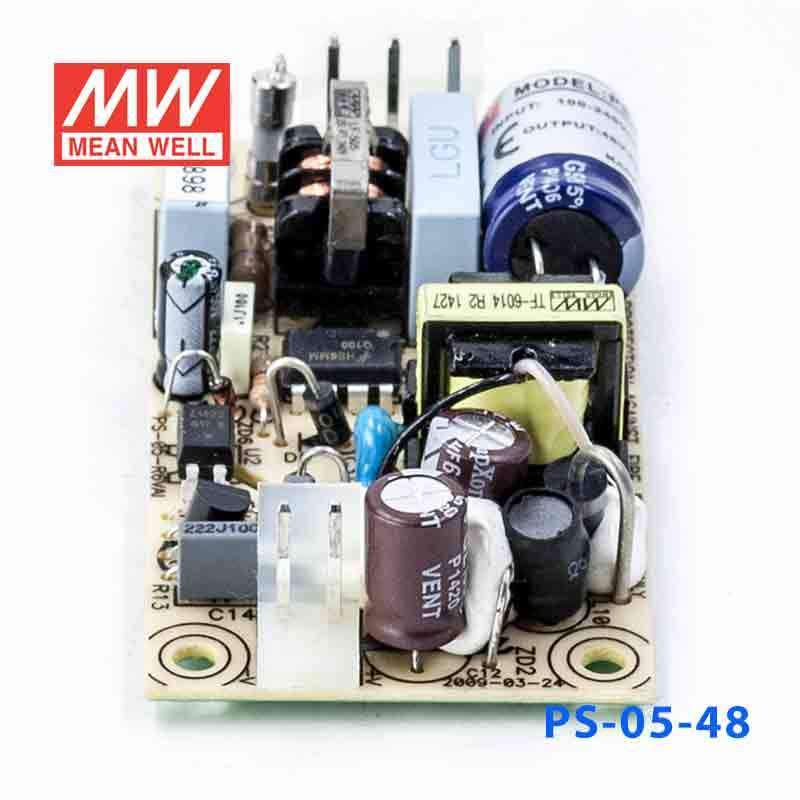

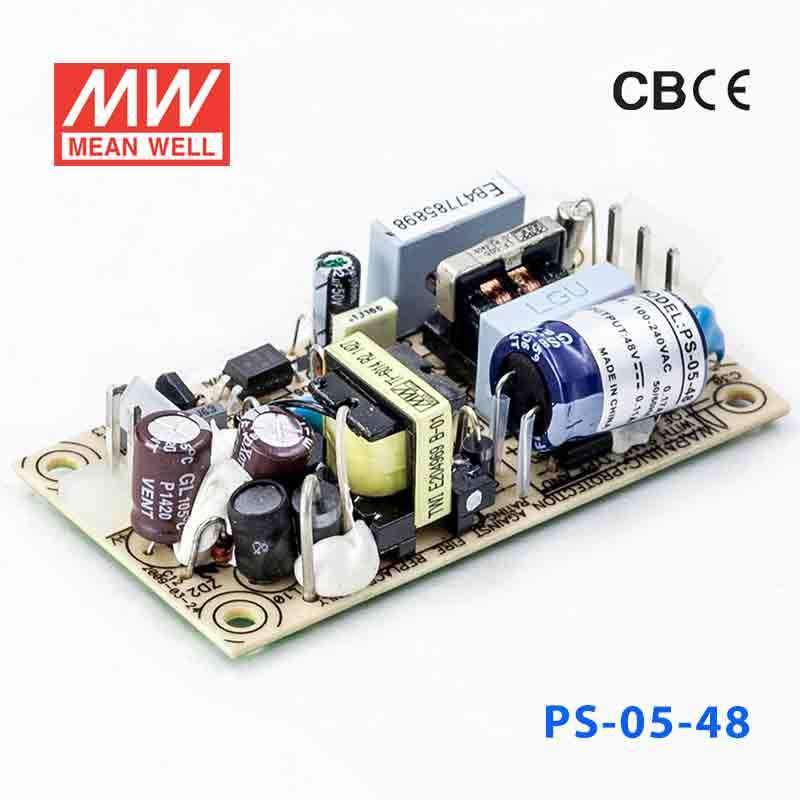

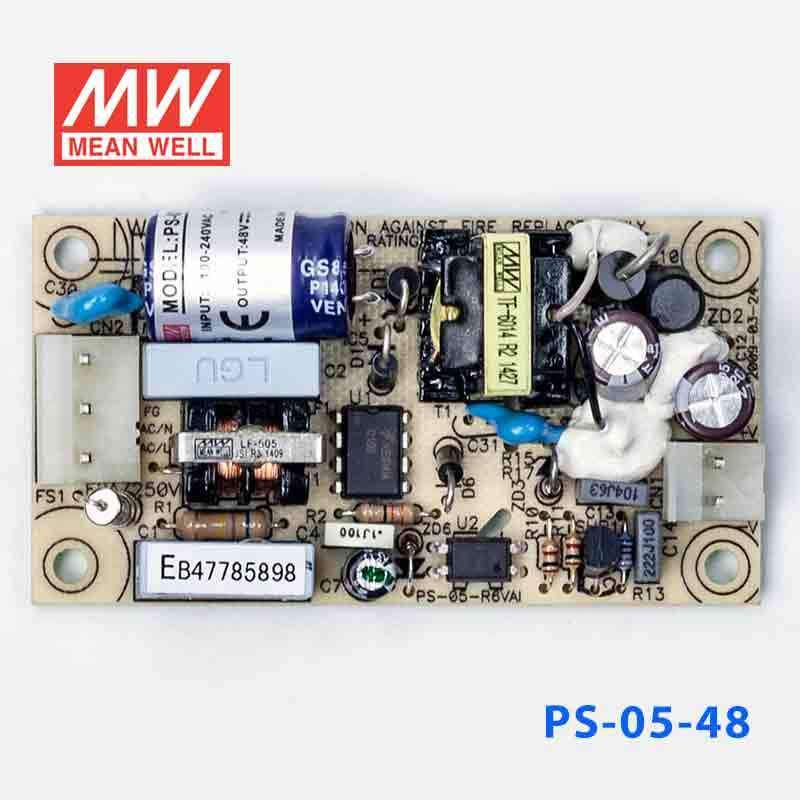

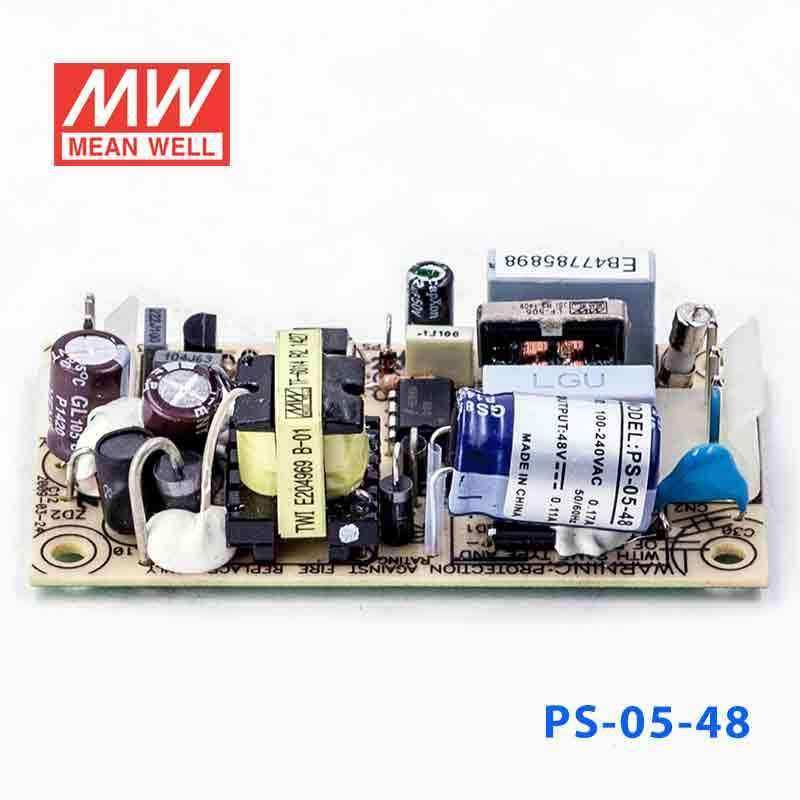

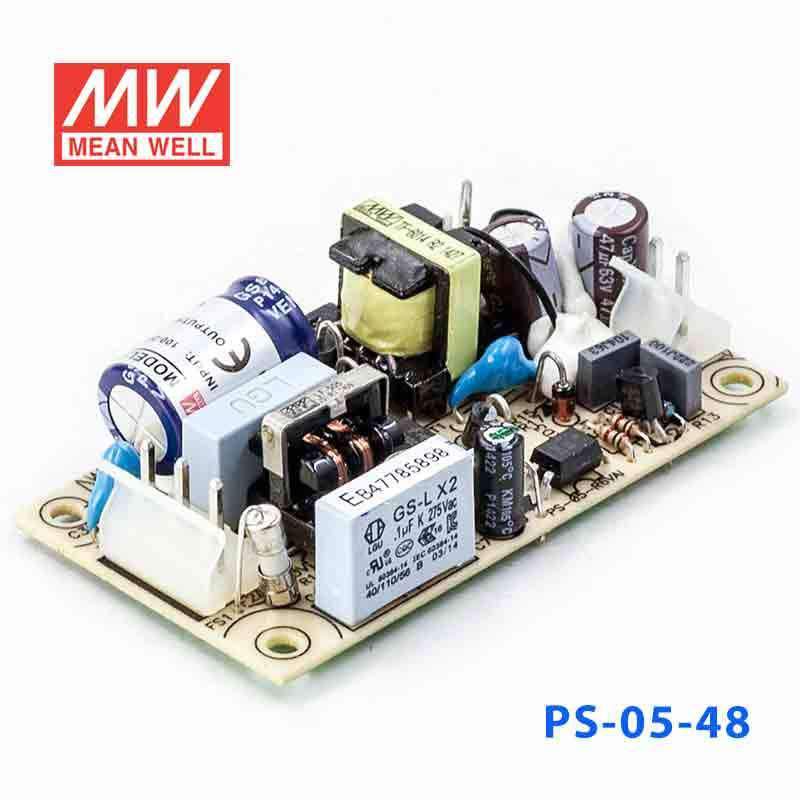

Mean Well PS-05-48 Power Supply 5W 48V
$8.01 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Cooling by free air convection |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Fixed switching frequency at 67kHz |
| Low leakage current <0.5mA |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 30A at 230VAC |
| Over temp. protection | U1, Tj:140°C, hiccup mode, auto-recovery |
| Overload protection | >105% hiccup mode, auto-recovery |
| Over-voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -10~+60°C (refer to output derating curve) |
| Leakage current | Less than 0.5mA at 240VAC |
| Safety standards | UL60950-1 CB approval by TUV |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 3P/ 5mm, 2P/ 3.96mm pitch, Molex 5285-03,5273-02 |
| Dimension (LxWxH) | 75x 40x 20 mm |
| Packing | 0.05kg ; 120pcs / 6.25kg / 1.0CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPS Series
-
Power Rating5.28 Watt
-
Output Voltage48 Volt
-
Rated Current0.11 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length2.95 in
-
Width1.57 in
-
Height0.79 in
-
Weight0.11 lb
