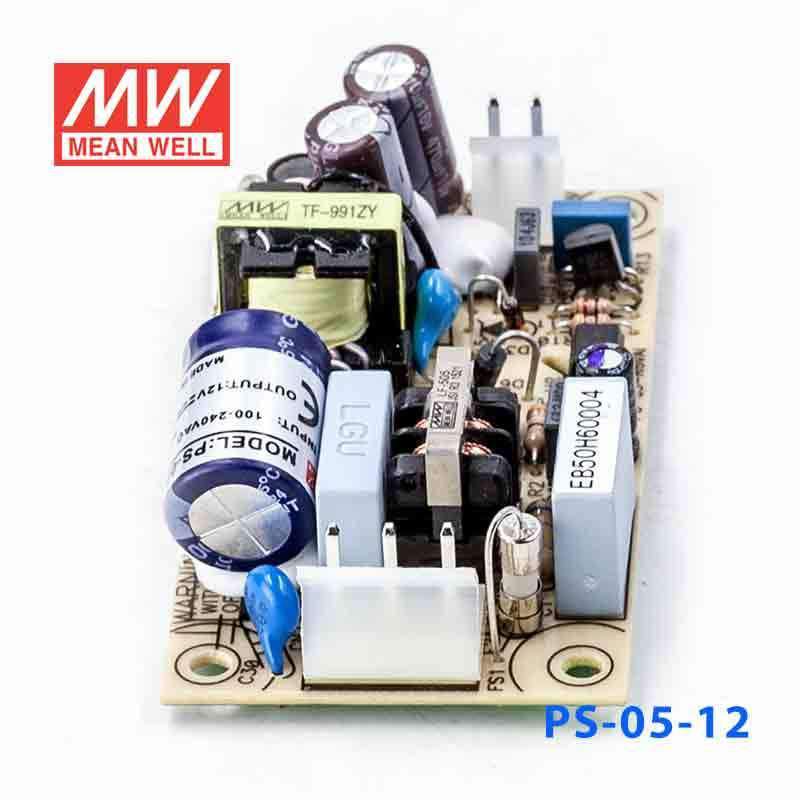

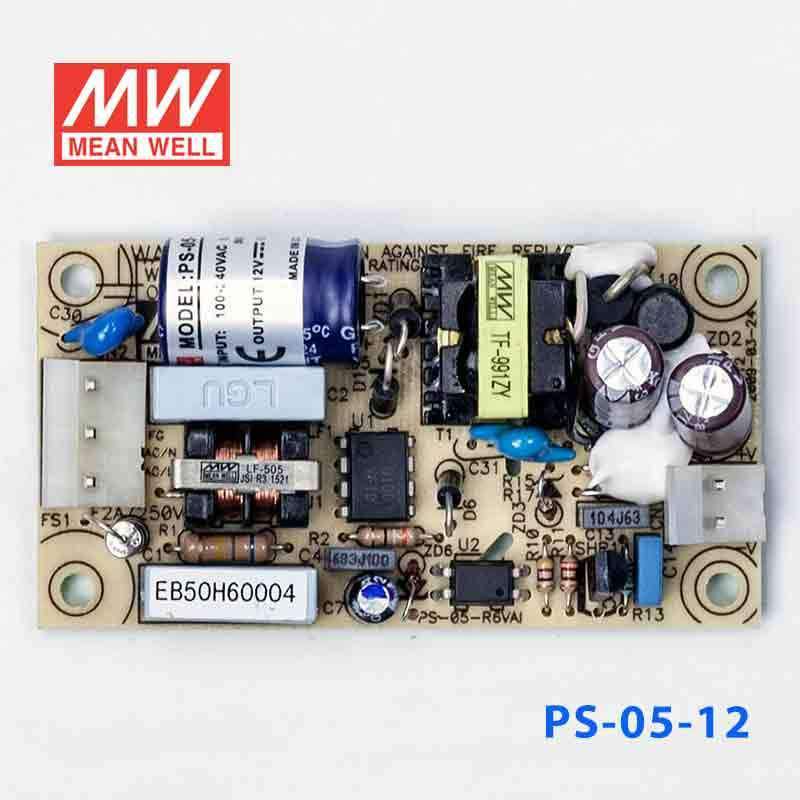

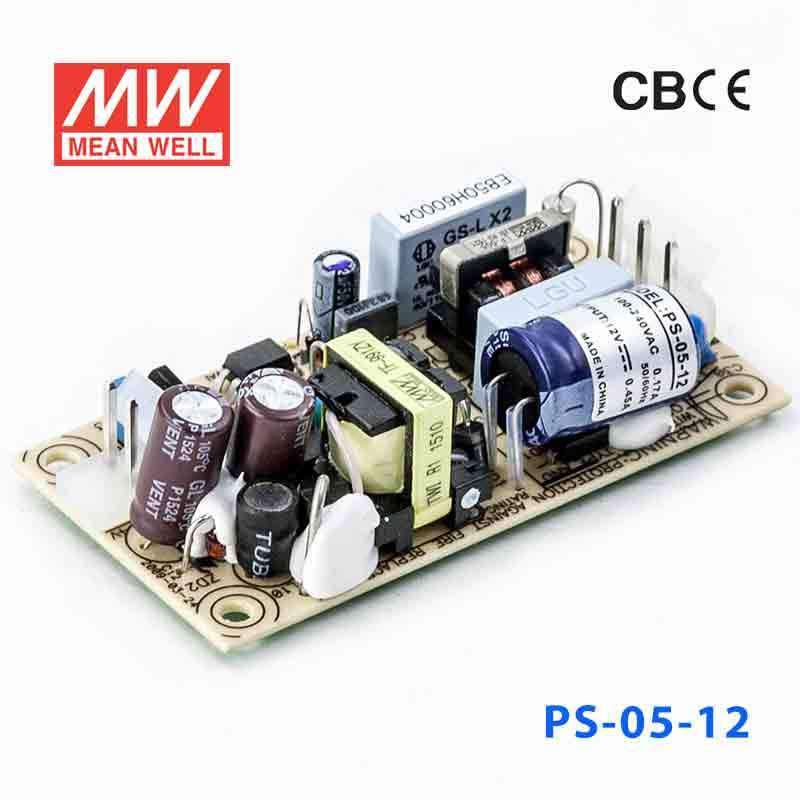

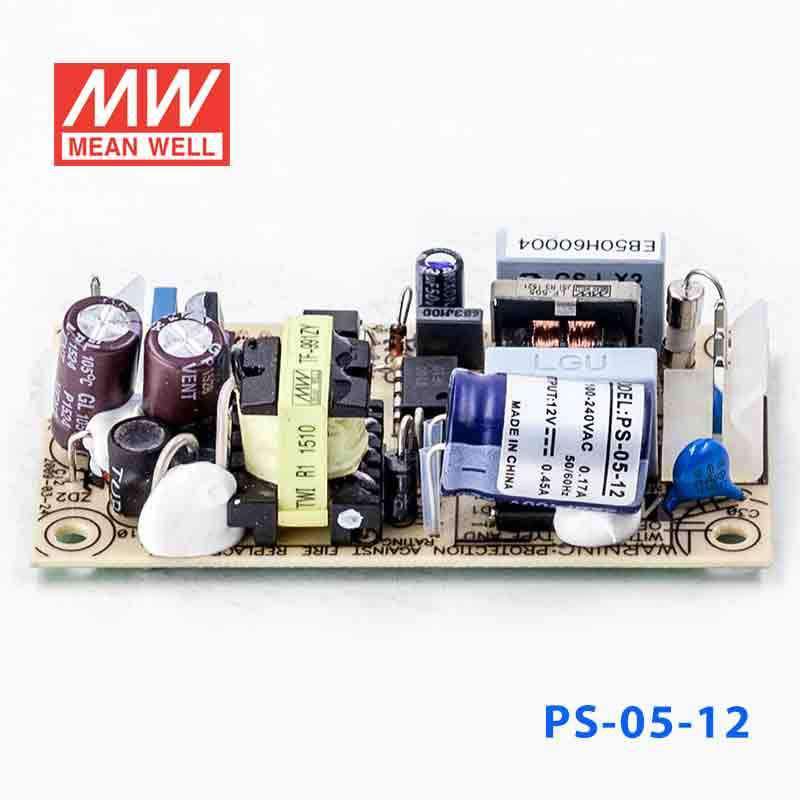

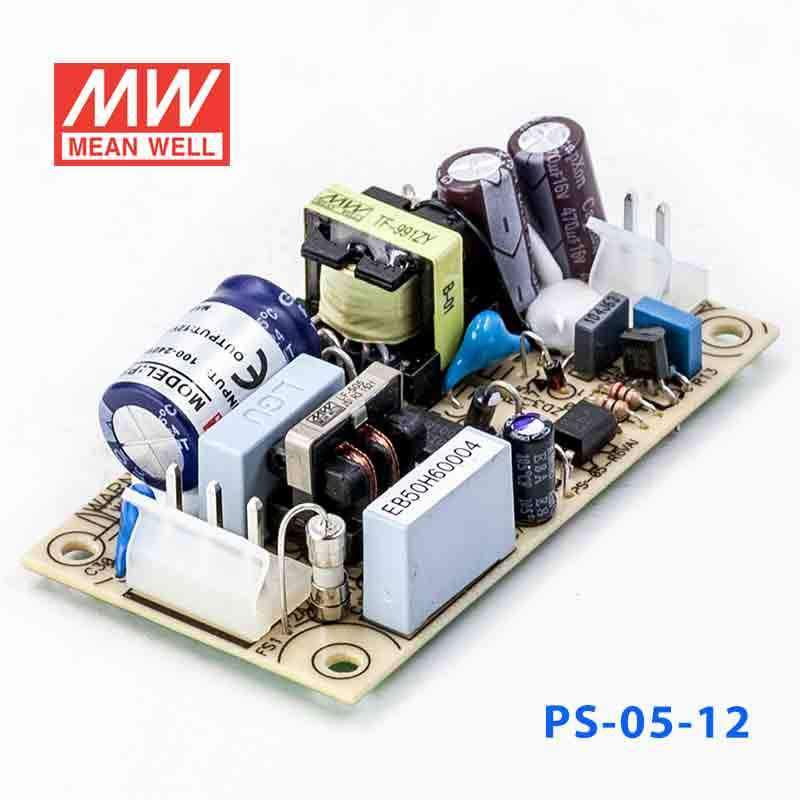

Mean Well PS-05-12 Power Supply 5W 12V 450mA

low leakage current < 0.5mAlow costhigh reliability
SKU PS-05-12
$7.98 USD
Shipping calculated at checkout.
Available to order
|

Overview

PS-05-12 is the 12V output model of this series: rated current 0.45A, rated power 5.4W, typical efficiency 75%.

Features

  • Universal AC input / Full range
  • Low leakage current <0.5mA
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 67KHz
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

PS-05-12Specifications from the official datasheet (2024-02-23 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
0.45A
CURRENT RANGE
0 ~ 0.5A
RATED POWER
5.4W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 20ms
HOLD UP TIME(Typ.)
100ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
75%
AC CURRENT (Typ.)
0.15A/115VAC 0.07A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovery automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V
OVER TEMPERATURE
Hiccup mode, recovery automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMI CONDUCTION & RADIATION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
HARMONIC CURRENT
Compliance to BS EN/EN61000-3-2,-3
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
6873.2K hrs min. Telcordia SR-332 (Bellcore) ; 1271.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
75*40*20mm (L*W*H)
PACKING
0.05Kg; 120pcs/6.25Kg/0.56CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

PS-05-12 Mechanical Specification
Mechanical Specification
PS-05-12 Block Diagram
Block Diagram
PS-05-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the PS-05-12 for a 12V sensor, relay, or small control circuit?

Yes, this is a constant voltage 12V power supply rated for 0.45A and 5.4W. It is appropriate for small 12V control circuits, sensors, relays, and similar low-power industrial or automation loads within that output range.

Is the PS-05-12 suitable for low-power 12V embedded or instrumentation electronics?

Yes, its 12V regulated output and 5.4W capacity make it a fit for low-power embedded and instrumentation electronics that do not exceed 0.45A. It is intended for constant voltage applications rather than higher-power 12V equipment.

Can this model be used where AC input conditions may vary between sites?

Yes, the input range is 85-264VAC, which supports use across a wide span of AC input conditions. That can be useful for standardized low-power 12V equipment deployed in different facilities.

How does the PS-05-12 compare with the other low-power PS-05 models?

Within the PS-05 group listed here, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The main difference between them is the output voltage and corresponding current rating.

Is the PS-05-12 meant for outdoor installations or only indoor equipment?

The operating temperature range is -10°C to +60°C, which supports many indoor equipment environments. No IP rating is listed in the provided specs, so the product data does not state suitability for outdoor exposure or wet locations.
