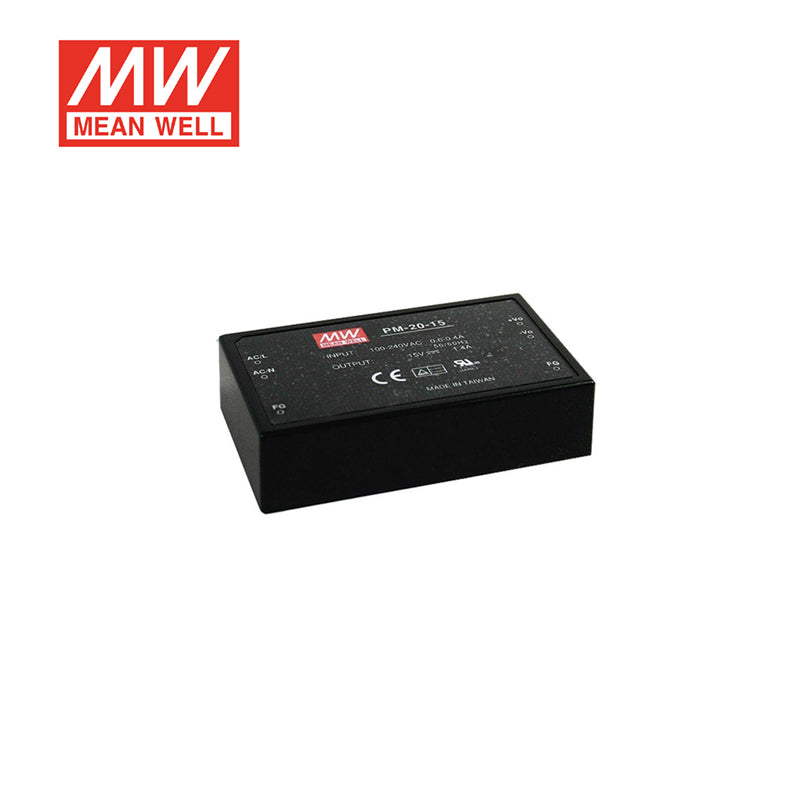

Mean Well PM-20-15 On Board Switching Power Supply
$19.37 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Low leakage current <300uA |
| Protections: Short circuit / Overload / Over voltage |
| Ultra-miniature size, light weight |
| Cooling by free air convection |
| Medical safety approved (2 x MOPP between primary to secondary) |
| No load power consumption<0.75W |
| 100% full load burn-in test |
| Fixed switching frequency at 90KHz |
| High reliability |
| Suitable for BF application with appropriate system consideration |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 1.0% |
| Overload protection Range | Above 105% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut off o/p voltage, clamping by zener diode |
| Withstand voltage | I/P-O/P:4KVAC | I/P-FG:2KVAC | O/P-FG:1.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |

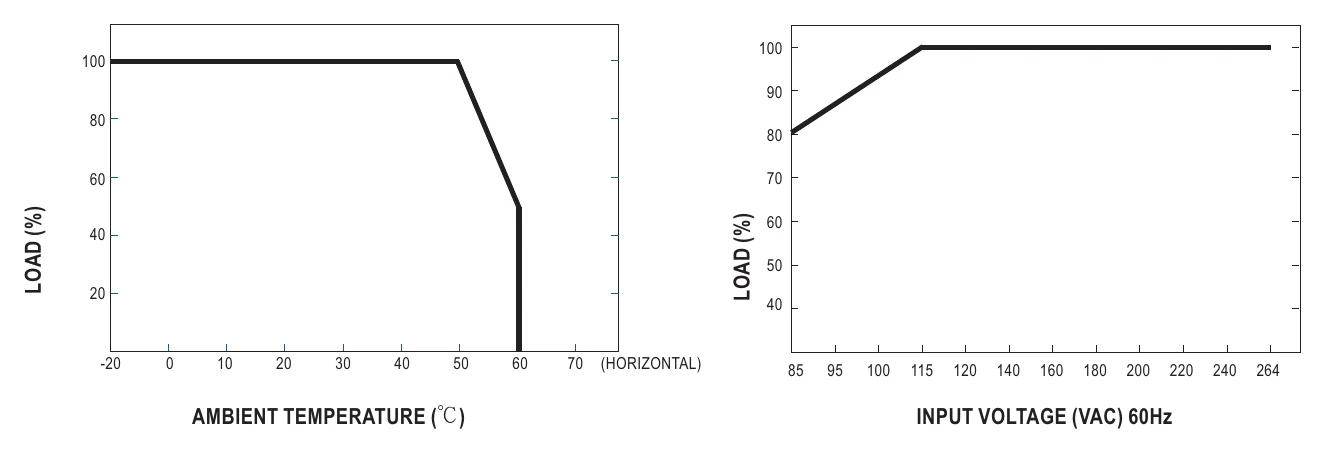

| Working temperature | -20 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved |
| Dimension (LxWxH) (mm) | 94*56*22.7mm (L*W*H) |
| Packing | 0.18Kg; 90pcs/17.2Kg/0.94CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPM Series
-
Power Rating21 Watt
-
Output Voltage15 Volt
-
Rated Current1.4 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,EAC,FCC
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length3.7 in
-
Width2.2 in
-
Height0.87 in
-
Weight0.4 lb
