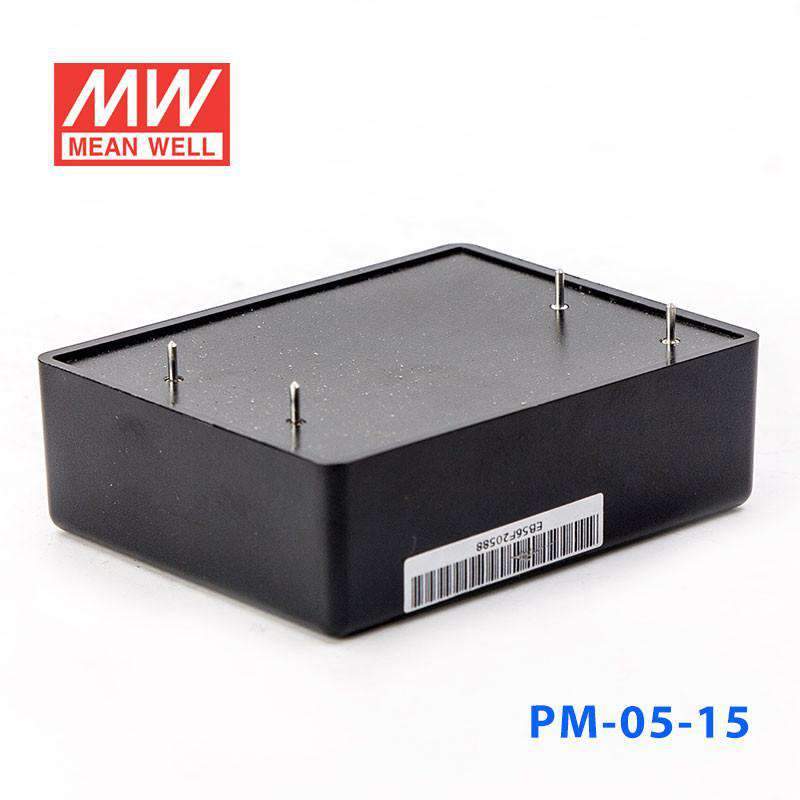

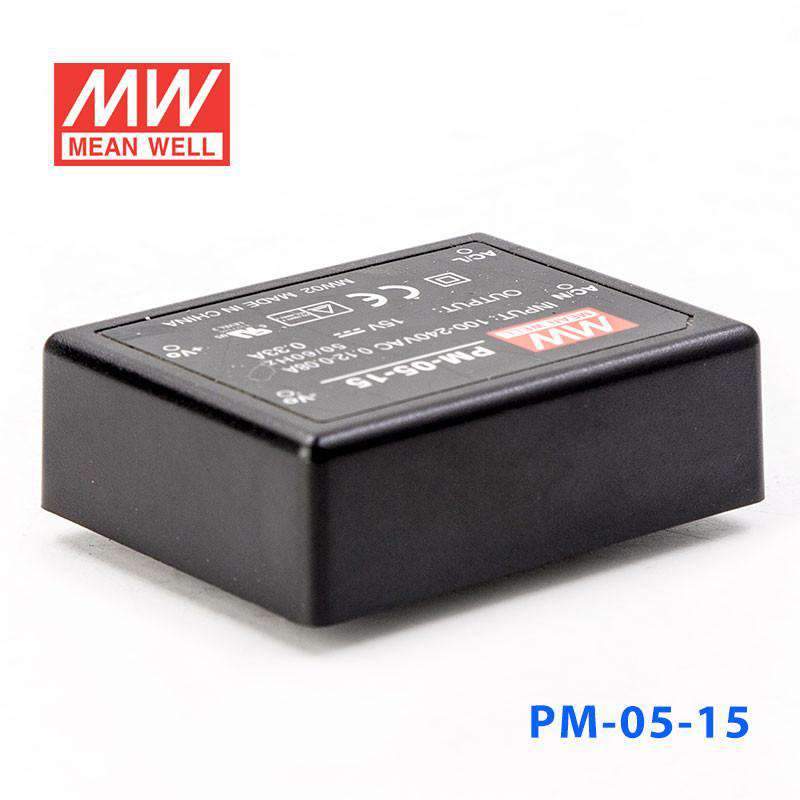

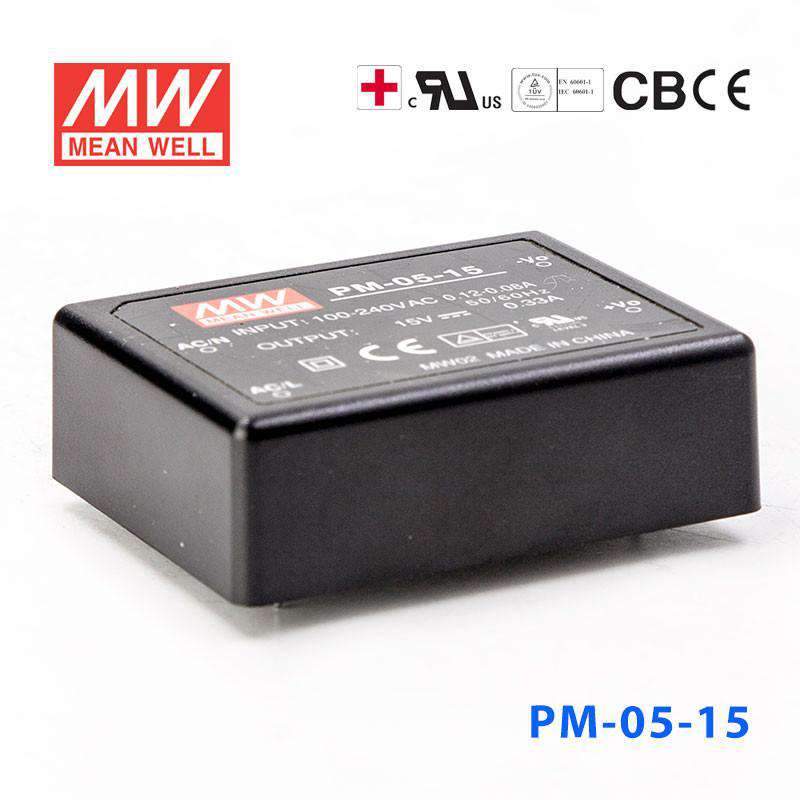

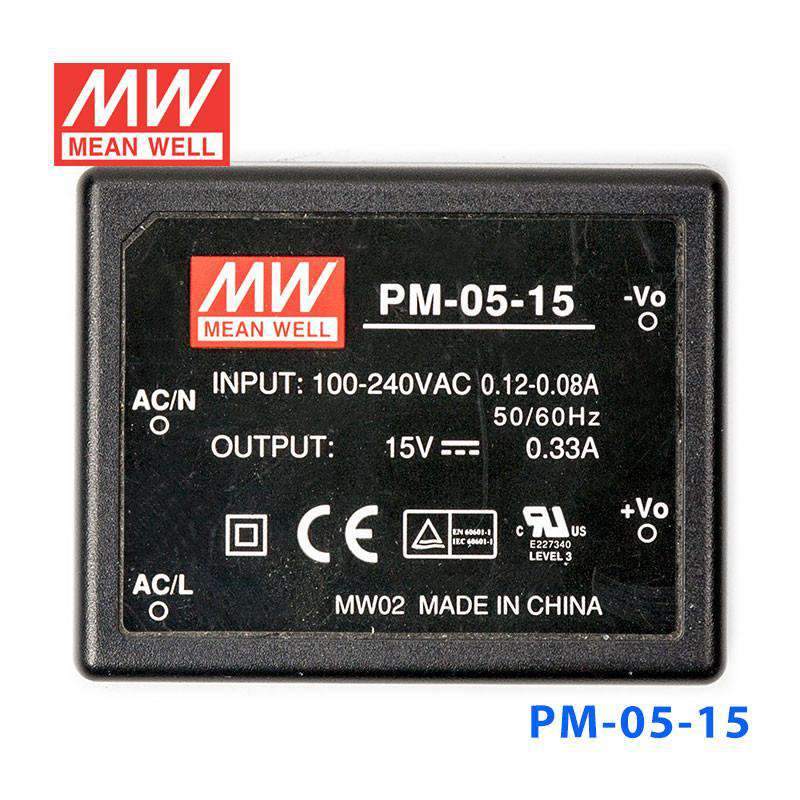

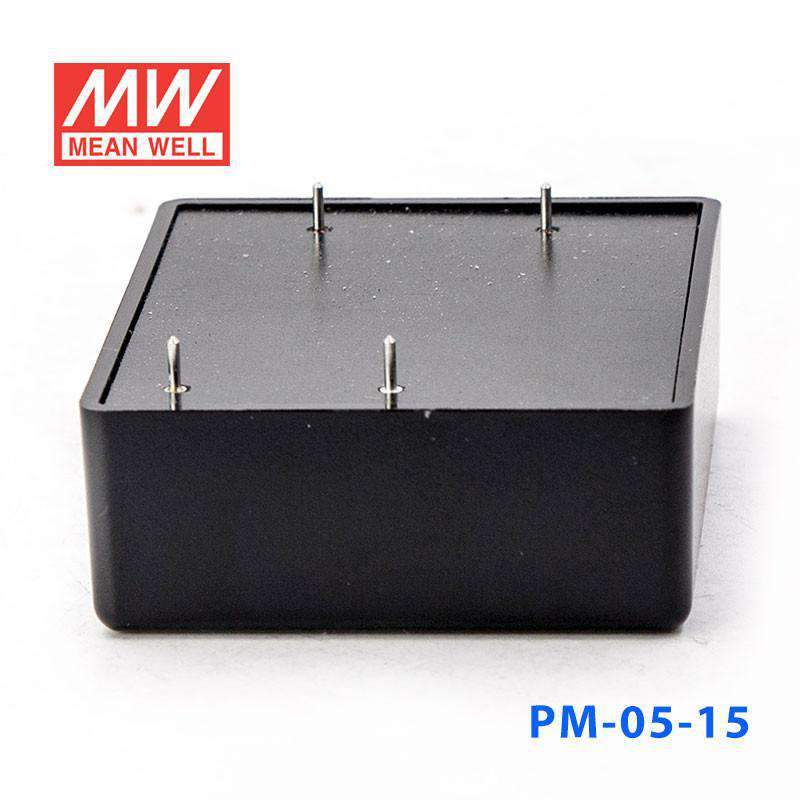

Mean Well PM-05-15 Power Supply 5W 15V

$20.44 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

  • Universal AC input / Full range
  • Protections:Short circuit/Over load/Over voltage
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation class II
  • UL60601-1/IEC60601-1/EN60601-1 medical safety approved
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    PM Series
  • Power Rating
    4.95 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.33 Ampere
  • Input Voltage
    85V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    2.47 in
  • Width
    1.97 in
  • Height
    0.78 in
  • Weight
    0.17 lb
