Mean Well

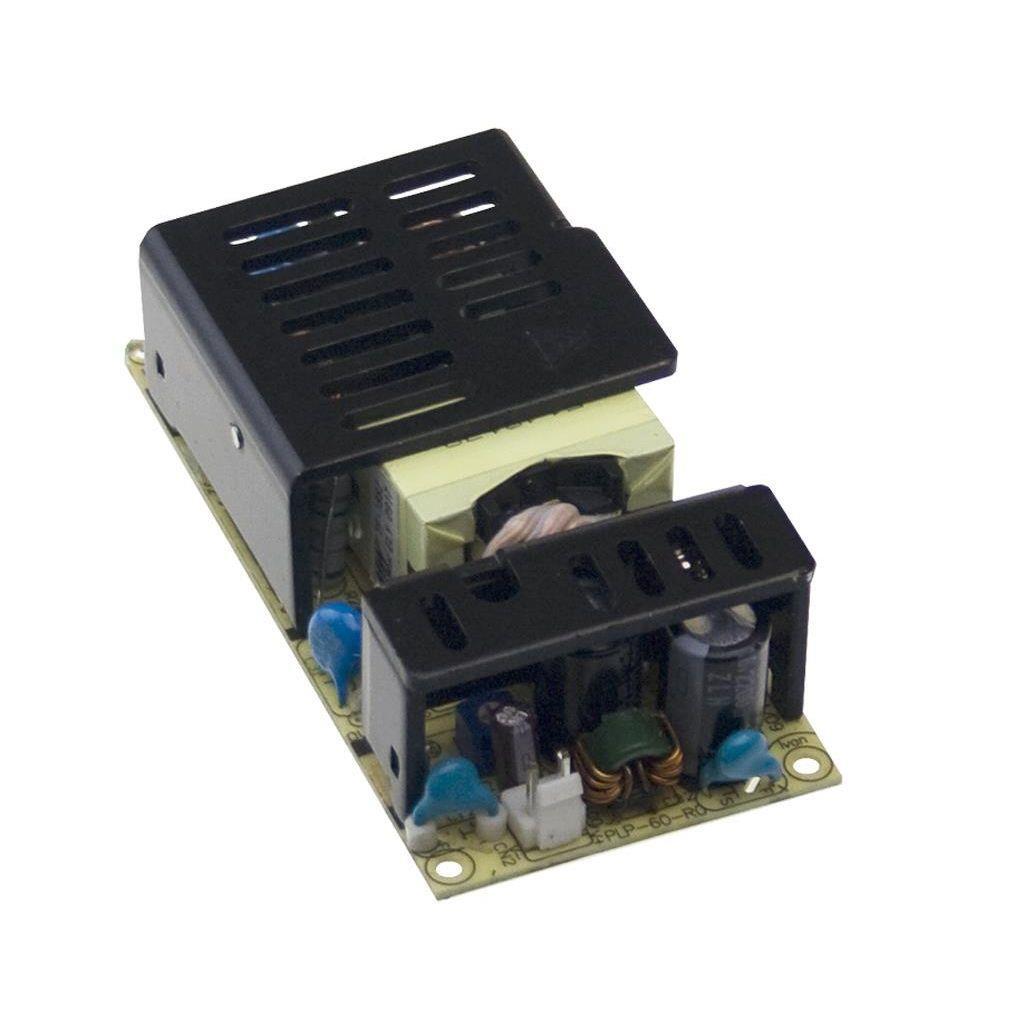

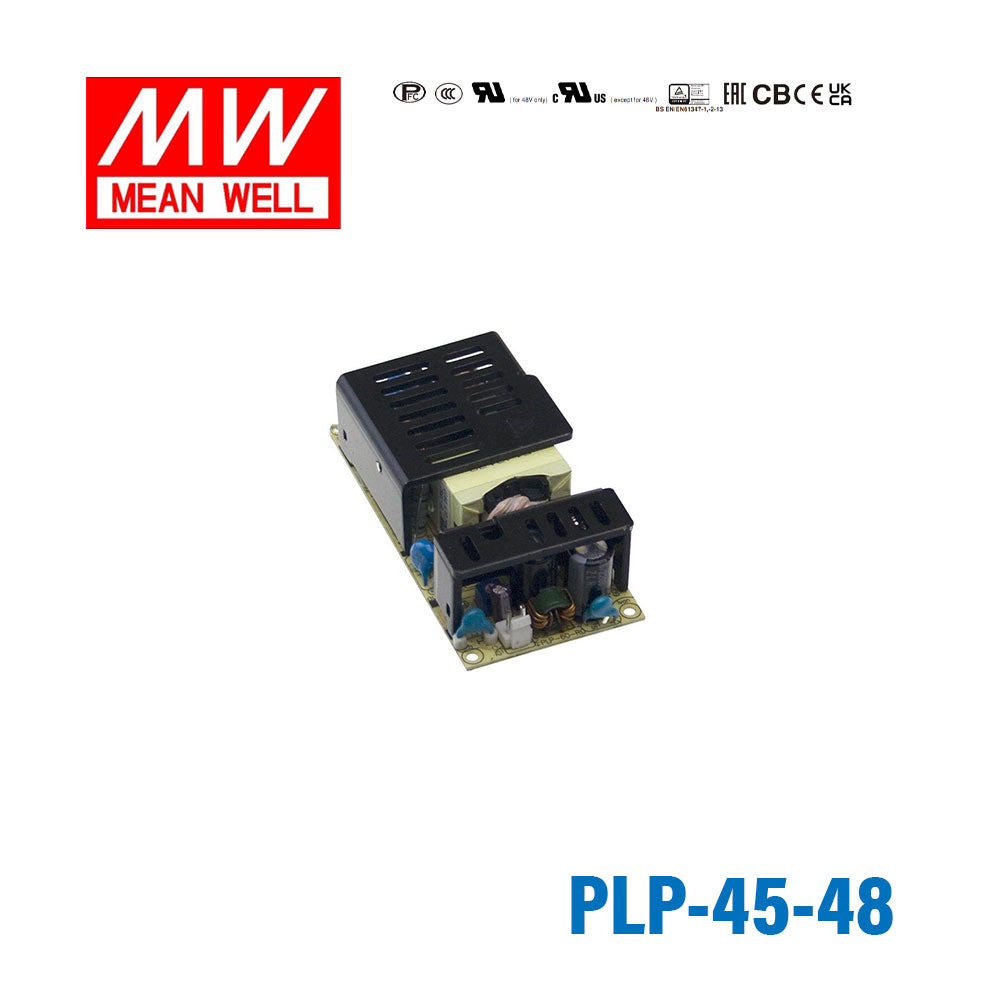

Mean Well PLP-45-48 Single Output LED Driver 45W

PCB typeClass 2 power unitoutput current adjustablesuitable for built-in applications
SKU PLP-45-48
$35.80 USD
Shipping calculated at checkout.
In stock
|

Overview

PLP-45-48 is the 48V output model of this series: rated current 0.95A, rated power 45.6W, typical efficiency 89%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over current / Over voltage
  • Built-in active PFC function
  • Cooling by free air convection
  • Class 2 power unit
  • Output current level adjustable
  • 100% full load burn-in test
  • High reliability
  • Suitable for built-in applications of LED lighting
  • 2 years warranty

Specifications

PLP-45-48Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
48V
CONSTANT CURRENT REGIONNote.5
36 ~ 48V
RATED CURRENT
0.95A
CURRENT RANGE
0 ~ 0.95A
RATED POWER
45.6W
RIPPLE & NOISE (max.)Note.2
4.8Vp-p
CURRENT ADJ. RANGE
0.715 ~ 0.95A
VOLTAGE TOLERANCENote.3
±10%
LINE REGULATION
±3.0%
LOAD REGULATION
±5.0%
SETUP TIME
500ms / 230VAC 1200ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.9 at 75 ~ 100% load, 115VAC / 230VAC
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≥75% at 115VAC/230VAC input
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.6A/115VAC 0.3A/230VAC
INRUSH CURRENT (max.)
COLD START 30A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX.No. of PSUs on 16A CIRCUIT BREAKER
42units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENTNote.5
100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
57 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
GB/T19510.1,GB/T19510.213 ,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V) , EAC TP TC 004 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to GB/T 17743, GB17625.1, BS EN/EN55015, BS EN/EN61000-3-2 Class C(≧75% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
4717.9K hrs min. Telcordia SR-332 (Bellcore) ; 586.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*29.6mm (L*W*H)
PACKING
0.16Kg; 96pcs/16.4Kg/0.89CUFT
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. Please refer to "DRIVING METHODS OF LED MODULE".
  6. 6. Heat sink HS1,HS2 can not be shorted.
  7. 7. Heat sink HS1 must have safety isolation distance with system case.
  8. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  9. 9. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  10. 10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  11. 11. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

Technical drawings

PLP-45-48 Mechanical Specification
Mechanical Specification
PLP-45-48 Block Diagram
Block Diagram
PLP-45-48 Derating Curve
Derating Curve
PLP-45-48 Power Factor Characteristic
Power Factor Characteristic
PLP-45-48 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

What type of product is the Mean Well PLP-45-48?

The Mean Well PLP-45-48 is a single output LED power supply rated for 45W. It provides a 48V output (constant current region 36 ~ 48V) and is a component meant to be installed into final LED lighting equipment, driving LEDs directly.

What are the main electrical ratings of the PLP-45-48?

This model is rated for 45.6W output power with a 48V output voltage and 0.95A rated current. It also supports a universal AC input range of 90 to 264VAC (127 to 370VDC), which helps it fit a wide range of commercial and industrial power environments.

Is the Mean Well PLP-45-48 dimmable?

The PLP-45-48 datasheet does not list any dimming function or dimming input. Its output current can only be set within 0.715 ~ 0.95A, so it is better suited to applications that need stable fixed-output power rather than lighting systems that need dimming control.

Can the output current be adjusted on this LED driver?

Yes, the output current level on the PLP-45-48 is adjustable. The listed current adjustment range is 0.715 to 0.95A, i.e. 75% to 100% of rated current, which can help when matching the driver to compatible LED load requirements.

Is the PLP-45-48 suitable for demanding temperature conditions?

This model is rated for operation from -30°C to 70°C, with output derating required at higher ambient temperatures according to the derating curve. That makes it a practical option for LED lighting projects exposed to a broad range of ambient temperatures, provided the load stays within the derated limits.

What protection features does the Mean Well PLP-45-48 include?

The PLP-45-48 includes short circuit (hiccup mode), over current (constant current limiting) and over voltage (57 ~ 63V, shut down, re-power on to recover) protection. These built-in protections support reliability in professional LED lighting applications.
