Mean Well

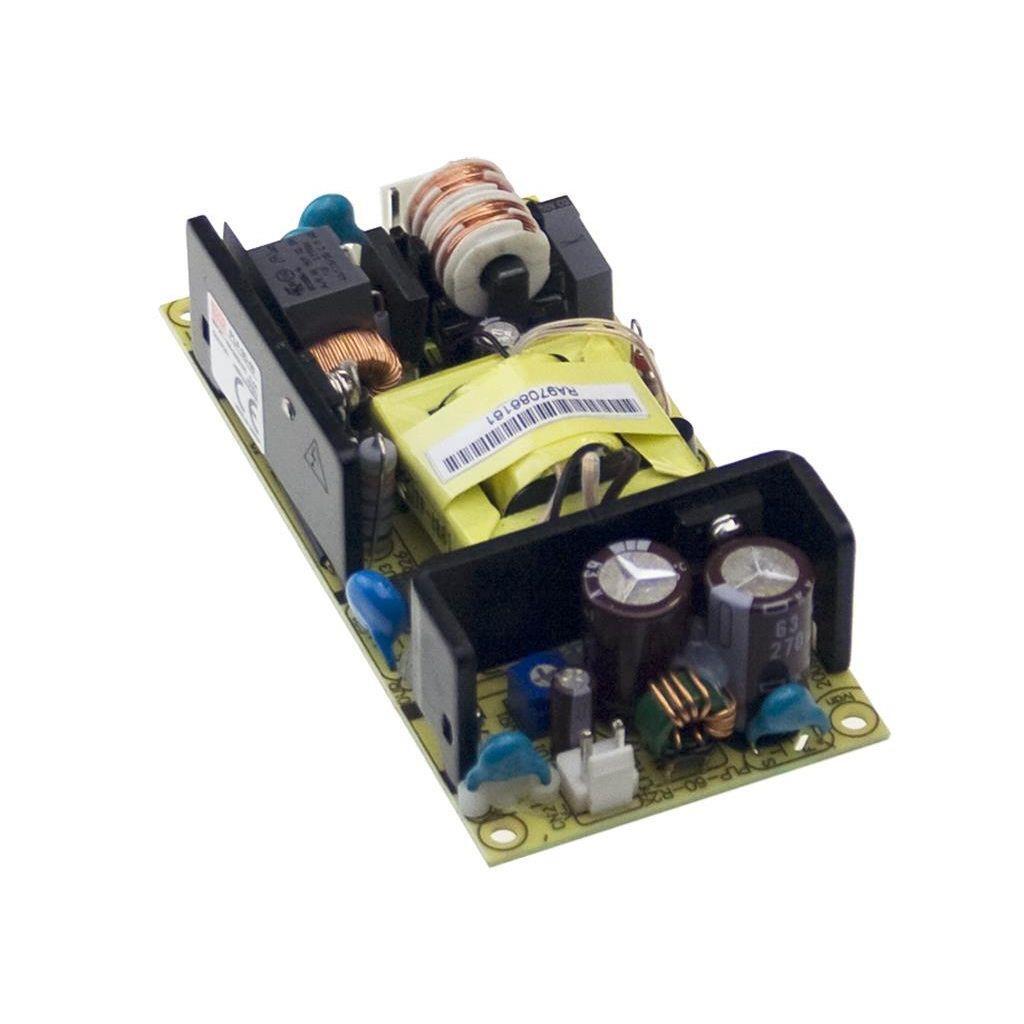

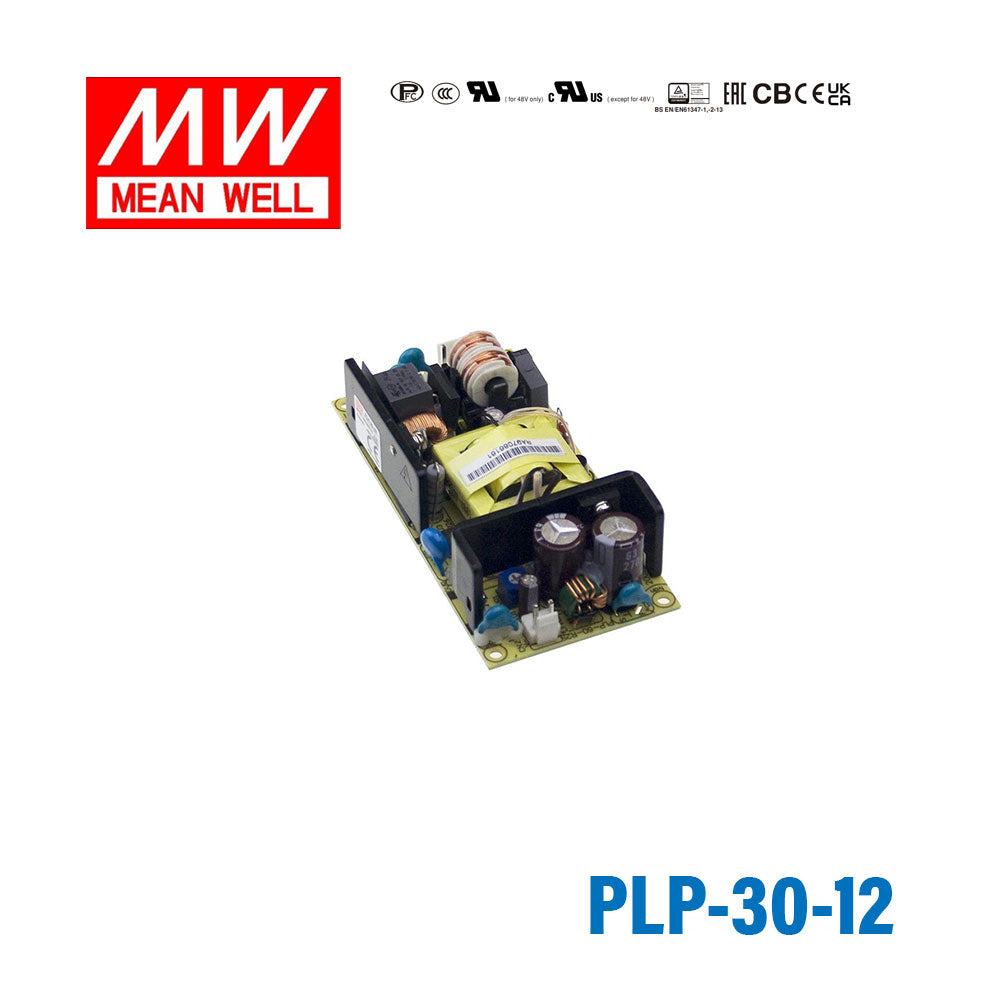

Mean Well PLP-30-12 Single Output LED Driver 30W

PCB typeClass 2 power unitoutput current adjustablesuitable for built-in applications
SKU PLP-30-12
$29.52 USD
Shipping calculated at checkout.
Available to order
|

Overview

PLP-30-12 is the 12V output model of this series: rated current 2.5A, rated power 30W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over current / Over voltage
  • Built-in active PFC function
  • Cooling by free air convection
  • Class 2 power unit
  • Output current level adjustable
  • 100% full load burn-in test
  • High reliability
  • Suitable for built-in applications of LED lighting
  • 2 years warranty

Specifications

PLP-30-12Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
12V
CONSTANT CURRENT REGIONNote.5
9 ~ 12V
RATED CURRENT
2.5A
CURRENT RANGE
0 ~ 2.5A
RATED POWER
30W
RIPPLE & NOISE (max.)Note.2
2Vp-p
CURRENT ADJ. RANGE
1.875 ~ 2.5A
VOLTAGE TOLERANCENote.3
±10%
LINE REGULATION
±3.0%
LOAD REGULATION
±5.0%
SETUP TIME
500ms / 230VAC 1200ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9 at 75 ~ 100% load , 115VAC / 230VAC
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≥75% at 115VAC/230VAC input
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (max.)
COLD START 25A(twidth=45μs measured at 50% Ipeak) at 230VAC
MAX.No. of PSUs on 16A CIRCUIT BREAKER
64units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENTNote.5
100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
15 ~ 18V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
GB/T19510.1,GB/T19510.213,UL8750, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CSA C22.2 No. 250.0-08(except for 48V),EAC TP TC 004 approved ; design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to GB/T 17743, GB17625.1,BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load); BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
5126.3K hrs min. Telcordia SR-332 (Bellcore) ; 580.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
101.6*50.8*26.6mm (L*W*H)
PACKING
0.12Kg; 108pcs/13Kg/0.89CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. Please refer to "DRIVING METHODS OF LED MODULE".
  6. 6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  7. 7. Heat Sink HS1,HS2 can not be shorted.
  8. 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

Technical drawings

PLP-30-12 Mechanical Specification
Mechanical Specification
PLP-30-12 Block Diagram
Block Diagram
PLP-30-12 Derating Curve
Derating Curve
PLP-30-12 Power Factor Characteristic
Power Factor Characteristic
PLP-30-12 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

What is the Mean Well PLP-30-12 used for?

The Mean Well PLP-30-12 is a 30W single-output LED power supply designed as a component for installation in LED lighting fixtures and equipment. It provides a 12V output and is suited to commercial or OEM use where a compact 101.6 x 50.8 x 26.6mm power unit is needed.

What are the main electrical ratings of the PLP-30-12?

This model is rated for 30W total output power with a 12V output and 2.5A rated current. It accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input.

Is the PLP-30-12 dimmable?

No dimming function is listed on the datasheet for the PLP-30-12. Its output current can only be set within the 1.875 to 2.5A adjustment range rather than by integrated dimming control.

Does the PLP-30-12 include protection features?

Yes, this model includes protection for short circuit, over current and over voltage (15 to 18V) conditions. These built-in protections help support reliability in LED lighting applications.

Can the output current be adjusted on the PLP-30-12?

Yes, the output current level is adjustable on this model. The listed adjustment range is 1.875 to 2.5A, which is 75% to 100% of rated current.

What operating temperatures can the PLP-30-12 handle?

The PLP-30-12 is specified for operation from -30°C to 70°C, with load derating at higher ambient temperatures according to the derating curve. That range makes it suitable for a wide variety of indoor equipment and enclosed lighting applications, provided the overall system is designed within the product limits.

How does the PLP-30-12 support long-term reliability?

This model features PFC (PF>0.9 at 75 to 100% load) and over current, short circuit and over voltage protection. Mean Well lists an MTBF of 580.9K hours min. under MIL-HDBK-217F at 25°C, and 5126.3K hours min. under Telcordia SR-332.
