Mean Well

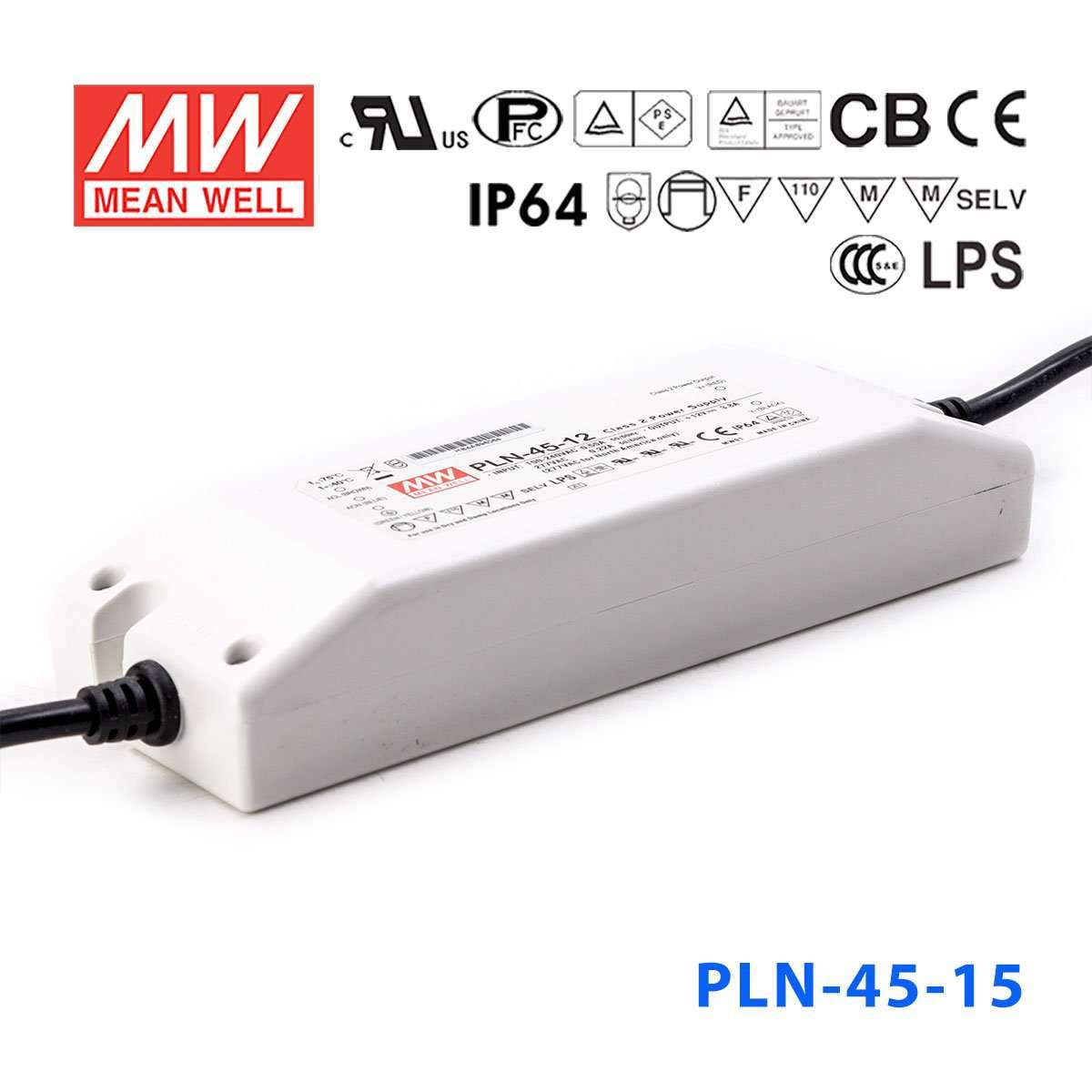

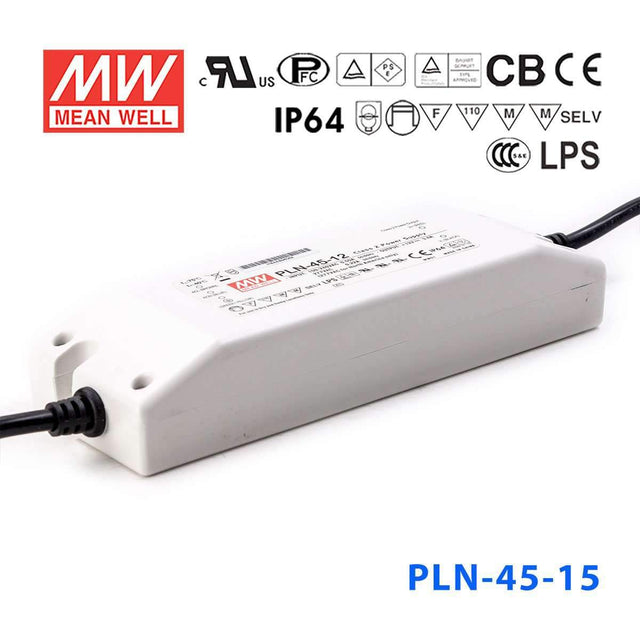

Mean Well PLN-45-15 Power Supply 45W 15V - IP64 3A

fully isolated plastic caseIP64suitable for signage applications
SKU PLN-45-15
$41.06 USD
Shipping calculated at checkout.
Available to order
|

Overview

PLN-45-15 is the 15V output model of this series: rated current 3A, rated power 45W, typical efficiency 85%.

Features

  • Universal AC input / Full range (up to 295VAC)
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit with adjustable OCP level
  • Fully isolated plastic case with IP64 level
  • Built-in active PFC function
  • Pass LPS
  • Class 2 power unit
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications (Note.2)
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty

Specifications

PLN-45-15Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
15V
CONSTANT CURRENT REGIONNote.6
11.25 ~15V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
45W
RIPPLE & NOISE (max.)Note.2
2.4Vp-p
VOLTAGE ADJ. RANGENote.5
14.5 ~ 16.2V
CURRENT ADJ. RANGENote.5
3% ~ -25%. Can be adjusted by internal potentiometer SVR2
VOLTAGE TOLERANCENote.3
±10%
LINE REGULATION
±3.0%
LOAD REGULATION
±5.0%
SETUP TIME
500ms / 230VAC 1200ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.92/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.55A/115VAC 0.275A/230VAC 0.22A/277VAC
INRUSH CURRENT (Typ.)
COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 240VAC

PROTECTION

OVER CURRENT
95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
17.5 ~ 21V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL879, UL1310, UL8750, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CSA C22.2 No. 250.0-08(except for 48V), EAC TP TC 004, IP64 approved, design refer to UL60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3;EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF
3444.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
181*61.5*35mm (L*W*H)
PACKING
0.5Kg; 24pcs/13Kg/0.87CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
  6. 6. Please refer to "DRIVING METHODS OF LED MODULE".
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

Technical drawings

PLN-45-15 Mechanical Specification
Mechanical Specification
PLN-45-15 Block Diagram
Block Diagram
PLN-45-15 Derating Curve
Derating Curve
PLN-45-15 Power Factor Characteristic
Power Factor Characteristic
PLN-45-15 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

Can I use the PLN-45-15 for a 15V LED strip lighting project?

Yes, if the LED strip system is rated for 15V and its total load stays within 45W and 3A. This model provides 15V output, with a constant current range of 11.25-15V, so you should also confirm the strip's electrical requirements match the driver.

Is the PLN-45-15 suitable for 15V illuminated signage or sign box lighting?

It can be a fit for 15V signage loads that stay within 45W maximum output and 3A output current. The IP64 enclosure helps where dust or splashing water may be present.

Can this driver be used for 15V accent or display lighting in semi-exposed locations?

Yes, for 15V lighting loads that do not exceed 45W and 3A. Its IP64 rating and operating temperature range of -30°C to +50°C make it better suited to damp or dusty locations than an open-frame indoor-only supply.

How much 15V LED strip can the PLN-45-15 run?

The maximum available power is 45W. To estimate strip length, divide 45W by your strip's rated power per meter, then verify the strip is a 15V product and that its current draw does not exceed 3A; check your strip rated power per meter.

Is the PLN-45-15 okay for outdoor or wet-area use?

It is rated IP64, so it is suitable for environments with dust exposure and splashing water. It is not described as submersible, and the specified operating temperature range is -30°C to +50°C.
