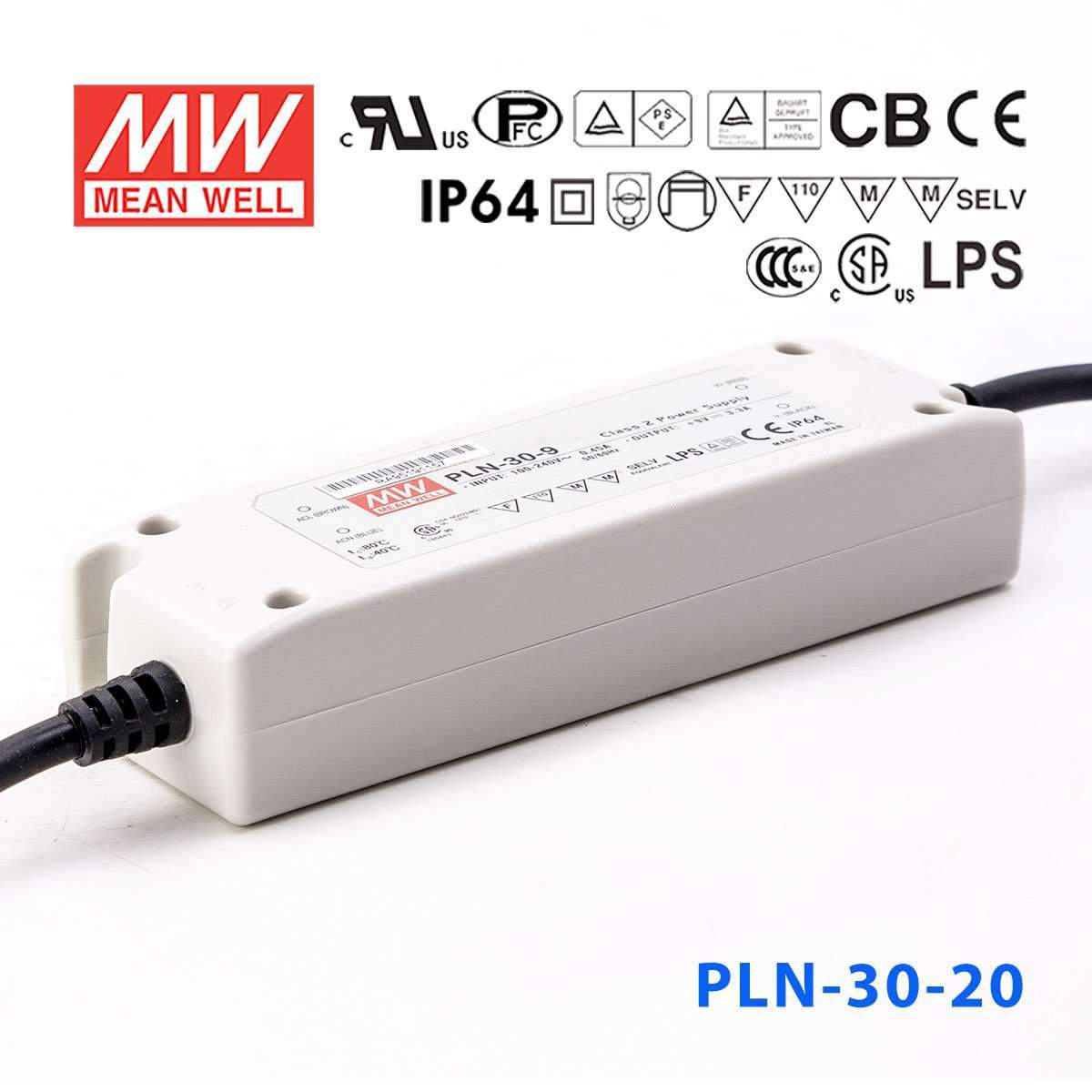

Mean Well PLN-30-20 Power Supply 30W 20V - IP64 1.5A

fully isolated plastic caseIP64suitable for signage applications
SKU PLN-30-20
$26.45 USD
Shipping calculated at checkout.
Available to order
|

Overview

PLN-30-20 is the 20V output model of this series: rated current 1.5A, rated power 30W, typical efficiency 84%.

Features

  • Universal AC input / Full range (up to 295VAC)
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit with adjustable OCP level
  • Fully isolated plastic case with IP64 level
  • Built-in active PFC function
  • Pass LPS
  • Class Ⅱ power unit, no FG
  • Class 2 power unit
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications (Note.2)
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty

Specifications

PLN-30-20Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE
20V
CONSTANT CURRENT REGIONNote.6
14 ~ 20V
RATED CURRENT
1.5A
CURRENT RANGE
0 ~ 1.5A
RATED POWER
30W
RIPPLE & NOISE (max.)Note.2
2.6Vp-p
VOLTAGE ADJ. RANGENote.5
-5% ~ 10%. Can be adjusted by internal potentiometer SVR1
CURRENT ADJ. RANGENote.5
3% ~ -25%. Can be adjusted by internal potentiometer SVR2
VOLTAGE TOLERANCENote.3
±10%
LINE REGULATION
±3.0%
LOAD REGULATION
±5.0%
SETUP TIME
500ms / 230VAC 3000ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.4
90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/115VAC, PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧80% at 277VAC input
EFFICIENCY (Typ.)
84%
AC CURRENT (Typ.)
0.4A/115VAC 0.2A/230VAC 0.15A/277VAC
INRUSH CURRENT (Typ.)
COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

OVER CURRENT
100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE
23 ~ 26V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.06%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL879, UL1310, CSA C22.2 No. 207-M89(except for 48V), TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004,IP64 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (pin≧25W), Class D (>70% load) ; BS EN/EN61000-3-3; EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, criteria B;EAC TP TC 020

OTHERS

MTBF
4296.9K hrs min. Telcordia SR-332 (Bellcore) ; 621.4Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
145*47*30mm (L*W*H)
PACKING
0.22Kg; 60pcs/14.2Kg/1.25CUFT
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
  5. 5. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB.
  6. 6. Please refer to "DRIVING METHODS OF LED MODULE".
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  9. 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 12. PLN-30-9 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
  13. 13. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

Technical drawings

PLN-30-20 Mechanical Specification
Mechanical Specification
PLN-30-20 Block Diagram
Block Diagram
PLN-30-20 Derating Curve
Derating Curve
PLN-30-20 Power Factor Characteristic
Power Factor Characteristic
PLN-30-20 EFFICIENCY vs LOAD (48V Model)
EFFICIENCY vs LOAD (48V Model)

Downloads

FAQ

Can I use the PLN-30-20 for a 20V LED sign lighting load?

Yes, for a 20V lighting load that stays within the driver's 30W maximum output. The connected load should also fit the 14-20V constant current range and remain at or below 1.5A.

Is the PLN-30-20 a good match for a small 20V lighted display?

It can suit a small 20V illuminated display where the total load is no more than 30W. This model delivers up to 1.5A, with a 14-20V constant current range.

Can this driver run compact 20V linear lighting?

It can run a compact 20V linear lighting load if the fixture matches the driver's operating characteristics. Verify that the load falls within the 14-20V constant current range and does not exceed 30W or 1.5A.

How much 20V LED strip can the PLN-30-20 support?

Base the estimate on the driver's 30W maximum output: maximum length = 30W divided by your strip's rated watts per meter. That means 30W / strip W per meter = maximum meters, but check your strip rated power per meter and confirm compatibility with 20V and the 1.5A constant current output.

Can the PLN-30-20 be used in outdoor lighting enclosures?

With an IP64 rating, it is protected against dust and splashing water, so it is suitable for many sheltered outdoor enclosures that do not involve water immersion. Working humidity is 20-95% RH non-condensing and the operating temperature range is -30°C to +50°C (see the derating curve).
