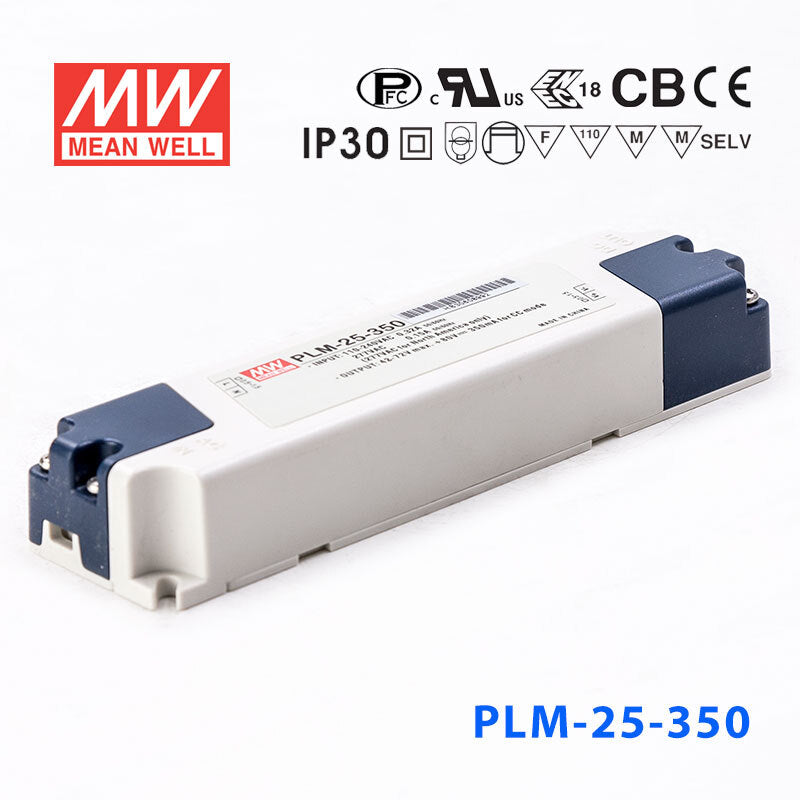

Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-25-350, 350mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-25-350
Price: 17.84 USD
Availability: InStock

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU PLM-25-350

$17.84 USD

Shipping calculated at checkout.

In stock

Overview

PLM-25-350 is the model of this series: rated current 0.35A, rated power 25.2W, typical efficiency 87%.

PLM-25 is a 25W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-25 provides a high Power Factor value greater than 0.9. In addition, with the low no load power consumption below 0.5W, and the setup time less than 500ms, PLM-25 is complied with the ErP regulation required by European Union for lighting fixtures. PLM-25 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case. The I/O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation.PLM-25 series, which operates from 110~295VAC.The series is constant current output design, supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively.

Features

Full range (up to 295VAC)models
Built-in active PFC function
Constant current design
Protections:Short circuit
Cooling by free air convection
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit(for PLM-25-500/700/1050)
No load power consumption <0.5W
High reliability,low cost
2 years warranty

Specifications

PLM-25-350Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

CONSTANT CURRENT REGION^Note.5: 42 ~ 72V
RATED CURRENT: 0.35A
NO LOAD OUTPUT VOLTAGE(max.): 80V
RATED POWER: 25.2W
RIPPLE & NOISE (max.)^Note.2: 7.2Vp-p
CURRENT ACCURACY^Note.3: ±5.0%
SETUP TIME: 500ms / 115VAC, 230VAC at full load;

INPUT

VOLTAGE RANGE^Note.4: 110 ~ 295VAC 156 ~ 417VDC;
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≥0.97/115VAC,PF≥0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.3A/115VAC 0.15A/230VAC 0.12A/277VAC;
INRUSH CURRENT(Typ.): COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 80 units (circuit breaker of type B) / 80 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ +45℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.06%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, EAC TP TC 004, IP30 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(≥60% load);BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020

OTHERS

MTBF: 7905.4K hrs min. Telcordia SR-332 (Bellcore) ; 608.9Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*38*22mm (L*W*H)
PACKING: 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Certifications & ratings

Input Voltage: 110~295VAC

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Please see "AC input voltage drop vs. output current characteristics" table.
4. Derating may be needed under low input voltage, please check the static characteristic for more details.
5. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
8. The models certified by CCC (GB/T19510.1, GB/T19510.213, GB/T 17743 and GB17625.1) are optional models. Please contact your MEAN WELL sales for more information.

Technical drawings

PLM-25-350 Mechanical Specification — Mechanical Specification

PLM-25-350 Derating Curve — Derating Curve

PLM-25-350 Power Factor Characteristic — Power Factor Characteristic

PLM-25-350 EFFICIENCY vs LOAD (500mA Model) — EFFICIENCY vs LOAD (500mA Model)

Typical applications

Indoor LED lighting
LED office lighting
LED commercial lighting
LED decorative lighting

Downloads

Certificates8

Mean Well PLM-12-25 CCC Certificate PDF Download

Mean Well PLM-12-25 ENEC Certificate PDF Download

Mean Well PLM-12-25 CB Certificate PDF Download

Mean Well PLM-12-25 EMC Certificate PDF Download

Mean Well PLM-12-25 UK Certificate PDF Download

Mean Well PLM-12-25 CE Certificate PDF Download

Mean Well PLM-12-25 ERP Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well PLM-25-350 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PLM-25-350 for a 350mA LED downlight?

Yes, if the fixture is built for constant current operation at 350mA and the LED load falls within the 42-72V constant-current range. This model is a constant current driver, not a constant voltage power supply.

Is the PLM-25-350 a good fit for long-series small LED arrays?

It is intended for constant current LED arrays that need 350mA and a higher forward-voltage span. The usable CC output range is 42-72V, with a 25.2W rating.

Can this driver power constant current signage modules with a higher total forward voltage?

Yes, if the signage module string is designed for 350mA constant current and its total forward voltage stays within 42-72V. It should not be used in place of a constant voltage supply for fixed-voltage signage products.

What makes the PLM-25-350 compatible or incompatible with my LED load?

The LED load must require 350mA constant current, and its combined forward voltage must remain inside the 42-72V CC range. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by current and total voltage rather than a specific LED quantity.

Can the PLM-25-350 handle cold or warm operating conditions?

Its specified operating temperature range is -30°C to +45°C. That gives it a defined working range for temperature-sensitive LED driver applications; the unit is IP30 approved, so it is not intended for wet or dust-heavy environments.
