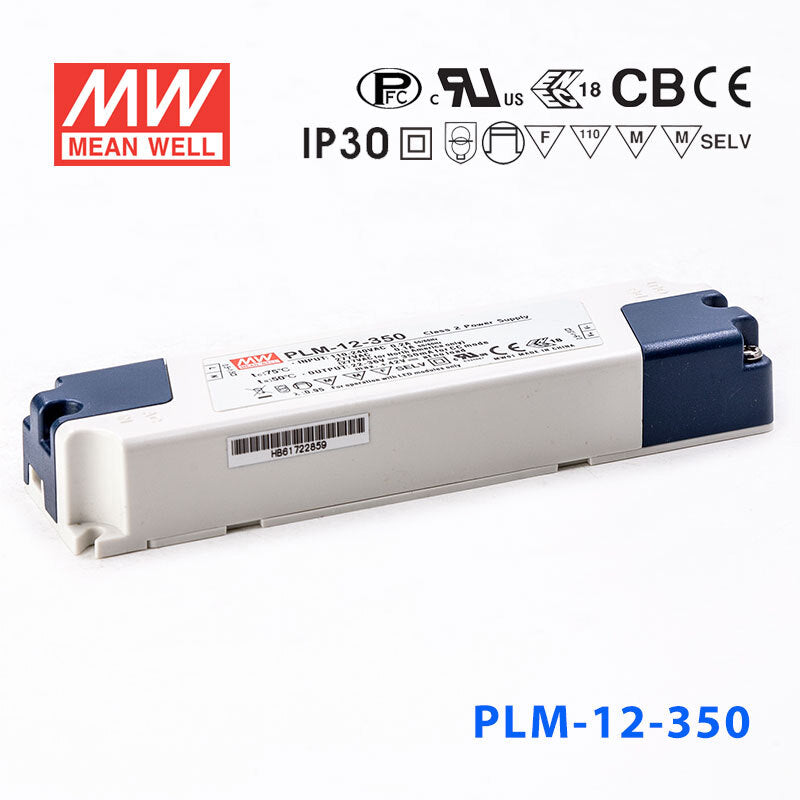

Mean Well PLM-12E-350, 350mA Constant Current with PFC - Terminal Block

Name: Mean Well PLM-12E-350, 350mA Constant Current with PFC - Terminal Block
Brand: Mean Well
SKU: PLM-12E-350
Price: 14.01 USD
Availability: InStock

fully isolated plastic caseClass II design without FGpush terminal I/O

SKU PLM-12E-350

$14.01 USD

Shipping calculated at checkout.

In stock

Overview

PLM-12E-350 is the model of this series: rated current 0.35A, rated power 12.6W, typical efficiency 85%.

PLM-12 is a 12W economical AC/DC LED power supply series. Incorporating a built-in active PFC design, PLM-12 provides a high Power Factor value greater than 0.9. In addition, with the low no load power consumption below 0.5W, and the setup time less than 500ms, PLM-12 is complied with the ErP regulation required by European Union for lighting fixtures. PLM-12 is a class Ⅱ(without FG pin) power unit housed with the UL 94V-0 rated flame retardant plastic case. The I /O terminals are designed with screw-less clamp style terminal block that greatly simplifies the wiring installation. Two types of models with different input voltage range are offered: PLM-12 series, which operates from 110~295VAC, and PLM-12E series, which operates from 180~295VAC.These two series are both constant current output design, supplying models with the current of 350mA, 500mA, 700mA and 1050mA, respectively.

Features

230VAC only or Full range (up to 295VAC) models available
Built-in active PFC function
Constant current design
Protections:Short circuit
Cooling by free air convection
Fully isolated plastic case
Class Ⅱ power unit, no FG
Class 2 power unit (Blank type only)
No load power consumption <0.5W
High reliability,low cost
2 years warranty

Specifications

PLM-12E-350Specifications from the official datasheet (2018-01-10 edition)Download datasheet PDF

OUTPUT

CONSTANT CURRENT REGION^Note.5: 22 ~ 36V
RATED CURRENT: 0.35A
NO LOAD OUTPUT VOLTAGE(max.): 42V
RATED POWER: 12.6W
RIPPLE & NOISE (max.) Blank type^Note.2: 3.6Vp-p
RIPPLE & NOISE (max.) E type^Note.2: 5.5Vp-p
CURRENT ACCURACY^Note.3: ±5.0%
SETUP TIME: Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.4: Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR Blank type: PF≥0.97/115VAC,PF≥0.95/230VAC,PF>0.9/277VAC(at full load)(Please refer to "Power Factor Characteristic" curve)
POWER FACTOR E type: PF≥0.95/230VAC,PF≥0.9/277VAC (at full load)(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION Blank type: THD< 20% when output loading≧60% at 115VAC/230VAC input and output loading≧75% at 277VAC input
TOTAL HARMONIC DISTORTION E type: THD< 20% when output loading≧60% at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.) Blank type: 85%
EFFICIENCY (Typ.) E type: 84%
AC CURRENT: Blank type: 0.15A/115VAC 0.08A/230VAC 0.07A/277VAC; E type: 0.08A/230VAC 0.07A/277VAC
INRUSH CURRENT(Typ.): COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 160 units (circuit breaker of type B) / 160 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.06%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12(for Blank type only); ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14,GB19510.1(for E type only),EAC TP TC 004,IP30 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms/500VDC / 25℃/ 70%RH
EMC EMISSION: Compliance to EN55015, GB17743, GB17625.1(for E type only),EN61000-3-2 Class C(≥60% load);EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11;EN61547, light industry level, criteria B(surge 2KV),EAC TP TC 020

OTHERS

MTBF: 808.162Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*38*22mm (L*W*H)
PACKING: 0.126Kg;60pcs/8.6 Kg/0.48CUFT

Certifications & ratings

Warranty: 18

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Please see "AC input voltage drop vs. output current characteristics"table.
4. Derating may be needed under low input voltage, please check the static characteristic for more details.
5. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design.
6. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.

Technical drawings

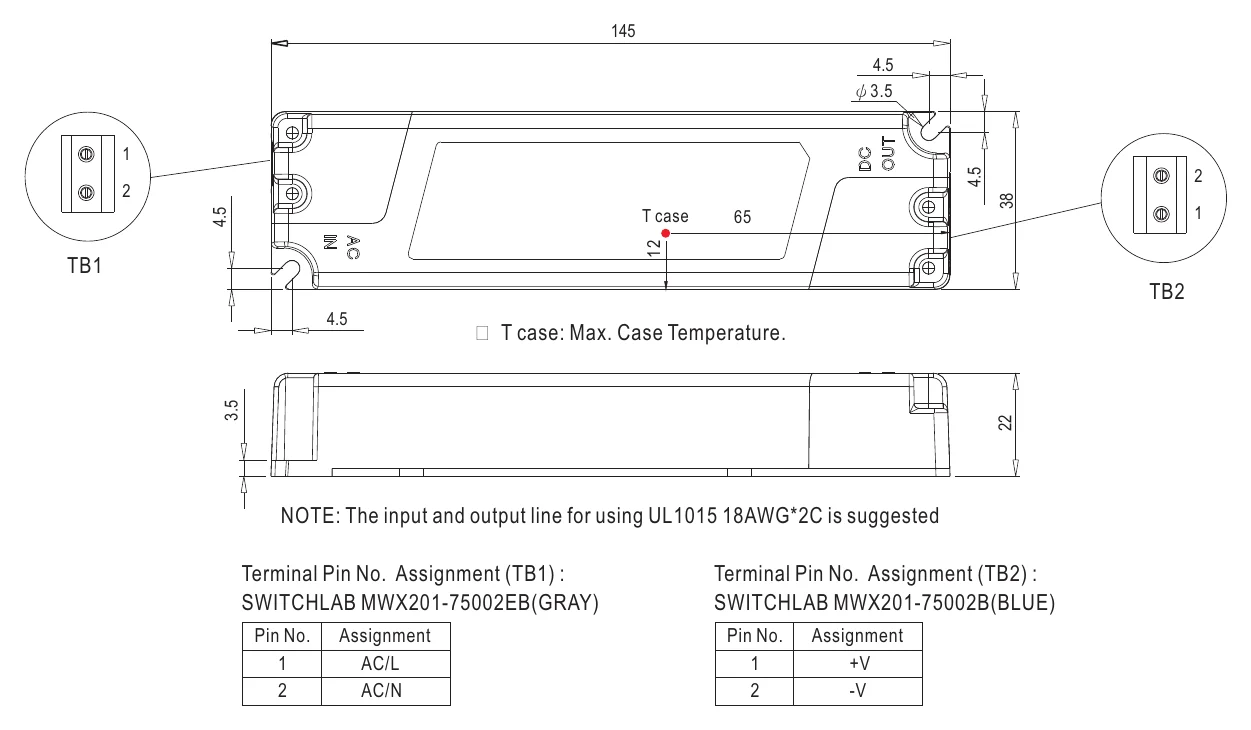

PLM-12E-350 Mechanical Specification — Mechanical Specification

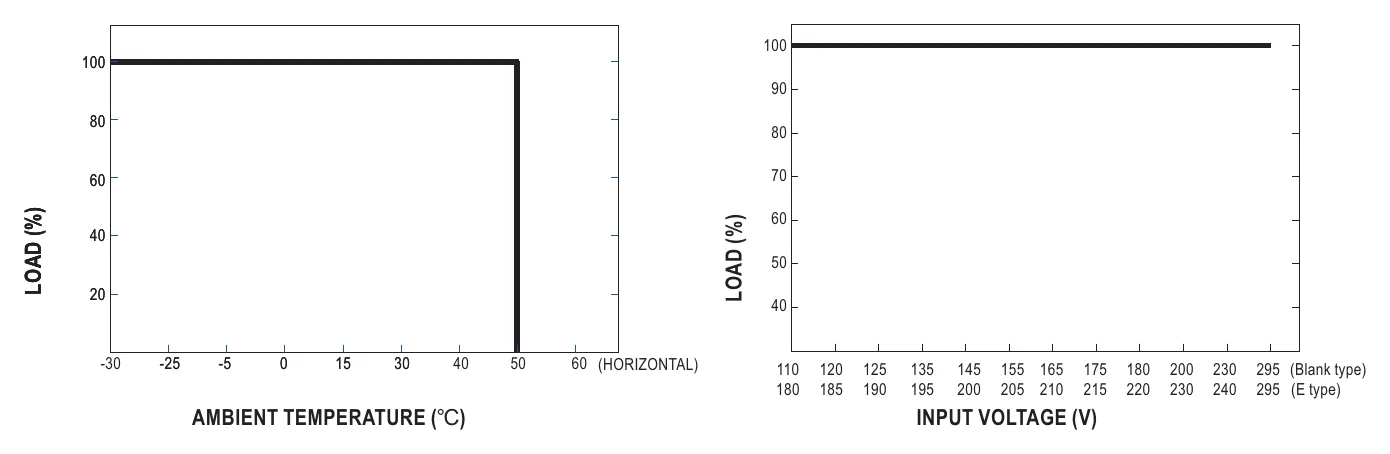

PLM-12E-350 Derating Curve — Derating Curve

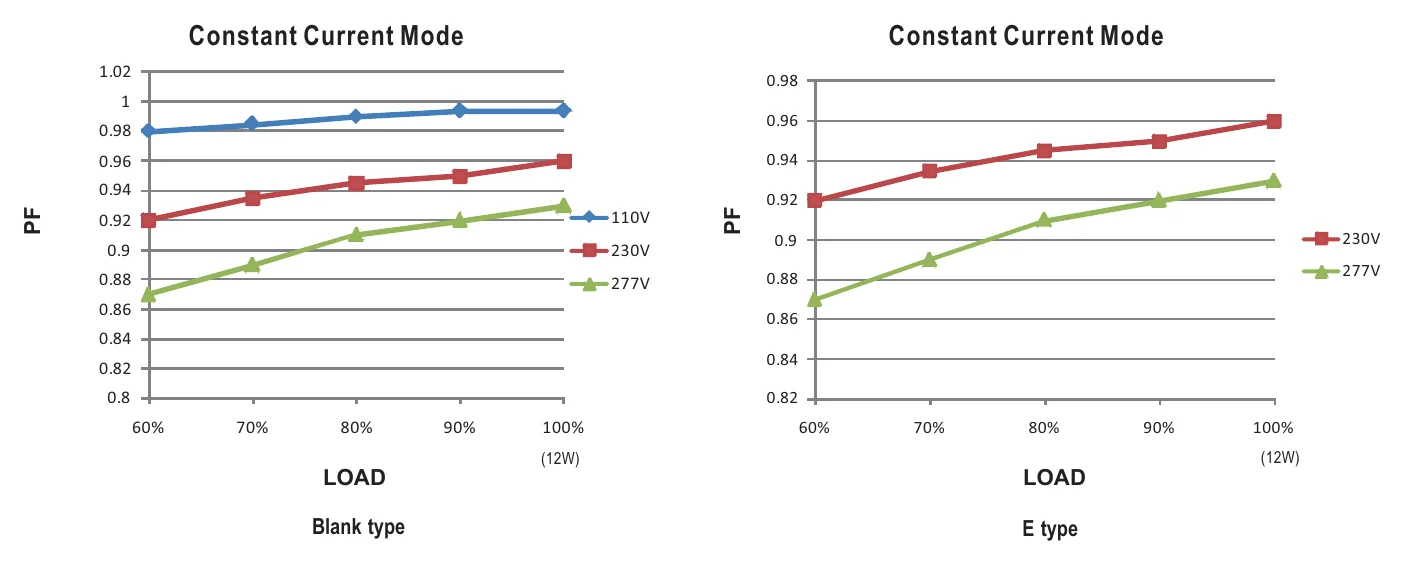

PLM-12E-350 Power Factor Characteristic — Power Factor Characteristic

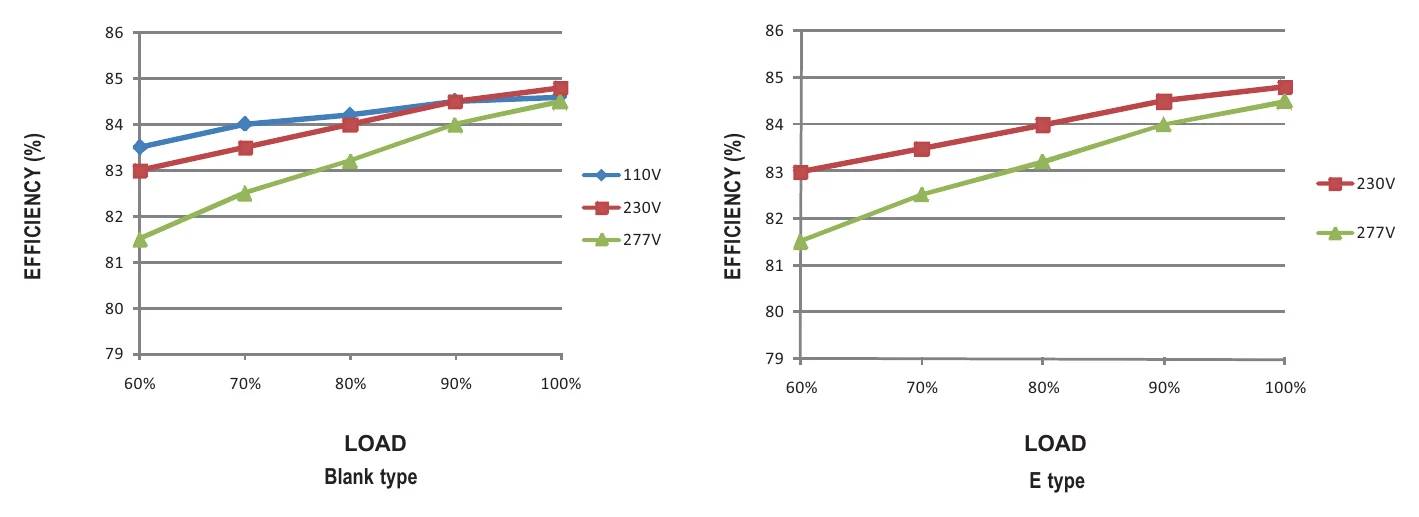

PLM-12E-350 EFFICIENCY vs LOAD (500mA Model) — EFFICIENCY vs LOAD (500mA Model)

Typical applications

Indoor LED lighting
LED office lighting
LED commercial lighting
LED decorative lighting

Downloads

Datasheet1

PLM-12E-350 datasheetplm_12_spec.pdf · 2018-01-10 edition PDF Download

Certificates8

Mean Well PLM-12-25 CCC Certificate PDF Download

Mean Well PLM-12-25 ENEC Certificate PDF Download

Mean Well PLM-12-25 CB Certificate PDF Download

Mean Well PLM-12-25 EMC Certificate PDF Download

Mean Well PLM-12-25 UK Certificate PDF Download

Mean Well PLM-12-25 CE Certificate PDF Download

Mean Well PLM-12-25 ERP Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well PLM-12-350 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What type of LED driver is the Mean Well PLM-12E-350?

The PLM-12E-350 is a constant current LED driver rated at 350mA. It delivers up to 42V output with a 12.6W power rating. This model is intended for loads that are specified for constant current operation rather than fixed-voltage output.

What kinds of applications is the PLM-12E-350 suited for?

This model is suited to LED lighting applications that require a 350mA constant current driver. Its compact plastic case, Class II design, and free-air convection cooling make it a practical choice for enclosed lighting products and general indoor commercial use. It is best matched to applications that stay within its 12.6W and 42V limits.

Is the PLM-12E-350 a dimmable LED driver?

No. The listed dimming control for this model is none, so it is a non-dimming driver. If your project requires brightness control, you would need a different driver designed with a supported dimming interface.

What input range does the PLM-12E-350 support?

This E-version model is specified for an AC input range of 180 to 295VAC, with a DC input range of 254 to 417VDC. That makes it appropriate for higher-voltage mains environments within that range. It also includes built-in active PFC as part of its design.

Can I use the PLM-12E-350 with any LED product?

Not with every LED product. It should be used with LED loads that require 350mA constant current and operate within the driver's available output range up to 42V. It is not the right choice for products that call for a constant voltage power supply.

What environmental conditions is the PLM-12E-350 designed for?

The PLM-12E-350 is rated for operation from -30°C to 50°C. It uses free-air convection cooling and has an IP30 plastic enclosure, so it is generally intended for protected indoor environments rather than exposed outdoor conditions. The isolated plastic case also supports Class II use.
