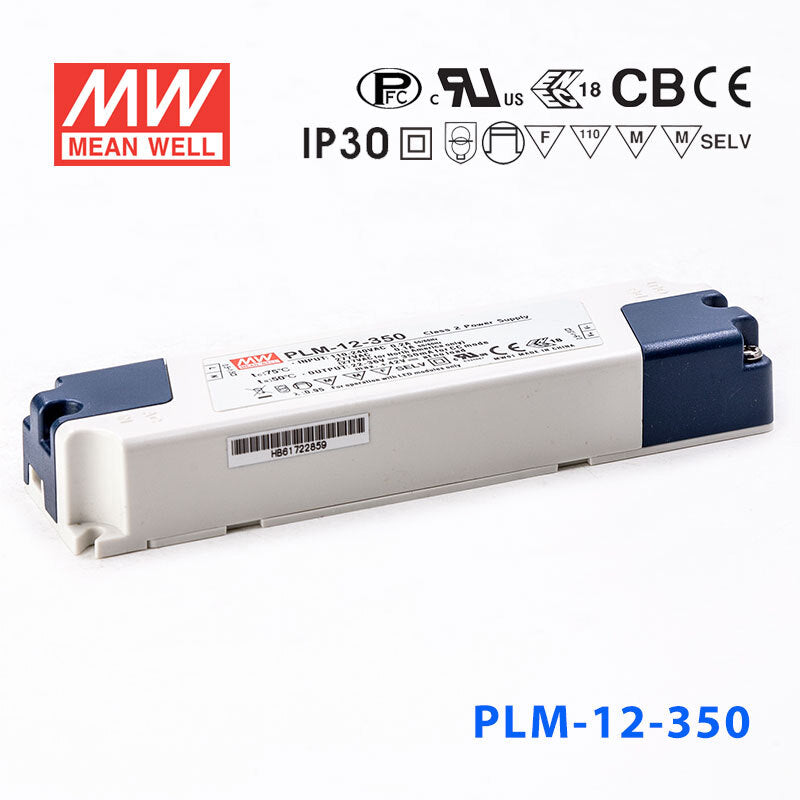

Mean Well PLM-12-350, 350mA Constant Current with PFC - Terminal Block

$16.50 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

230VAC only or Full range(up to 295VAC) models available
Built-in active PFC function
Constant current design
Protections: Short circuit
Cooling by free air convection
Fully isolated plastic case
IP30 design
Class II power unit, no FG
Class 2 power unit (Blank type only)
No load power consumption < 0.5W
High reliability, low cost
2 years warranty

General Specification

AC input voltage range Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
AC inrush current (max.) COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
DC adjustment range
Current adjustment range
Short circuit protection Hiccup mode, auto-recovery
Over temperature protection Hiccup mode, auto-recovery
Setup time Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -30~+50ºC
Safety standards UL8750, ENEC EN61347-1,2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection  DG235-7.2-2P
Dimension (LxWxH) (mm)
145*38*22mm
Packing 60pcs/8.6Kg

Specifications

  • Brand
    Mean Well
  • Series
    PLM Series
  • Power Rating
    12.6 Watt
  • Output Voltage
    42 Volt
  • Rated Current
    0.35 Ampere
  • Input Voltage
    110V~295V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~50°C
  • Warranty
    2 Year
  • Length
    5.71 in
  • Width
    1.5 in
  • Height
    0.87 in
  • Weight
    0.28 lb
