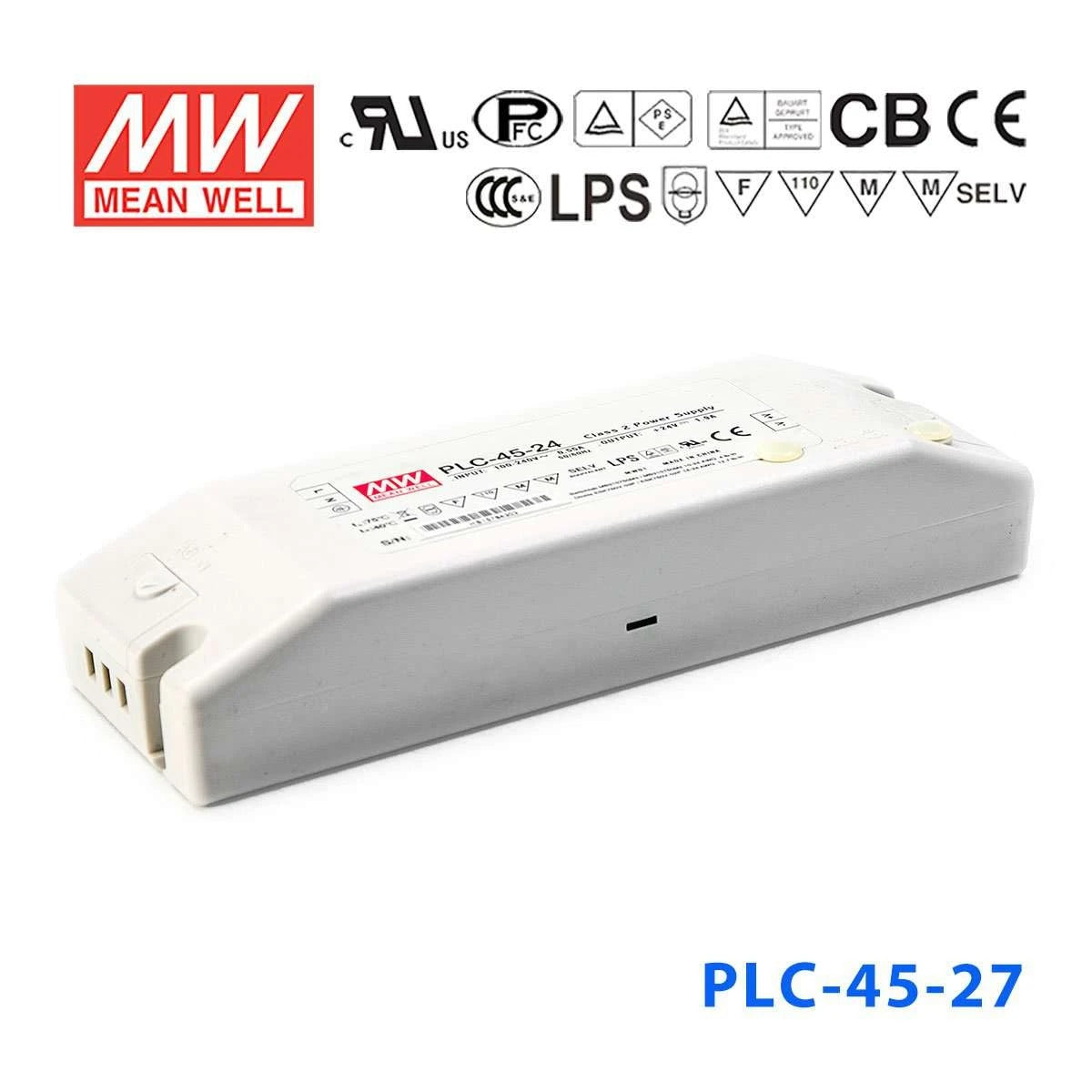

Mean Well PLC-45-27 Power Supply 45W 27V - PFC 1.7A

Name: Mean Well PLC-45-27 Power Supply 45W 27V - PFC 1.7A
Brand: Mean Well
SKU: PLC-45-27
Price: 41.06 USD
Availability: InStock

screw terminalfully isolated plastic casesuitable for signage applications

SKU PLC-45-27

$41.06 USD

Shipping calculated at checkout.

Available to order

Overview

PLC-45-27 is the 27V output model of this series: rated current 1.7A, rated power 45.9W, typical efficiency 86.5%.

Features

Universal AC input / Full range
Adjustable output voltage and current level
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Fully isolated plastic case with terminal block style of I/O
Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (≧75% load)
Class 2 power unit
Pass LPS
100% full load burn-in test
High reliability

Specifications

PLC-45-27Specifications from the official datasheet (2024-09-25 edition)

OUTPUT

DC VOLTAGE: 27V
CONSTANT CURRENT REGION^Note.6: 20.25 ~27V
RATED CURRENT: 1.7A
CURRENT RANGE: 0 ~ 1.7A
RATED POWER: 45.9W
RIPPLE & NOISE (max.)^Note.2: 2.7Vp-p
VOLTAGE ADJ. RANGE^Note.5: 25 ~ 30V
CURRENT ADJ. RANGE^Note.5: 1.275 ~ 1.75A
VOLTAGE TOLERANCE^Note.3: ±10%
LINE REGULATION: ±3.0%
LOAD REGULATION: ±5.0%
SETUP TIME: 500ms / 230VAC 1200ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.92/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧75% at 115VAC/230VAC input
EFFICIENCY (Typ.): 86.5%
AC CURRENT (Typ.): 0.55A/115VAC 0.25A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 31 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024,BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 3444.5K hrs min. Telcordia SR-332 (Bellcore) 417.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 181.5*62*35mm (L*W*H)
PACKING: 0.41Kg; 30pcs/13.3Kg/0.67CUFT

Certifications & ratings

Marked features: FC

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Output voltage can be adjusted through the SVR1 on the PCB ; limit of output constant current level can be adjusted through the SVR2 on the PCB.
6. Please refer to "DRIVING METHODS OF LED MODULE".
7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

Technical drawings

PLC-45-27 Mechanical Specification — Mechanical Specification

PLC-45-27 Power Factor Characteristic — Power Factor Characteristic

PLC-45-27 EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

Typical applications

Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
2 years warranty

Downloads

Datasheet1

PLC-45-27 datasheetPLC-45-SPEC.PDF · 2024-09-25 edition PDF Download

Certificates6

PSE Certificate(PLC-45)(EN) PDF Download

EMC Certificate(PLC-45)(EN) PDF Download

CB Certificate(PLC-45)(EN) PDF Download

UL Certificate(PLC-45)(EN) PDF Download

TUV Certificate(PLC-45)(EN) PDF Download

CCC Certificate(PLC-45)(CN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What are the main electrical ratings of the Mean Well PLC-45-27?

The PLC-45-27 is a 45W power supply with a 27V output and 1.7A rated current. It is designed with a universal AC input range and includes active PFC. This model also supports adjustable output voltage and current level within its designed operating range.

What types of applications is the PLC-45-27 designed for?

The PLC-45-27 is a 45W LED power supply suited to LED lighting and moving sign applications. Its built-in constant current limiting circuit in C.V.+C.C. mode makes it a practical choice for applications that benefit from stable 27V output with current limiting behavior. Mean Well suggests driving LEDs directly in its constant current region of 20.25 to 27V.

Does the PLC-45-27 support dimming control?

No, this model does not include a dimming control function. Buyers looking for a driver with integrated dimming should treat the PLC-45-27 as a non-dimming option. Its value is centered more on regulated output, active PFC, and protection features.

What protection features are included on the Mean Well PLC-45-27?

The PLC-45-27 includes protection for short circuit, over current, over voltage, and over temperature. Over voltage protection trips at 31 to 35V and needs a re-power to recover, while the other protections recover automatically. These features are intended to support reliable operation in demanding commercial environments.

What operating temperature range is this power supply rated for?

This model is rated for operation from -30°C to 50°C, with load derating per the datasheet's derating curve. That range makes it suitable for many indoor and protected commercial environments where temperature conditions can vary. Buyers should confirm that the application stays within this stated operating range.

How efficient is the PLC-45-27, and does it include power factor correction?

The PLC-45-27 has a typical efficiency of 86.5%. It also includes an active PFC function, with PF above 0.92 at 115VAC and above 0.9 at 230VAC at full load. This can make it a better fit for applications where power quality and efficiency matter.
