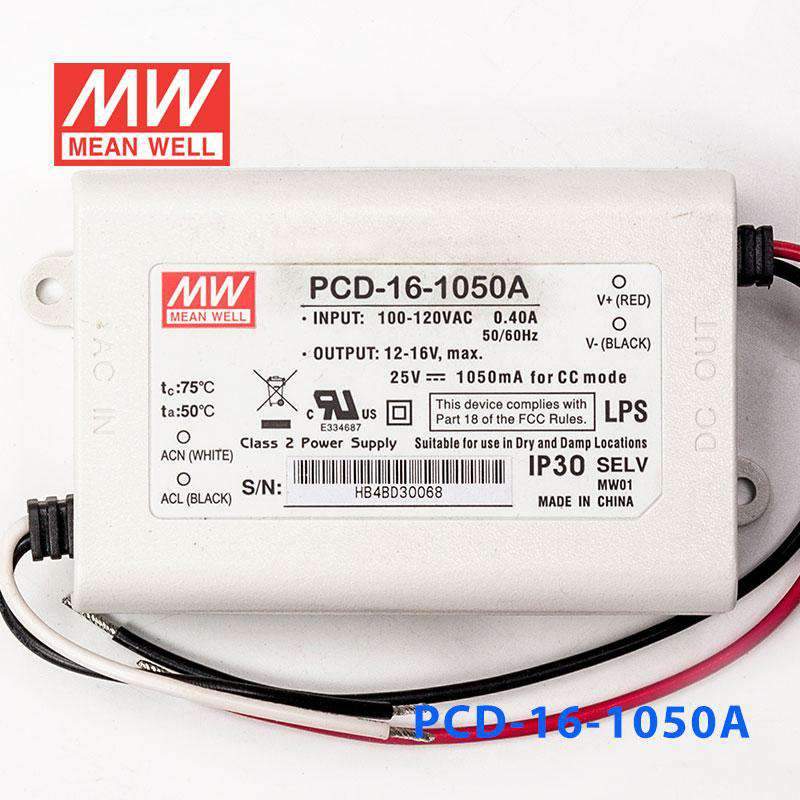

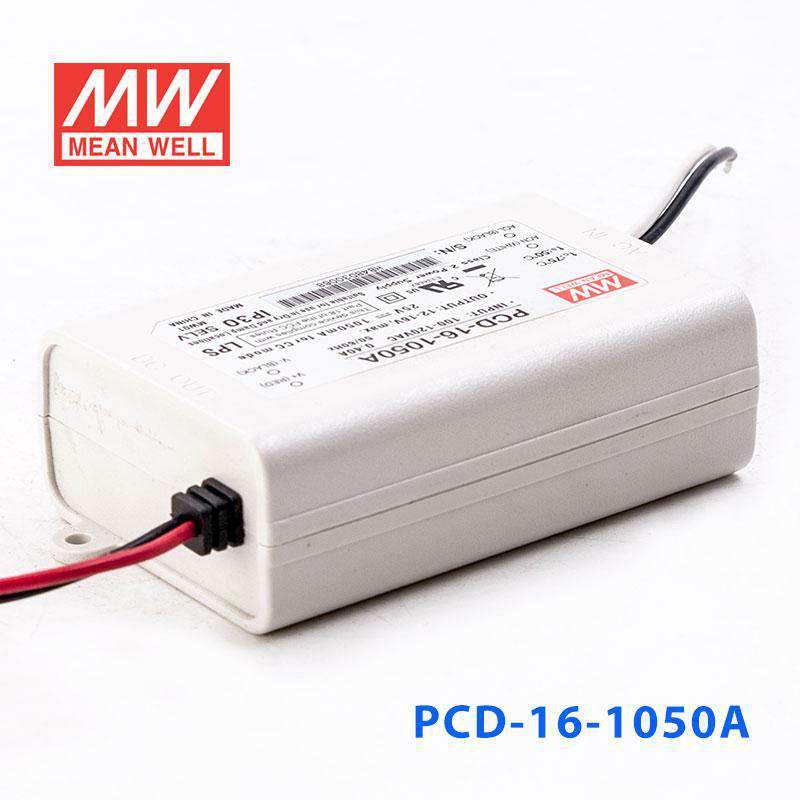

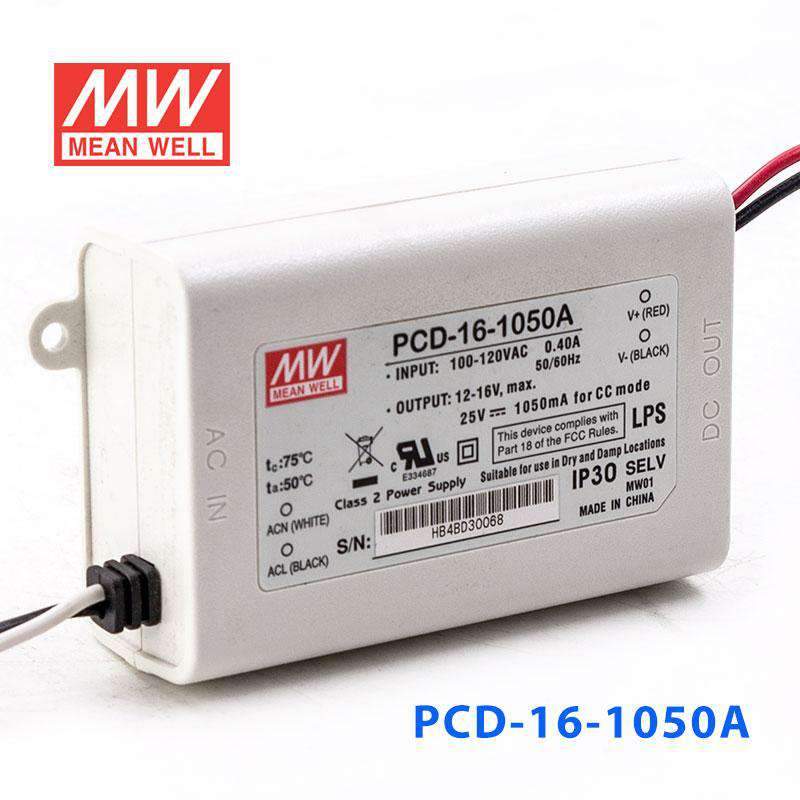

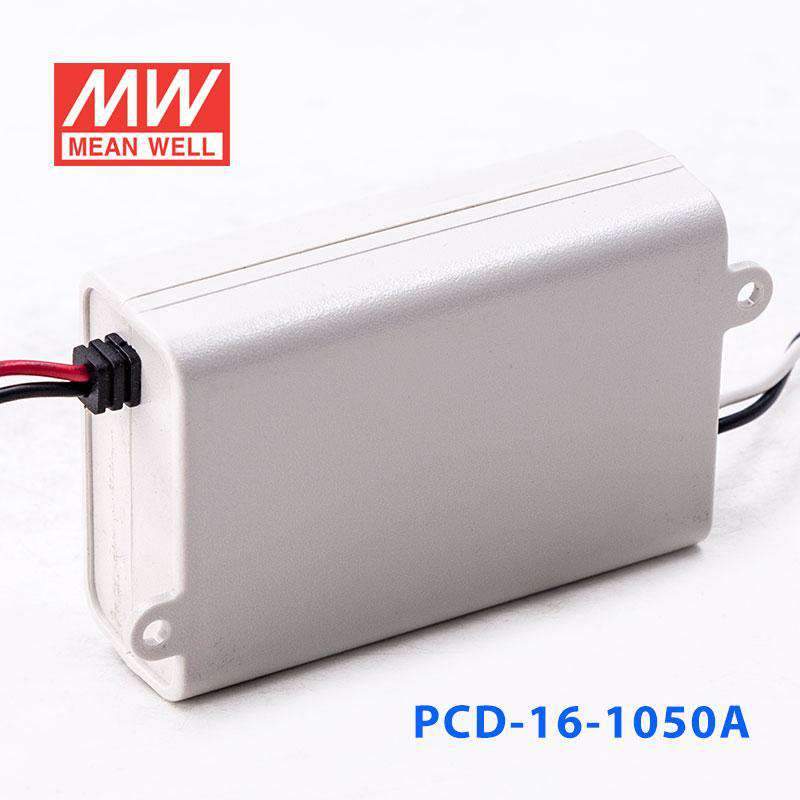

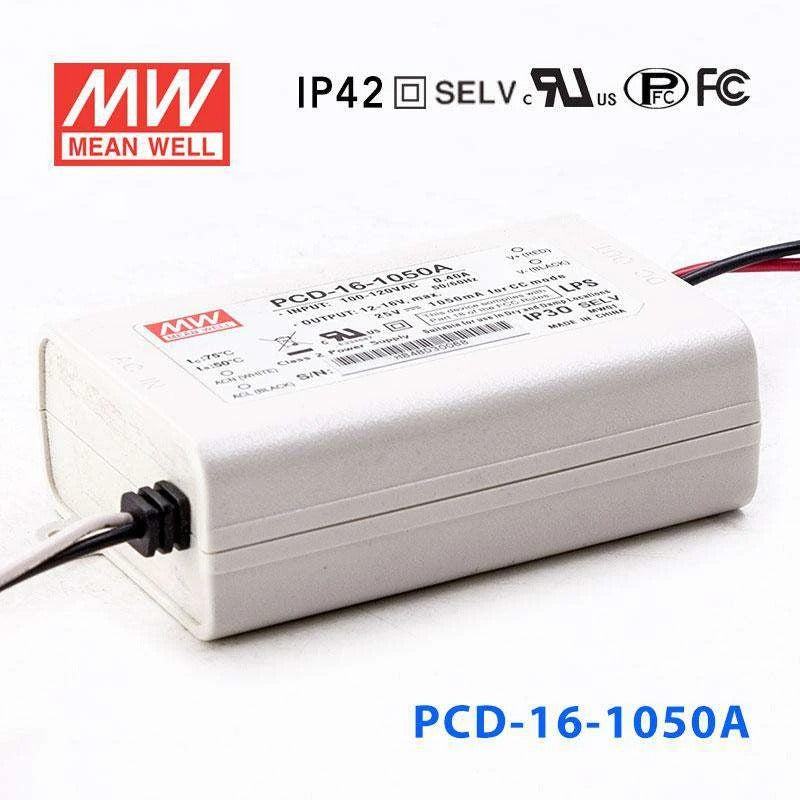

Mean Well PCD-16-1050A Power Supply 16W 1050mA
$17.35 USD
$120.00
Unit price /
Unavailable
Description
Description
The PCD-16 is a 16W Mean Well power converter (input range: 24~48V, operating temperature: -30~+60℃).
Key Features
- ✓ Input voltage range: 24~48V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+60℃
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-16-350), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating16.8 Watt
-
Output Voltage16 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~135V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
