Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

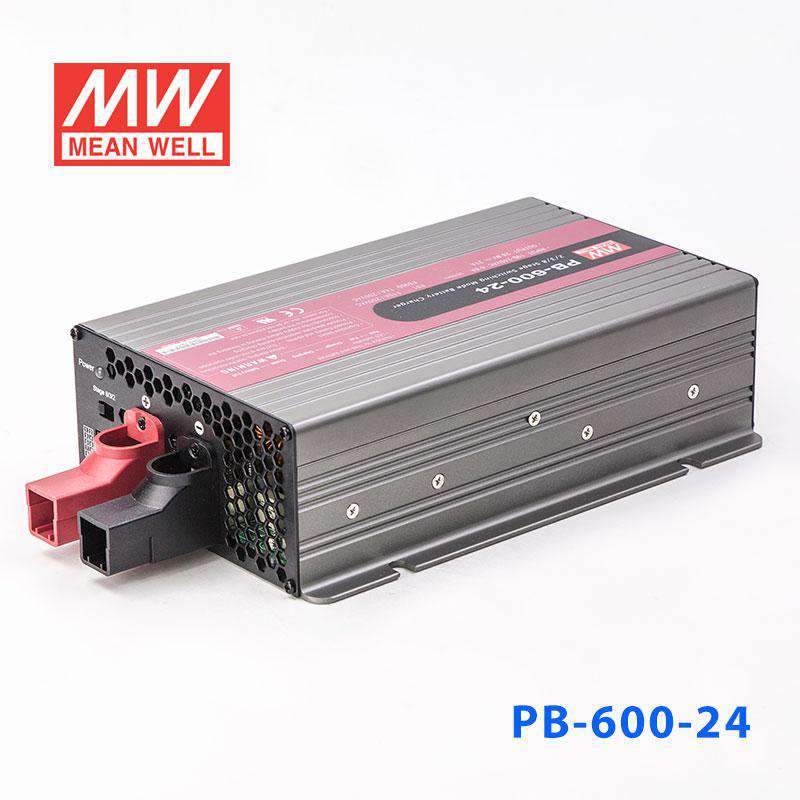

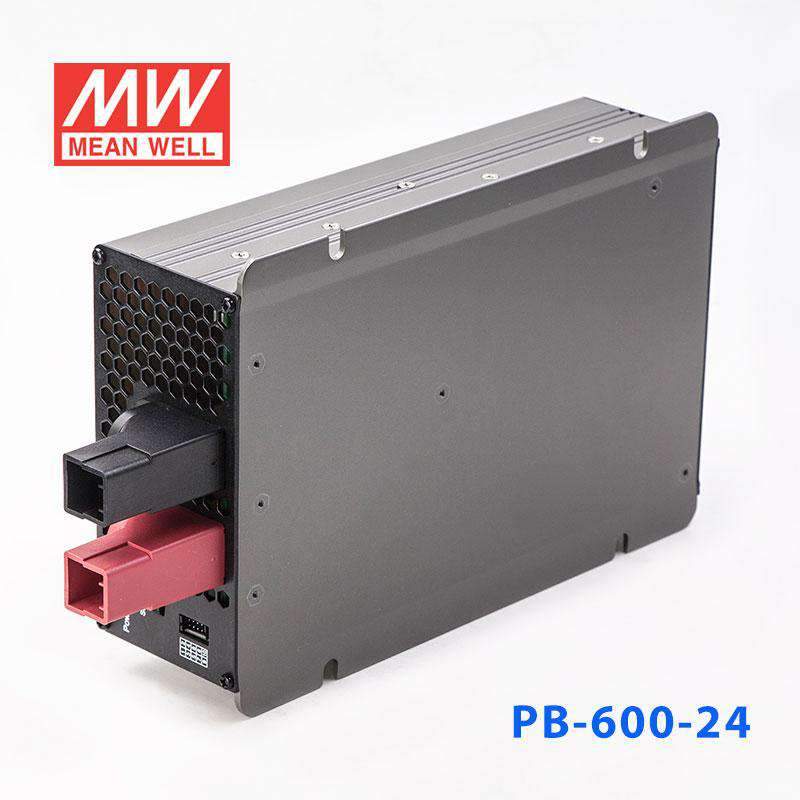

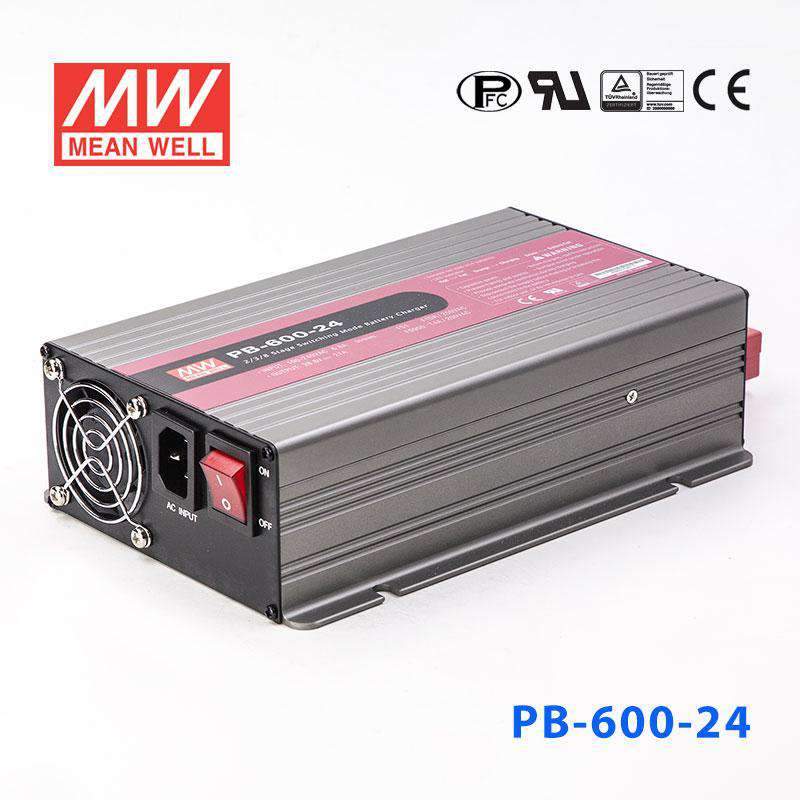

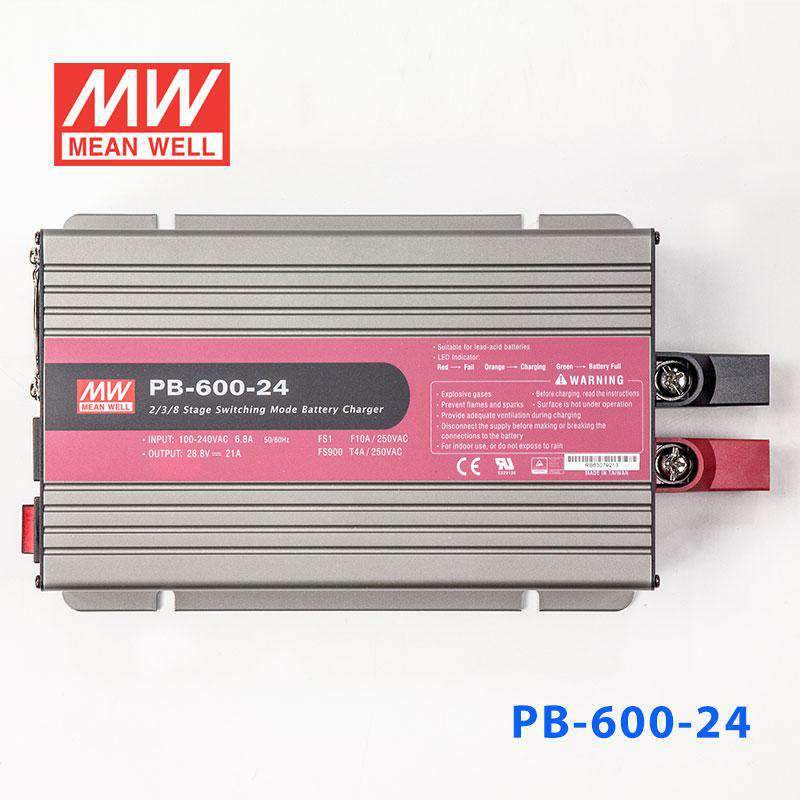

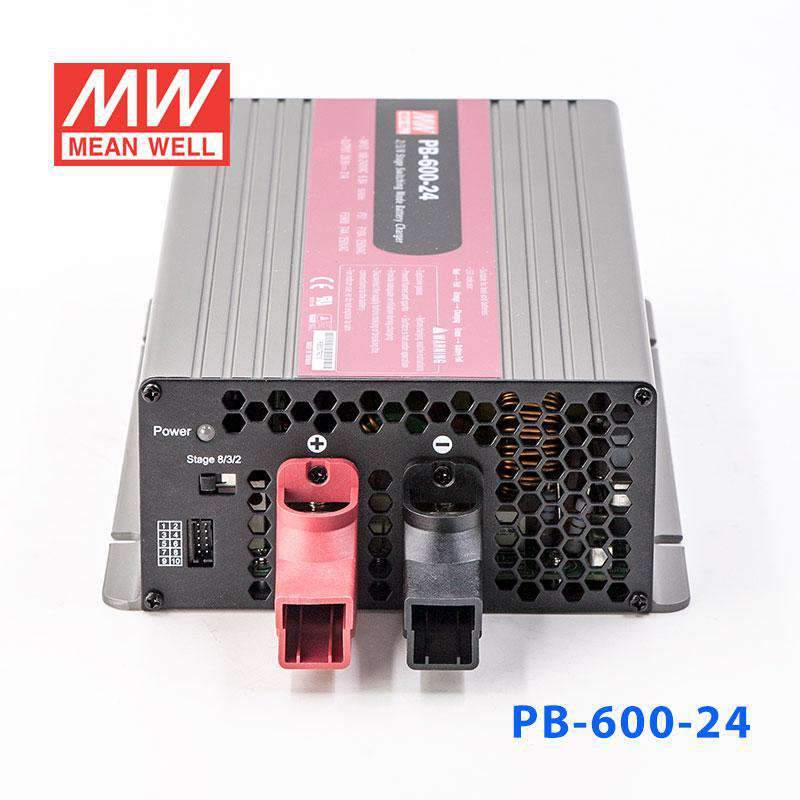

Mean Well PB-600-24 Battery Chargers 600W 28.8V 21A - 2/3/8 Stage W...
$240.94 USD
Unit price /
Unavailable
Description
Description
Features
| Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) |
| 2/3/8 stage charging |
| Built-in battery rescue function |
| Controlled by micriprocessor |
| Universal AC input / Full range |
| Built-in active PFC function PF>0.95 |
| Protection: Short circuit / Reverse polarity / Over voltage / Over temperature |
| 3-color LED loading indicator |
| Built-in remote ON-OFF control |
| Built-in temperature compensation function |
| Built-in fan speed control (depends on charging current) |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 264VAC selected by switch; 127 ~ 370VDC |
| AC inrush current (max.) | 25A/115VAC; 50A/230VAC |
| Over-voltage protection | Protection type: Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60ºC(refer to output derating curve) |
| Safety standards | UL1012, TUV BS EN/EN60335-1, BS EN/EN60335-2-29 (except for 48V), BS EN/EN62368-1(48V only), EAC TP TC 004 approved |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) (mm) | 230 x 158 x 67mm |
| Packing | 2.2Kg; 6pcs/14.2Kg/1.76CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesPB Series
-
Power Rating600 Watt
-
Output Voltage28.8 Volt
-
Rated Current21 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length9.06 in
-
Width6.22 in
-
Height2.64 in
-
Weight4.85 lb
