Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

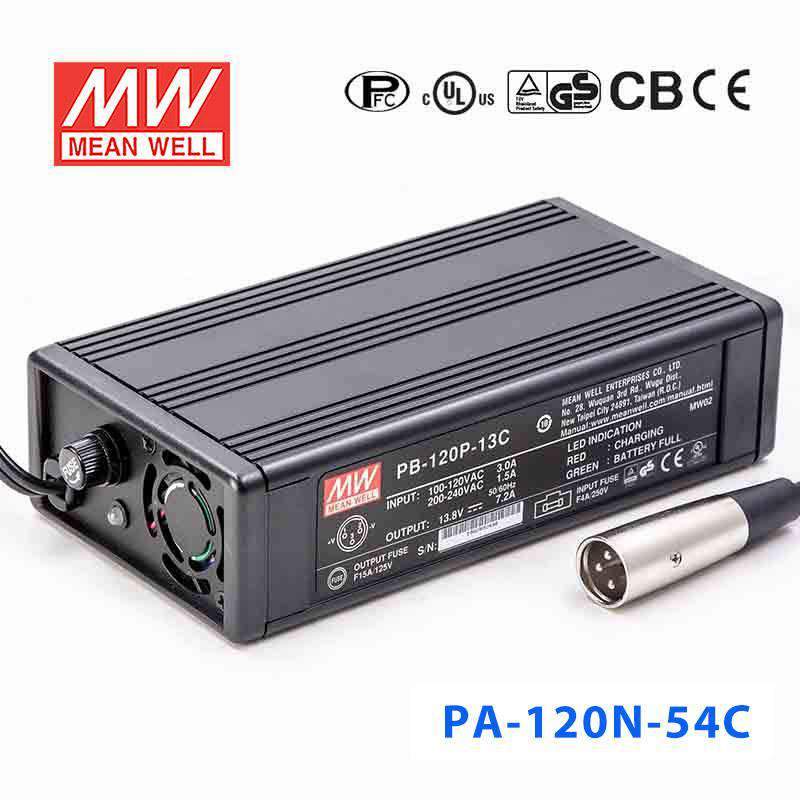

Mean Well PA-120N-54C Portable Battery Chargers 121.44W 55.2V 2.2A ...
$59.34 USD
Unit price /
Unavailable
Description
Description
Features
| AC input range selected by switch |
| Built-in passive PFC function compliance to EN61000-3-2 |
| With AC ON-OFF switch |
| 3 poles AC inlet with fuse holder |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Charger type can be selected (Optional) |
| Charger for lead-acid batteries |
| 2 color LED loading indicator |
| Open frame models available (Without safety approval) |
| Low cost, High reliability |
| 2 years warranty |
General Specification
| AC input voltage range | 88~132VAC / 176~264VAC(selectable by switch); 248~370VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Overload protection | 90%~110% Constant current limiting, auto-recovery |
| Over voltage protection | 108%~127% hiccup mode,auto-recovery |
| Setup, rise, hold up time | 1000ms,50ms,16ms at full load |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -10~+45ºC(refer to output derating curve) |
| Safety standards | UL60950-1,TUV EN60950-1,EN60335,EN60335-1,EN60335-2-29 approved |
| EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024 |
| Dimension (LxWxH) (mm) | Case Type:180x96x 49mm;PCB:144x90x 33mm |
| Packing | 16pcs / 17.9kg(without PFC); 16pcs / 20.1kg(with PFC) |
Specifications
Specifications
-
BrandMean Well
-
SeriesPA Series
-
Power Rating121.44 Watt
-
Output Voltage55.2 Volt
-
Rated Current2.2 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,cUL,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~45°C
-
Warranty2 Year
-
Length7.09 in
-
Width3.78 in
-
Height1.93 in
-
Weight2.43 lb
