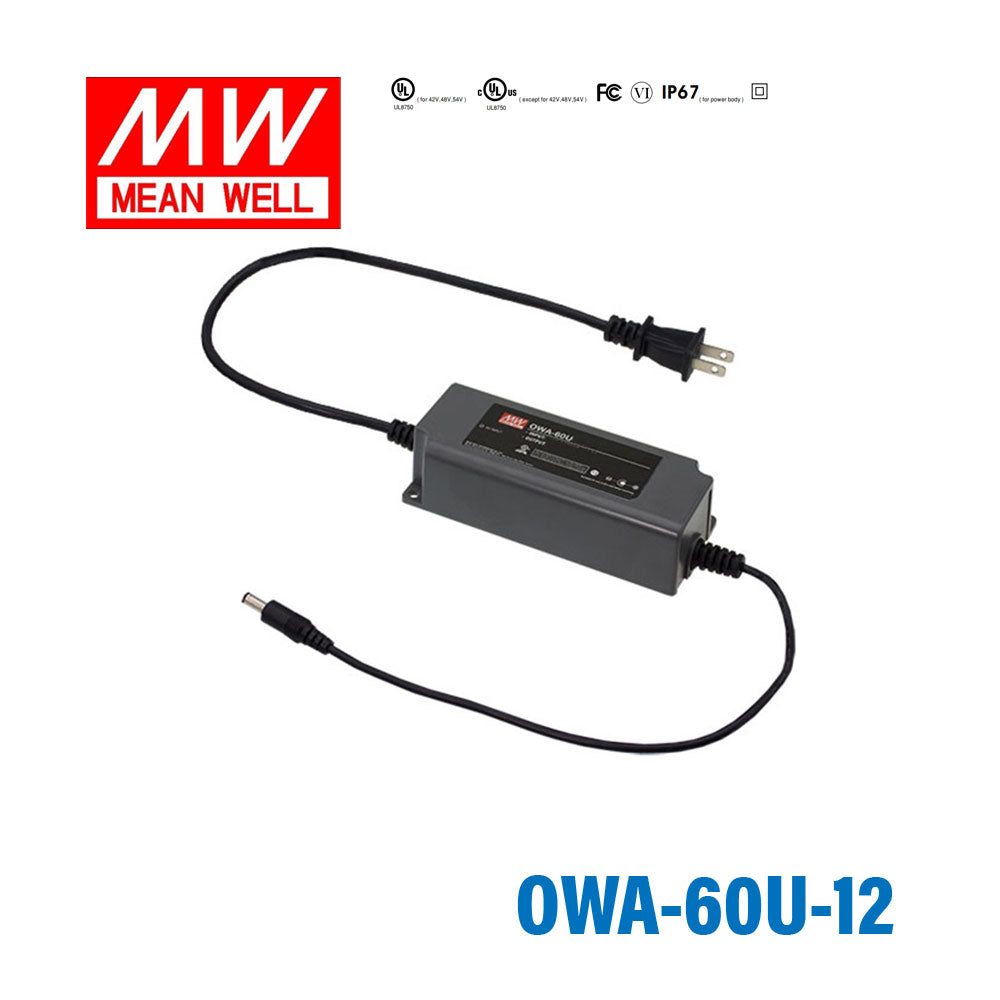

Mean Well OWA-60U-12 AC/DC Adapter Desktop 60W
$34.60 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC Input / Full range (up to 264VAC) |

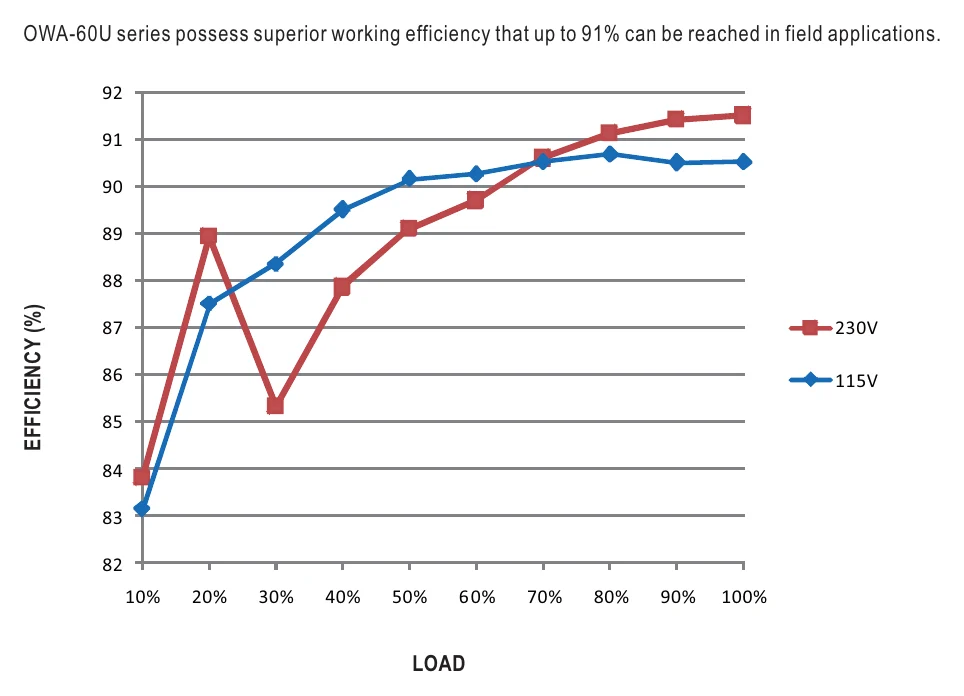

| High efficiency up to 91% |
| Protections: Short circuit/ Overload/ Over voltage/ Over temperature |
| Class II power unit, no FG |
| Class 2 power unit |
| Fully isolated plastic case |
| Fanless design, cooling by free air convection |
| No load power consumption <0.15W |
| Comply with EISA 2007 DoE and NRCan |
| UL LISTED, suitable for dry and damp locations |

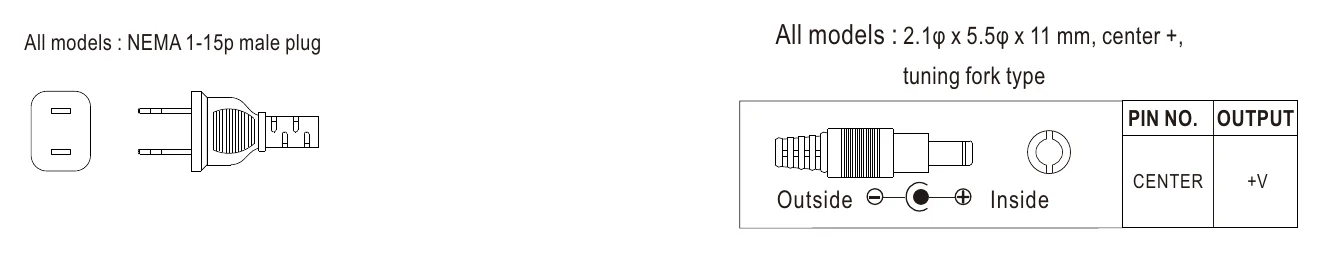

| Various DC plug quick adapter accessories are available |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | COLD START 35A(twidth=750 s measured at 50% Ipeak) at 115VAC; COLD START 65A(twidth=750 s measured at 50% Ipeak) at 230V μ AC |
| Leakage current | <0.25mA/240VAC |
| Over-voltage protection | 116%~133% rated output voltage |
| Setup, rise, hold up time | 500ms, 80ms, 10ms at full load |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | -35~+70°C |
| Safety standards | UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67 approved for power body |
| EMC standards | EN55032 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |

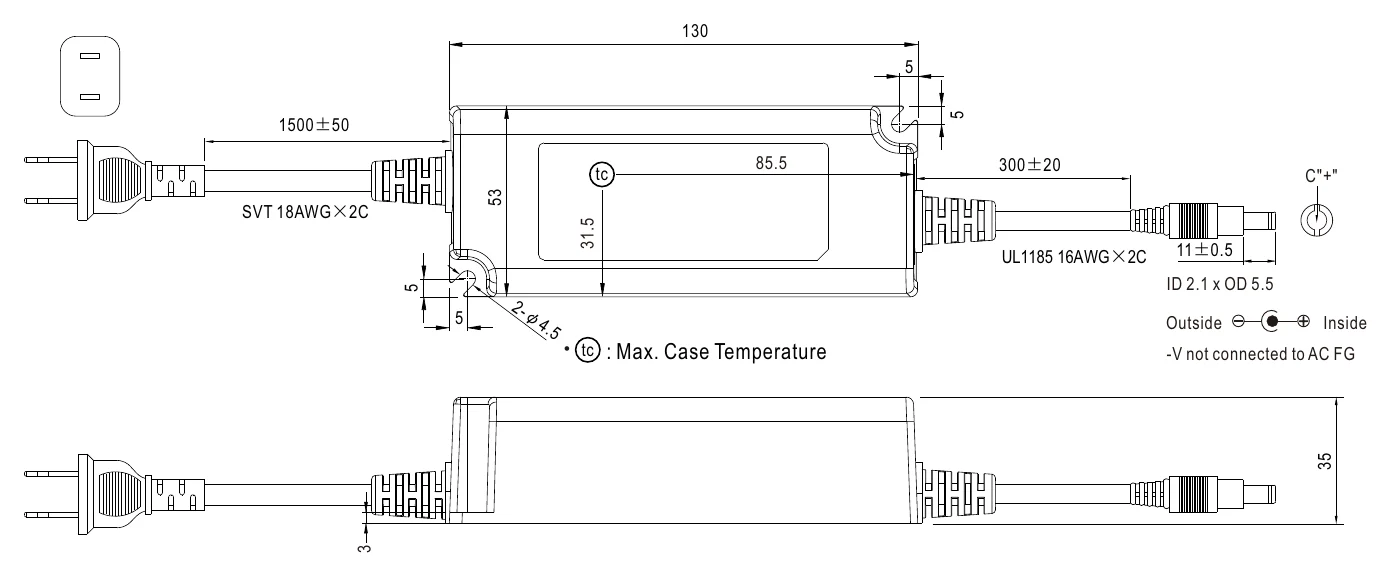

| Dimension (LxWxH) | 130x53x35mm |
| Packing | 16pcs/9.5Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.12 in
-
Width2.09 in
-
Height1.38 in
-
Weight0.9 lb
