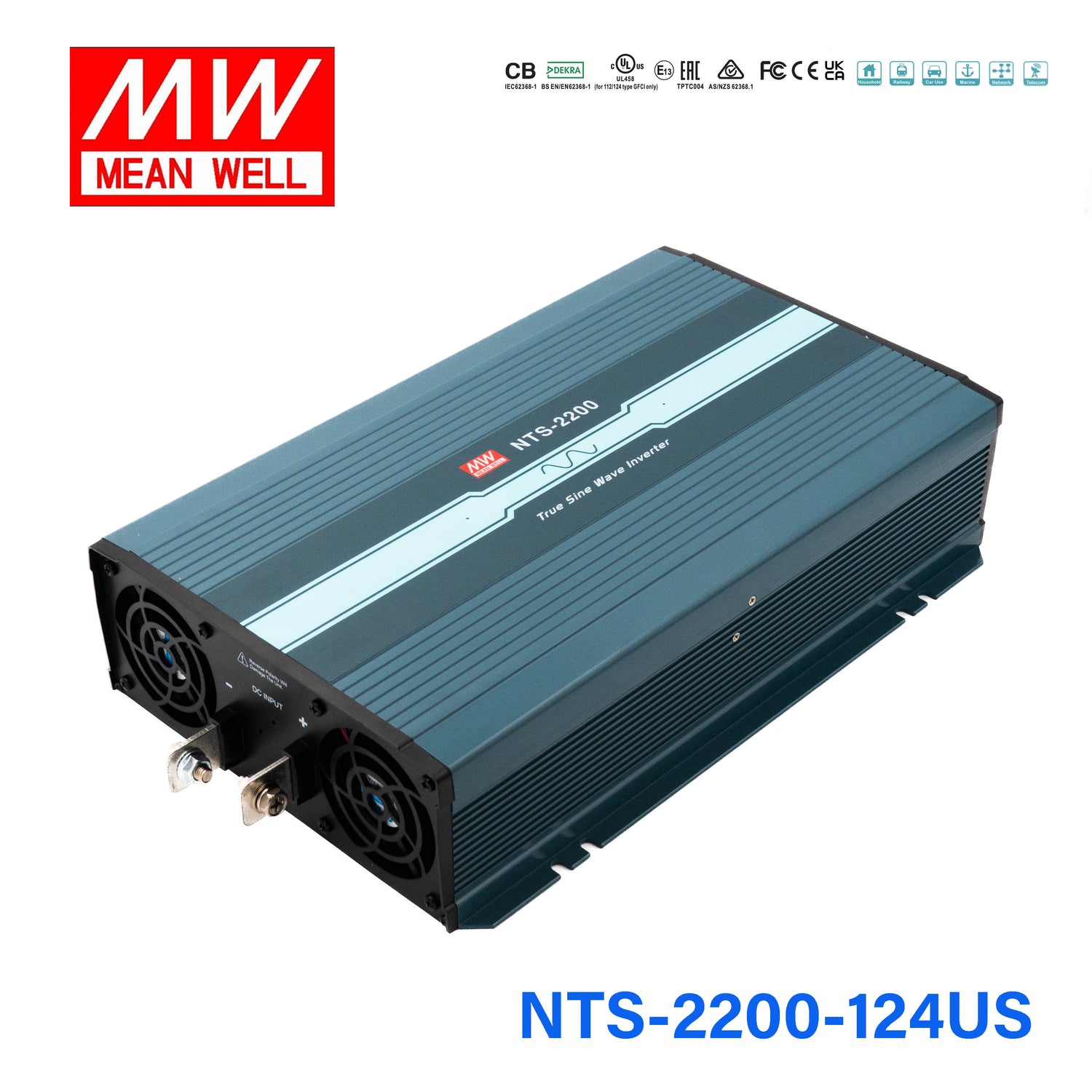

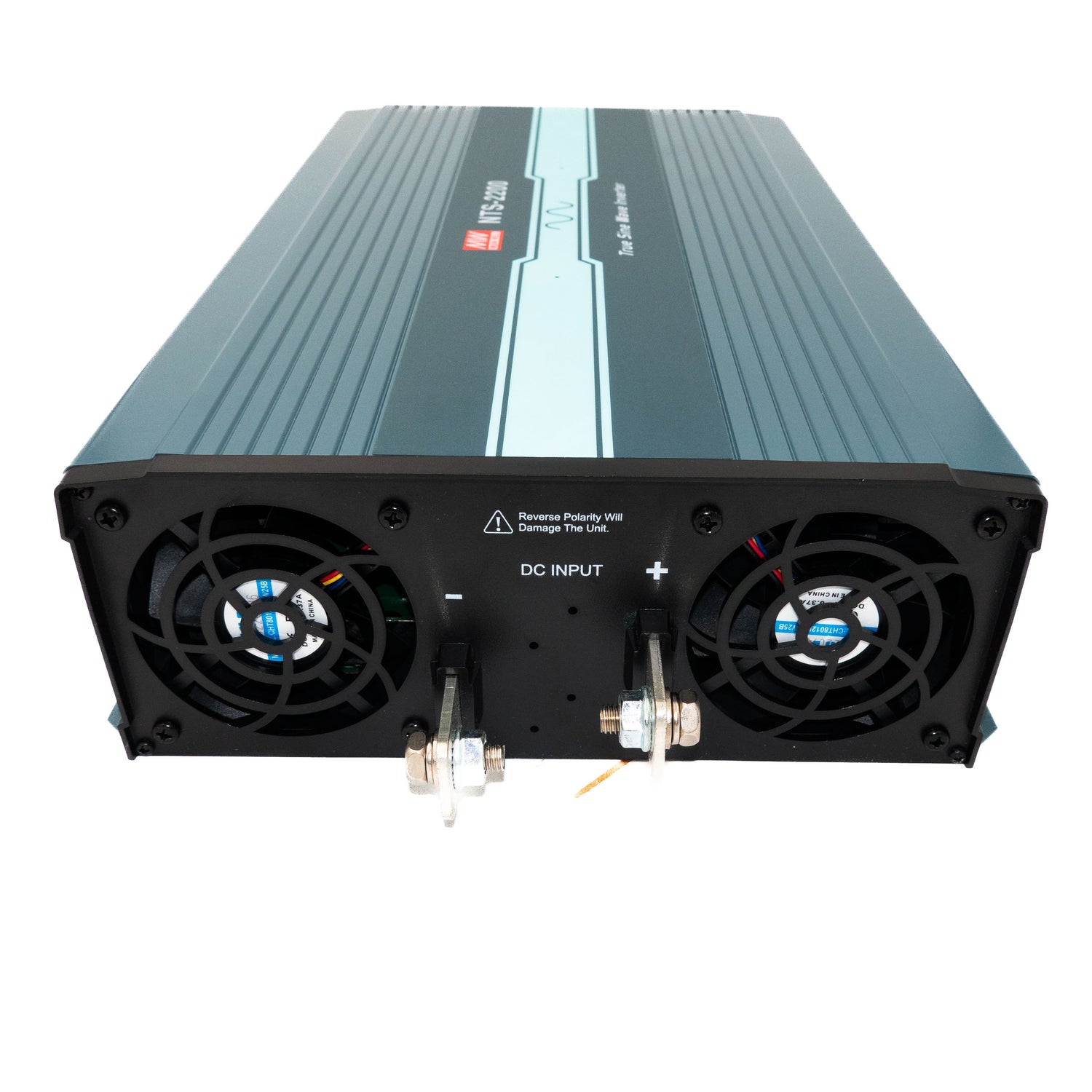

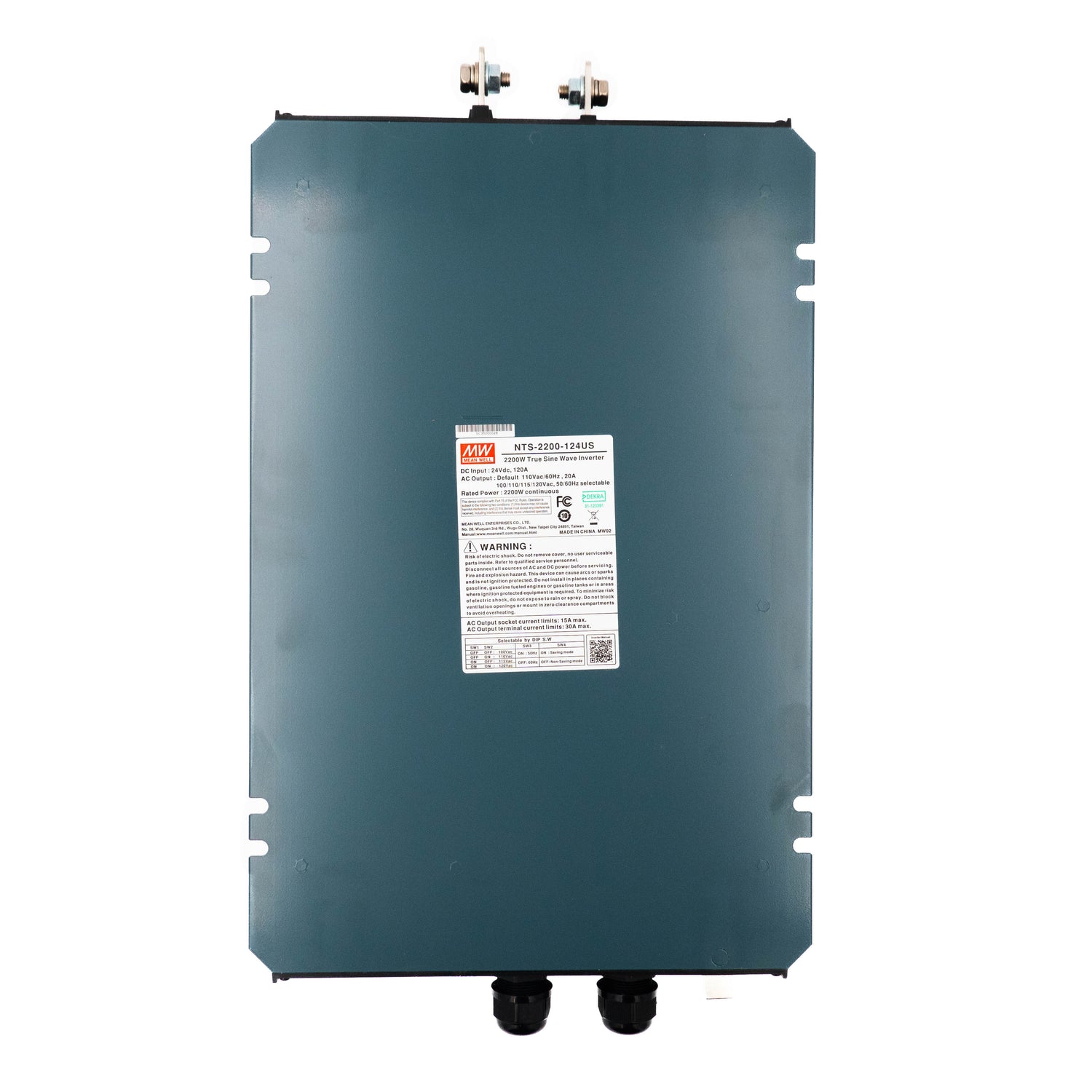

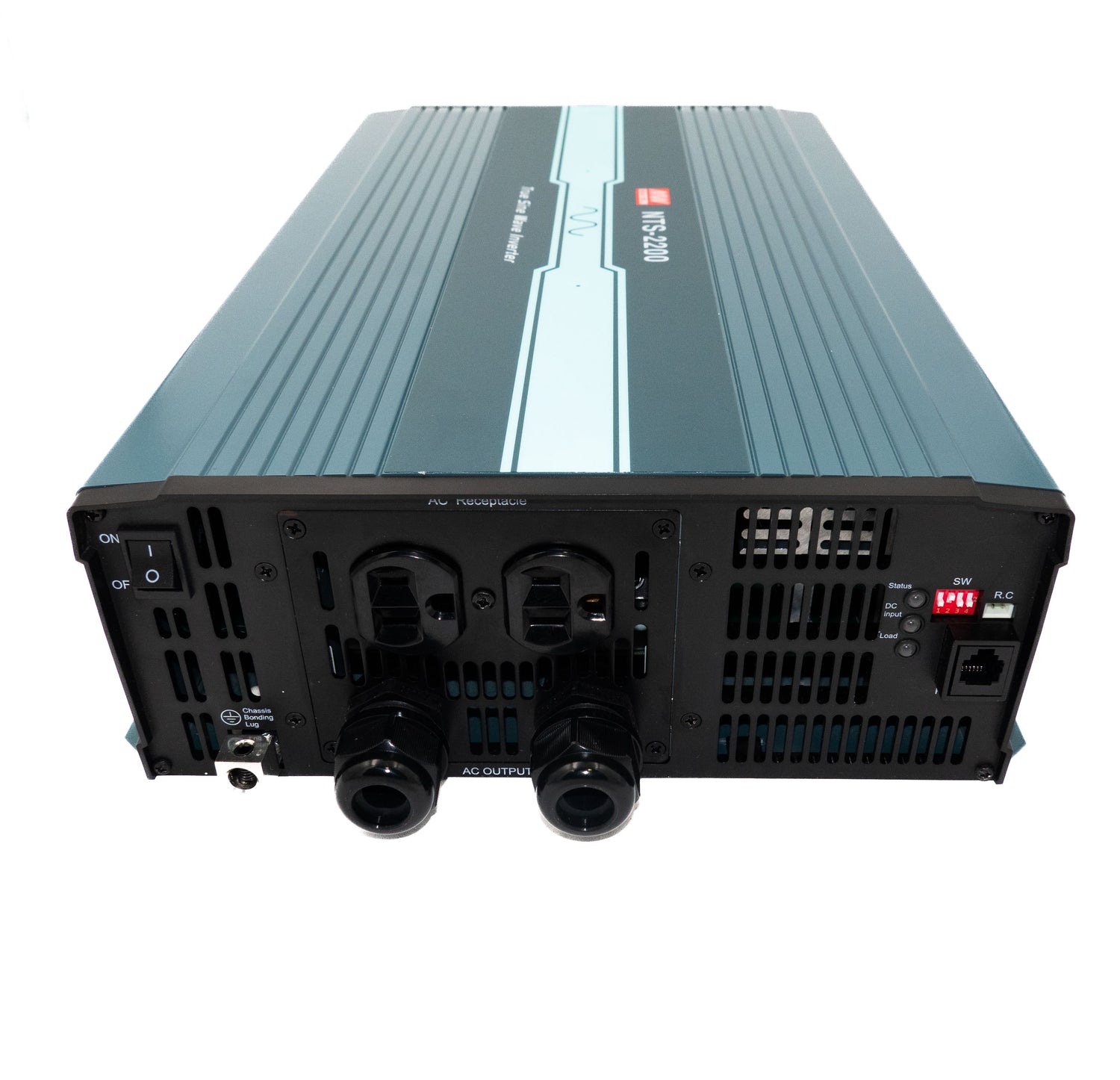

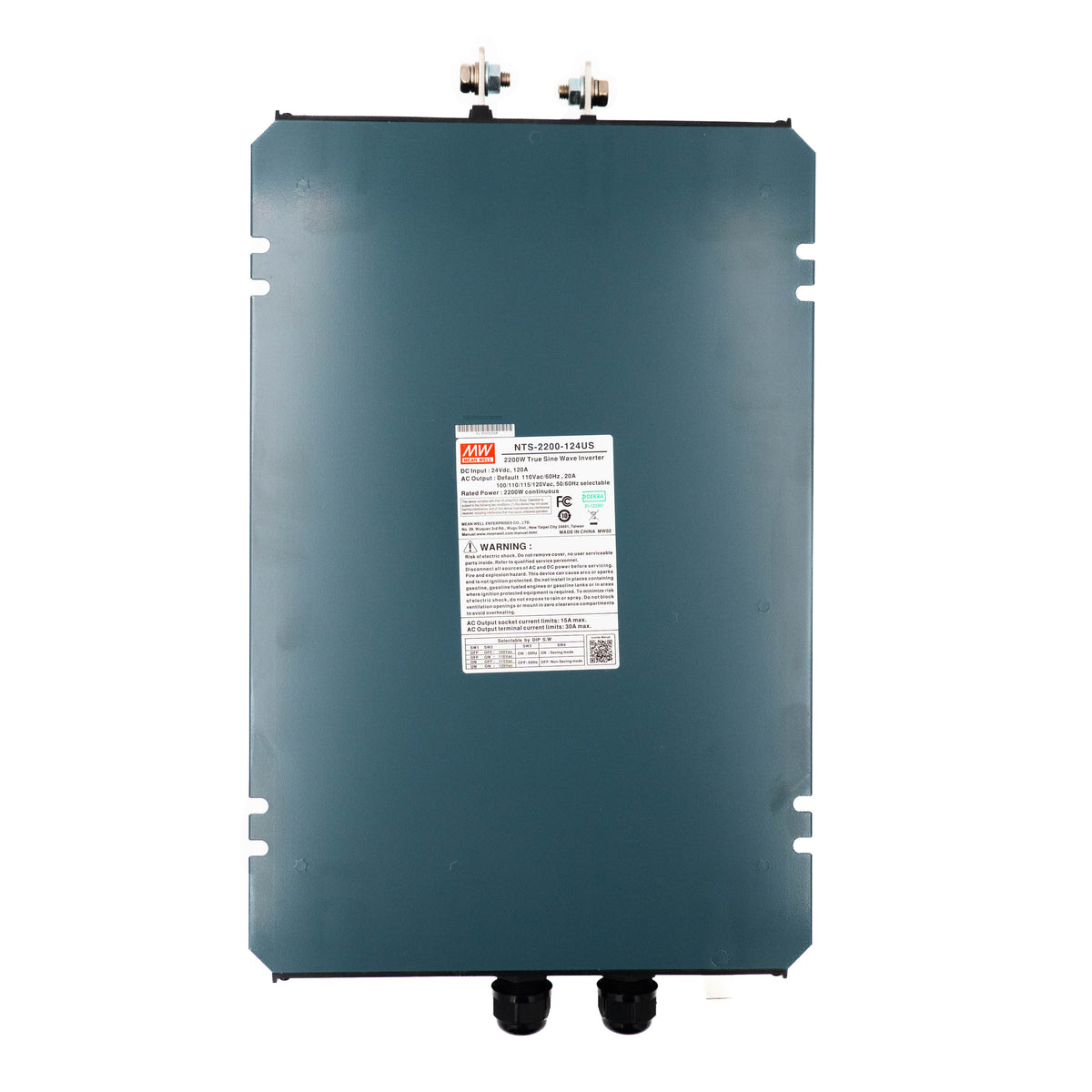

Mean Well NTS-2200-124US True Sine Wave DC-AC Inverter 2200W 110V out 24V in with US Socket

Name: Mean Well NTS-2200-124US True Sine Wave DC-AC Inverter 2200W 110V out 24V in with US Socket
Brand: Mean Well
SKU: NTS-2200-124US
Price: 789.0 USD
Availability: InStock

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU NTS-2200-124US

$789.00 USD

Shipping calculated at checkout.

Available to order

Overview

NTS-2200-124US is the model of this series: typical efficiency 90%.

NTS-2200 is a 2200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

True sine wave output (THD<3%)
High surge power up to 4400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.7W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTS-2200-124USSpecifications from the official datasheet (2024-10-30 edition)

AC OUTPUT

RATED POWER(Continuous): 2200W
OVER RATED POWER(3 Min.): 2530W
PEAK POWER(10 Sec.): 3300W
SURGE POWER(30 Cycles): 4400W
AC VOLTAGE: Factory setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 120A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode 1.7W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 90%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*4
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 25A (Only for “TB” type)
TB TYPE: UL458 (Only for “TB” type AC socket)

FUNCTION

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
REMOTE ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024, BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

OTHERS

MTBF: 364.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 34.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1650W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTS-2200-124US DERATING CURVE — DERATING CURVE

NTS-2200-124US Support RS-232 Communication — Support RS-232 Communication

NTS-2200-124US AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTS-2200-124US MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTS-2200-124US Illustration (page 8) — Illustration (page 8)

NTS-2200-124US TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Datasheet1

NTS-2200-124US datasheetNTS-2200-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates6

Mean Well NTU-NTS-2200-3200- ICES Certificate PDF Download

Mean Well NTU-NTS-2200-3200-EMC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-FCC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-2xx-E13 Certificate PDF Download

Mean Well NTS-NTU-2200-3200-CB Certificate PDF Download

Mean Well NTS-NTU-2200-3200-DEKRA MarK Certificate PDF Download

Test reports1

Mean Well NTS-2200-124 Test Report PDF Download
