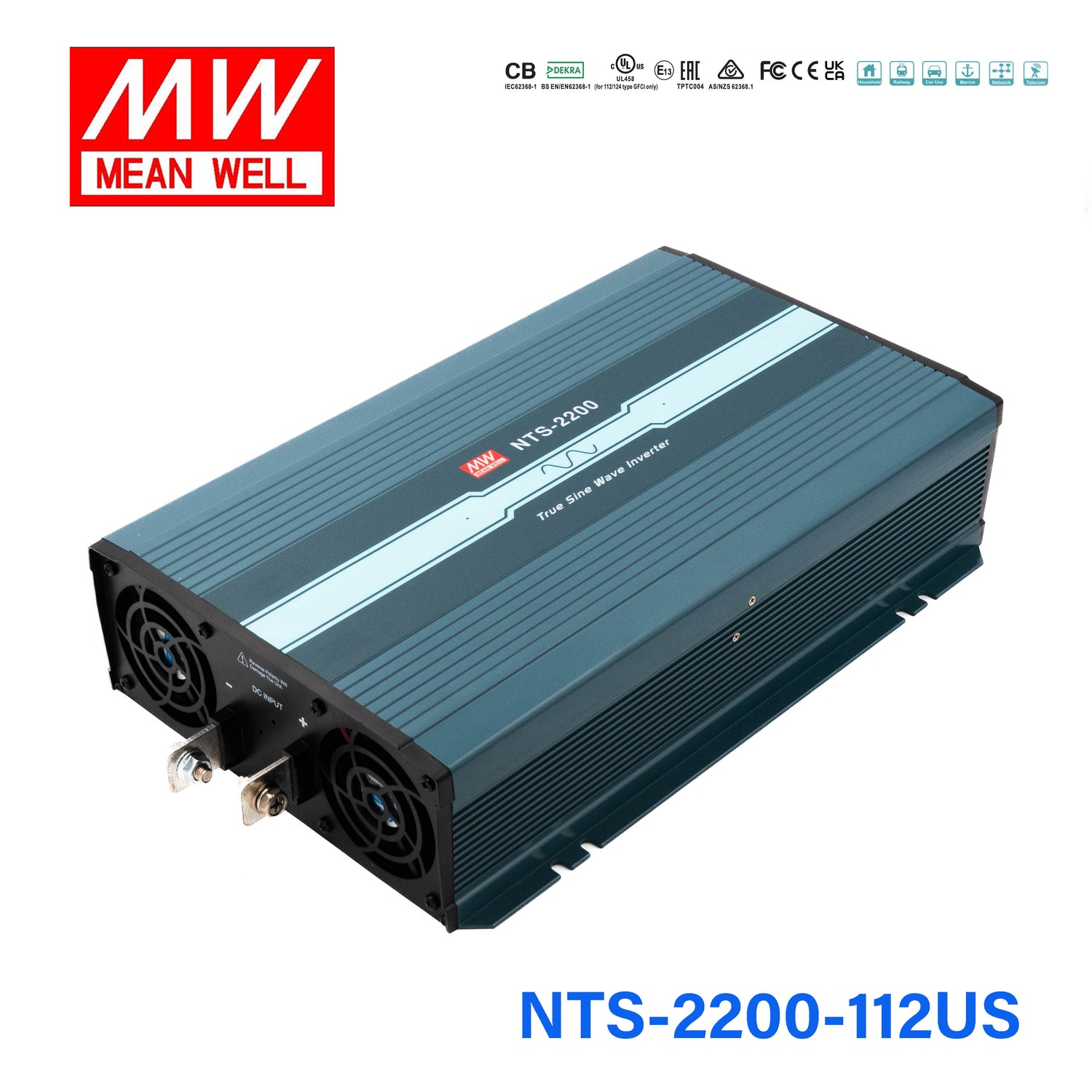

Mean Well NTS-2200-112US True Sine Wave DC-AC Inverter 2200W 110V o...
$422.89 USD
Unit price /
Unavailable
Description
Description
Features
| True sine wave output (THD<3%) |
| High surge power up to 4400W |
| Temperature-controlled cooling fan |
| AC output voltage and frequency selectable by DIP S.W |
| No load dissipation < 1.7W at standby saving mode |
| -25℃~+70℃ wide operating temperature |
| Power ON-OFF remote control |
| Front panel indicator for operation status |
| Protections: Short circuit / Overload / Over voltage |
| Battery over-discharge protection(Low voltage disconnect) |
| Suitable for lead-acid or li-ion batteries |
| Remote controller (IRC1, IRC2, IRC3 accessory sold separately |
| Support RS-232 communication(Communication cable order No.: DS-RJ11-RS232, sold separately |
| Carry handle accessory available(Order NO.: DS-Carry handle, sold separately |
| Conformal coating |
| 3 years warranty |
General Specification
| AC output voltage range | 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W |
| AC output waveform | True sine wave, THD<3.0% |
| Overload temperature | Protection type: Shut down o/p voltage, re-power on to recover |
| Overload | 105~115% load for 180s, 115~150% load for 10s |
| Withstand voltage | DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC |
| Working temperature | -25~+70°C (refer to output derating curve ) |
| Safety standards | CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, UL62368-1, E13,EAC TP TC 004,AS/NZS 62368.1 approved |
| EMC standards | EN55032 class A, BS En/EN61000-4-2,3,8 |
| Dimension (LxWxH) | 420x270x98mm |
| Packing | 1pcs / 10.4Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMeanWell NTS Series
-
Power Rating2200 Watt
-
Output Voltage110 Volt
-
Input Voltage10V~16.5V
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length16.54 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
