Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

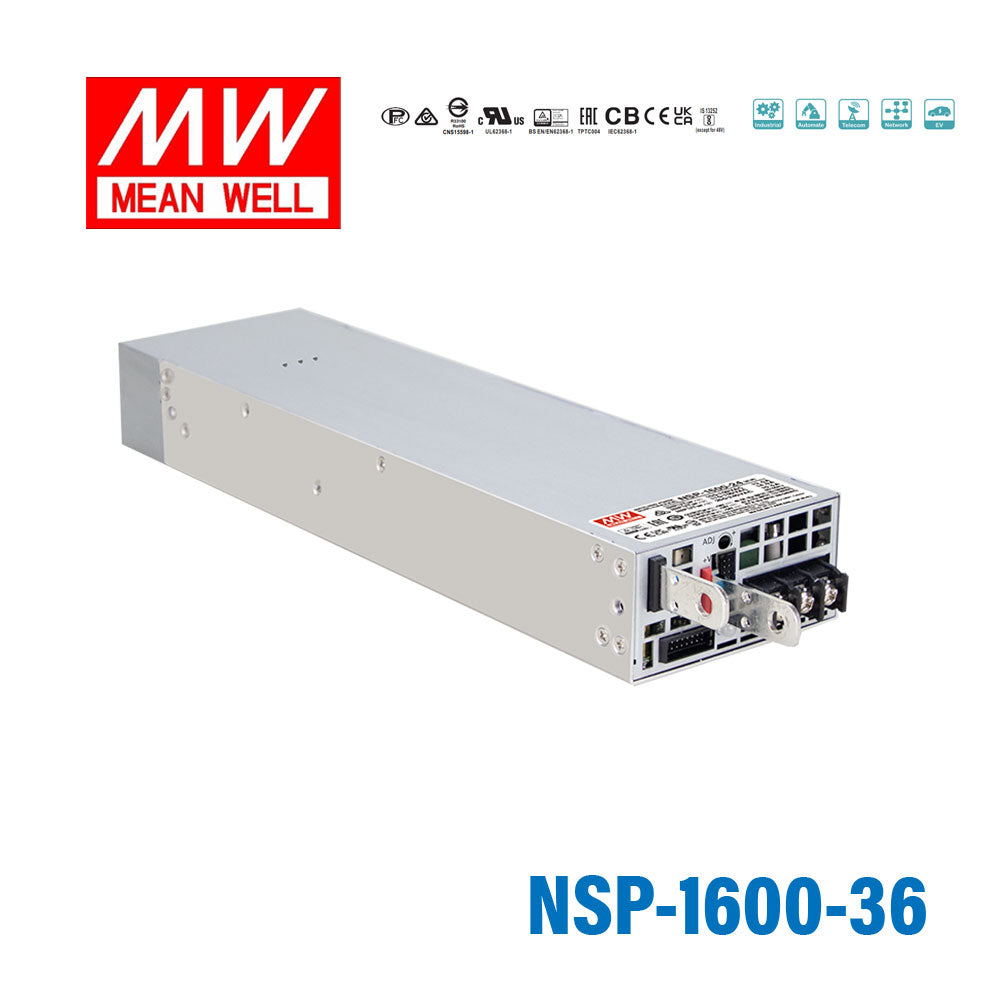

Mean Well NSP-1600-36 1602W 36V Compact Power Supply
$389.53 USD
Unit price /
Unavailable
Description
Description
NSP-1600 Series Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
- Universal AC input/full range
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage level programmable
- Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal
- Protections: short circuit/ overload/ over voltage/ over temperature
- Design refer to SEMI F47
- 5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating1602 Watt
-
Output Voltage36 Volt
-
Rated Current44.5 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight3.97 lb
