Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

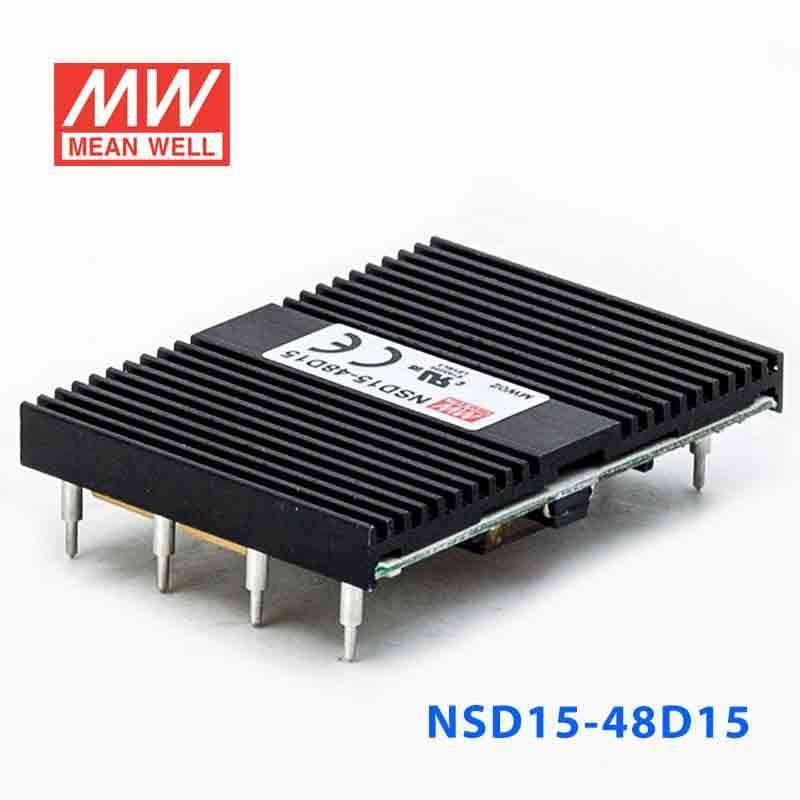

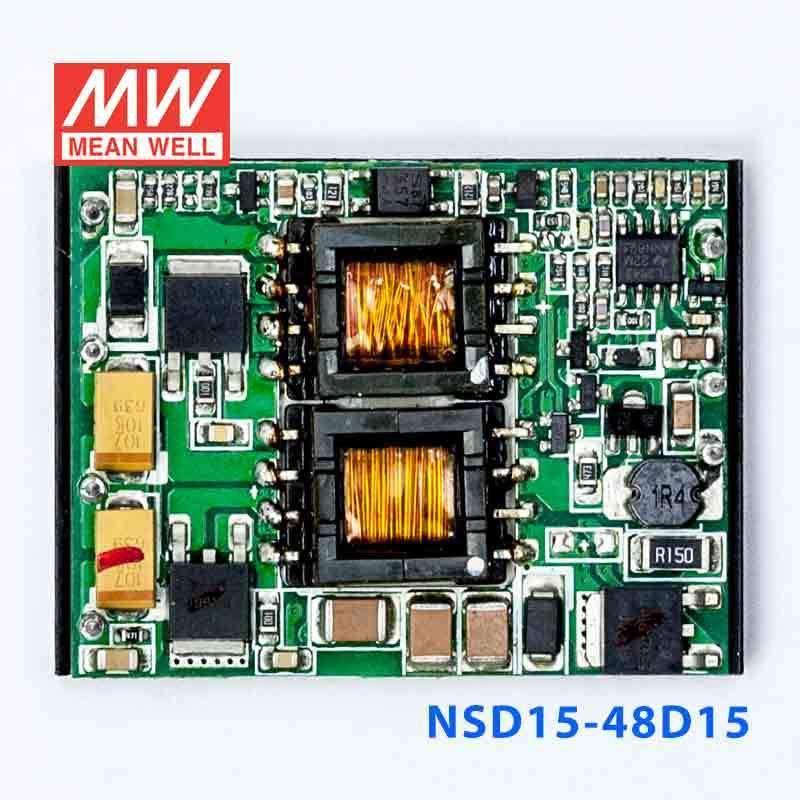

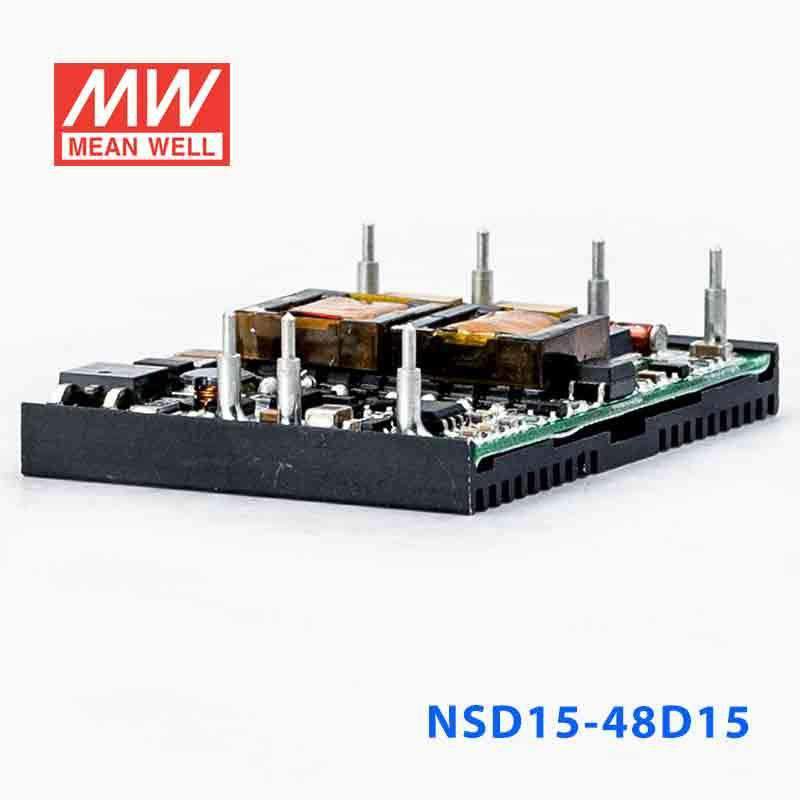

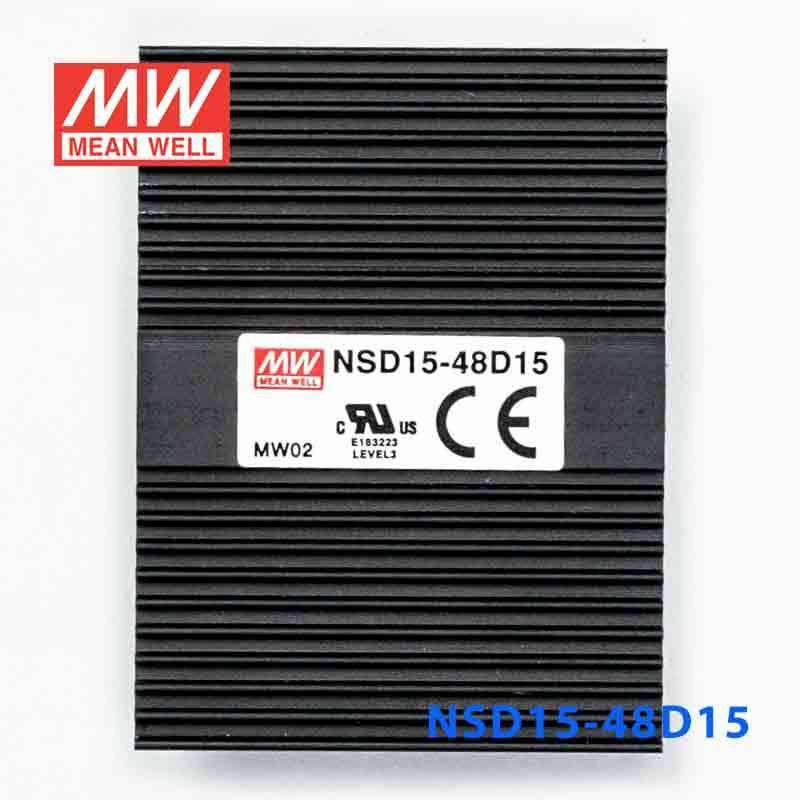

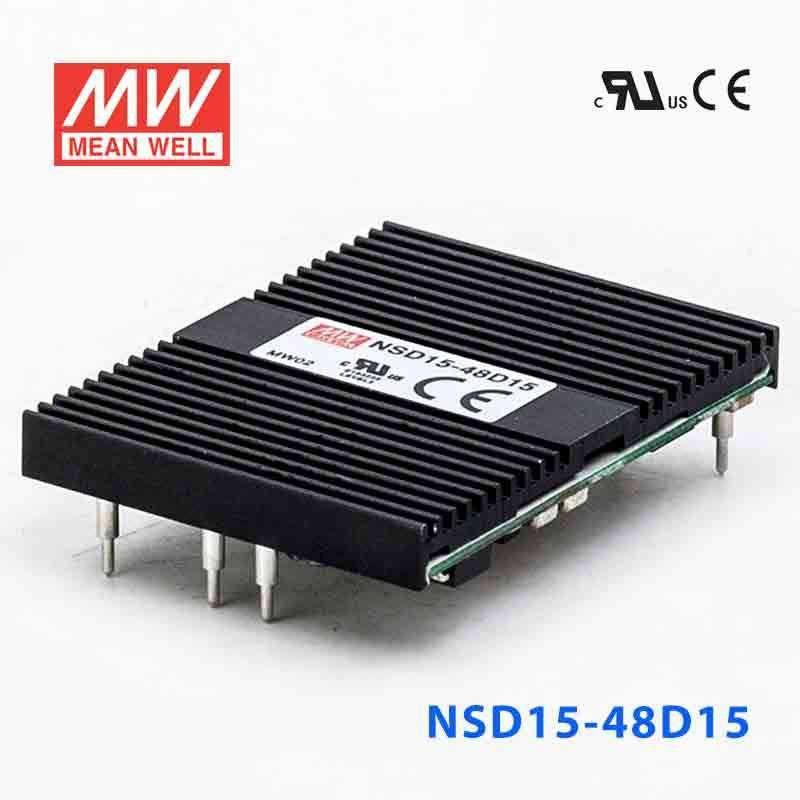

Mean Well NSD15-48D15 DC-DC Converter - 15W - 18~72V in ±15V out
$18.42 USD
Unit price /
Unavailable
Description
Description
Features
| 4:1 wide input range |
| 1500VDC I/O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Over voltage |
| Built-in remote ON/OFF control |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
| Output voltage trimming function |
General Specification
| Voltage set point accuracy | ±2.0% (max.) |
| Line regulation | ±1% @10~100% load |
| Load regulation | ±1~±3% @10~100% load |
| Efficiency | 85% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Over voltage protection | Clamp@115~150% |
| Shutdown idle current | 20mA |
| I/O isolation voltage | 1000VDC |
| I/O isolation resistance | 100MQ(min.) @500VDC |
| Working temperature | -25~+70°C |
| Storage temperature | -40~+85°C |
| Short circuit protection | Continuous, auto-recovery |
| Temp. Coefficient | ±0.03% / °C |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8 |
| Safety standards | UL60950-1 approved |
| Dimension (LxWxH) (mm) | 2" x 1" x 0.394" |
| Packing | 0.03kg ; 180pcs / 6.4kg / 0.97CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current0.5 Ampere
-
Input Voltage18V~72V
-
Standards MetCE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width1.5 in
-
Height0.39 in
-
Weight0.07 lb
