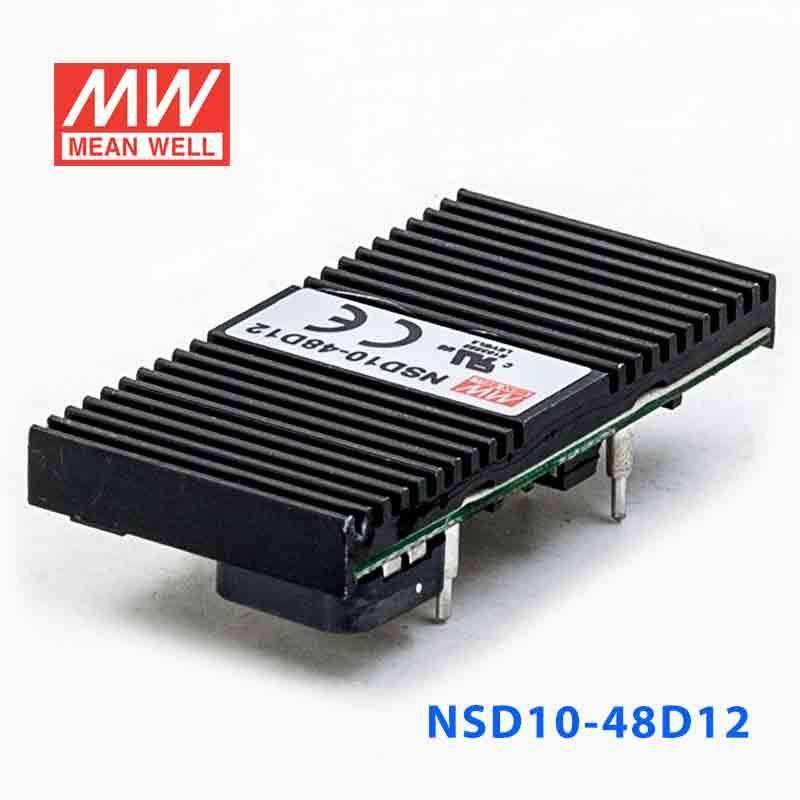

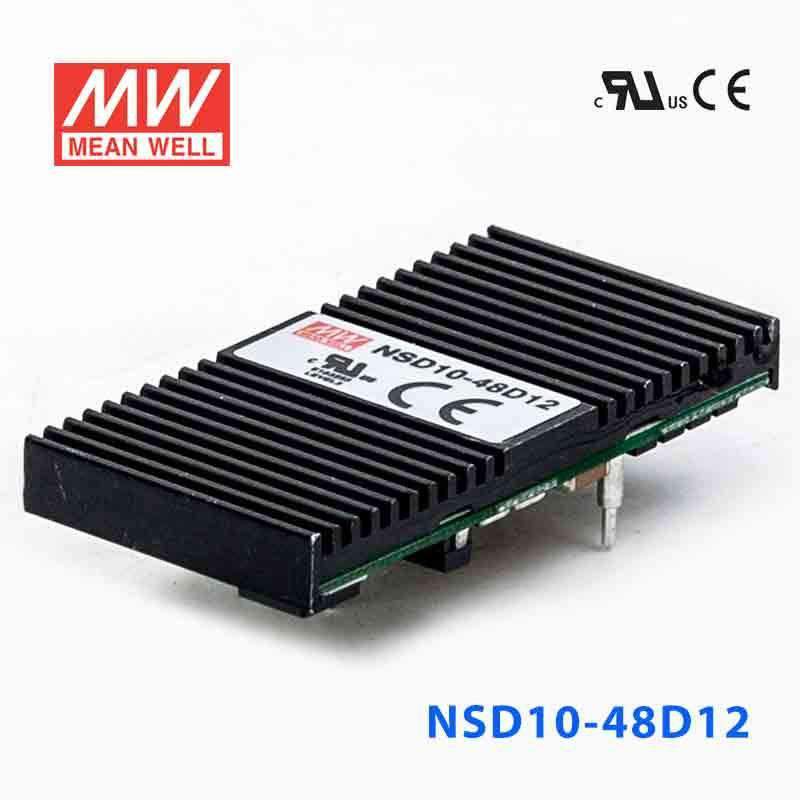

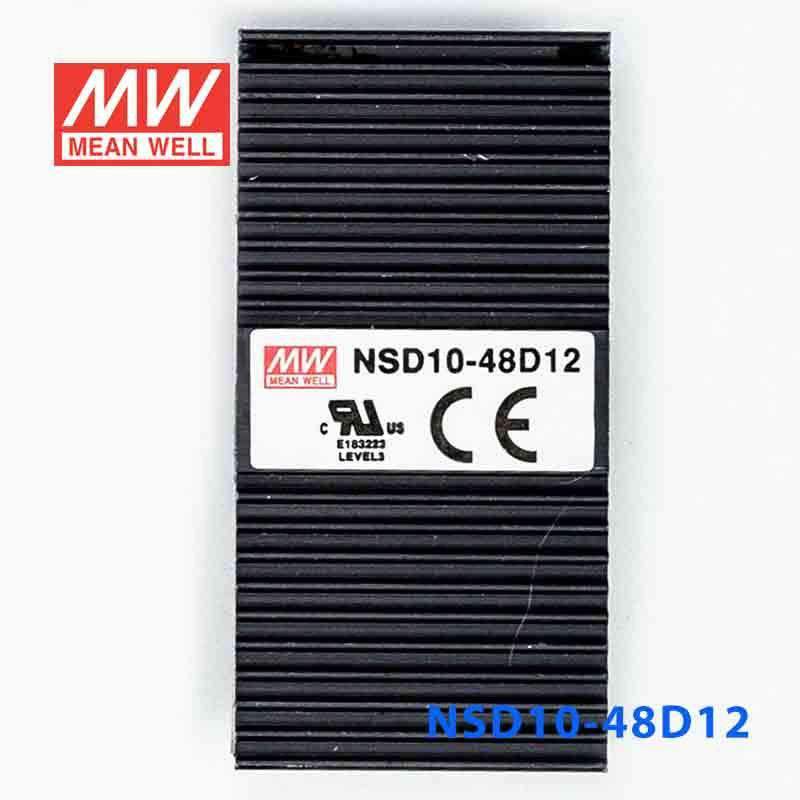

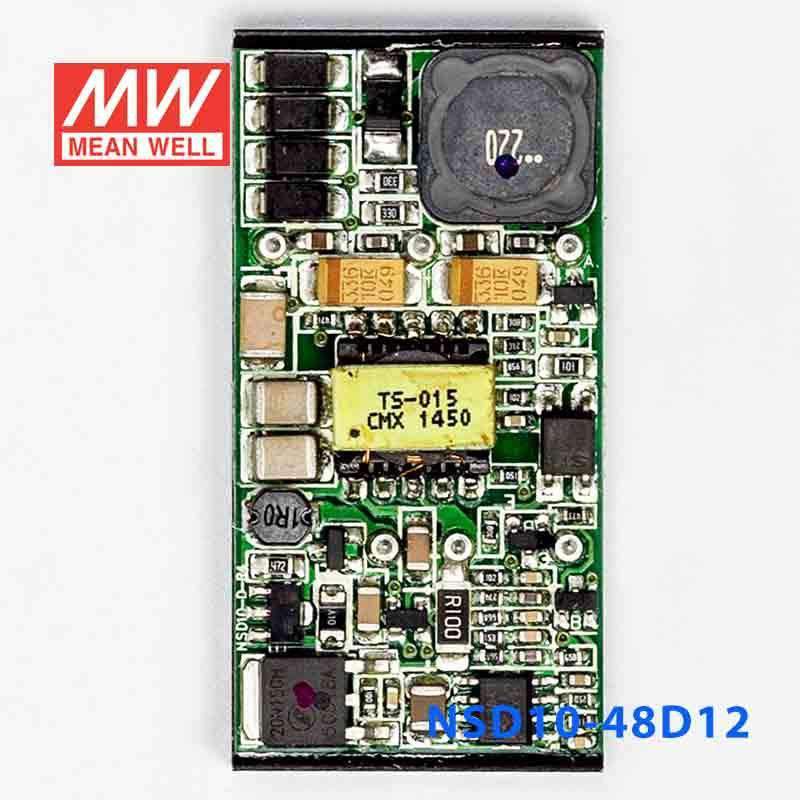

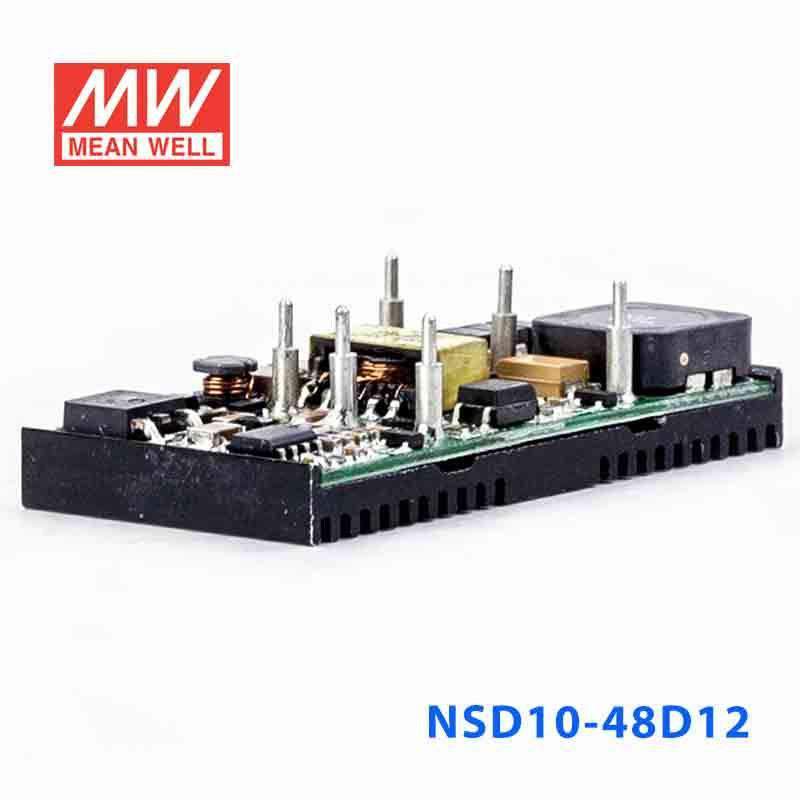

Mean Well NSD10-48D12 DC-DC Converter - 10.8W - 22~72V in ±12V out
$14.69 USD
Unit price /
Unavailable
Description
Description
Features
| 4: 1 wide input range |
| 1000VDC I / O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Over voltage |
| Built-in remote ON / OFF control |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2.0% (max.) |
| Line regulation | ± 1% @ 10 ~ 100% load |
| Load regulation | ± 1 ~ 3% @ 10 ~ 100% load |
| Efficiency | 80% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Over voltage protection | Clamp @ 115 ~ 150% |
| Shutdown idle current | 20mA |
| I / O isolation voltage | 1000VDC |
| I / O isolation resistance | 100MQ(min.) @500VDC |
| Working temperature | -25 ~ + 70°C |
| Storage temperature | -40 to + 85°C |
| Short circuit protection | Continuous, auto-recovery |
| Temp. Coefficient | ± 0.03% / °C |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8 |
| Safety standards | UL60950-1 approved |
| Dimension (LxWxH) (mm) | 2" x 1" x 0.394" |
| Packing | 0.02kg; 300pcs / 7.0kg / 0.97CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating10.8 Watt
-
Output Voltage12 Volt
-
Rated Current0.42 Ampere
-
Input Voltage22V~72V
-
Standards MetCE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.39 in
-
Weight0.04 lb
