Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

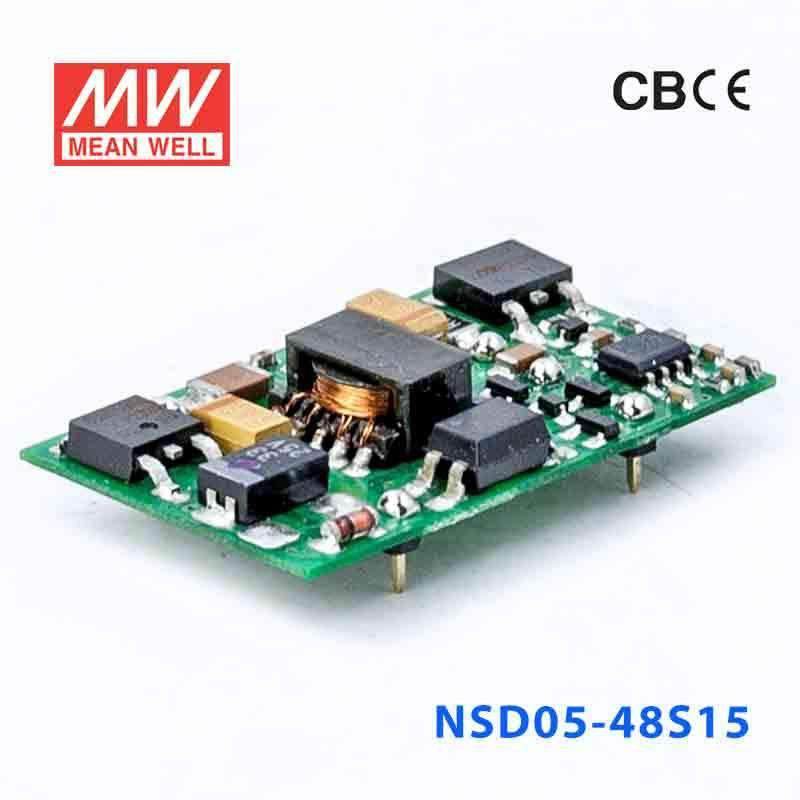

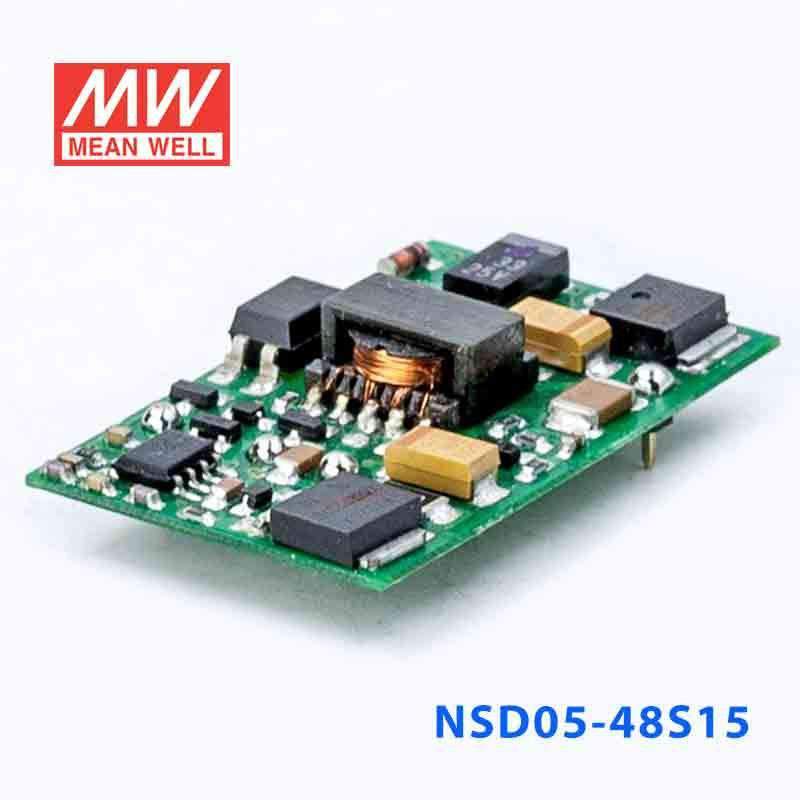

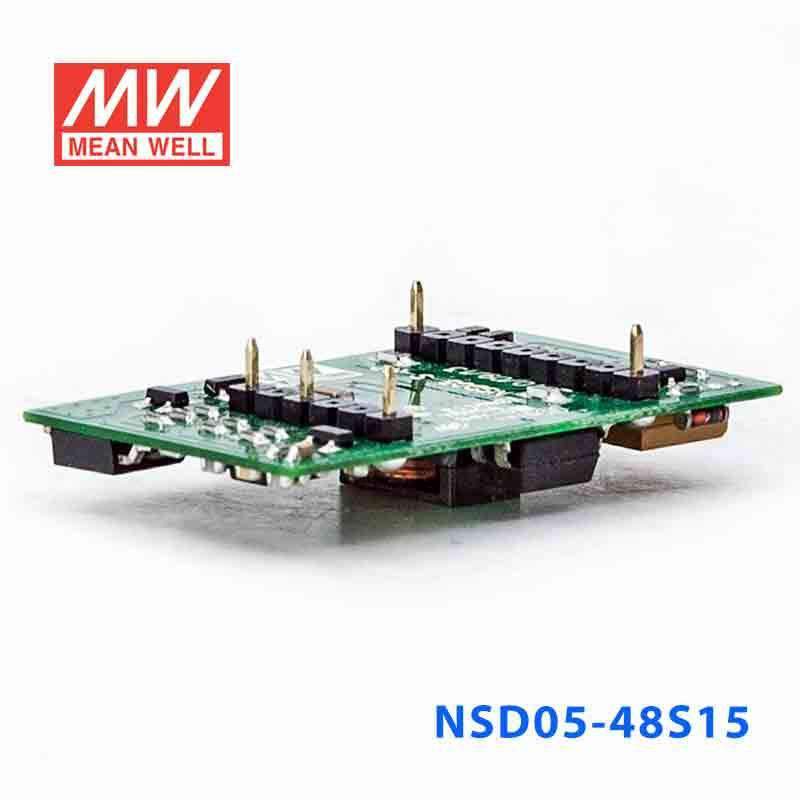

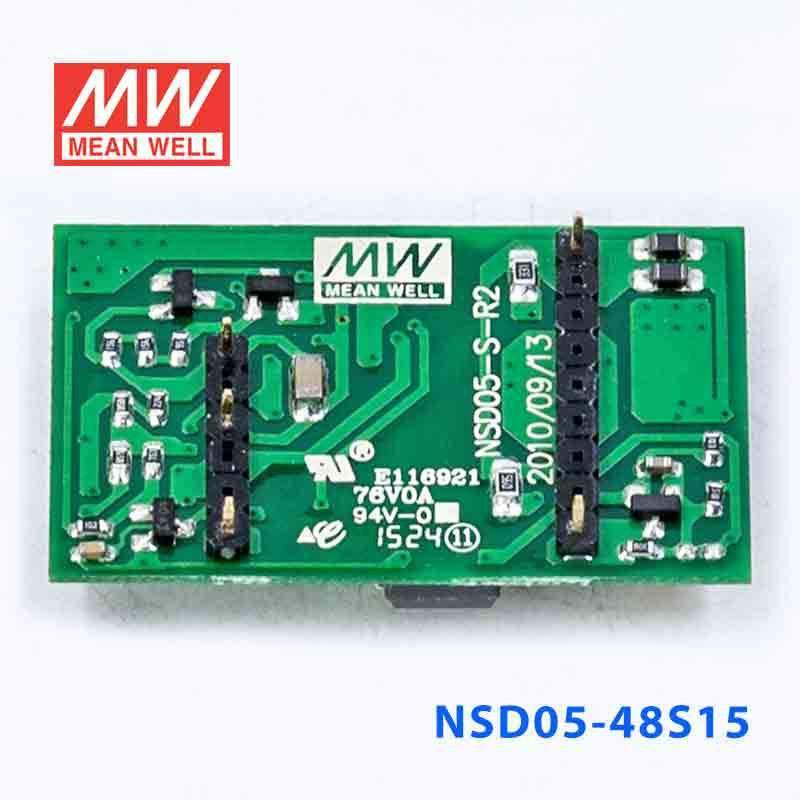

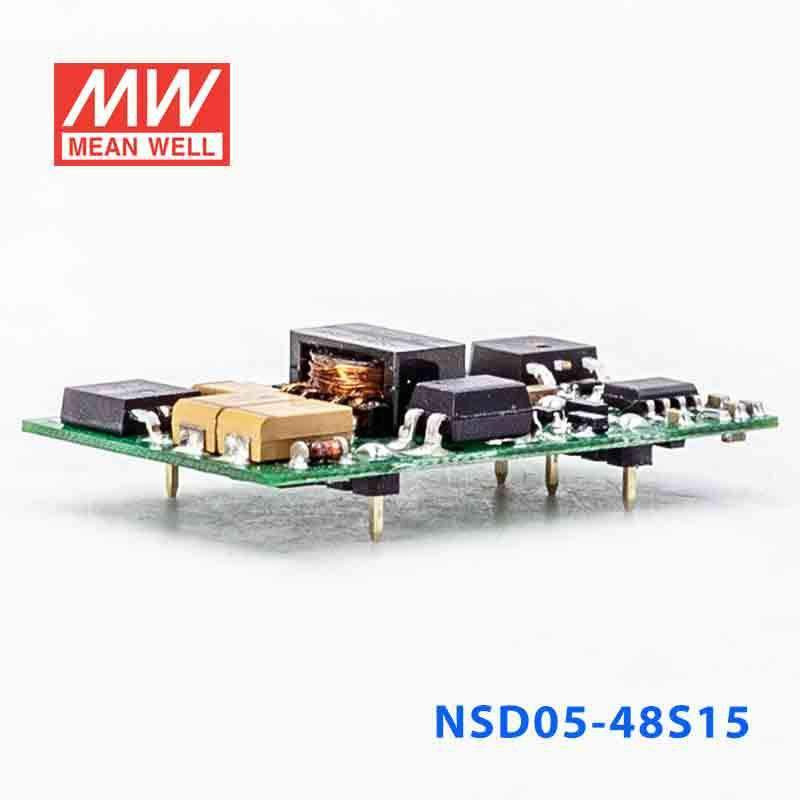

Mean Well NSD05-48S15 DC-DC Converter - 4.95W - 18~72V in 15V out
$10.50 USD
Unit price /
Unavailable
Description
Description
Features
| 4: 1 wide input range |
| 1000VDC I / O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Over voltage |
| Built-in remote ON / OFF control |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2.0% (max.) |
| Line regulation | ± 1.0% (max.) |
| Load regulation | ± 1 ~ ± 2% (max.) @ 10 ~ 100% load |
| Overload protection | Over 105% power limiting, auto-recovery |
| Efficiency | 85% (typical) |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.) @500VDC |
| Working temperature | -25 ~ + 70°C of case temp. (Refer to output derating curve) |
| Storage temperature | -40 to + 85°C |
| Short circuit protection | Continuous, auto-recovery |
| Temp. Coefficient | ± 0.03% / °C |
| EMC | EN55022 class B, EN61000-4-2,3,4,5,6,8 |
| Safety standards | IEC60950-1 CB approved by TUV |
| Dimension (LxWxH) (mm) | 1.6" x 1" x 0.327" |
| Packing | 0.007 kg; 700 pcs / 5.9 kg / 0.97CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesNSD Series
-
Power Rating4.95 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage18V~72V
-
Standards MetCB,CE,EAC,EMC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty2 Year
-
Length1.6 in
-
Width1 in
-
Height0.33 in
-
Weight0.02 lb
