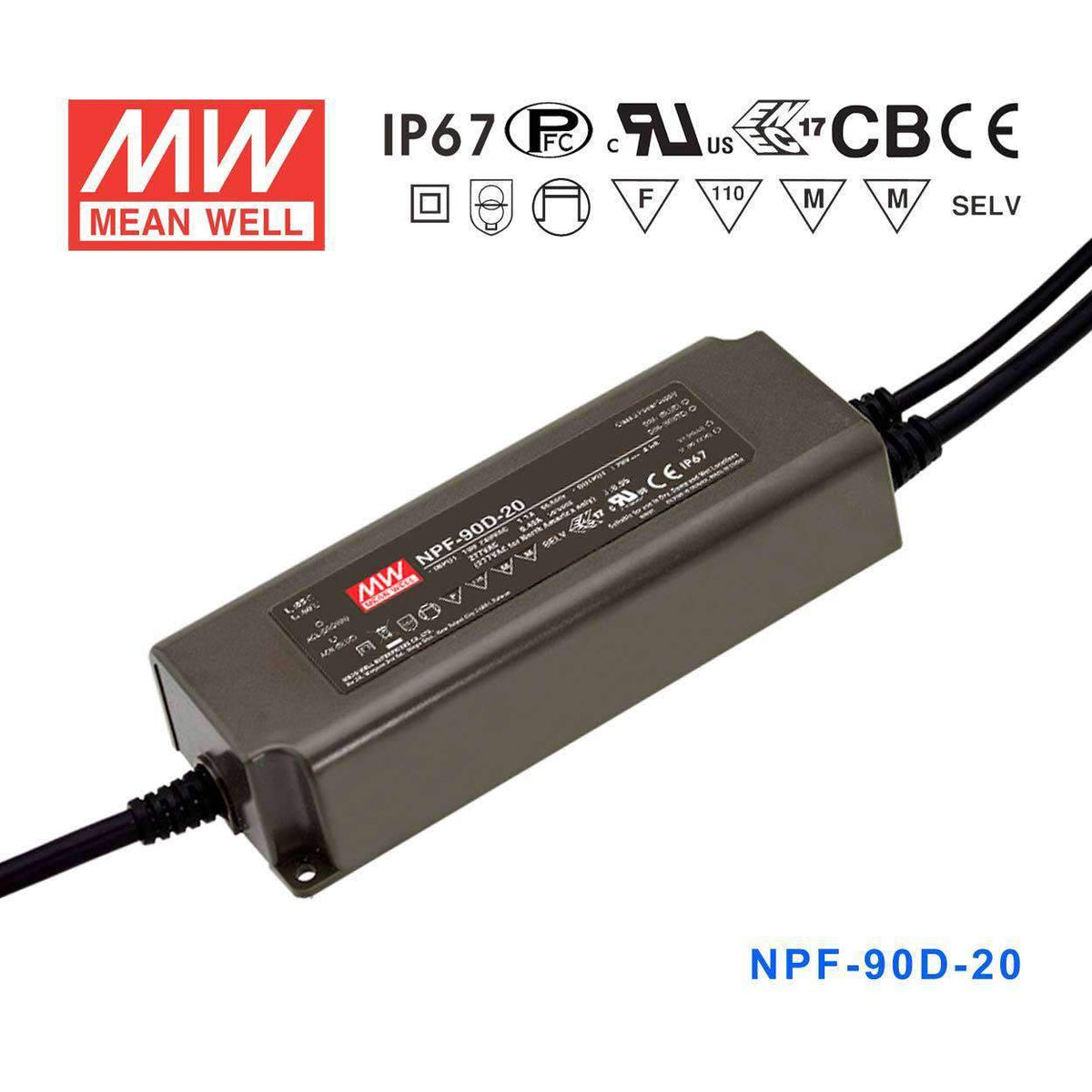

Mean Well NPF-90D-20 Power Supply 90W 20V - Dimmable
$49.65 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit (except NPF-90D-12/15) |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating90 Watt
-
Output Voltage20 Volt
-
Rated Current4.5 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.73 in
-
Width2.48 in
-
Height1.48 in
-
Weight1.7 lb
