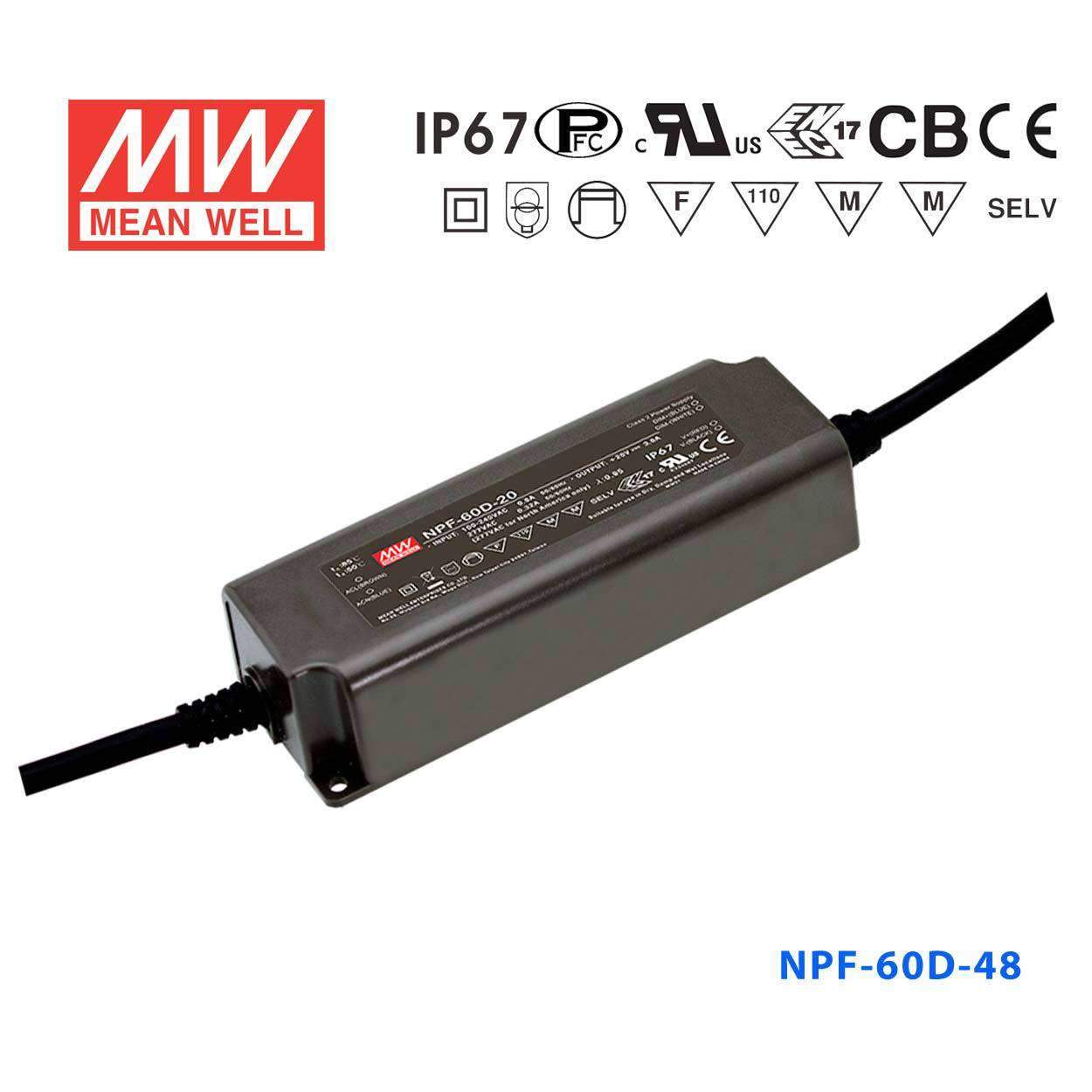

Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A
Overview

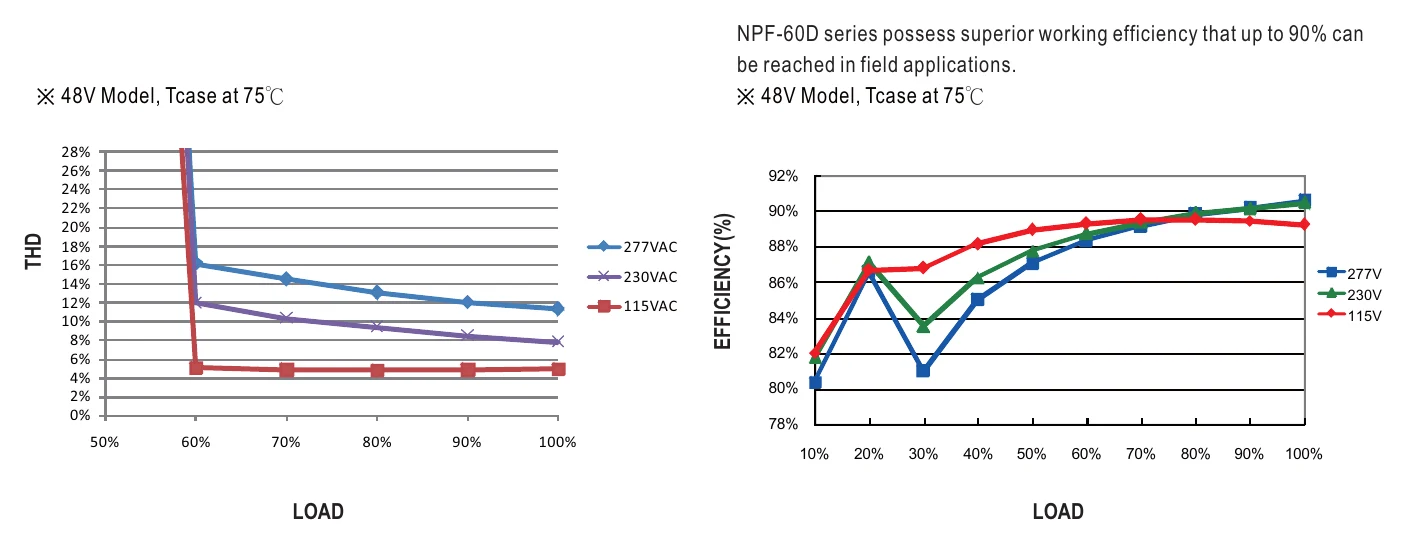

NPF-60D-48 is the model of this series: rated current 1.25A, rated power 60W, typical efficiency 90%.
NPF-60D series is a 60W AC/DC LED driver featuring the constant current mode output. NPF-60D operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for a variety of applications at dry, damp or wet locations. NPF-60D is equipped with the 3 in 1 dimming function so as to provide the design flexibility for LED lighting system.
Features
- Plastic housing with class II design
- Built-in active PFC function
- Class 2 power unit
- Standby power consumption <0.5W
- IP67 rating for indoor or outdoor installations

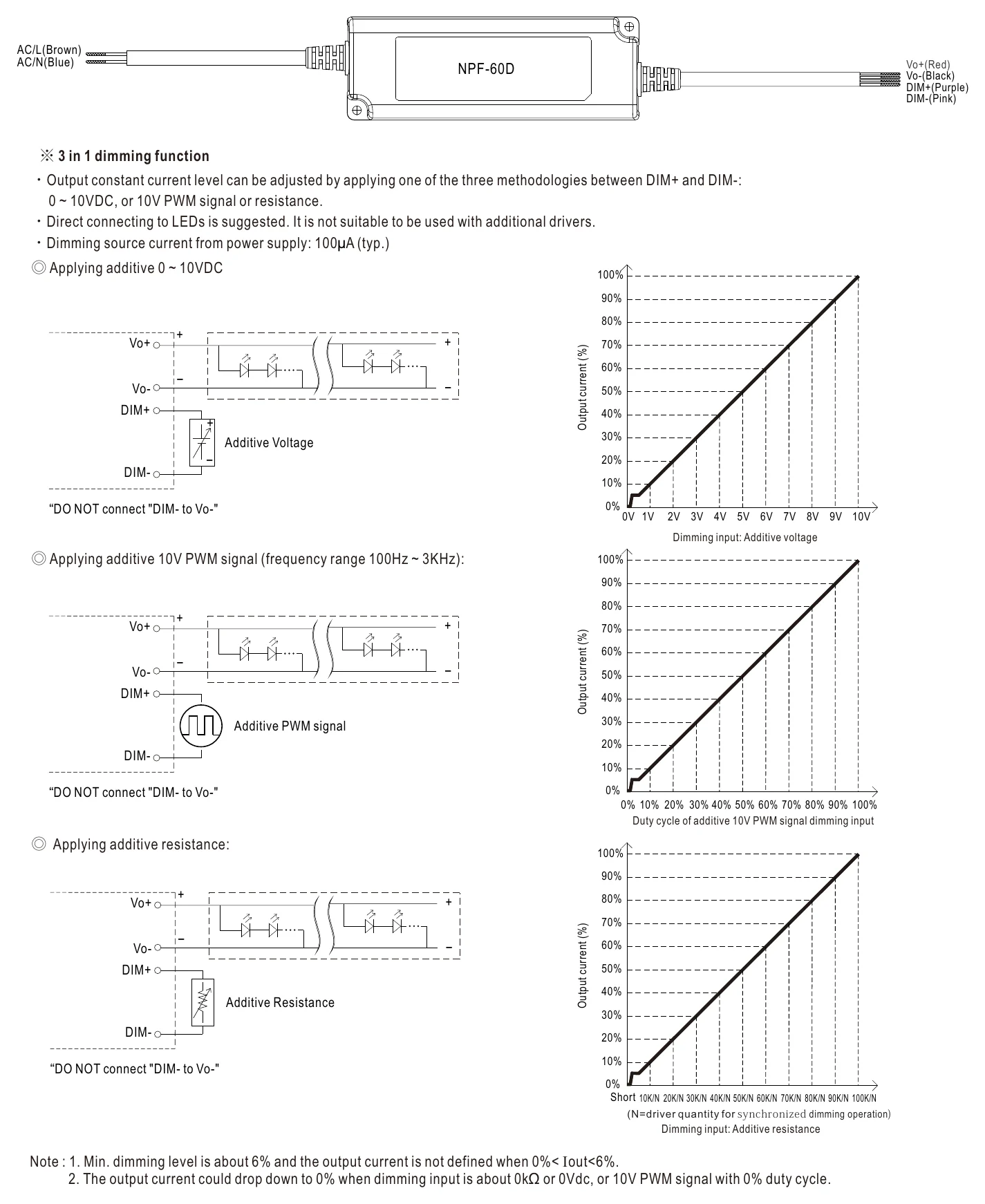

- Function: 3 in 1 dimming (dim-to-off)
- Typical lifettime >50000hours
- 5 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 1.25A
- RATED POWER
- 60W
- CONSTANT CURRENT REGION
- 28.8 ~ 48V
- CURRENT RIPPLE
- 5.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.3
- 500ms/115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.2
- 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz

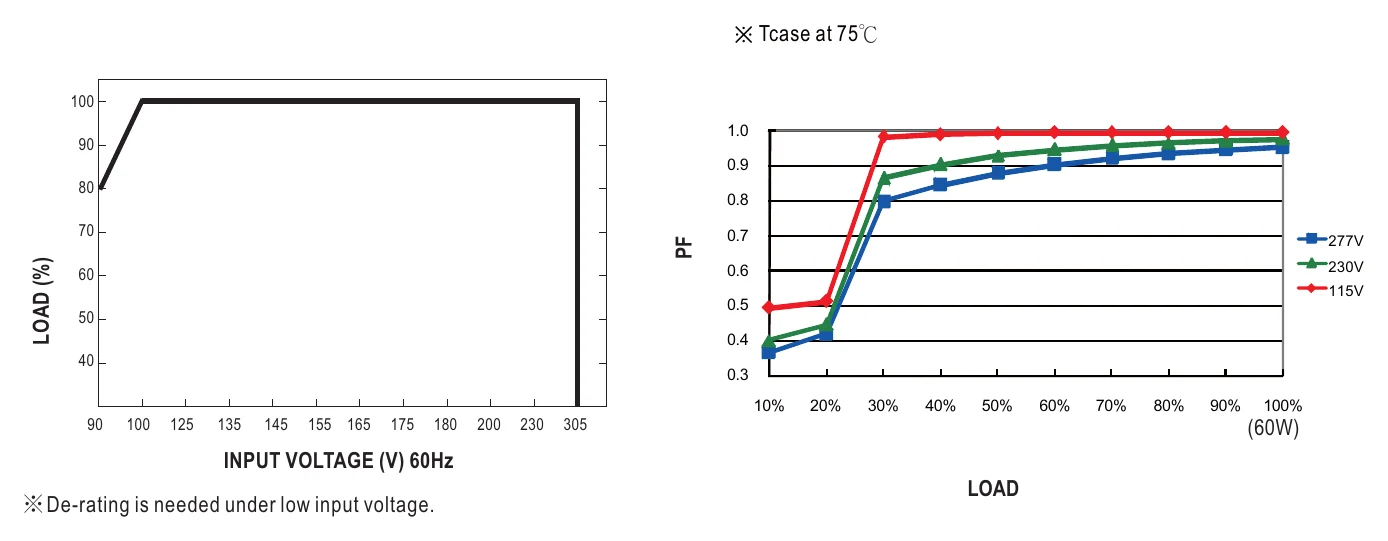

- POWER FACTOR (Typ.)
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY(Typ.)
- 90%
- AC CURRENT (Typ.)
- 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.25mA / 277VAC
- STANDBY POWER CONSUMPTION
- <0.5W
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 54 ~ 60V Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
ENVIRONMENT

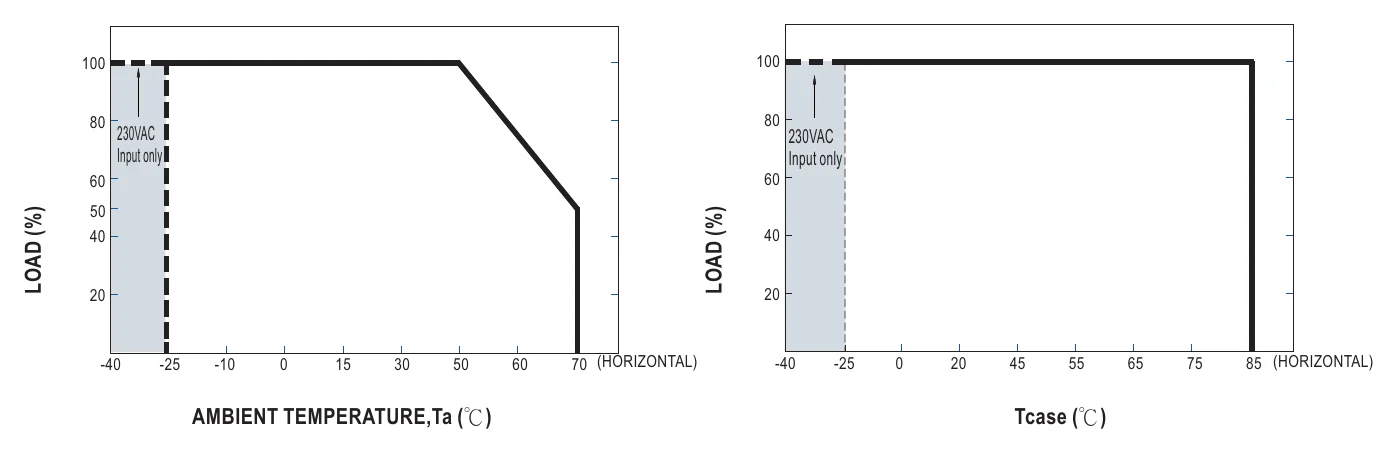

- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), UL879(for 12V,24V only), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, EAC TP TC 004,GB/T19510.1,GB/T19510.213, IP67 approved ; Design refer to BS EN/EN60335-1
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV); EAC TP TC 020
OTHERS
- MTBF
- 3082.1K hrs min. Telcordia SR-332 (Bellcore) ; 287.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 150*53*35mm (L*W*H)
- PACKING
- 0.49Kg;30pcs/15.7Kg/1.0CUFT
Certifications & ratings
- IP level
- IP67
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 4. The standby power consumption is specified for 230VAC.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)

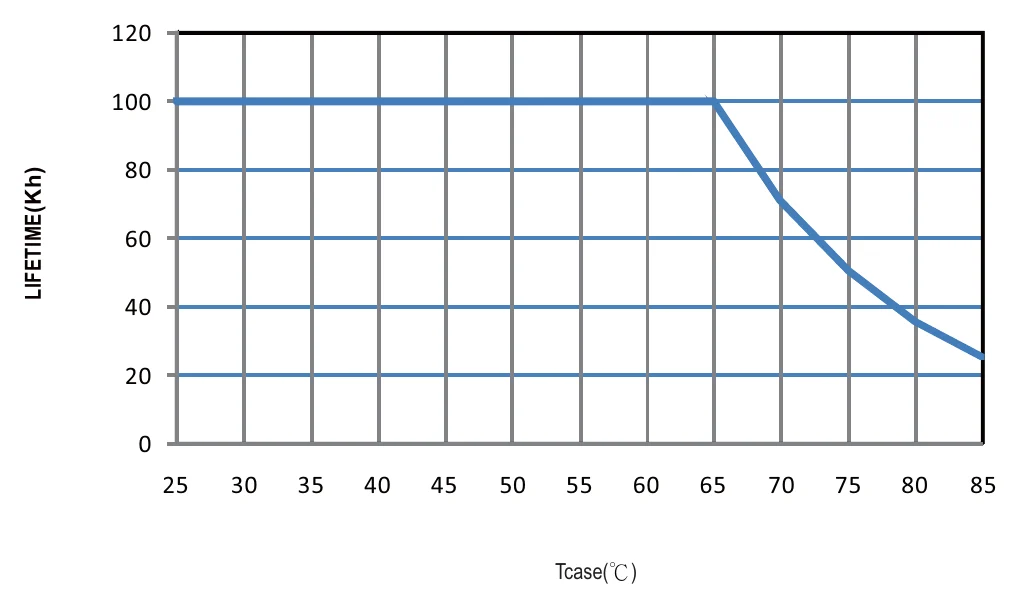

- 6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

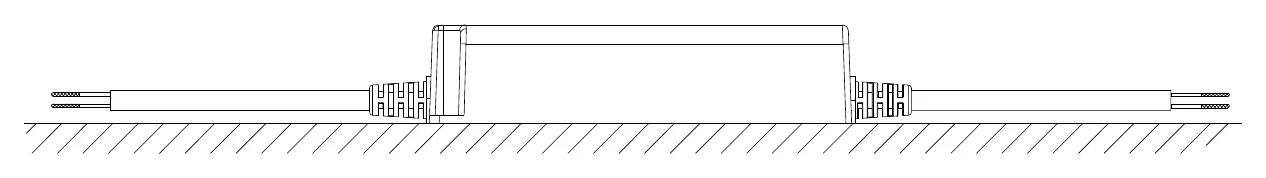

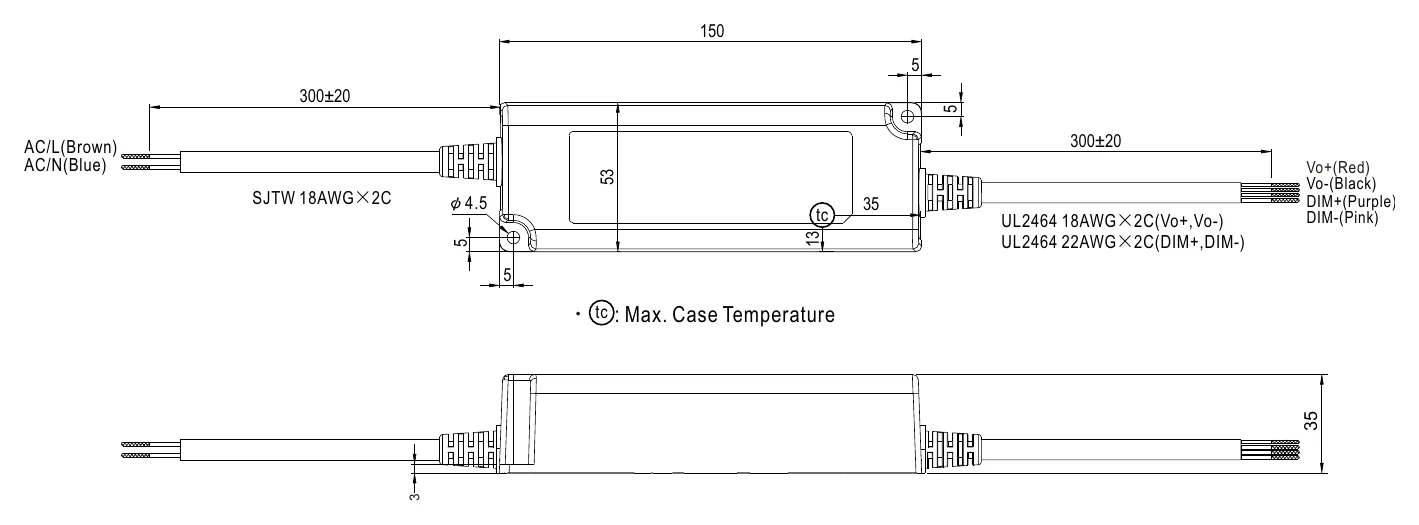

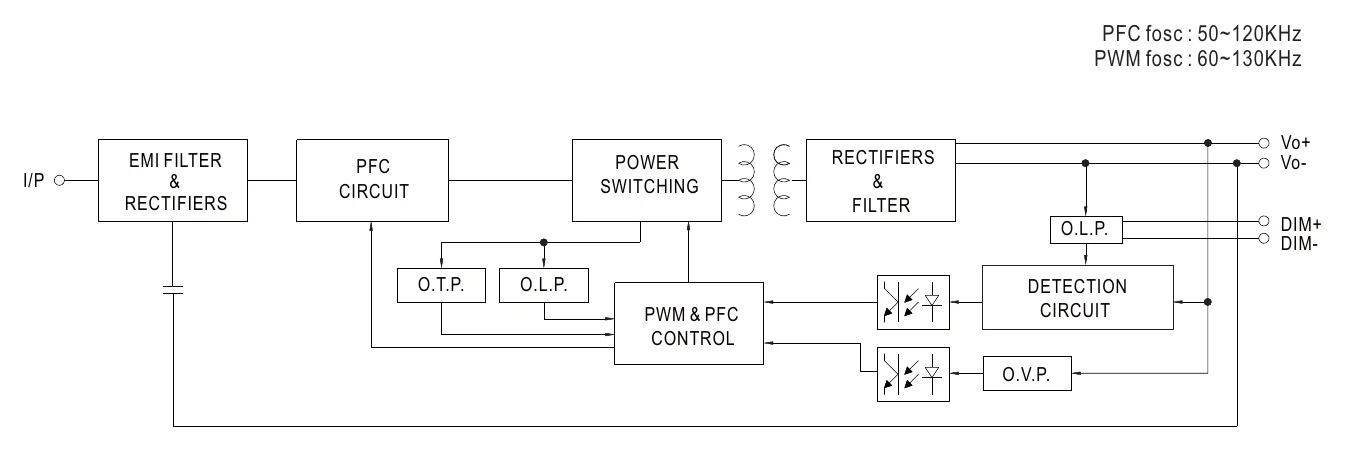

Technical drawings
Typical applications
- LED panel lighting
- LED downlight
- LED decorative lighting
- LED tunnel lighting
- Moving sign
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location
Downloads
Certificates6
Catalogues1
FAQ
What dimming methods does the NPF-60D-48 support?
The NPF-60D-48 has built-in 3-in-1 dimming, accepting 0–10VDC, 10V PWM signal and resistance control between DIM+ and DIM-. All three are natively integrated with no external dimming hardware required.
Can the NPF-60D-48 power dimmable 48V LED modules in industrial warehouse lighting?
Yes. The NPF-60D-48 delivers 60W with a constant current of 1.25A and a CC voltage range of 28.8–48V, covering LED high-bay or warehouse modules in that range. Its wide input range of 90–305VAC supports standard and industrial mains supplies.
Is the NPF-60D-48 rated for direct outdoor installation in rainy climates?
Yes. The NPF-60D-48 is IP67 approved for dust protection and resistance to temporary water immersion, and is rated for a working case temperature (Tcase) of -40°C to +85°C. Follow the IP waterproof installation cautions in MEAN WELL's user manual.
Does the NPF-60D-48 require a protective earth ground?
The NPF-60D-48 has a two-conductor input cable (SJTW 18AWG×2C: AC/L brown, AC/N blue) with no earth lead. Refer to MEAN WELL's installation manual for wiring requirements.
