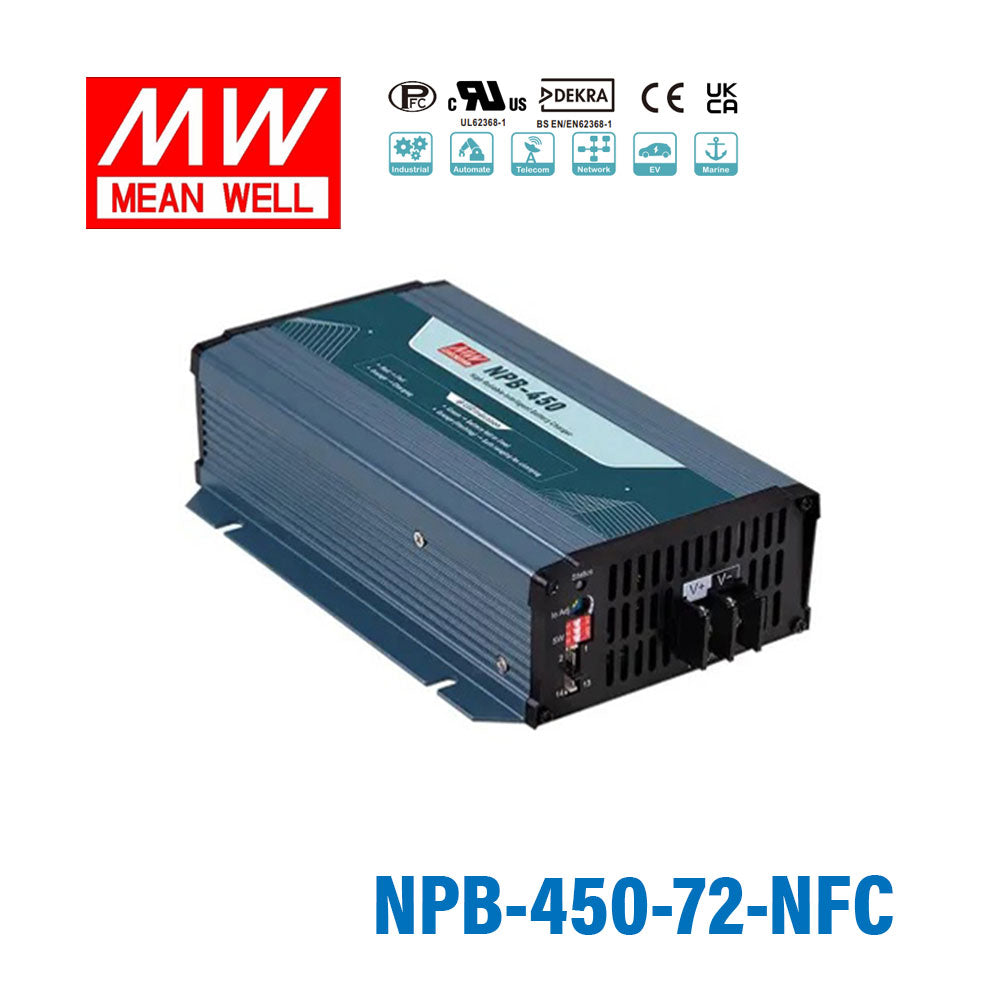

Mean Well NPB-450-72-NFC Battery Charger 450W 72V - Ultra Wide Output, NFC Programmable Charging Parameters

$141.32 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V, 54~100V; Please refer to page 9 for setting)
Built-in CANBus protocol for control, setting and monitoring
Set up charging parameters easily via NFC interface(NPB-450-xxNFC)
Programable charging curve via SBP-001
Manual setting for 2/3 stage and 4 built-in charging vurves via DIP S.W
Multiple Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery reverse polarity (No damage)
Charger OK and Battery Full signal
Temperature compensation function to prolong battery life (Lead-acid only)
Temperature compensation function to prolong battery life (Lead-acid only)
-30°C ~+70°C wide operating temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Smart programmer available (Order NO.: SBP-001, sold separately)
Carry handle accessory available(Order No.: Carry handle, sold separately)
Comply with 62368-1 + 60335-1/-2-29 dual certification
Suitable for leac-acide (Pb) and li-ion batteries
3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    NPB Series
  • Power Rating
    450 Watt
  • Output Voltage
    72 Volt
  • Rated Current
    5.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,DEKRA,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    8.07 in
  • Width
    5.12 in
  • Height
    2.17 in
  • Weight
    2.25 lb

File Downloads
