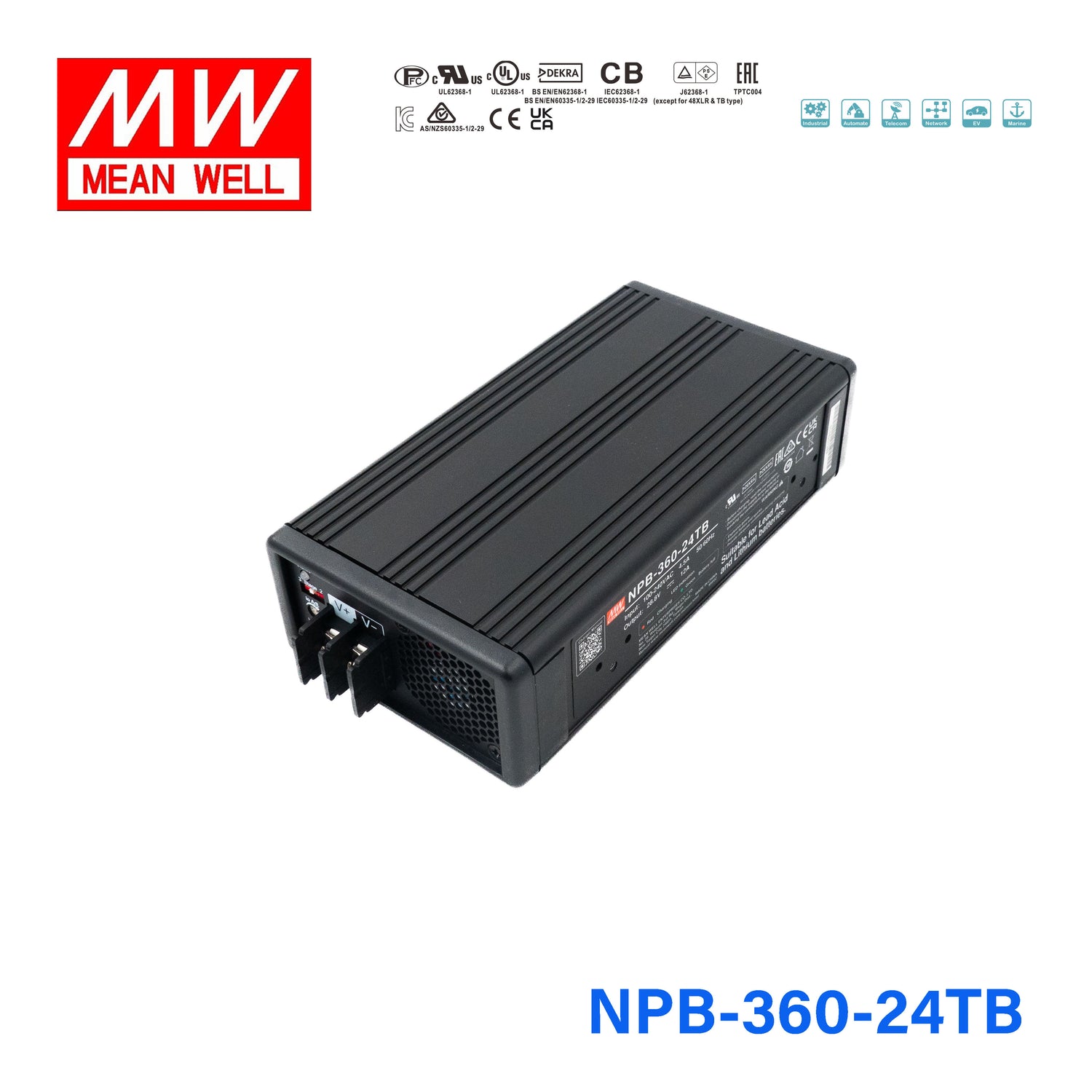

Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A

Name: Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A
Brand: Mean Well
SKU: NPB-360-24TB
Price: 97.11 USD
Availability: InStock

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU NPB-360-24TB

$97.11 USD

Shipping calculated at checkout.

In stock

Overview

NPB-360-24TB is the model of this series: typical efficiency 91%.

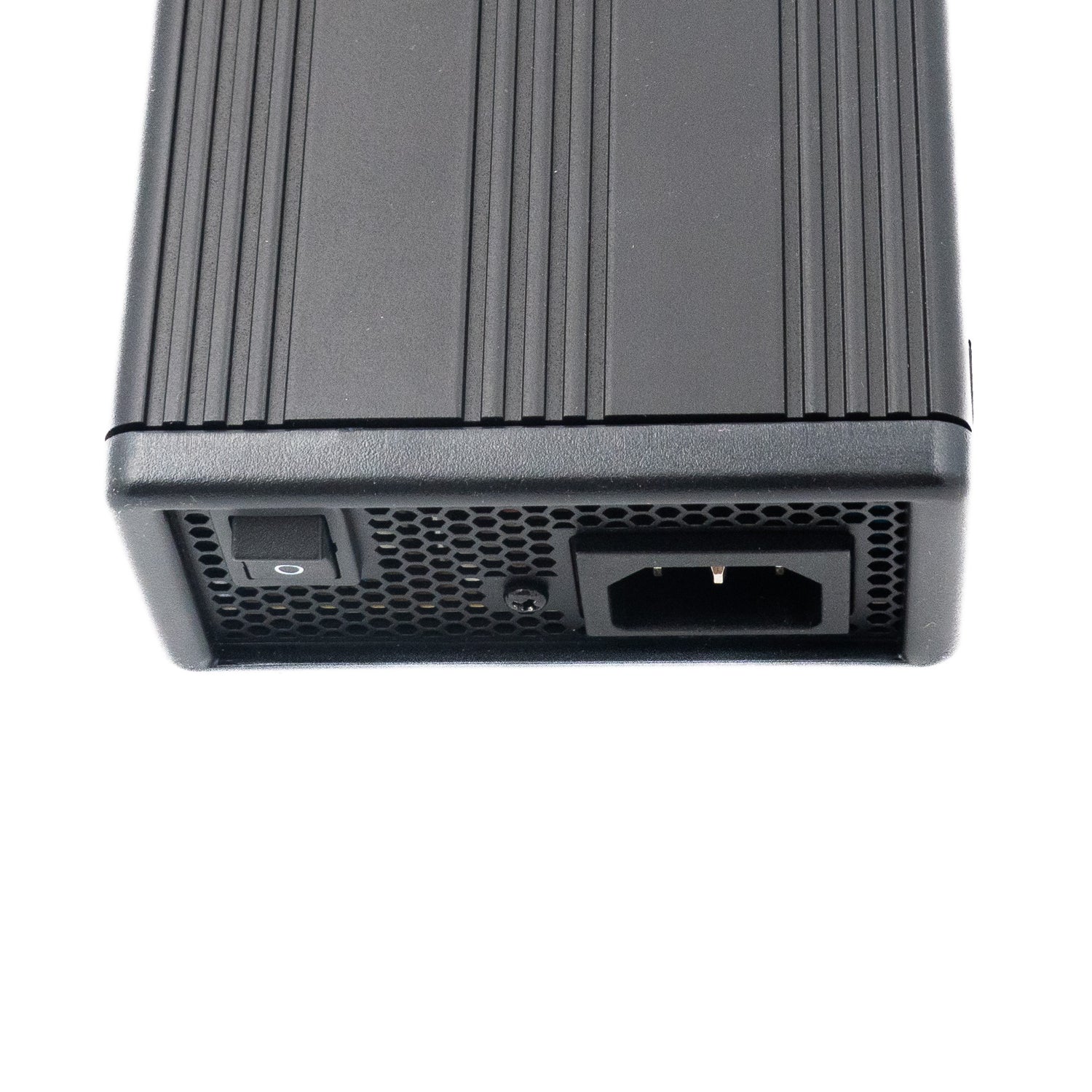

NPB-360 series is a 360W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion(Lithium iron, lithium manganese) batteries. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and two or three-stage charging control. The entire series supplies different models with output voltages ranging between 10.5VDC and 60.8VDC that can satisfy the demands for various types of batteries devices.

Features

90~264Vac universal AC input, built-in PFC
Charger for compatible with lead-acid and li-ion batteries
Wide adjustable output range by VR:
►Charging voltage adjustable(10.5~15.2V、21~30.4V、42~60.8V)
►Charging current adjustable(50~100% rated current)
2 or 3 stage selectable by DIP S.W
No load power consumption< 0.15W(AC S.W off)
Fan ON-OFF control (Depends on internal temperature)
-30℃~+70℃ wide operating temperature
Protections: Short circuit / Over voltage /Over temperature / Battery reverse polarity protection
Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification

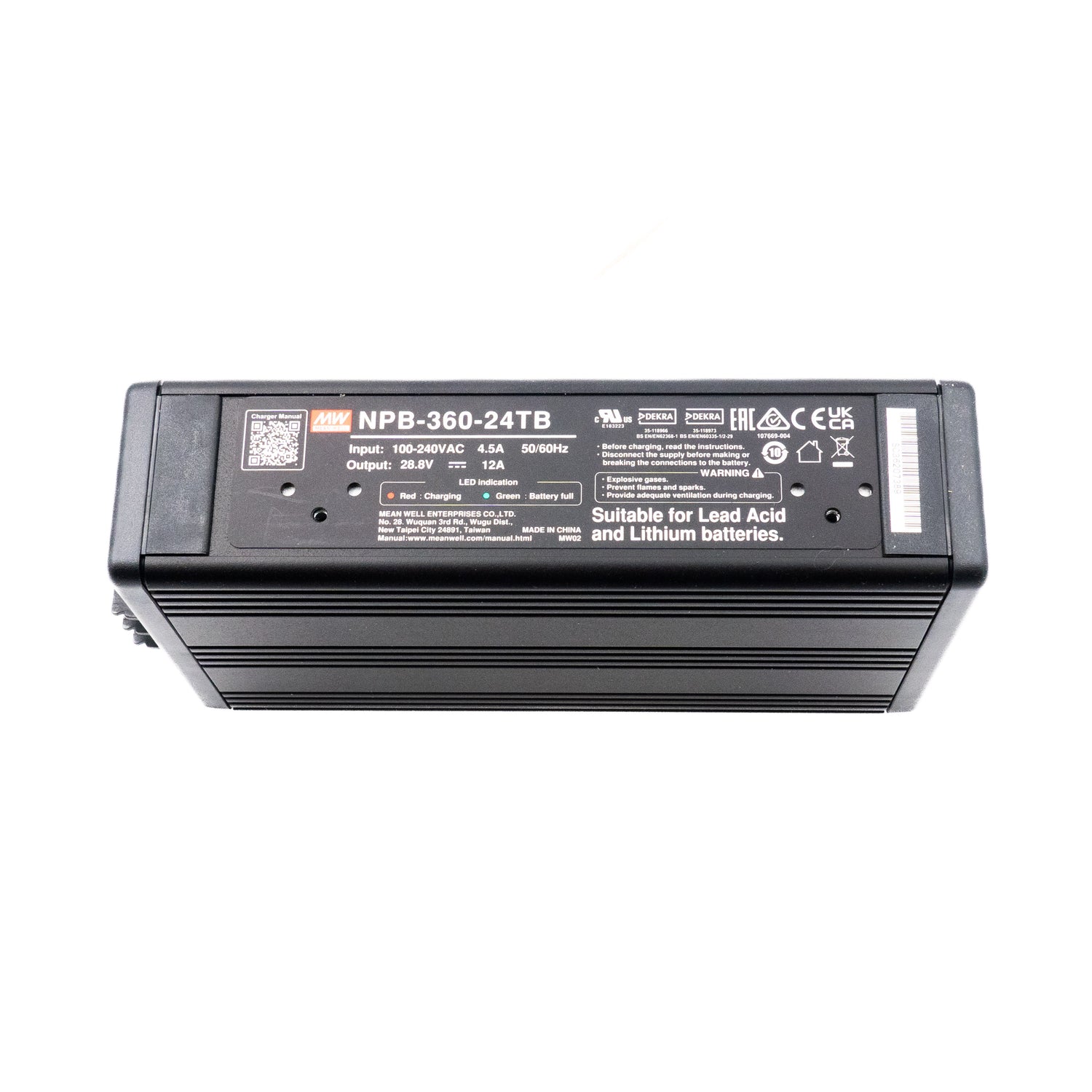

Front panel LED indicator for charging status
3 years warranty

Specifications

NPB-360-24TBSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 27.6V
VOLTAGE ADJUSTABLE RANGE: 21 ~ 30.4V
OUTPUT CURRENT(Typ.)^Note.5: 12A
CURRENT ADJUSTABLE RANGE: 50% ~ 100%
MAX. POWER^Note.3: 364.8W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^Note.4: 40 ~ 125AH
LEAKAGE CURRENT FROM BATTERY (Typ.): <1mA

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) XLR: 91%
EFFICIENCY (Typ.) AD1: 91%
EFFICIENCY (Typ.) TB: 92%
AC CURRENT (Typ.): 4.5A/115VAC 2.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC
LEAKAGE CURRENT: <0.75mA/240VAC

PROTECTION

SHORT CIRCUIT^Note.6: Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE: 32 ~ 40V Protection type : Shut down and latch off o/p voltage, re-power on to recover
REVERSE POLARITY: By internal fuse open
OVER TEMPERATURE: Hiccup mode, recovers automatically after temperature goes down

FUNCTION

CHARGING CURVE: 2 or 3 stage adjustable by DIP S.W
FAN CONTROL (Typ.): Internal RTH3≧50℃ Fan ON, ≦45℃ Fan OFF

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, J62368-1 ,KC62368-1,EAC TP TC 004, BSMI CNS15598-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1,CNS15936 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1,CNS15936 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55014-2,BS EN/EN55024,BS EN/EN55035, J55032(H29), KSC 9832, KSC 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1,CNS15936	Class B
Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1,CNS15936	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 1324.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 173.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 182.7*96*49mm (L*W*H)
PACKING: 1.3Kg; 10pcs/ 14Kg / 1.13CUFT

Test conditions and notes7

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. Refer to derating curve.
4. This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. This protection mechanism is specified for the case the short circuit occurs after the charger is turned on.
7. The charger is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NPB-360-24TB N P B - 3 6 0 series — N P B - 3 6 0 series

NPB-360-24TB N P B - 3 6 0 series (2) — N P B - 3 6 0 series (2)

NPB-360-24TB Derating Curve — Derating Curve

NPB-360-24TB Function Manual — Function Manual

NPB-360-24TB Mechanical Specification — Mechanical Specification

NPB-360-24TB Installation Diagram — Installation Diagram

NPB-360-24TB Plug Assignment — Plug Assignment

Typical applications

Radio system backup solution
Electric scooter charger
Camping car、Buses、Heavy duty truck、Specialty vehicles
Surveillance system
Portable power tools

Downloads

Certificates8

Mean Well NPB-360-EMC Certificate PDF Download

Mean Well NPB-360-CE-dec Certificate PDF Download

Mean Well NPB-360-UK-dec Certificate PDF Download

Mean Well NPB-120-240-360-CB(60335) Certificate PDF Download

Mean Well NPB-120-240-360-CB(UL) Certificate PDF Download

Mean Well NPB-120-240-360-DEKRA MarK Certificate PDF Download

Mean Well NPB-120-360-CB(UL) Certificate PDF Download

Mean Well NPB-120-240-360-GlobalMark Certificate PDF Download

Test reports1

Mean Well NPB-360-24 Test Report PDF Download

FAQ

What is the Mean Well NPB-360-24TB designed for?

The NPB-360-24TB is a 360W AC-DC battery charger for 24V battery charging applications. It delivers 28.8V DC at up to 12A, making it a fit for commercial and industrial systems that need a higher-power charger in a compact format.

Is this model suitable for 24V battery systems?

Yes. This model is built for 24V battery charging and provides a 28.8V DC output with a rated current of 12A. Buyers looking for a charger in the 24V class often choose it when they need more charging power than smaller units can provide.

What are the key electrical specifications of the NPB-360-24TB?

This charger is rated at 360W output power and provides 28.8V DC at up to 12A. It also includes power factor correction and supports 2-stage or 3-stage charging, depending on the application requirements.

How does the NPB-360-24TB compare with lower-power 24V chargers?

Compared with lower-wattage 24V chargers, the NPB-360-24TB offers a higher 12A charging current and a 360W power rating. That makes it better suited to applications where faster charging or support for larger-capacity 24V battery systems is important.

Can this charger be used in demanding temperature conditions?

Yes. The NPB-360-24TB has a specified operating temperature range of -30°C to +70°C, with output derating at higher ambient temperatures per the datasheet derating curve. Buyers with equipment exposed to cold or hot conditions often check this range as a key selection factor.

What input and charging features does this model include?

This model supports universal AC input, which helps when the same charger may be used across different mains environments. It also includes PFC and supports both 2-stage and 3-stage charging, features commonly requested for professional battery charging applications.

What physical details should buyers know?

The NPB-360-24TB measures 182.7 x 96 x 49 mm. It weighs 1.3 kg, which can matter for equipment planning where charger size and weight affect overall system packaging.
