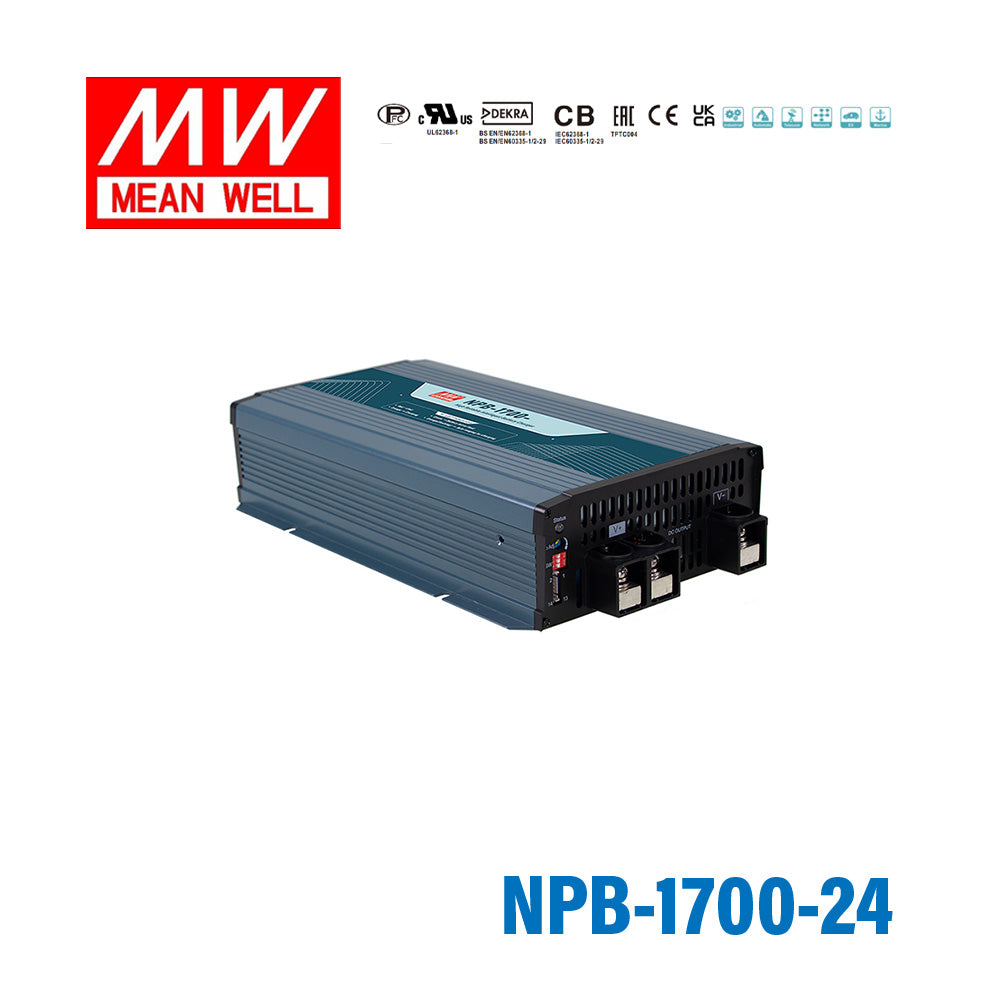

Mean Well NPB-1700-24 Battery Charger 1680W 24V - Suitable for Lead-acid and Li-ion 50A

Name: Mean Well NPB-1700-24 Battery Charger 1680W 24V - Suitable for Lead-acid and Li-ion 50A
Brand: Mean Well
SKU: NPB-1700-24
Price: 421.53 USD
Availability: InStock

ultra wide charging range auto sensing functioncharging voltage/current/timeout can be programmed through SBP-001charging curves/stages can be selected through dip switch

SKU NPB-1700-24

$421.53 USD

Shipping calculated at checkout.

In stock

Overview

NPB-1700-24 is the model of this series: typical efficiency 93%.

NPB-1700 is a miniaturized, versatile, and ultra-wide voltage intelligent charger. It utilizes a fully digital control design with automatic battery voltage detection technology, with five key features including intelligent, versatile, user friendly, safe, and compact. The series have four models with output voltage ranges of 10.5~21V, 21~42V and 42~80V respectively. The charging voltage range of each model is wide enough to cover a variety of different battery voltages and battery chemistries, and there is a built-in intelligent voltage detection charging mode (Note this mode is set to OFF by factory default and is suitable for lithium batteries with BMS only). The NPB-1700 can pair with MEAN WELL's SBP-001 programmer for digital configuration, such as adjust charging voltage/current, and set charging cycle time to protect battery lifetime. Through the user-friendly DIP S.W. on front panel, user may also directly adjust the 2/3 stage charging, current (50~100%), and select between the 4 types of preset charging curves. In addition, a CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. In terms of safety, it has intelligent detection for proper battery voltage and connection as well as protection from reverse polarity. It passes ITE IEC/EN/UL62368-1 and household appliance EN60335-1/-2-29 dual safety and 3-year warranty to guarantee reliable operation. The NPB-1700 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.

Features

Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V; Please refer to page 8 for setting)
Built-in CANBus protocol for control, setting and monitoring
Programmable charging curve via SBP-001
Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
Multiple protections: Short circuit / Over voltage / Over temperature/ Battery under voltage /Battery reverse polarity (No damage)
Charger OK and Battery Full signal
Temperature compensation function to prolong battery life (Lead-acid only)
-30℃~+70℃ wide operating temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Smart programmer available (Order NO.: SBP-001, sold separately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Comply with 62368-1 + 60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) and li-ion batteries
3 years warranty

Specifications

NPB-1700-24Specifications from the official datasheet (2025-04-11 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 27.6V
CHARGE VOLTAGE RANGE^Note.3: 21 ~ 42V
MAX. OUTPUT CURRENT(CC)^Note.4: 50A
MAX. POWER^Note.4: 1680W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^Note.5: 200 ~ 640AH
LEAKAGE CURRENT FROM BATTERY (Typ.): <1mA

INPUT

VOLTAGE RANGE^Note.6: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)^Note.7: 93%
AC CURRENT (Typ.): 14.8A/115VAC 9.3A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC
LEAKAGE CURRENT: 0.75mA/240VAC (60335-1/2-29), 1.5mA Peak/240VAC (62368-1)

PROTECTION

SHORT CIRCUIT^Note.8: Protection type : Constant current limiting, charger will shutdown, re-power on to recover
OVER VOLTAGE^Note.9: 43 ~ 52V; Protection type : Shut down and latch off o/p voltage, re-power on to recover
REVERSE POLARITY: Protected internal reverse detection, No damage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

CHARGING STAGE: 2 or 3 stage selectable through DIP S.W on panel
CHARGING PARAMETERS ADJUSTABLE: Programmable: Constant current(CC), Tapper current(TC), Constant voltage(CV) and Float voltage(FV) can be set through SBP-001 with computer; Manual setting: 4 built-in charging curves adjustable via DIP S.W on panel, Please refer to function manual for more detail
AUTO RANGING FOR CHARGING (Typ.): Please refer to function manual for more detail (page 8); Charging current adjustable 50~100% by via potentiometer on panel (Only for auto ranging mode)
CANBUS INTERFACE: CANBus 2.0B, Can control, Setting and monitoring(Vo,Io,charging curve, internal temp. and DC output ON/OFF)
CHARGER OK SIGNAL: The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL: The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL: Short : Charger normal work Open : Charger stop charging
TEMPERATURE COMPENSATION: By external NTC
FAN SPEED CONTROL: Depends on internal temperature

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{Note 10}: Conducted: BS EN/EN55032 (CISPR32) Class B; Radiated: BS EN/EN55032 (CISPR32) Class A; Harmonic Current: BS EN/EN61000-3-2 Class A; Voltage Flicker: BS EN/EN61000-3-3
EMC IMMUNITY^{Note 10}: ESD: BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact; Radiated: BS EN/EN61000-4-3 Level 2, 3V/m; EFT / Burst: BS EN/EN61000-4-4 Level 2, 1KV; Surge: BS EN/EN61000-4-5 Level 2, 1KV/Line-Line, Level 3, 2KV/Line-Earth; Conducted: BS EN/EN61000-4-6 Level 2, 3Vrms; Magnetic Field: BS EN/EN61000-4-8 Level 1, 1A/m; Voltage Dips and Interruptions: BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 478.9K hrs min. Telcordia SR-332 (Bellcore) ; 41.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 307.7*184*70mm (L*W*H)
PACKING: 2.96Kg; 4pcs/ 14Kg / 2.58CUFT

Technical drawings

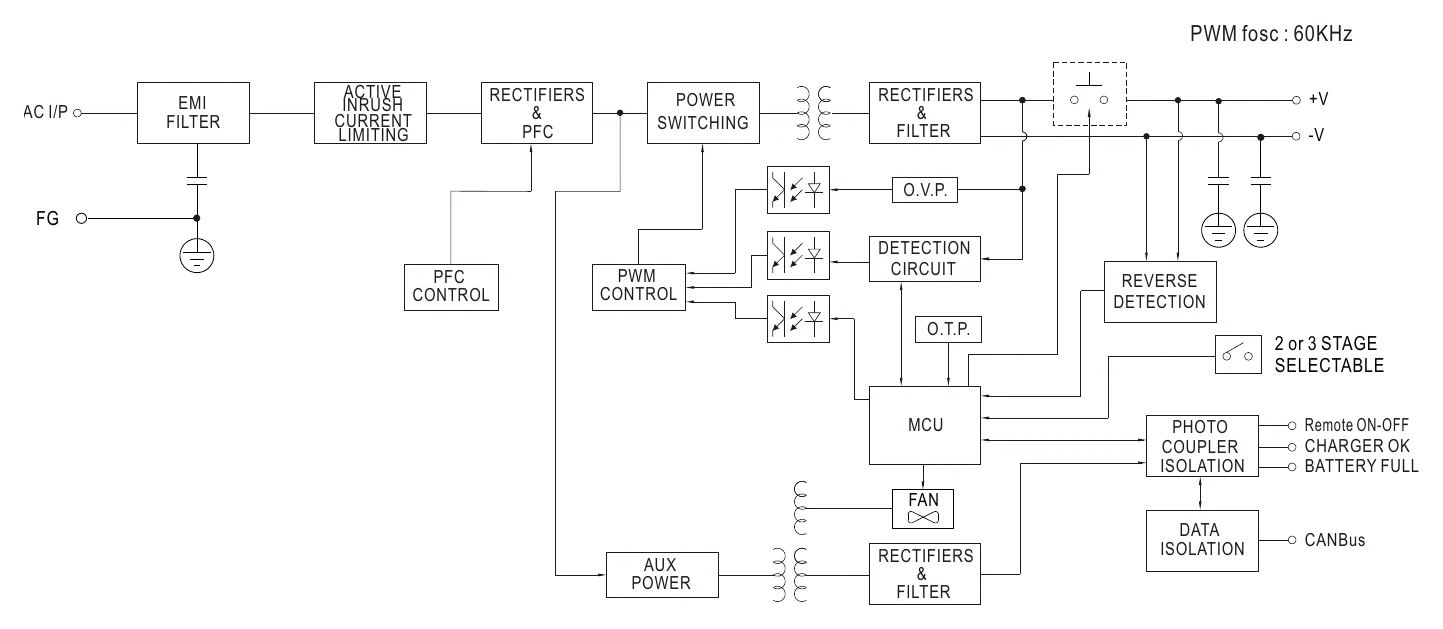

NPB-1700-24 Block Diagram — Block Diagram

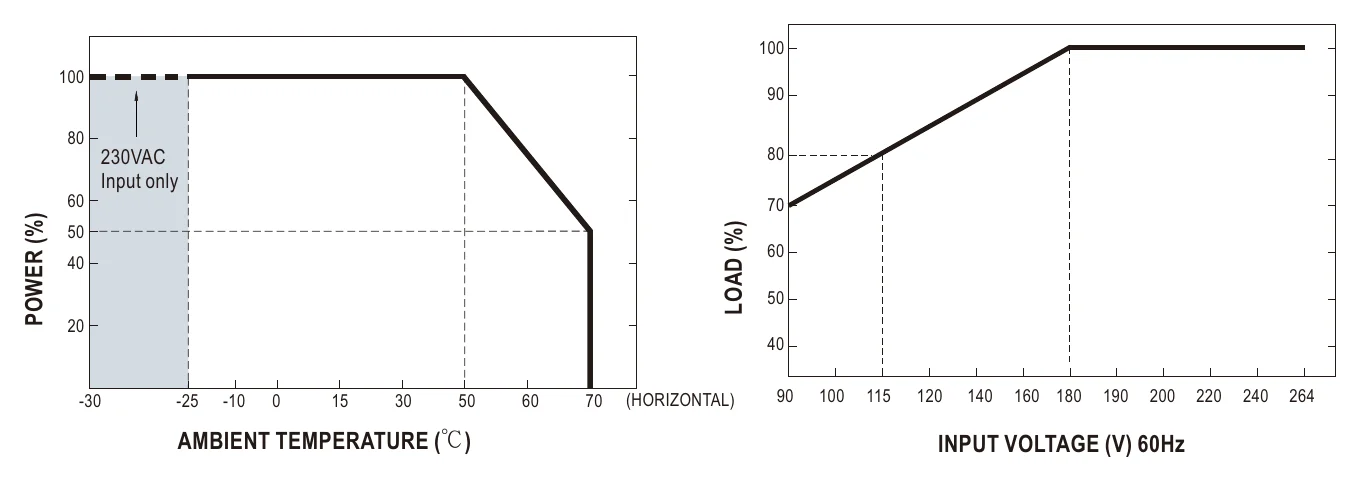

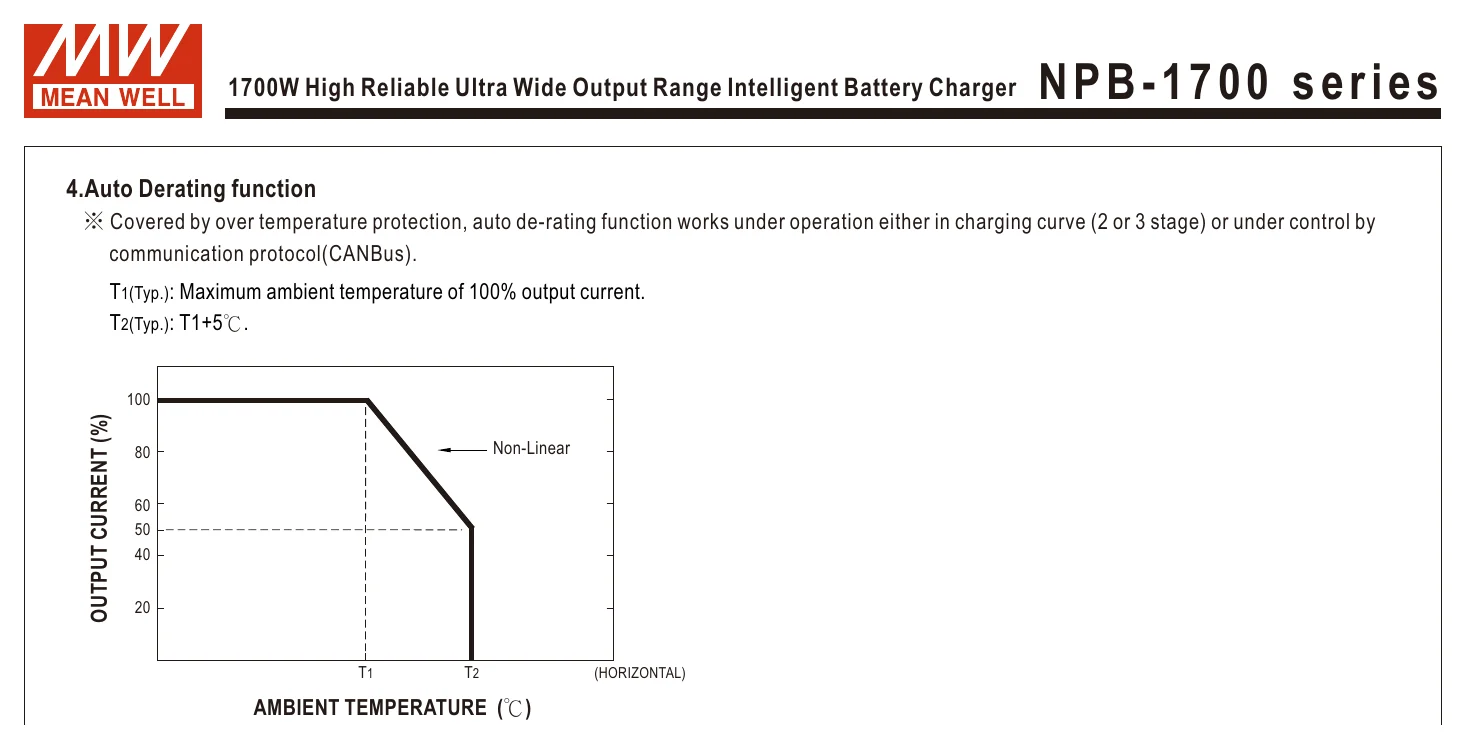

NPB-1700-24 Derating Curve — Derating Curve

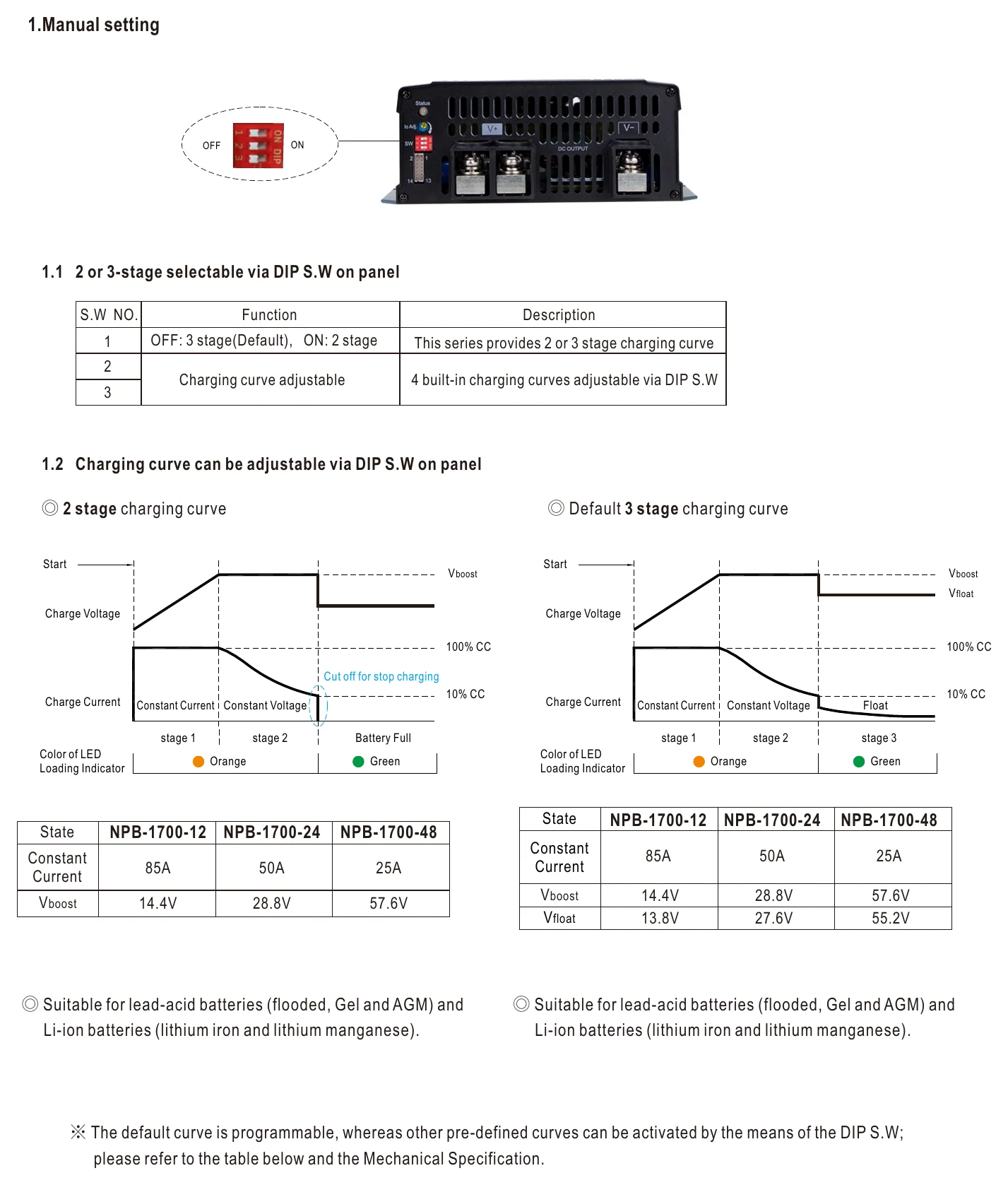

NPB-1700-24 Function Manual — Function Manual

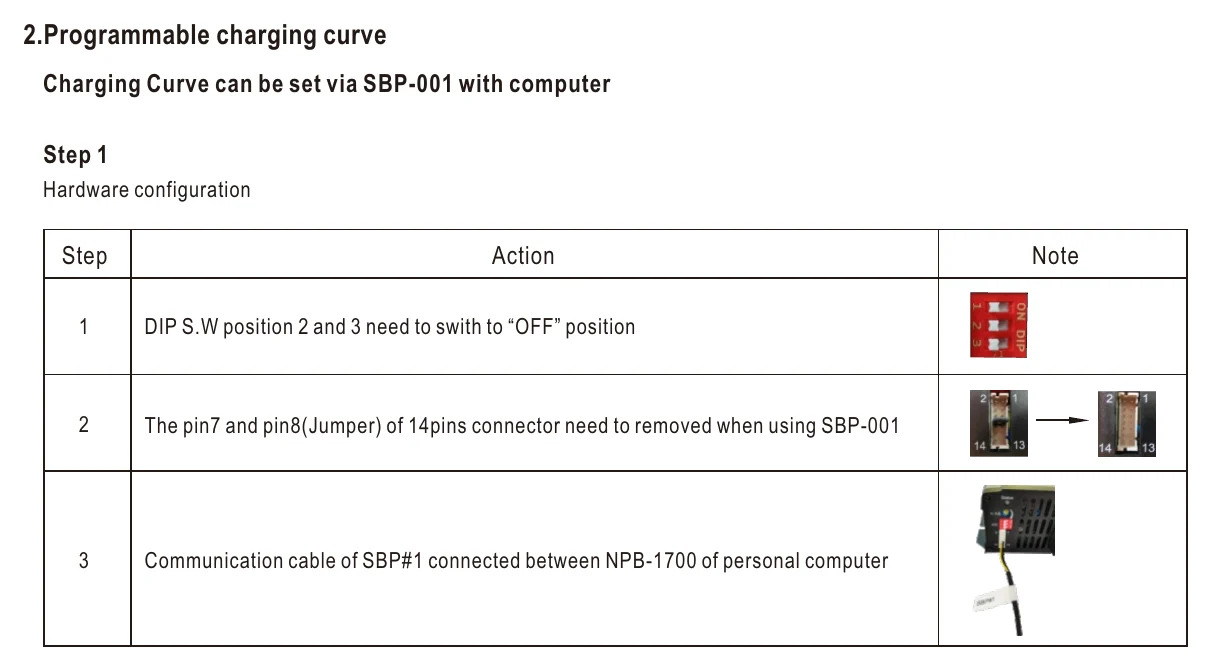

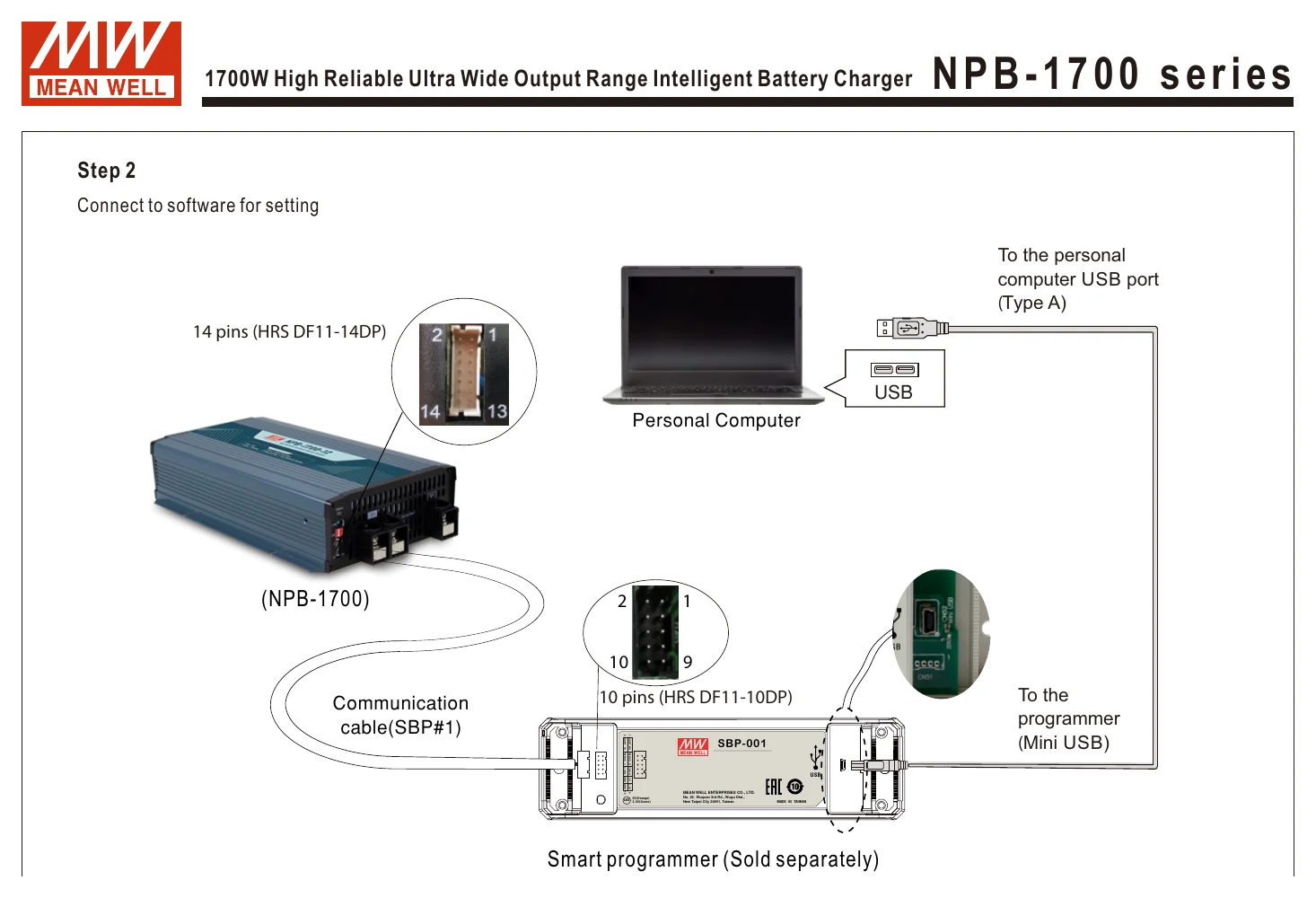

NPB-1700-24 2.Programmable charging curve — 2.Programmable charging curve

NPB-1700-24 NPB-1700 series — NPB-1700 series

NPB-1700-24 (NPB-1700) 108 79 — (NPB-1700) 108 79

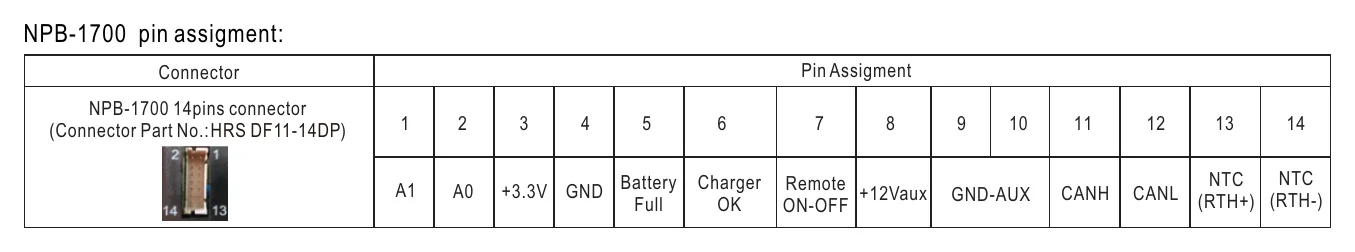

NPB-1700-24 NPB-1700 pin assigment — NPB-1700 pin assigment

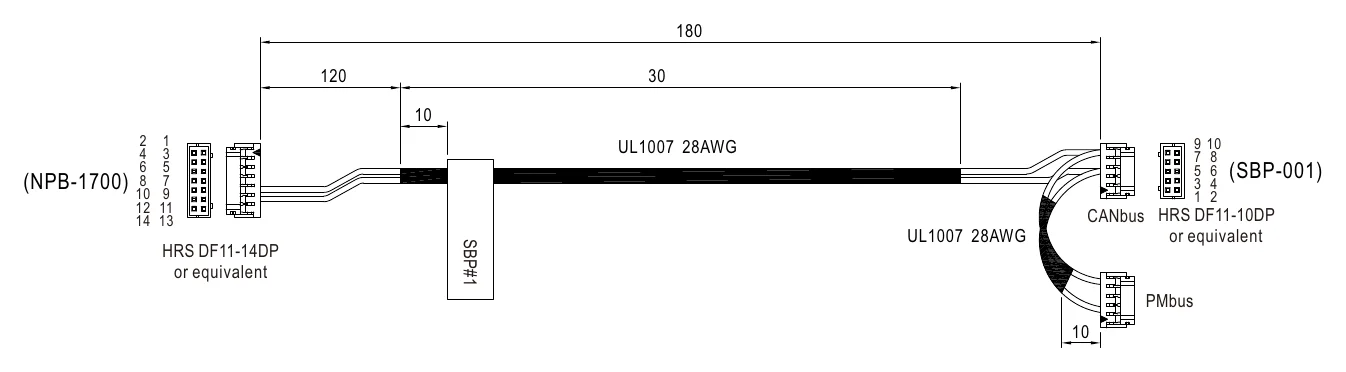

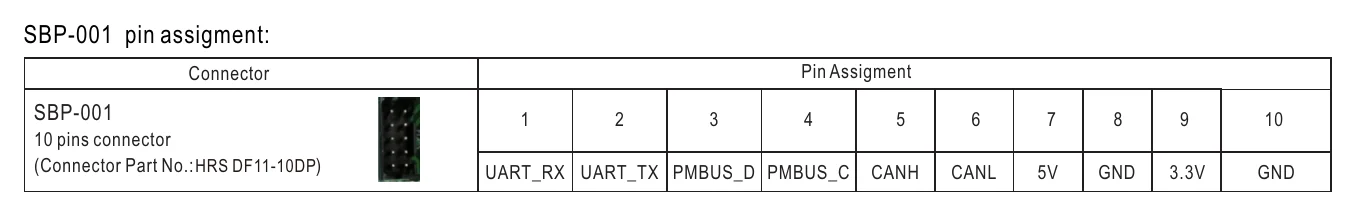

NPB-1700-24 SBP-001 pin assigment — SBP-001 pin assigment

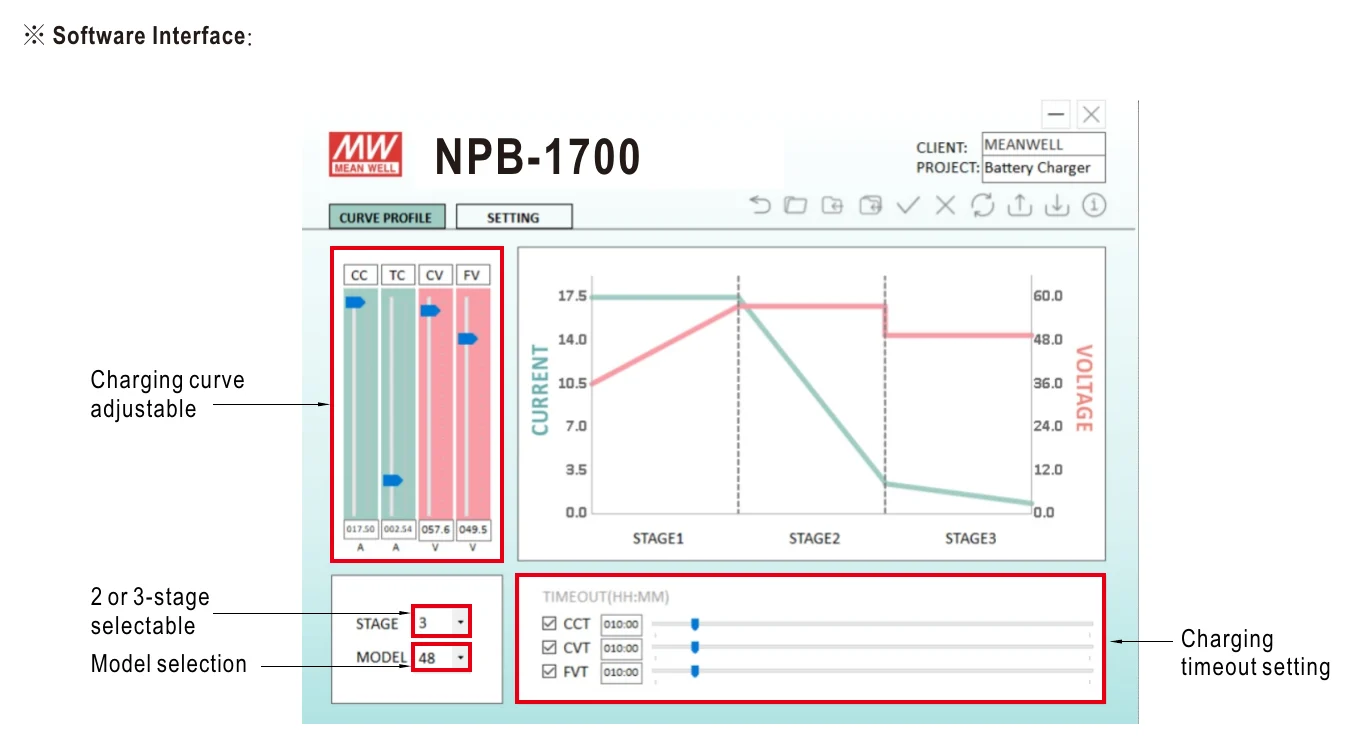

NPB-1700-24 ※ Software Interface — ※ Software Interface

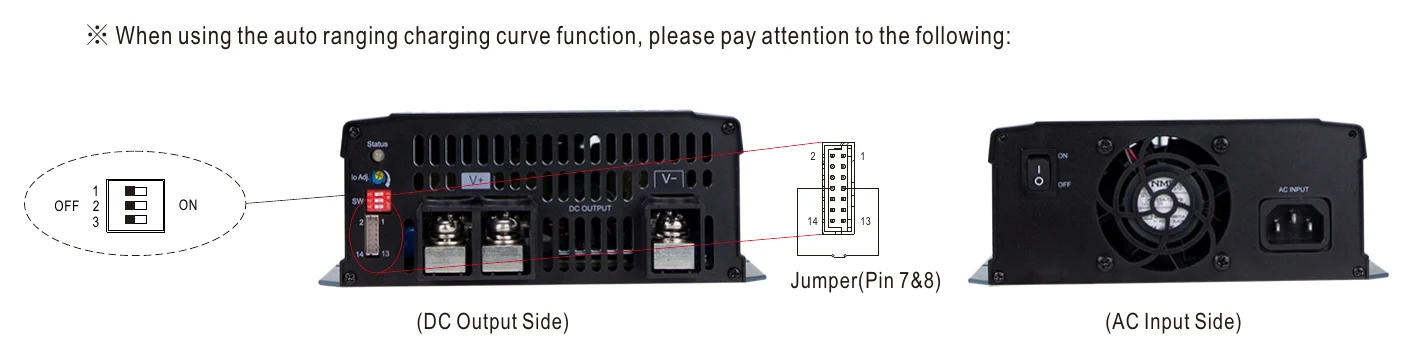

NPB-1700-24 ※ When using the auto ranging charging curve function,… — ※ When using the auto ranging charging curve function,…

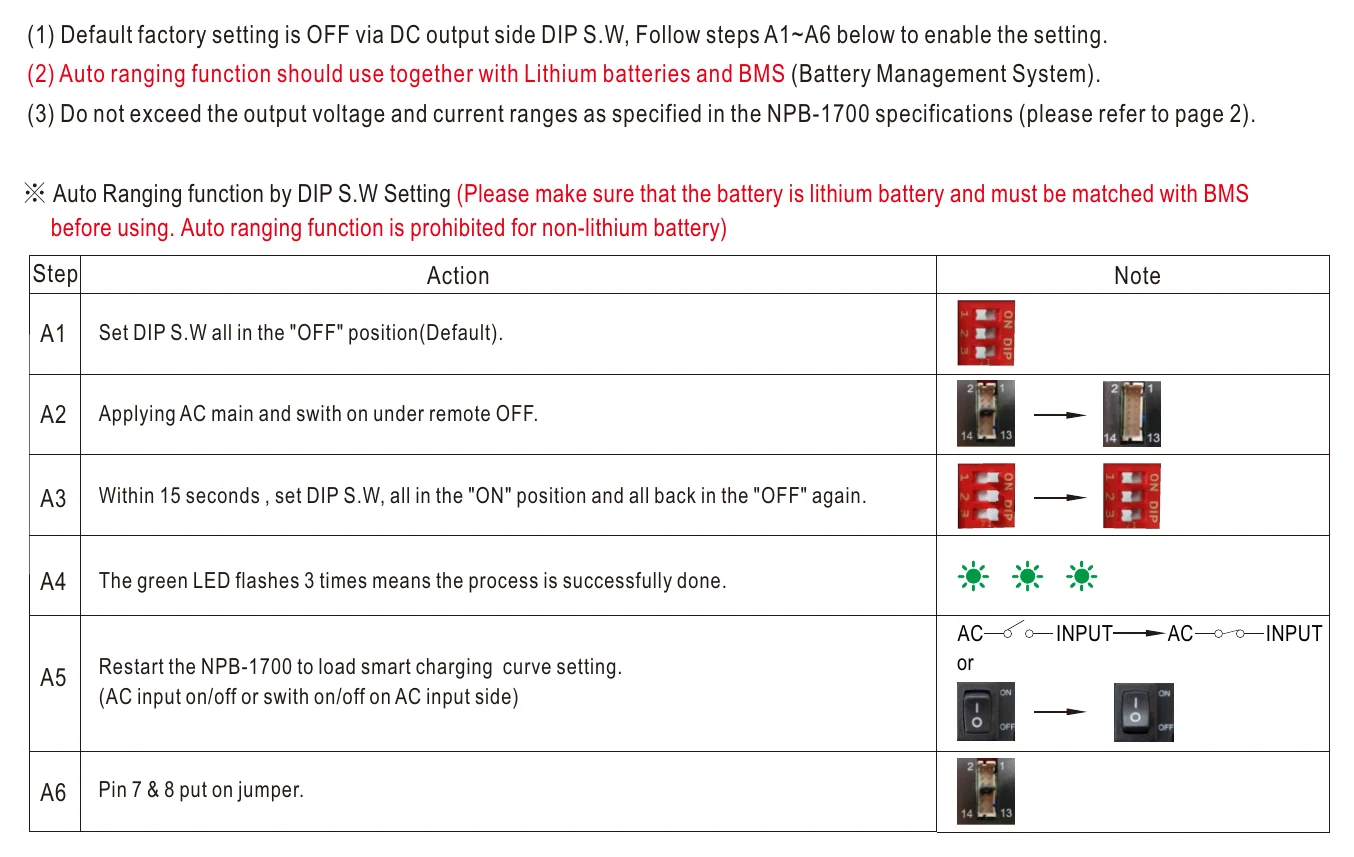

NPB-1700-24 (1) Default factory setting is OFF via DC output side… — (1) Default factory setting is OFF via DC output side…

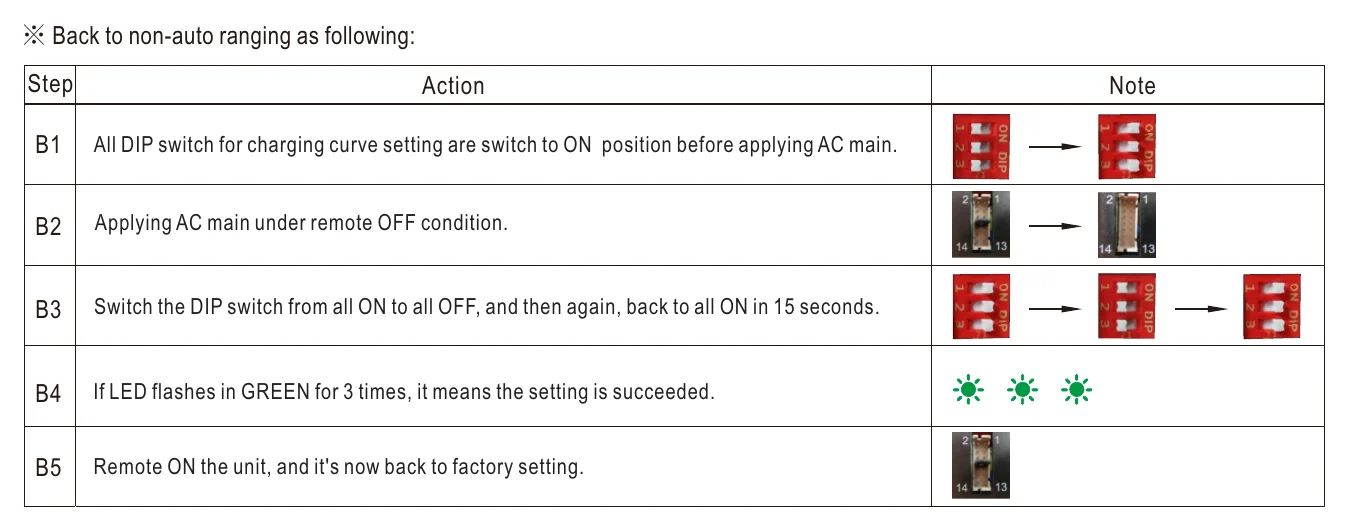

NPB-1700-24 ※ Back to non-auto ranging as following — ※ Back to non-auto ranging as following

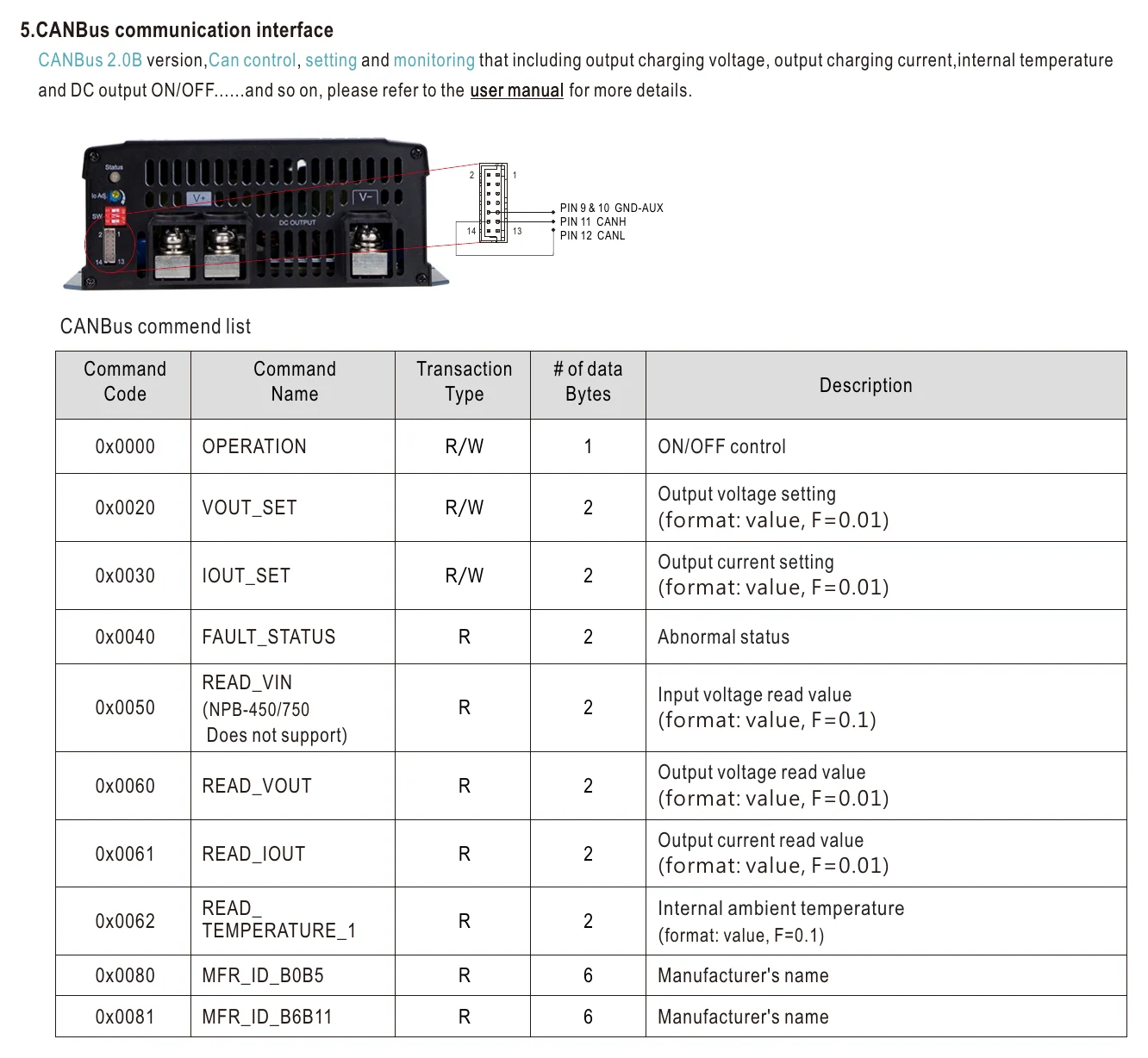

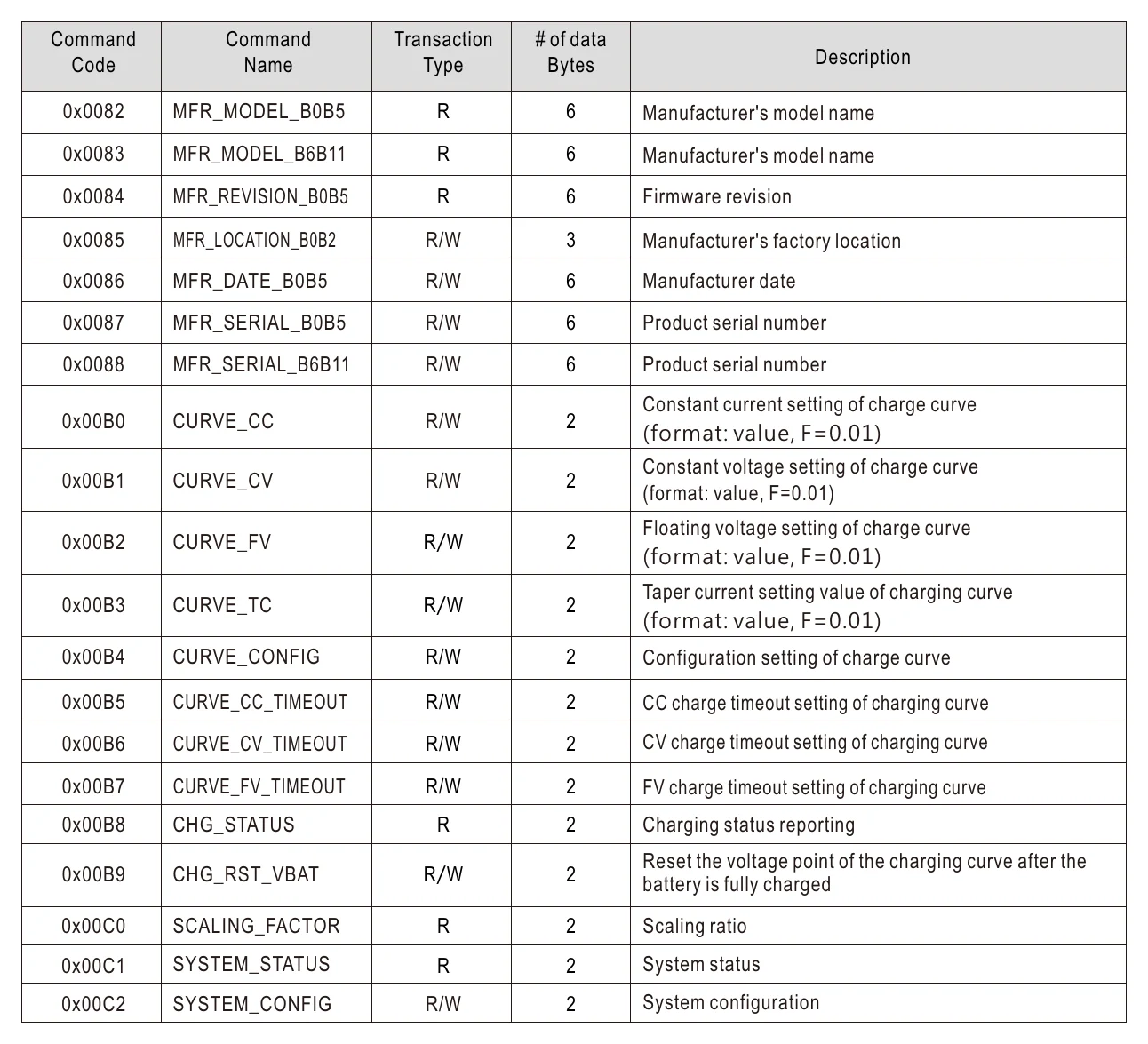

NPB-1700-24 5.CANBus communication interface — 5.CANBus communication interface

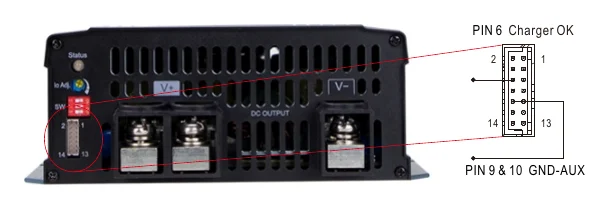

NPB-1700-24 PIN6 Charger OK — PIN6 Charger OK

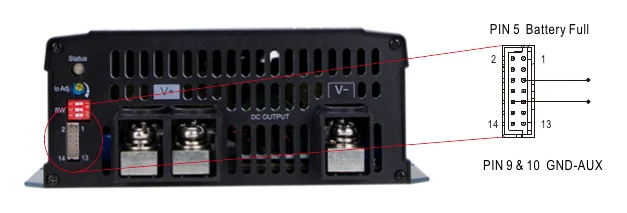

NPB-1700-24 PIN5 Battery Full — PIN5 Battery Full

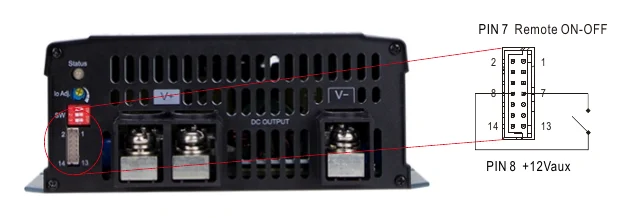

NPB-1700-24 PIN7 Remote ON-OFF — PIN7 Remote ON-OFF

Typical applications

AGV
E-Bike, E-Scooter, Camping car, Bus, Specialty vehicles
Robotic lawn mower
Washing robot
Recreation craft, Personal yacht or workboat
Surveillance system
Telecommunication base station
Radio system backup solution
Equipments or instruments with back-up battery

Downloads

Certificates7

Mean Well NPB-NPP-1700-DEKRA MarK Certificate PDF Download

Mean Well NPB-NPP-1700-DEKRA MarK(60335) Certificate PDF Download

Mean Well NPP-NPB-1700-CB Certificate PDF Download

Mean Well NPP-NPB-1700-EMC Certificate PDF Download

Mean Well NPx-1700-CE-dec Certificate PDF Download

Mean Well NPX-1700-UK-dec Certificate PDF Download

Mean Well NPB-NPP-1700-CB(UL) Certificate PDF Download

Test reports1

Mean Well NPB-1700-24 Test Report PDF Download

FAQ

Can I use the Mean Well NPB-1700-24 to charge a 24V battery bank in industrial automation equipment?

Yes. This charger is built for 24V battery systems and provides a 28.8V default boost charge voltage with up to 50A constant charging current, and 1680W power for higher-capacity charging. It is suitable for both lead-acid and Li-ion battery chemistries.

Is the NPB-1700-24 suitable for large backup battery systems in IT or embedded equipment?

It can fit 24V backup battery systems where the charging profile matches lead-acid or Li-ion batteries and the AC source is within 90-264VAC. With a 28.8V boost charge voltage, 50A current and a recommended battery capacity of 200-640Ah, it is intended for higher-power battery charging.

Can this charger be used for high-current 24V battery charging in industrial vehicles or mobile equipment?

Yes, if the system uses a 24V lead-acid or Li-ion battery pack and needs a charger rated at 28.8V and 50A. The 1680W output and 200-640Ah recommended battery capacity suit high-current 24V charging.

Can the NPB-1700-24 work in facilities with different AC mains conditions?

Yes. Its 90-264VAC (250-370VDC) input range supports operation across a wide range of AC supply conditions, which is useful for industrial and commercial sites with different mains standards. The charger delivers a 28.8V default boost charge voltage with up to 50A charging current.

Is the NPB-1700-24 suitable for outdoor or harsh-temperature locations?

The specified operating temperature range is -30°C to +70°C (refer to the derating curve), so it is rated for very cold and hot environments within that range. The provided specs do not list an IP rating, so exposed outdoor use should not be assumed from this data alone.
