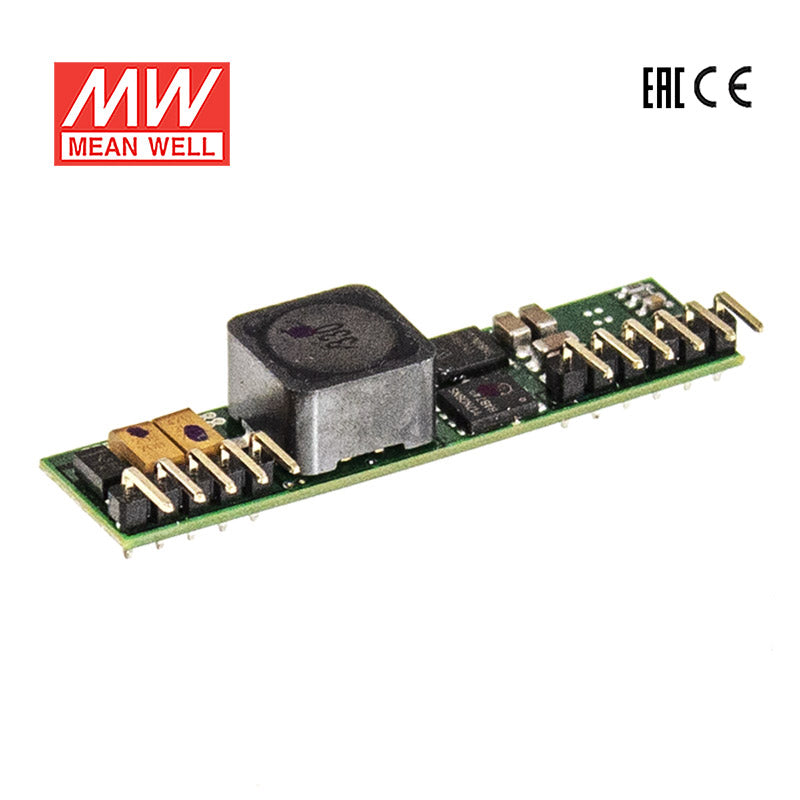

Mean Well NID35-15 DC-DC Converter - 36W - 20~53V in 15V out
$12.94 USD
Unit price /
Unavailable
Description
Description
Features
| Economical open frame design |
| Wide input range |
| High efficiency up to 96% |
| Remote ON/OFF control |
| Compact size 2.0"x0.512"x0.433"(SIP package) |
| Protection: Short circuit/Overload/Over voltage |
| -30~+85℃ wide working temperature |
| Cooling by free air convection |
| Comply to BS EN/EN55032 Class A without additional components |
Trimming output (optional) |
3 years warranty |
General Specification
| Over Voltage Protection | upto 150% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Protection type: Hiccup mode, recovers automatically after the fault condition is removed |
| Working temperature | -30°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-3,4,5,6 |
| Temp. Coefficient | ±0.03% / ℃ (0 ~ 55℃) |
| Dimension (LxWxH) (mm) | 50.8*13*11mm (2.0"*0.512"*0.433" inch) |
| Packing | 440pcs/4.96Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNID Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage20V~53V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width0.51 in
-
Height0.43 in
-
Weight0.02 lb
