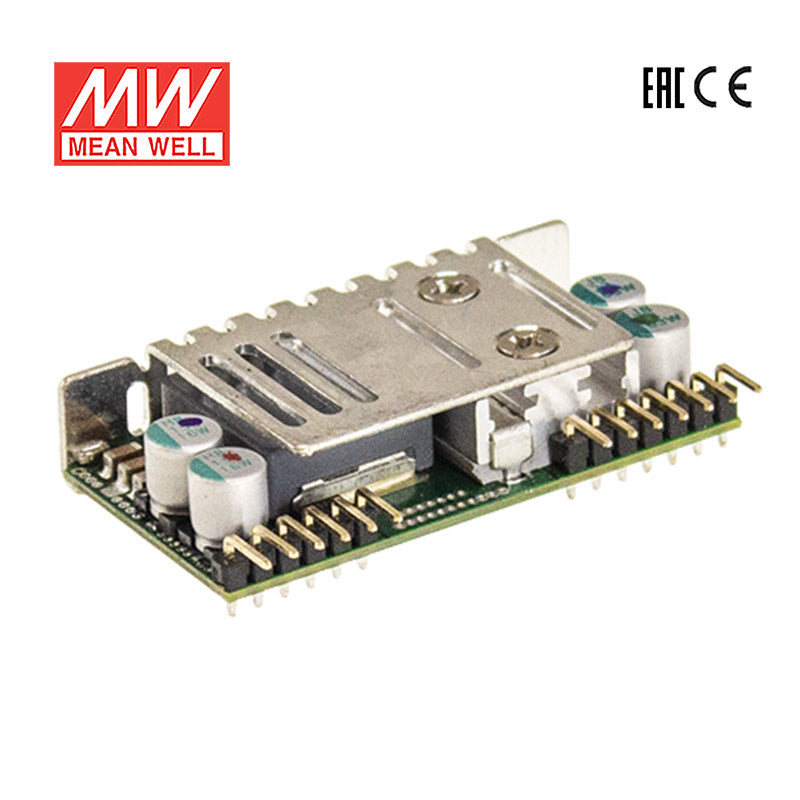

Mean Well NID100-12 DC-DC Converter - 90W - 20~53V in 12V out
$18.60 USD
Unit price /
Unavailable
Description
Description
Features
| Economical open frame design |
| Wide input range |
| High efficiency up to 97% |
| Remote ON/OFF control |
| Compact size 2.0"x1.082"x0.472"(SIP package) |
| Protection: Short circuit/Overload/Over voltage |
| -30~+85℃ wide working temperature |
| Cooling by free air convection |
| Comply to BS EN/EN55032 Class A without additional components |
Trimming output (optional) |
3 years warranty |
General Specification
| Over Voltage Protection | 128 ~ 138% |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | Protection type: Hiccup mode, recovers automatically after the fault condition is removed |
| Working temperature | -30°C to +85°C |
| EMC | Compliance to EN55032 Class A, EN61000-4-3,4,5,6 |
| Temp. Coefficient | ±0.03% / ℃ (0 ~ 50℃) |
| Dimension (LxWxH) (mm) | 50.8*27.5*12mm (2.0"*1.082"*0.472" inch) |
| Packing | 440pcs/4.96Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesNID Series
-
Power Rating90 Watt
-
Output Voltage12 Volt
-
Rated Current7.5 Ampere
-
Input Voltage20V~53V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1.08 in
-
Height0.47 in
-
Weight0.08 lb
