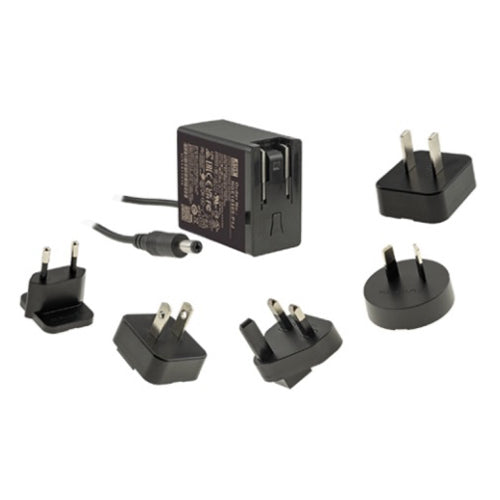

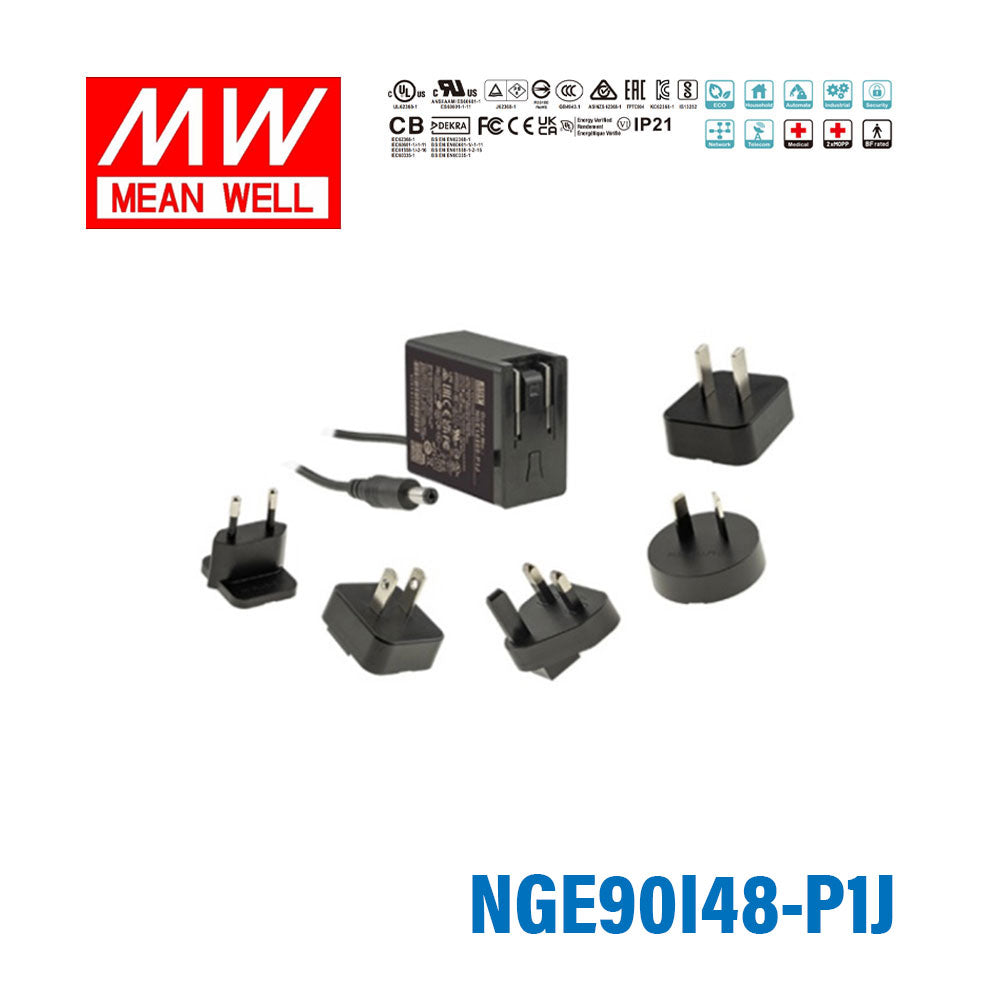

Mean Well NGE90I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 90W 48V 1.875A

Name: Mean Well NGE90I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 90W 48V 1.875A
Brand: Mean Well
SKU: NGE90I48-P1J
Price: 45.69 USD
Availability: InStock

ultra slim(30mm)extremely low leakage current < 100μAClass II

SKU NGE90I48-P1J

$45.69 USD

Shipping calculated at checkout.

Available to order

Overview

NGE90I48-P1J is the 48V output model of this series: rated current 1.875A, rated power 90W, typical efficiency 92%.

NGE90 is a highly reliable, 90W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. This product is equipped with 7 types of interchangeable AC plug (European, USA,U.K. ,Australian, China, Korea and India type) that makes it very suitable for travel use.NGE90 is a Class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 92% and the extremely low no-load power consumption below 0.1W, NGE90 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS , Korea KMEPS, EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial application safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs (I-Type)
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1,Industrial 61558-1/-2-16)
80~264Vac Universal AC input
Ultra slim(30mm)
No load power consumption< 0.1W
Energy efficiency Level Ⅵ
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Extremely low leakage current <100uA
-30℃~+70℃ wide range working temperature
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

NGE90I48-P1JSpecifications from the official datasheet (2026-01-14 edition)

OUTPUT

DC VOLTAGE^Note.2: 48V
RATED CURRENT: 1.875A
CURRENT RANGE: 0 ~ 1.875A
RATED POWER: 90W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±2.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 60ms, 30ms / 230Vac 1000ms, 60ms, 10ms / 115Vac at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 92%
AC CURRENT: 1.8A / 115Vac 0.9A / 230Vac
INRUSH CURRENT (max.): COLD START 50A / 115Vac 100A / 230Vac
LEAKAGE CURRENT (max.): Touch current < 100uA (rms) @264Vac

PROTECTION

OVERLOAD: 105% ~ 160% rated output power Protection type : 12~24V Hiccup mode, recovers automatically after fault condition is removed. 48~55V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE: 52.8 ~ 64.8 Protection type : Shout donw O/P vlotage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP21

SAFETY & EMC

SAFETY STANDARDS^Note.8: CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; ANSI/AAMI ES60601-1-11, CAN/CSA-C22.2 NO.60601-1-11(for U Type only) DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 62368.1, AS/NZS 61558.1/.2.16; EAC TPTC004; CCC GB4943.1 approved. KC KC62368-1; BIS IS13252(part1):2010/IEC60950-1:2005. (Please refer to next page for more details)
WITHSTAND VOLTAGE: I/P-O/P:4000Vac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Radiated emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Harmonic current BS EN/EN61000-3-2 Class A
EMC IMMUNITY: BS EN/EN55035(CISPR35), BS EN/EN60601-1-2(IEC60601-1-2),KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Radiated emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Harmonic current	BS EN/EN61000-3-2	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 605.3 Khrs min. MIL-HDBK-217F (25℃) 5120.6 Khrs min. Telcordia TR/SR-332(Bellcore) (25℃)
DIMENSION: 62*30*85.5mm (L*W*H)
PACKING MAIN BODY: 217g; 54pcs/ 13.2Kg / 0.93CUFT for NGE90Ixx/Uxx-P1J 231g; 42pcs/ 11.6Kg / 1.13CUFT for NGE90Exx-P1J
PACKING AC PLUGS: Refer to Page 3

DC OUTPUT CONNECTOR

PLUG: See page 6~7 ; Other type available by customer requested
CABLE: See page 6~7 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9.Design meet US DoE Level VII (from Docket number EERE-2020-BT-STD-0006).

Technical drawings

NGE90I48-P1J Interchangeable AC Plug Specifically — Interchangeable AC Plug Specifically

NGE90I48-P1J AC Plugs Accessory (Sold Seperately) — AC Plugs Accessory (Sold Seperately)

NGE90I48-P1J Interchangeable AC Plug Installation — Interchangeable AC Plug Installation

NGE90I48-P1J Mechanical Specification — Mechanical Specification

NGE90I48-P1J DC Output Plug — DC Output Plug

NGE90I48-P1J N G E 9 0 series — N G E 9 0 series

Typical applications

Downloads

Datasheet1

NGE90I48-P1J datasheetNGE90_spec_sheet.pdf · 2026-01-14 edition PDF Download

FAQ

What output does the Mean Well NGE90I48-P1J provide?

This model is a 90W AC-DC wall-mounted adaptor with a 48V DC output rated at 1.875A. It is designed for applications that require a regulated 48V supply within that power range.

What makes the NGE90I48-P1J suitable for international or multi-region use?

The NGE90I48-P1J uses interchangeable AC plugs and supports universal AC input from 80 to 264VAC. It also carries approvals across multiple standards and regions, which makes it a practical option for OEM and export-focused projects.

Is this adaptor intended for energy-efficient equipment?

Yes. This model meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a strong choice for equipment where standby power performance matters.

Can the NGE90I48-P1J be used in demanding temperature conditions?

It is rated for operation from -30°C to +70°C, giving it a wide working temperature range for industrial and commercial environments. Buyers should still confirm that the full application stays within the product's published operating conditions.

What protection features are included in this power adaptor?

The NGE90I48-P1J includes short circuit, overload, and over voltage protection. For the 48V version, overload protection uses shut down and latch-off behavior, with recovery after re-powering once the fault condition is cleared.

What types of equipment is this model commonly considered for?

Because it provides 48V DC at up to 90W, this adaptor is typically considered for professional, industrial, ITE, household, and certain medical-related equipment that matches those electrical requirements. It is especially relevant for B2B buyers needing a compact external power source with broad safety certifications.

How compact is the Mean Well NGE90I48-P1J?

This adaptor has a slim profile and measures 62 x 30 x 85.5 mm. Its ultra-slim 28 mm form factor can help when space around the outlet or mounted equipment is limited.
