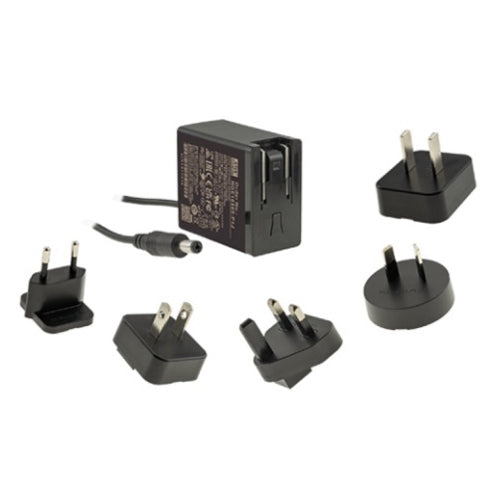

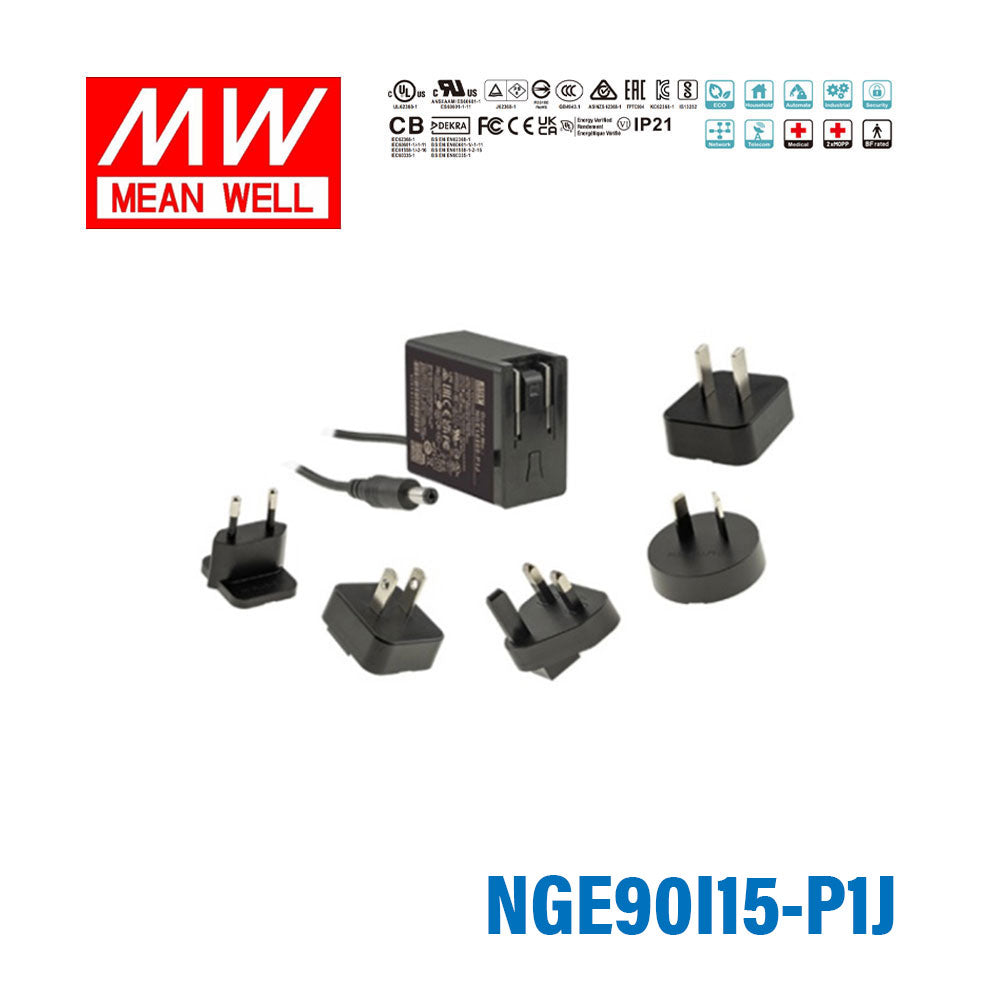

Mean Well NGE90I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 82.5W 15V 5.5A

Name: Mean Well NGE90I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 82.5W 15V 5.5A
Brand: Mean Well
SKU: NGE90I15-P1J
Price: 45.69 USD
Availability: InStock

ultra slim(30mm)extremely low leakage current < 100μAClass II

SKU NGE90I15-P1J

$45.69 USD

Shipping calculated at checkout.

Available to order

Overview

NGE90I15-P1J is the 15V output model of this series: rated current 5.5A, rated power 82.5W, typical efficiency 91%.

NGE90 is a highly reliable, 90W wall-mounted style single-output green adaptor series, which is compact and convenient for carry. This product is equipped with 7 types of interchangeable AC plug (European, USA,U.K. ,Australian, China, Korea and India type) that makes it very suitable for travel use.NGE90 is a Class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 92% and the extremely low no-load power consumption below 0.1W, NGE90 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS , Korea KMEPS, EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial application safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs (I-Type)
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1,Industrial 61558-1/-2-16)
80~264Vac Universal AC input
Ultra slim(30mm)
No load power consumption< 0.1W
Energy efficiency Level Ⅵ
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Extremely low leakage current <100uA
-30℃~+70℃ wide range working temperature
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

NGE90I15-P1JSpecifications from the official datasheet (2026-01-14 edition)

OUTPUT

DC VOLTAGE^Note.2: 15V
RATED CURRENT: 5.5A
CURRENT RANGE: 0 ~ 5.5A
RATED POWER: 82.5W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±4.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 60ms, 30ms / 230Vac 1000ms, 60ms, 10ms / 115Vac at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91%
AC CURRENT: 1.8A / 115Vac 0.9A / 230Vac
INRUSH CURRENT (max.): COLD START 50A / 115Vac 100A / 230Vac
LEAKAGE CURRENT (max.): Touch current < 100uA (rms) @264Vac

PROTECTION

OVERLOAD: 105% ~ 160% rated output power Protection type : 12~24V Hiccup mode, recovers automatically after fault condition is removed. 48~55V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE: 15.8 ~ 20.3 Protection type : Shout donw O/P vlotage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP21

SAFETY & EMC

SAFETY STANDARDS^Note.8: CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; ANSI/AAMI ES60601-1-11, CAN/CSA-C22.2 NO.60601-1-11(for U Type only) DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 62368.1, AS/NZS 61558.1/.2.16; EAC TPTC004; CCC GB4943.1 approved. KC KC62368-1; BIS IS13252(part1):2010/IEC60950-1:2005. (Please refer to next page for more details)
WITHSTAND VOLTAGE: I/P-O/P:4000Vac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Radiated emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Harmonic current BS EN/EN61000-3-2 Class A
EMC IMMUNITY: BS EN/EN55035(CISPR35), BS EN/EN60601-1-2(IEC60601-1-2),KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Radiated emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Harmonic current	BS EN/EN61000-3-2	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 605.3 Khrs min. MIL-HDBK-217F (25℃) 5120.6 Khrs min. Telcordia TR/SR-332(Bellcore) (25℃)
DIMENSION: 62*30*85.5mm (L*W*H)
PACKING MAIN BODY: 217g; 54pcs/ 13.2Kg / 0.93CUFT for NGE90Ixx/Uxx-P1J 231g; 42pcs/ 11.6Kg / 1.13CUFT for NGE90Exx-P1J
PACKING AC PLUGS: Refer to Page 3

DC OUTPUT CONNECTOR

PLUG: See page 6~7 ; Other type available by customer requested
CABLE: See page 6~7 ; Other type available by customer requested

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9.Design meet US DoE Level VII (from Docket number EERE-2020-BT-STD-0006).

Technical drawings

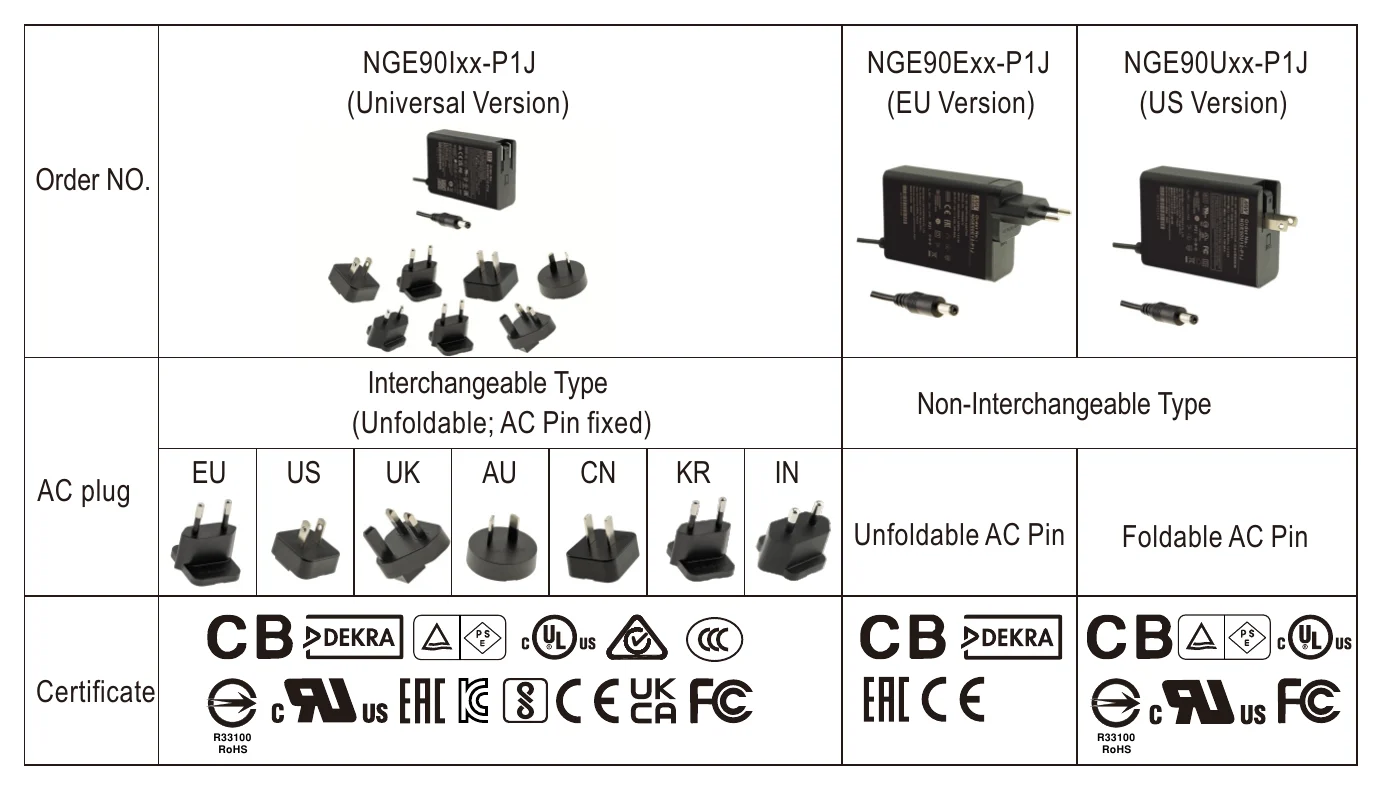

NGE90I15-P1J Interchangeable AC Plug Specifically — Interchangeable AC Plug Specifically

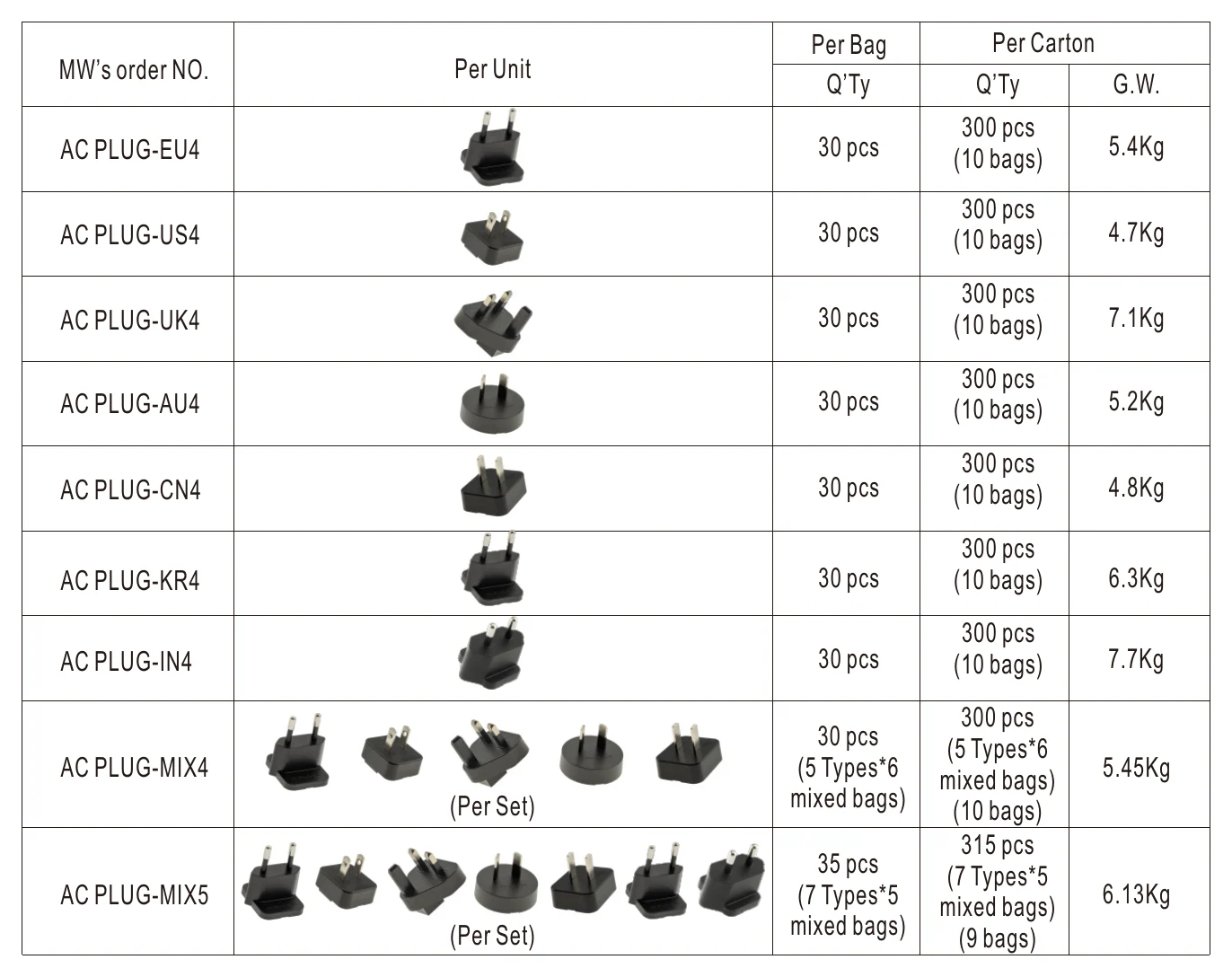

NGE90I15-P1J AC Plugs Accessory (Sold Seperately) — AC Plugs Accessory (Sold Seperately)

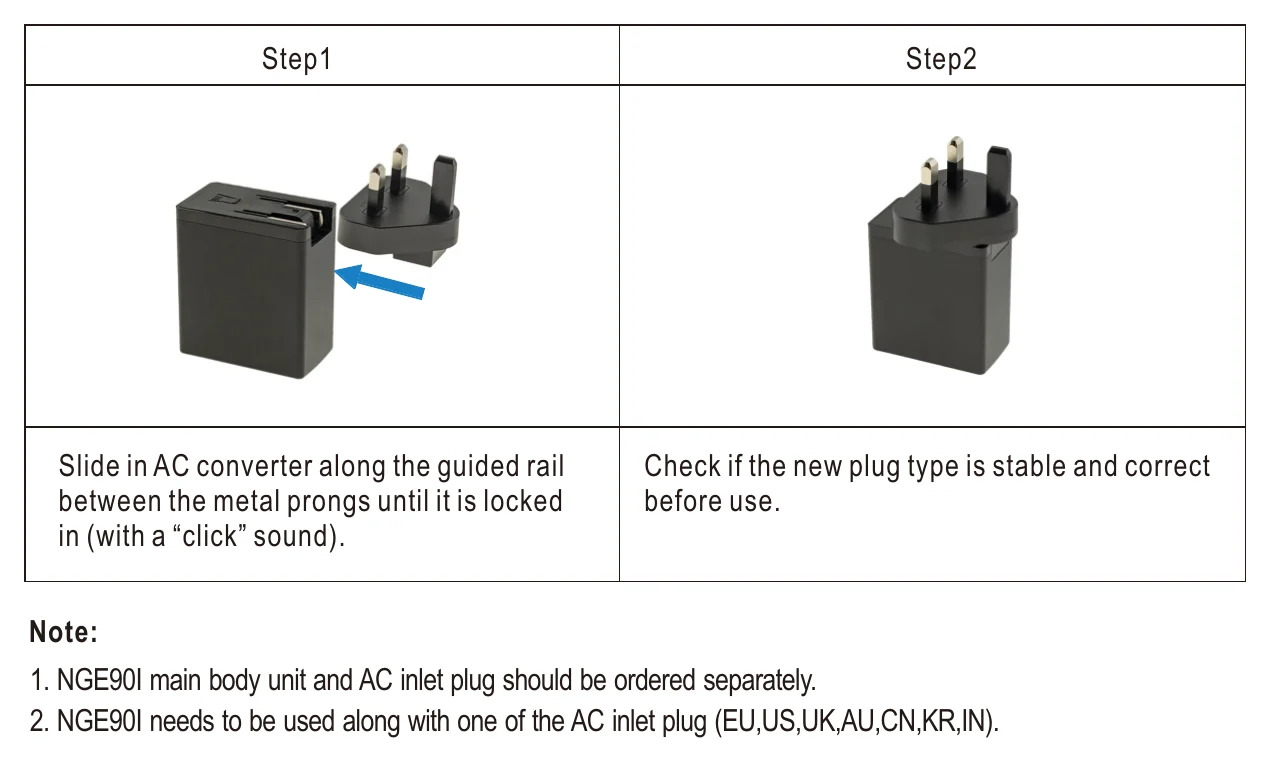

NGE90I15-P1J Interchangeable AC Plug Installation — Interchangeable AC Plug Installation

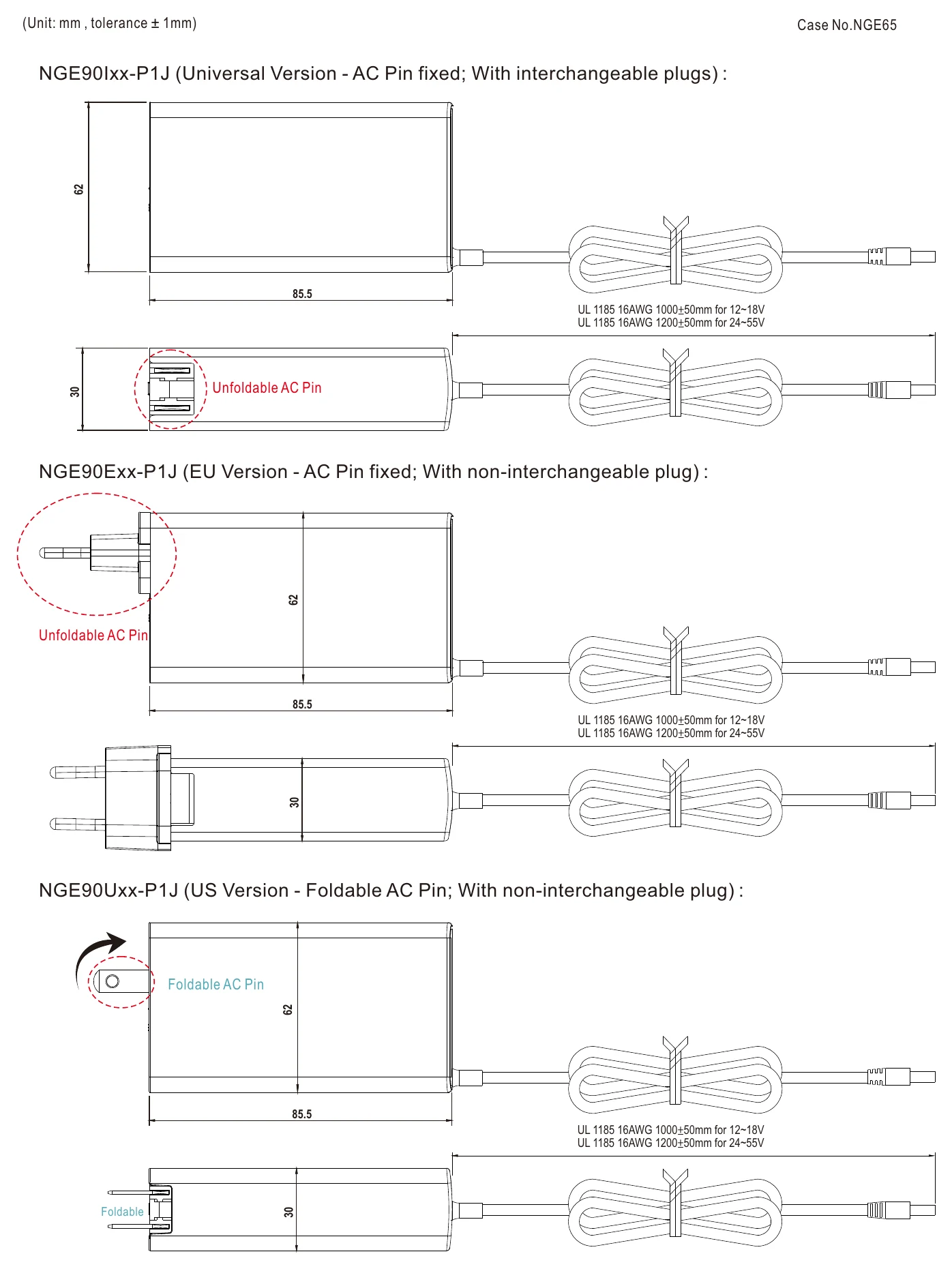

NGE90I15-P1J Mechanical Specification — Mechanical Specification

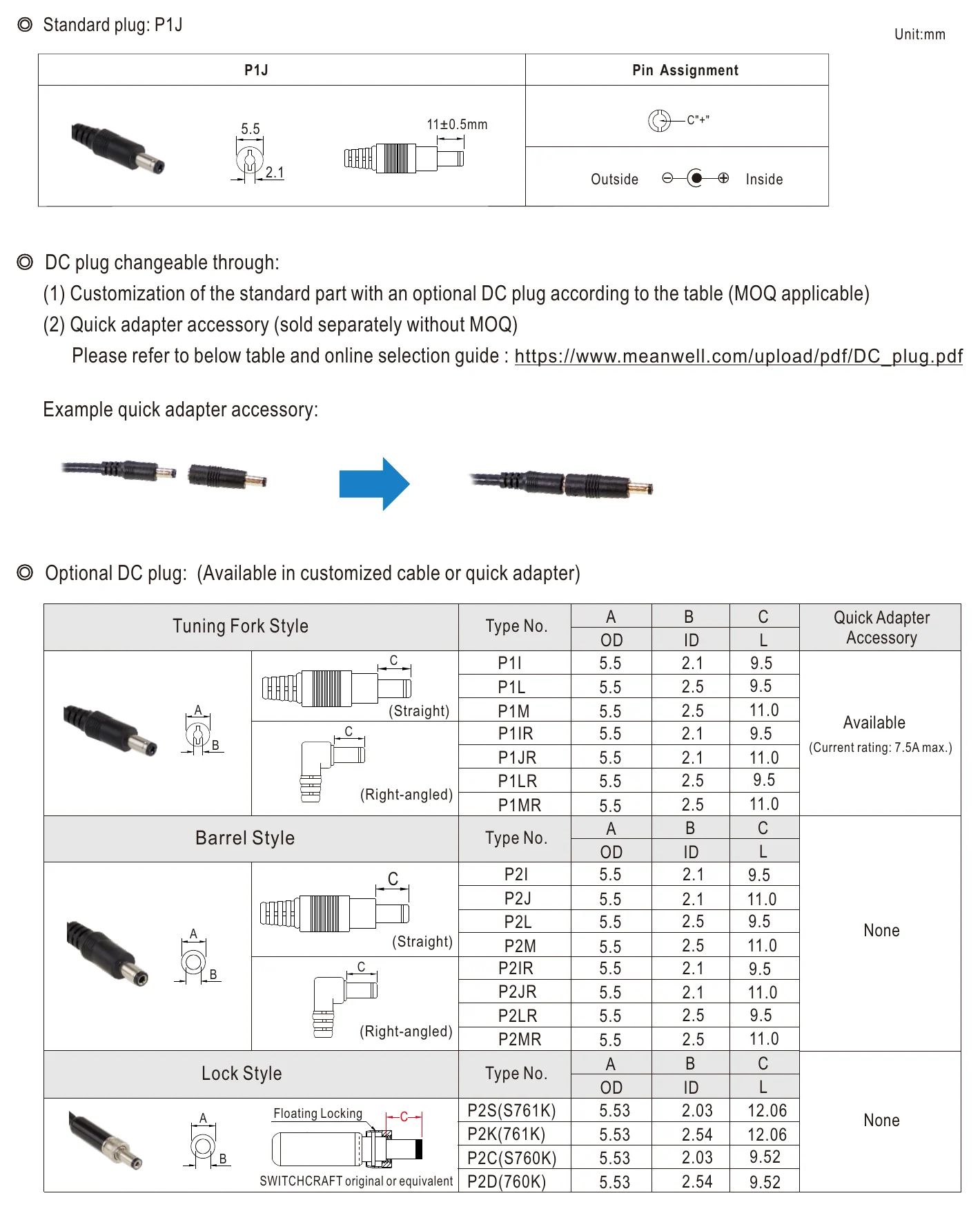

NGE90I15-P1J DC Output Plug — DC Output Plug

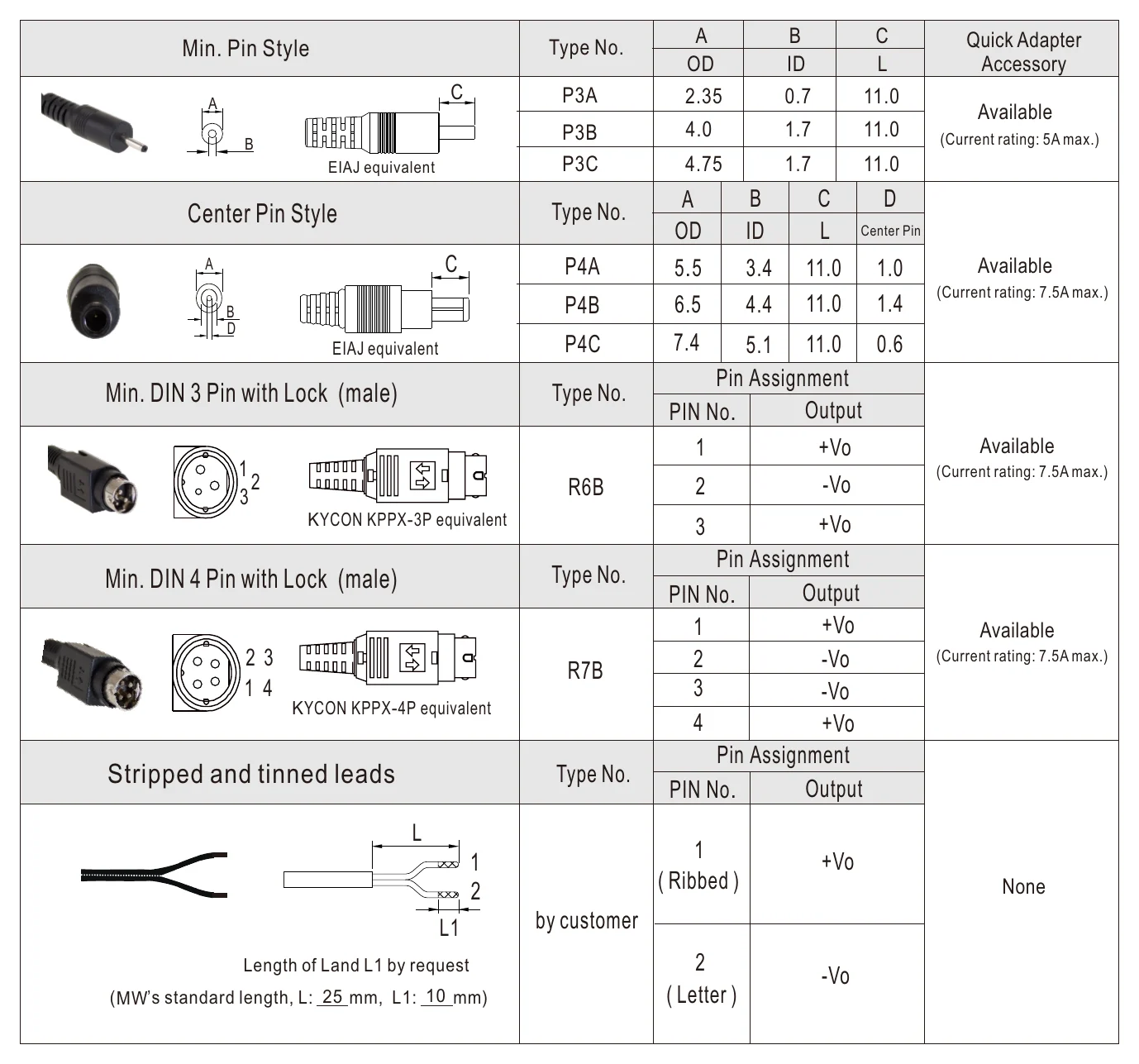

NGE90I15-P1J N G E 9 0 series — N G E 9 0 series

Typical applications

Downloads

Datasheet1

NGE90I15-P1J datasheetNGE90_spec_sheet.pdf · 2026-01-14 edition PDF Download

FAQ

What are the main output specifications of the Mean Well NGE90I15-P1J?

The NGE90I15-P1J is a 15V AC-DC wall-mounted adaptor rated for 5.5A, with a maximum output power of 82.5W. It is designed as a non-dimmable power supply in Mean Well's NGE90 series.

What types of applications is this adaptor intended for?

This model is suited to applications that need a regulated 15V DC supply at up to 5.5A in a compact wall-mounted format. Its certifications cover multiple fields including ITE, medical, household, and industrial standards, making it a strong option for professional equipment sourcing.

Does the NGE90I15-P1J support international use?

Yes. It has a universal input range of 80 to 264VAC and uses interchangeable AC plugs, which makes it suitable for deployment across different regions. The product also lists a broad set of international safety approvals and certifications.

How energy efficient is the Mean Well NGE90I15-P1J?

This adaptor meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.1W. That makes it a good choice for buyers who want lower standby power usage in commercial or OEM applications.

Can this power adaptor operate in demanding temperature conditions?

Yes. The NGE90I15-P1J is rated for operation from -30C to +70C, which supports use in a wide range of indoor and controlled equipment environments. Buyers should still confirm that the end application stays within the product's published operating limits.

What protection and safety features does this model include?

The unit includes short circuit, overload, and over-voltage protection. It is also a Class II power supply with no earth pin, offers 4000VAC input-to-output withstand voltage, and is specified with leakage current below 100uA.

What are the physical size and warranty for the NGE90I15-P1J?

This model has compact dimensions of 62 x 30 x 85.5mm and an ultra-slim 30mm profile, helping reduce space impact in finished equipment deployments. It is backed by a 3-year warranty from Mean Well.
