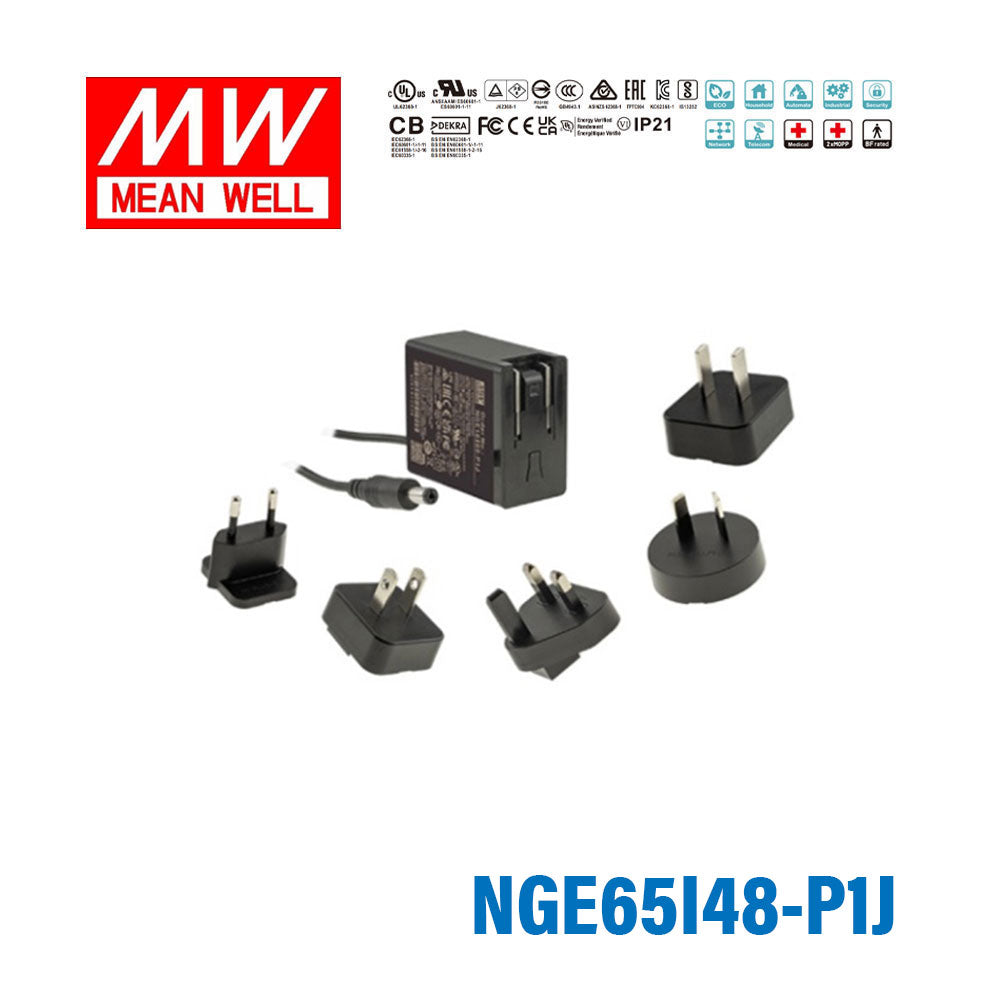

Mean Well NGE65I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.2W 48V 1.36A

Name: Mean Well NGE65I48-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.2W 48V 1.36A
Brand: Mean Well
SKU: NGE65I48-P1J
Price: 33.59 USD
Availability: InStock

ultra slim(30mm)extremely low leakage current < 100μAClass II

SKU NGE65I48-P1J

$33.59 USD

Shipping calculated at checkout.

Available to order

Overview

NGE65I48-P1J is the 48V output model of this series: rated current 1.36A, rated power 65.2W, typical efficiency 92%.

NGE65 is a highly reliable, 65W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with 7 types of interchangeable AC plug (European, USA,U.K. ,Australian, China, Korea and India type) that makes it very suitable for travel use.NGE65 is a Class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 92% and the extremely low no-load power consumption below 0.075W, NGE65 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version 5. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial applia nce safety regulations; moreover, it adopts the 94V-0 flame retar dant plastic case that it can effectively prevent users from electric haz ard.

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs (I-Type)
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1,Industrial 61558-1/-2-16)
80~264Vac Universal AC input
Ultra slim(30mm)
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage / Pass LPS
Extremely low leakage current <100uA
-30℃~+70℃ wide range working temperature
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

NGE65I48-P1JSpecifications from the official datasheet (2026-01-14 edition)

OUTPUT

DC VOLTAGE^Note.2: 48V
RATED CURRENT: 1.36A
CURRENT RANGE: 0 ~ 1.36A
RATED POWER: 65.2W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±2.0%
SETUP, RISE, HOLD UP TIME: 1500ms, 50ms, 30ms / 230Vac 3000ms, 50ms, 10ms / 115Vac at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 92%
AC CURRENT: 1.5A / 115Vac 0.8A / 230Vac
INRUSH CURRENT (max.): COLD START 50A / 115Vac 100A / 230Vac
LEAKAGE CURRENT (max.): Touch current < 100uA (rms) @264Vac

PROTECTION

OVERLOAD: 110% ~ 150% rated output power Protection type : 5~24V Hiccup mode, recovers automatically after fault condition is removed. 48V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE: 110% ~ 140% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP21

SAFETY & EMC

SAFETY STANDARDS^Note.8: CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; ANSI/AAMI ES60601-1-11, CAN/CSA-C22.2 NO.60601-1-11(for U Type only) DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 62368.1, AS/NZS 6 1558 .1/ .2 . 16 ; EAC TPTC004; CCC GB4943.1 approved . KC KC62368-1; BIS IS13252(part1):2010/IEC60950-1:2005. (Please refer to next page for more details)
WITHSTAND VOLTAGE: I/P-O/P:4000Vac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Radiated emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Harmonic current BS EN/EN61000-3-2 Class A
EMC IMMUNITY: BS EN/EN55035(CISPR35), BS EN/EN60601-1-2(IEC60601-1-2),KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Radiated emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Harmonic current	BS EN/EN61000-3-2	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 682.2 Khrs min. MIL-HDBK-217F (25℃) 5852.4 Khrs min. Telcordia TR/SR-332(Bellcore) (25℃)
DIMENSION: 62*30*65mm (L*W*H)
PACKING MAIN BODY: 196g; 60pcs/ 13.4Kg / 0.94CUFT for NGE65Ixx/Uxx-P1J 211g; 45pcs/ 11.4Kg / 1.06CUFT for NGE65Exx-P1J
PACKING AC PLUGS: Refer to Page 3

DC OUTPUT CONNECTOR

PLUG: See page 6~7 ; Other type available by customer requested
CABLE: See page 6~7 ; Other type available by customer requested

Test conditions and notes10

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9.Test harmonic current at 85% load.
10.Design meet US DoE Level VII (from Docket number EERE-2020-BT-STD-0006).

Technical drawings

NGE65I48-P1J Interchangeable AC Plug Specifically — Interchangeable AC Plug Specifically

NGE65I48-P1J AC Plugs Accessory (Sold Seperately) — AC Plugs Accessory (Sold Seperately)

NGE65I48-P1J Interchangeable AC Plug Installation — Interchangeable AC Plug Installation

NGE65I48-P1J Derating Curve — Derating Curve

NGE65I48-P1J Mechanical Specification — Mechanical Specification

NGE65I48-P1J DC Output Plug — DC Output Plug

NGE65I48-P1J Illustration (page 7) — Illustration (page 7)

Typical applications

Downloads

Datasheet1

NGE65I48-P1J datasheetNGE65_spec_sheet.pdf · 2026-01-14 edition PDF Download

FAQ

What is the output rating of the Mean Well NGE65I48-P1J?

This adaptor provides a regulated 48V DC output at up to 1.36A. Its maximum rated power is 65.2W. That makes it suitable for equipment that specifically requires a 48V DC power source within that current range.

What type of applications is this power adaptor designed for?

The NGE65I48-P1J is intended for professional and commercial equipment that needs a 48V wall-mounted AC-DC adaptor. Mean Well lists broad approvals covering ITE, medical, household, and industrial standard categories. Buyers should still match the exact voltage, current, and compliance needs of their device before purchase.

Does this model support international or regional plug flexibility?

Yes. This model is part of Mean Well's interchangeable-plug adaptor range, which is designed for regional plug flexibility. That can be useful for businesses sourcing for different markets or standardized deployments across multiple locations.

How energy efficient is the Mean Well NGE65I48-P1J?

This adaptor meets Energy Efficiency Level VI requirements. It also has very low no-load power consumption of less than 0.075W. Those characteristics make it a good fit for applications where energy efficiency and standby power reduction matter.

Can this adaptor operate in demanding temperature conditions?

Yes. The specified operating temperature range is -30°C to +70°C, which is wider than many general-purpose plug-in adaptors. That makes it better suited to environments where ambient conditions may be colder or hotter than typical indoor office use.

What protections and safety features does this model include?

The NGE65I48-P1J includes short circuit, overload, and over-voltage protection. It is a Class II power unit with no earth pin, passes LPS, and is specified with extremely low leakage current under 100uA. Mean Well also lists multiple international safety approvals for this series.

What are the physical size and warranty for this adaptor?

The housing dimensions are 62 x 30 x 65 mm, and Mean Well describes the design as ultra slim at 30 mm. The unit weight is 196g. This model is backed by a 3-year warranty.
