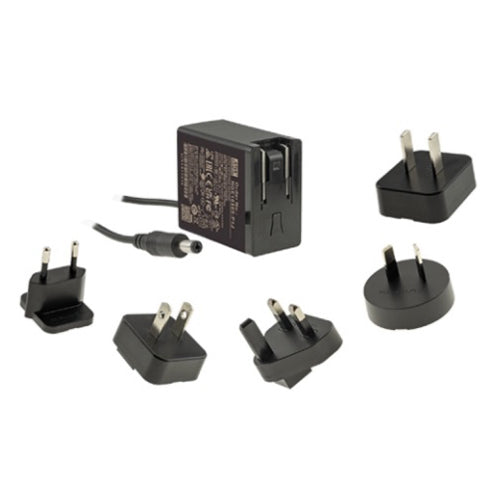

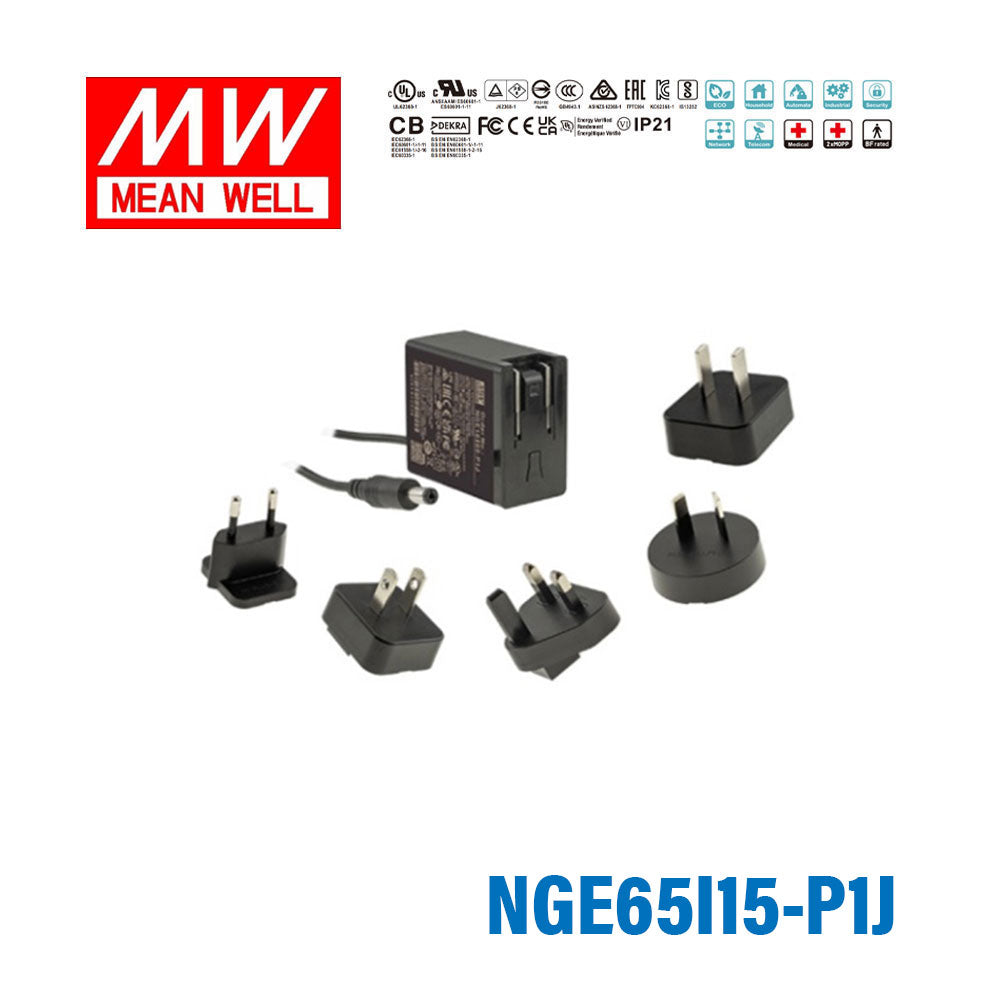

Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 15V 4.34A

Name: Mean Well NGE65I15-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 65.1W 15V 4.34A
Brand: Mean Well
SKU: NGE65I15-P1J
Price: 33.59 USD
Availability: InStock

ultra slim(30mm)extremely low leakage current < 100μAClass II

SKU NGE65I15-P1J

$33.59 USD

Shipping calculated at checkout.

Available to order

Overview

NGE65I15-P1J is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 90%.

NGE65 is a highly reliable, 65W wall-mounted style single-output green adaptor series, which is compact and convient for carry. This product is equipped with 7 types of interchangeable AC plug (European, USA,U.K. ,Australian, China, Korea and India type) that makes it very suitable for travel use.NGE65 is a Class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of electrical devices. With the working efficiency up to 92% and the extremely low no-load power consumption below 0.075W, NGE65 is compliant with the latest USA energy regulation EISA 2007/DoE, Canada NRCan,Australia and New Zealand MEPS, Korea KMEPS, EU ErP and CoC version 5. The superme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for ITE, medical, household and industrial applia nce safety regulations; moreover, it adopts the 94V-0 flame retar dant plastic case that it can effectively prevent users from electric haz ard.

Features

MEAN WELL Patent Application Number: 202330347779.4
Interchangeable AC plugs (I-Type)
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1,Industrial 61558-1/-2-16)
80~264Vac Universal AC input
Ultra slim(30mm)
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage / Pass LPS
Extremely low leakage current <100uA
-30℃~+70℃ wide range working temperature
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

NGE65I15-P1JSpecifications from the official datasheet (2026-01-14 edition)

OUTPUT

DC VOLTAGE^Note.2: 15V
RATED CURRENT: 4.34A
CURRENT RANGE: 0 ~ 4.34A
RATED POWER: 65.1W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1500ms, 50ms, 30ms / 230Vac 3000ms, 50ms, 10ms / 115Vac at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264Vac 113 ~ 370Vdc
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.5A / 115Vac 0.8A / 230Vac
INRUSH CURRENT (max.): COLD START 50A / 115Vac 100A / 230Vac
LEAKAGE CURRENT (max.): Touch current < 100uA (rms) @264Vac

PROTECTION

OVERLOAD: 110% ~ 150% rated output power Protection type : 5~24V Hiccup mode, recovers automatically after fault condition is removed. 48V Shut down and latch off o/p voltage, re-power on to recover.
OVER VOLTAGE: 110% ~ 140% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP21

SAFETY & EMC

SAFETY STANDARDS^Note.8: CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; ANSI/AAMI ES60601-1-11, CAN/CSA-C22.2 NO.60601-1-11(for U Type only) DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1； PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 62368.1, AS/NZS 6 1558 .1/ .2 . 16 ; EAC TPTC004; CCC GB4943.1 approved . KC KC62368-1; BIS IS13252(part1):2010/IEC60950-1:2005. (Please refer to next page for more details)
WITHSTAND VOLTAGE: I/P-O/P:4000Vac
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Radiated emission BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832 Class B
Harmonic current BS EN/EN61000-3-2 Class A
EMC IMMUNITY: BS EN/EN55035(CISPR35), BS EN/EN60601-1-2(IEC60601-1-2),KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Radiated emission	BS EN/EN55032(CISPR32)/EN55011 , FCC Part15 , CNS15936, GB/T 9254.1-2021, KS C 9832	Class B
Harmonic current	BS EN/EN61000-3-2	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4,8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 682.2 Khrs min. MIL-HDBK-217F (25℃) 5852.4 Khrs min. Telcordia TR/SR-332(Bellcore) (25℃)
DIMENSION: 62*30*65mm (L*W*H)
PACKING MAIN BODY: 196g; 60pcs/ 13.4Kg / 0.94CUFT for NGE65Ixx/Uxx-P1J 211g; 45pcs/ 11.4Kg / 1.06CUFT for NGE65Exx-P1J
PACKING AC PLUGS: Refer to Page 3

DC OUTPUT CONNECTOR

PLUG: See page 6~7 ; Other type available by customer requested
CABLE: See page 6~7 ; Other type available by customer requested

Test conditions and notes10

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9.Test harmonic current at 85% load.
10.Design meet US DoE Level VII (from Docket number EERE-2020-BT-STD-0006).

Technical drawings

NGE65I15-P1J Interchangeable AC Plug Specifically — Interchangeable AC Plug Specifically

NGE65I15-P1J AC Plugs Accessory (Sold Seperately) — AC Plugs Accessory (Sold Seperately)

NGE65I15-P1J Interchangeable AC Plug Installation — Interchangeable AC Plug Installation

NGE65I15-P1J Derating Curve — Derating Curve

NGE65I15-P1J Mechanical Specification — Mechanical Specification

NGE65I15-P1J DC Output Plug — DC Output Plug

NGE65I15-P1J Illustration (page 7) — Illustration (page 7)

Typical applications

Downloads

Datasheet1

NGE65I15-P1J datasheetNGE65_spec_sheet.pdf · 2026-01-14 edition PDF Download

FAQ

What are the output specifications of the Mean Well NGE65I15-P1J?

This model provides a regulated 15V DC output at up to 4.34A. Its maximum rated output power is 65.1W. That makes it suitable for equipment that specifically requires a 15V supply within that current range.

What type of plug format does the NGE65I15-P1J use?

The NGE65I15-P1J is a wall-mounted AC-DC adaptor with an interchangeable AC plug design. This format helps support use across different regions when the appropriate plug option is used. It is also built as a Class II power supply, so it does not use an earth pin.

Is this power adaptor intended for commercial and regulated equipment applications?

Yes. Mean Well lists broad safety approvals for this series, including standards covering ITE, medical, household, and industrial categories. That makes this model a strong fit for B2B buyers who need a certified external power supply for professional equipment.

Can the NGE65I15-P1J operate in demanding temperature conditions?

Yes. This adaptor is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external wall plug power supply. Buyers should still confirm the full system's thermal requirements, but the adaptor itself is designed for challenging environments.

What protection features are included in this adaptor?

The NGE65I15-P1J includes short circuit, overload, and over voltage protection. The overload specification is 110% to 150% of rated output power, with automatic recovery behavior for 5V to 24V models after the fault is removed. These built-in protections help support safer operation in demanding equipment applications.

How does this model compare with lower-power wall adaptors?

This version is designed for higher 15V load demand because it can deliver up to 4.34A and 65.1W. Compared with lower-power adaptors, it is better suited to devices that need more current headroom at 15V. It also maintains a slim wall-mount form factor at 62 x 30 x 65 mm.

Does this adaptor support energy-efficient operation?

Yes. The NGE65I15-P1J meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those characteristics make it a good choice for applications where standby efficiency and reduced wasted power matter.
