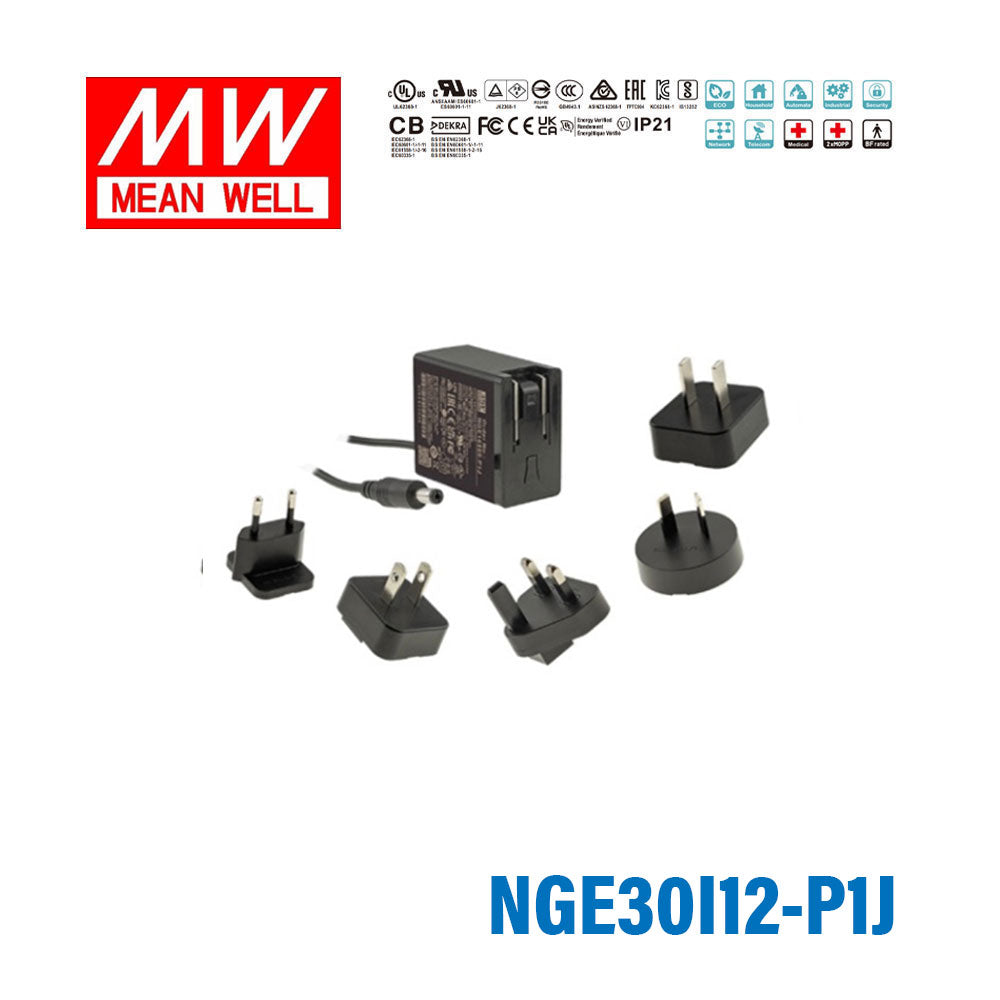

Mean Well NGE30I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 12V 2.5A

Name: Mean Well NGE30I12-P1J AC-DC Wall-mounted Green Adaptor - Interchangeable Plug - 30W 12V 2.5A
Brand: Mean Well
SKU: NGE30I12-P1J
Price: 26.2 USD
Availability: InStock

$26.20 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The NGE30 is a highly reliable, 30W wall-mounted single-output green adaptor series — compact and convenient for travel. Equipped with 7 types of interchangeable AC plugs (EU, USA, UK, AU, CN, KR, IN), it accepts universal input from 80~264VAC to suit electrical devices worldwide. With working efficiency up to 91.5% and no-load consumption below 0.075W, it meets USA EISA 2007/DoE, Canada NRCan, AU/NZ MEPS, Korea KMEPS, and EU ErP energy standards. Approved for ITE, medical, household and industrial safety regulations with a 94V-0 flame retardant case.

Key Features

✓✓Interchangeable AC plugs (EU, US, UK, AU, CN, KR, IN)
✓✓Global multi-field certifications — ITE, Medical, Household & Industrial
✓✓Universal AC input 80~264VAC / full range
✓✓Ultra slim design — only 30mm wide
✓✓Energy efficiency Level VI — no-load power consumption <0.075W
✓✓Class II power — no earth pin required
✓✓Protections: Short circuit / Overload / Over voltage
✓✓Extremely low leakage current <100uA
✓✓Wide operating temperature: -30℃ ~ +70℃
✓✓DC plug quick adapter accessories available (sold separately)
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

NGE Series
Power Rating

30 Watt
Output Voltage

12 Volt
Rated Current

2.5 Ampere
Input Voltage

80V~264V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

2.44 in
Width

1.18 in
Height

2.56 in
Weight

0.37 lb
