Description
Description
Features
MEAN WELL Patent Application Number: 202330347779.4 |

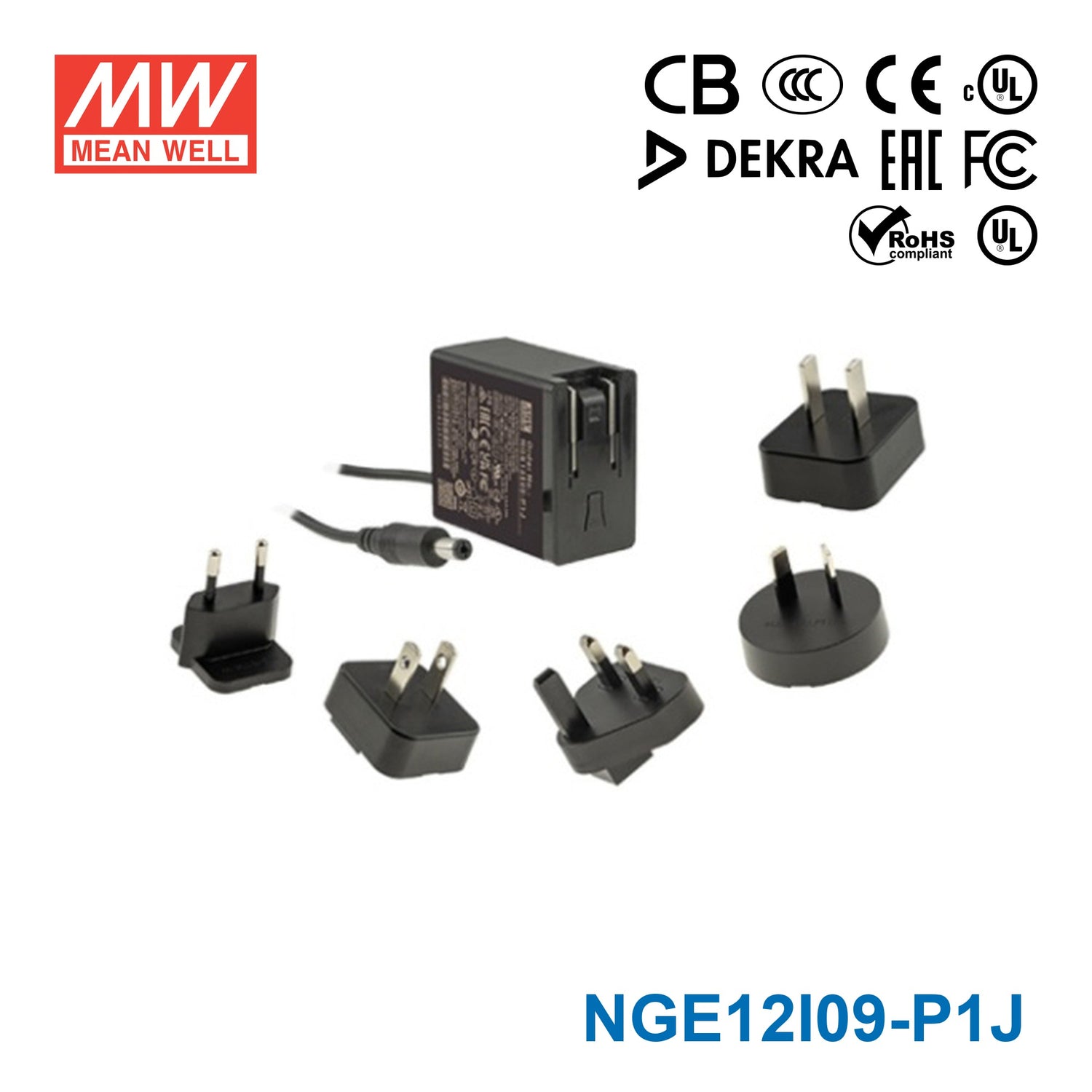

Interchangeable AC plugs |
Universal AC input / Full range |
Ultra slim(28mm) |
No load power consumption< 0.075W |
Energy efficiency level VI |
Class II power (no earth pin) |
Protections: Short circuit / Overload / Over voltage |
Pass LPS |
Extremely low leakage current <100uA |
-30℃ ~ + 70℃ wide range working temperature |
Various DC plug quick adapter accessory available |
3 years warranty |
General Specification
AC input voltage range | 80 ~ 264VAC 113 ~ 370VDC |
AC inrush current (max.) | COLD START 40A / 115VAC 80A / 230VAC |
Setup, rise, hold up time | 1500ms, 30ms, 30ms / 230VAC 3000ms, 30ms, 10ms / 115VAC at full load |
Overload protection | Protection type : Hiccup mode, recovers automatically after fault condition is removed | 110% ~ 150% rated output power |
Over voltage protection | Protection type : Clamp by zener diode | 115% ~ 140% rated output voltage |
Withstand voltage | I/P-O/P:4000VAC |
Working temperature | -30 ~ +70℃ (Refer to "Derating Curve") |
Safety standards | CB IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1; UL UL62368-1, CSA C22.2 NO. 62368-1, ANSI/AAMI ES60601-1/-1-11(3.2 Version), CAN/CSA-C22.2 NO.60601-1/-1-11; DEKRA BS EN/EN62368-1, BS EN/EN60601-1/-1-11, BS EN/EN61558-1/-2-16, BS EN/EN60335-1; PSE J62368-1; BSMI CNS15598-1; RCM AS/NZS 61558-1/-2-16; EAC TPTC004; CCC GB4943.1 approved. |
Dimension (LxWxH) | 48x28x55mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current1.33 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length1.89 in
-
Width1.1 in
-
Height2.17 in
-
Weight0.29 lb
