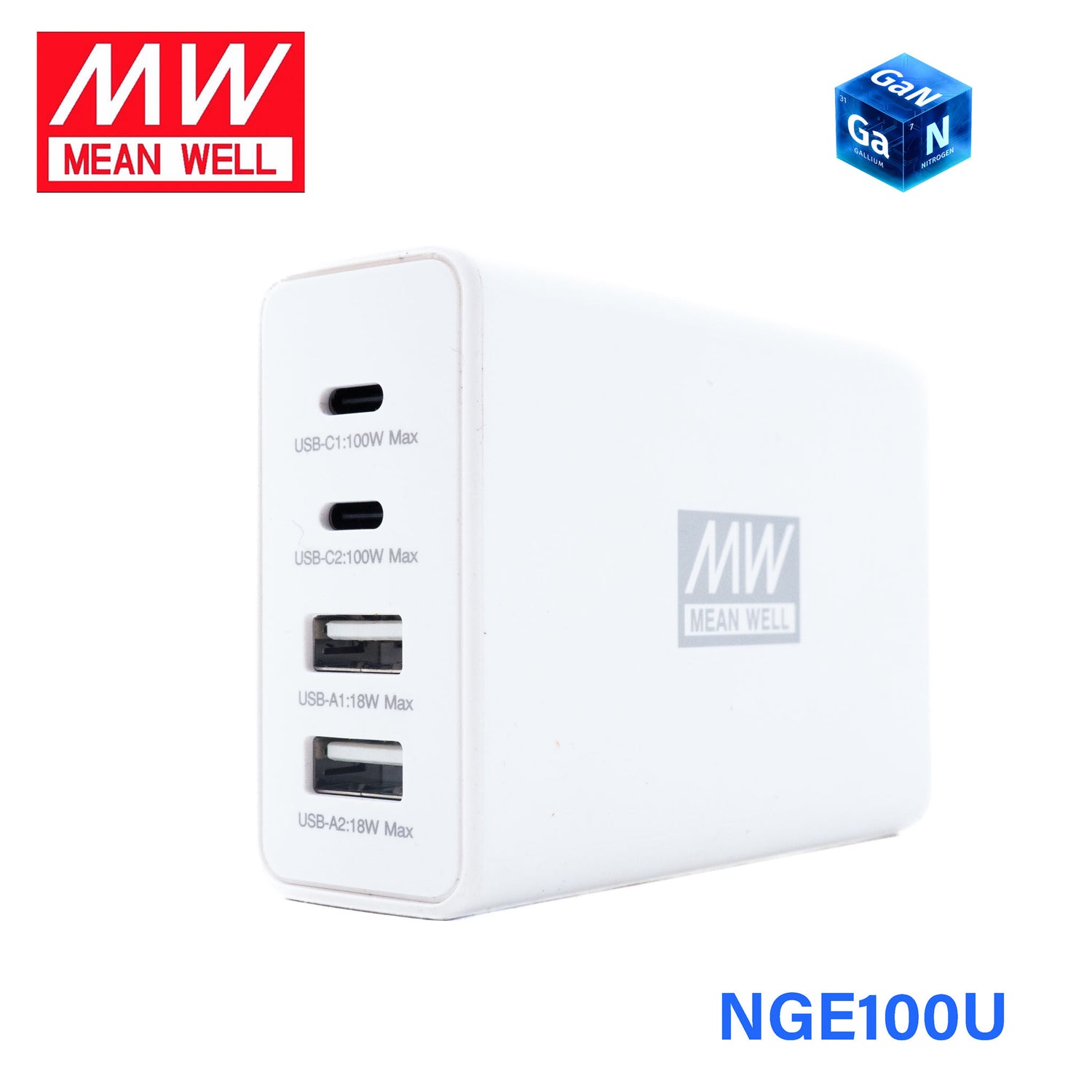

Mean Well NGE100U 100W 4-Port USB GaN Fast Charger 3A

Name: Mean Well NGE100U 100W 4-Port USB GaN Fast Charger 3A
Brand: Mean Well
SKU: NGE100U
Price: 63.59 USD
Availability: InStock

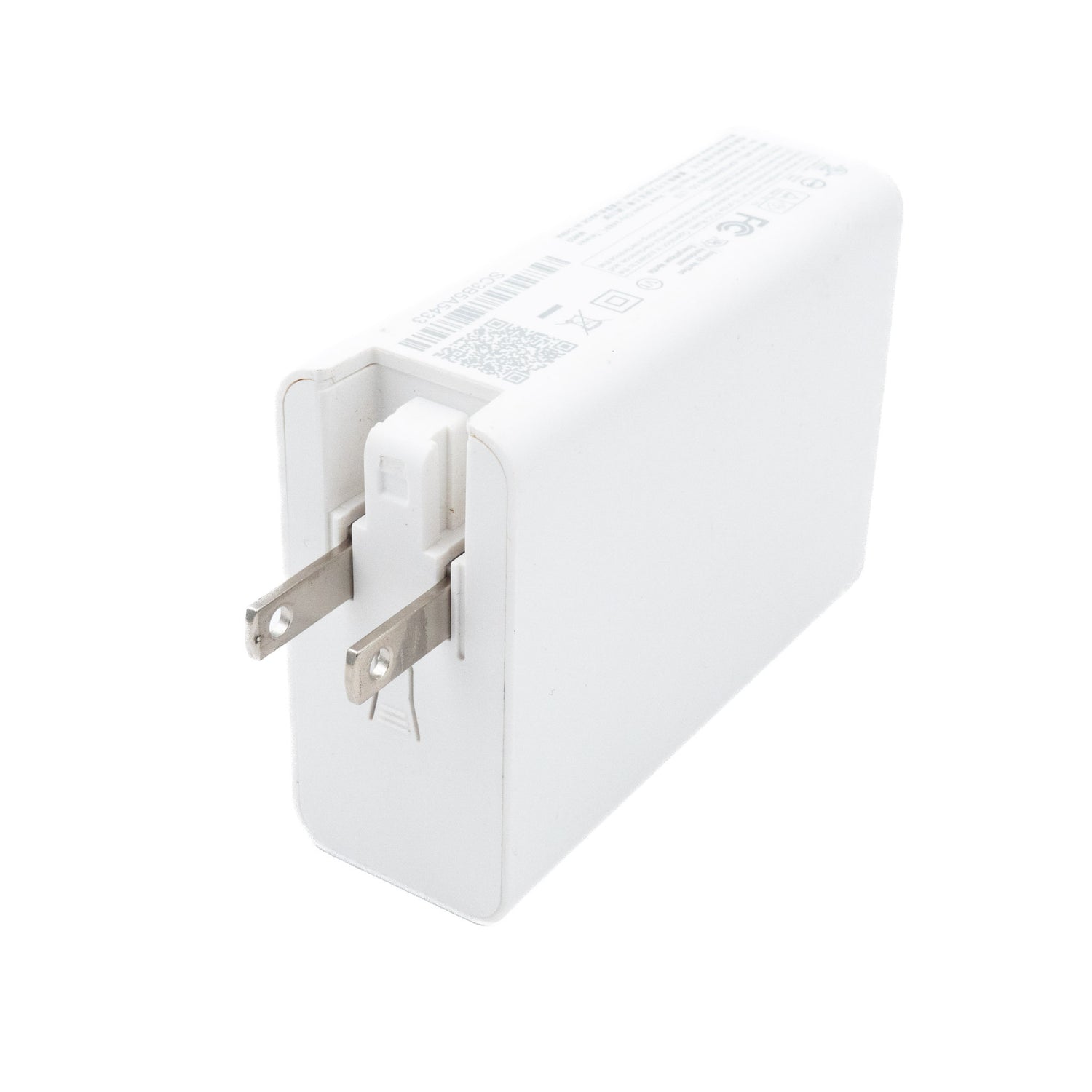

with foldable AC pinUS plugauto-detection 5V/9V/12V/15V/20V

SKU NGE100U

$63.59 USD

Shipping calculated at checkout.

In stock

Overview

NGE100U is the 5V / 9V / 12V / 15V / 20V output model of this series: typical efficiency 88% / 20V 5A.

Specifications

NGE100USpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

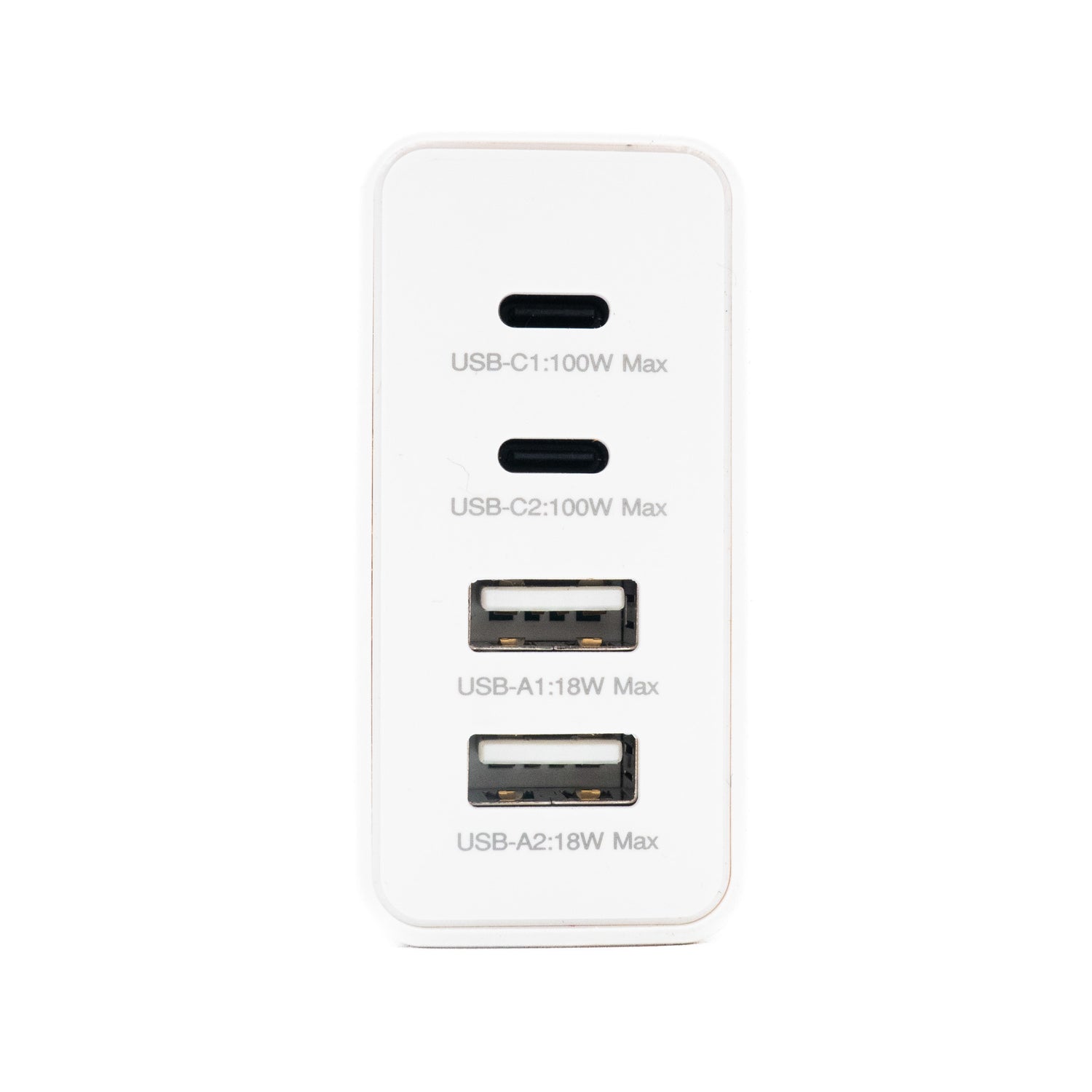

USB C1 (100W max.): PD3.0, 5V , 9V , 12V , 15V/3A , 20V/5A
USB C2 (100W max.): PD3.0, 5V , 9V , 12V , 15V/3A , 20V/5A
USB A1 (18W max. ): QC3.0, 5V/3A , 9V/2A , 12V/1.5A , 20V/0.9A
USB A2 (18W max. ): QC3.0, 5V/3A , 9V/2A , 12V/1.5A , 20V/0.9A
TOTAL POWER: 100W max.
FOR 5V ONLY(45W max.)^Note.2: USB C1: 5V/3A , USB C2: 5V/3A , USB A1: 5V/1.5A , USB A2: 5V/1.5A
DC VOLTAGE^Note.3: 5V / 9V / 12V / 15V / 20V
RIPPLE & NOISE (max.)^Note.4: 5V: 200mVp-p, 9V: 200mVp-p, 12V: 200mVp-p, 15V: 200mVp-p, 20V: 200mVp-p
VOLTAGE TOLERANCE^Note.5: 5V: ±5.0%, 9V: ±5.0%, 12V: ±4.0%, 15V: ±4.0%, 20V: ±4.0%
LINE REGULATION^Note.6: 5V: ±1.0%, 9V: ±1.0%, 12V: ±1.0%, 15V: ±1.0%, 20V: ±1.0%
LOAD REGULATION^Note.7: 5V: ±5.0%, 9V: ±5.0%, 12V: ±4.0%, 15V: ±4.0%, 20V: ±4.0%
SETUP, HOLD UP TIME: 1000ms,30ms/230Vac 2000ms,10ms/115Vac at USB C1 20V/5A

INPUT

VOLTAGE RANGE^Note.8: 90 ~ 264Vac
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.92/230Vac; PF>0.98/115Vac
EFFICIENCY (Typ.): 88% / 20V 5A
AC CURRENT: 1.6A/115Vac 0.8A/230Vac
INRUSH CURRENT (max.): 65A/115Vac 95A/230Vac
LEAKAGE CURRENT (max.): 0.5mA/240Vac

PROTECTION

OVERLOAD: 101 ~ 150% rated output power Protection type : Hiccup mode,recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

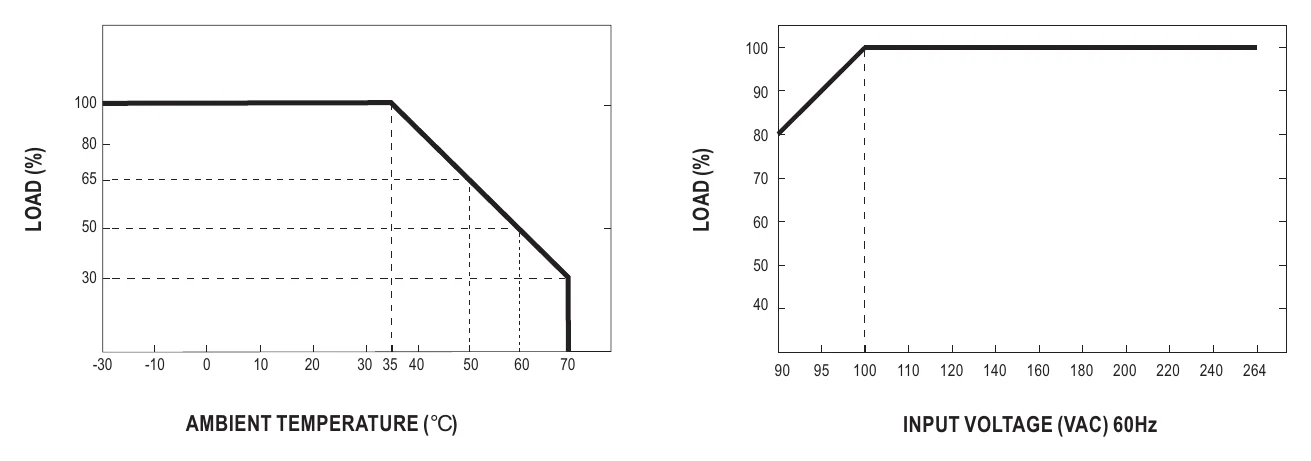

WORKING TEMP.: -30 ~ +70 ℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85 ℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40 ℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.9: UL62368-1, DEKRA BS EN/EN62368-1, BSMI CNS15598-1,PSE J62368-1 , CCC GB4943.1-2022,RCM AS/NZS 62368.1, KC KC62368-1, BIS IS13252(part1):2010/IEC60950-1:2005 , EAC TPTC004 approved (Please refer to next page for more details)
WITHSTAND VOLTAGE: I/P-O/P:3KVac
ISOLATION RESISTANCE: I/P-O/P :100M Ohms / 500VDC / 25 ℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) GB/T 9254.1-2021, KS C 9832 Class B
Radiated emission BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) GB/T 9254.1-2021, KS C 9832 Class B
Harmonic current BS EN/EN61000-3-2,GB 17625.1-2022 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035(CISPR35), KS C 9835

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/L-N
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 1, 1A/m
Voltage dips , interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) GB/T 9254.1-2021, KS C 9832	Class B
Radiated emission	BS EN/EN55032(CISPR32)FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) GB/T 9254.1-2021, KS C 9832	Class B
Harmonic current	BS EN/EN61000-3-2,GB 17625.1-2022	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/L-N
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage dips , interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 336.4Khrsmin. MIL-HDBK-217F( 25℃) 3008.3Khrsmin. Telcordia TR/SR-332 (Bellcore) (25℃)
DIMENSION: 62*30*85.5mm (L*W*H)

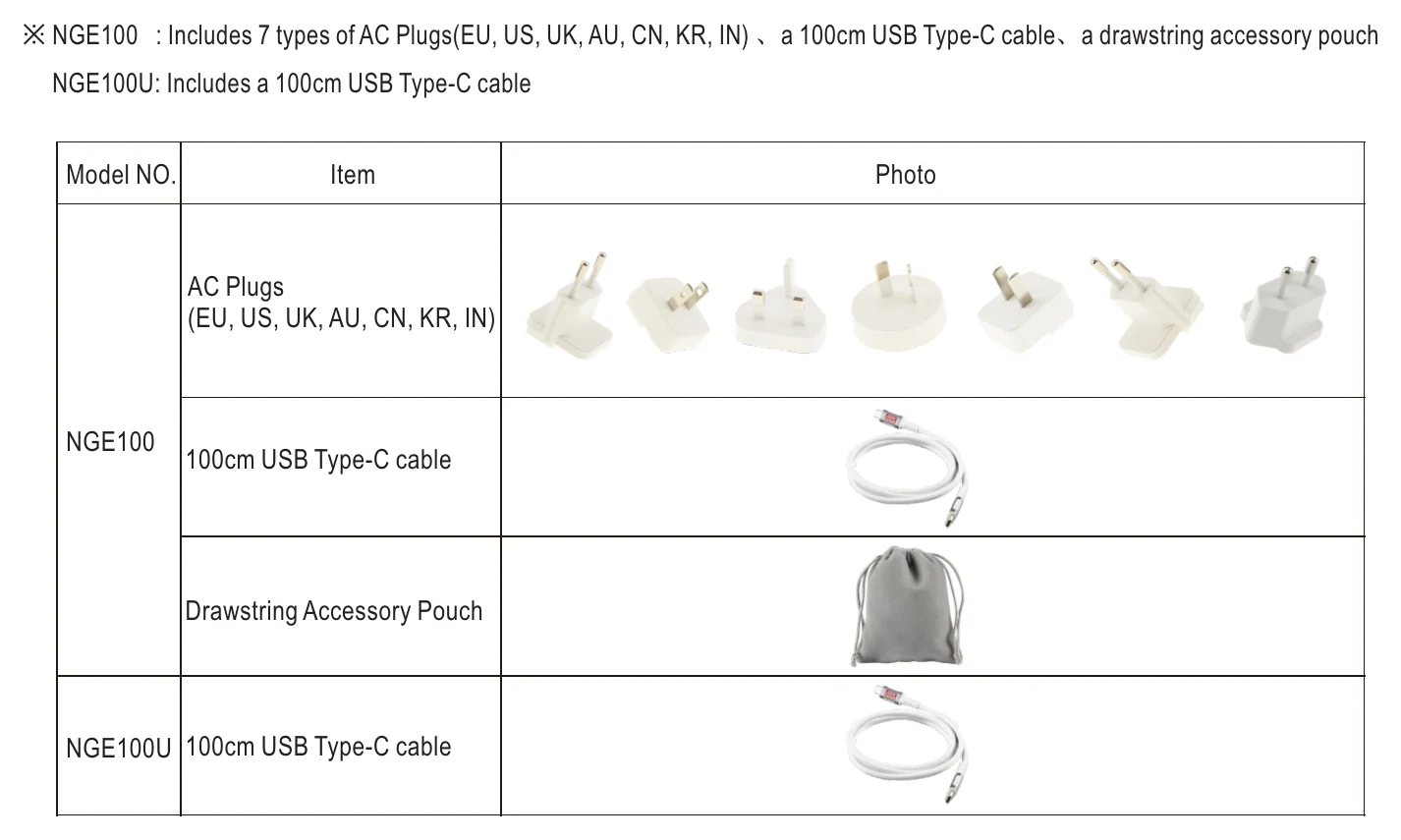

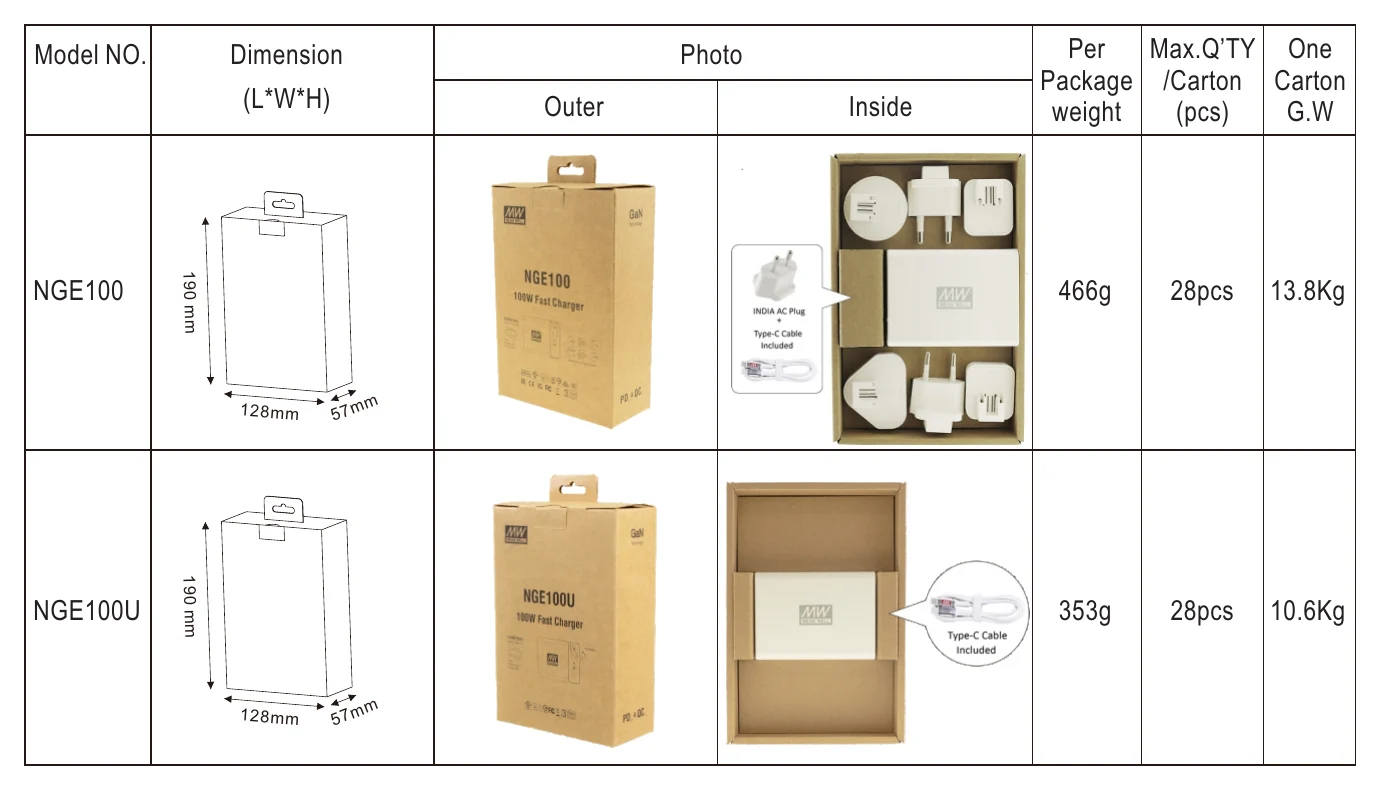

PACKING MAIN BODY POWER UNIT: NGE100 : 484g ; 28pcs/ 14.55Kg / 1.65CUFT NGE100U: 249g ; 28pcs/ 10.6Kg / 1.65CUFT
PACKING AC PLUGS: Included 7 types of AC Plugs for NGE100
PACKING Type-C Cable: Included for NGE100 / NGE100U

Test conditions and notes9

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9.Design meet US DoE Level VII (from Docket number EERE-2020-BT-STD-0006).

Technical drawings

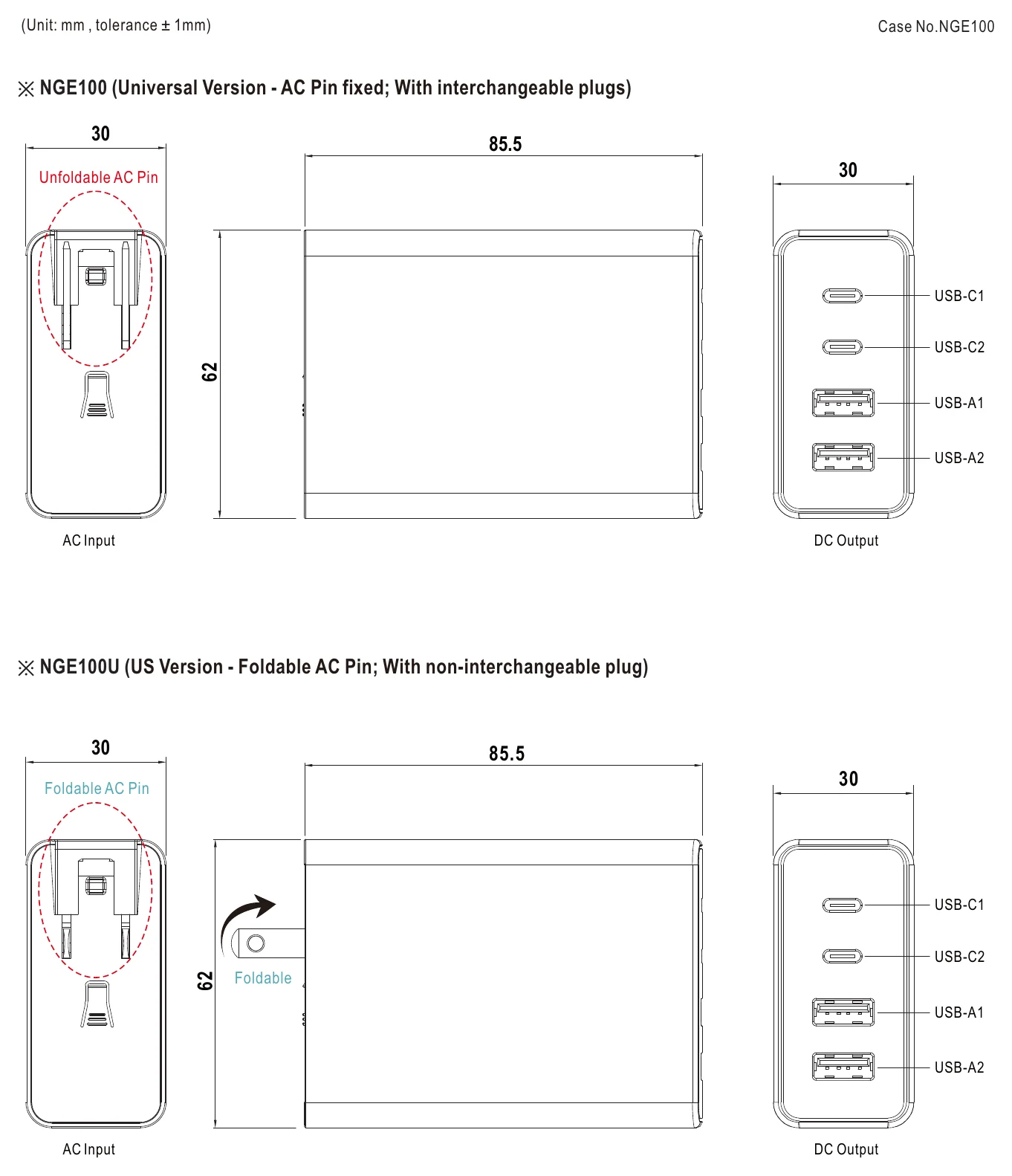

NGE100U DIMENSION 62*30*85.5mm — DIMENSION 62*30*85.5mm

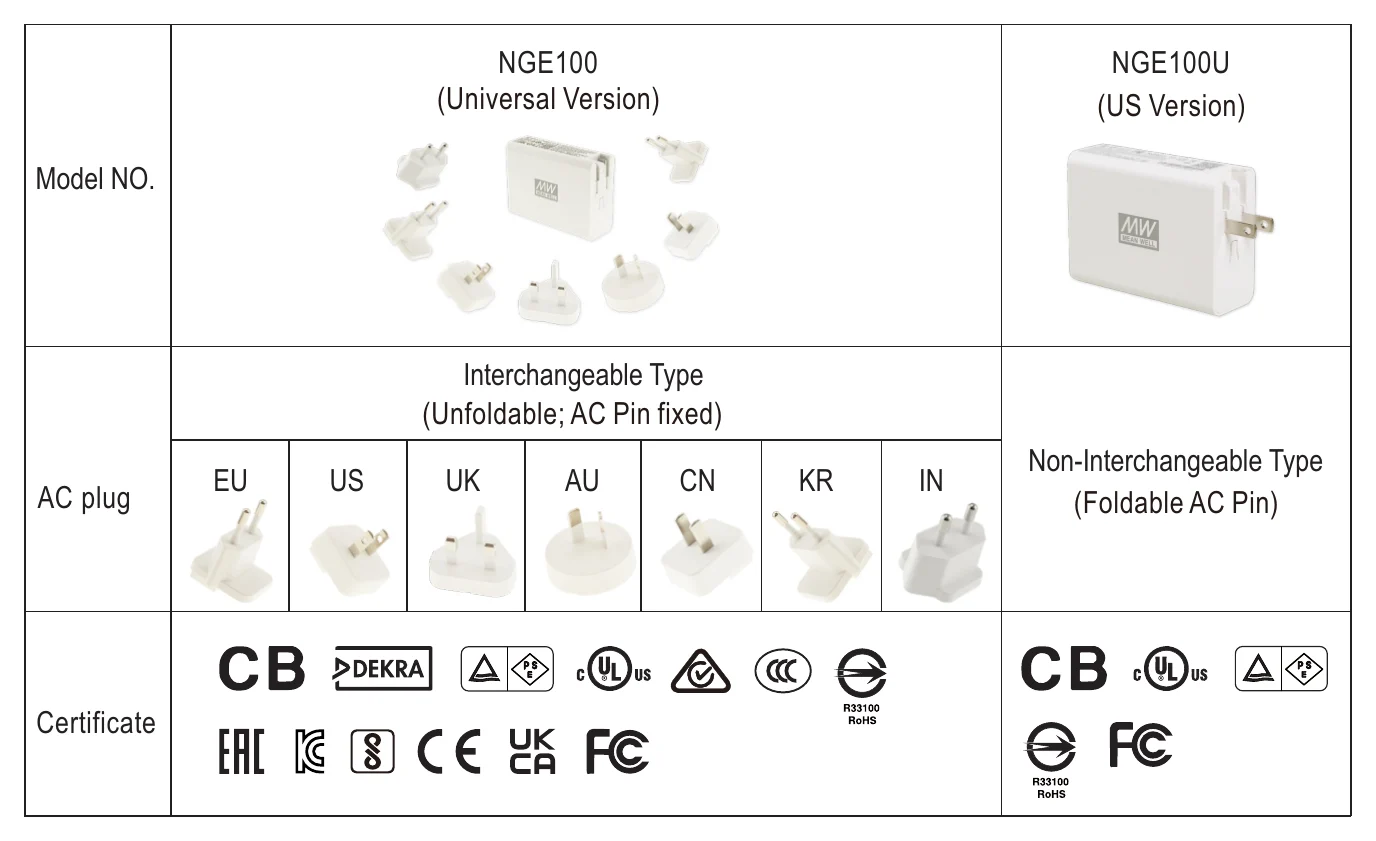

NGE100U Interchangeable AC Plug Specifically — Interchangeable AC Plug Specifically

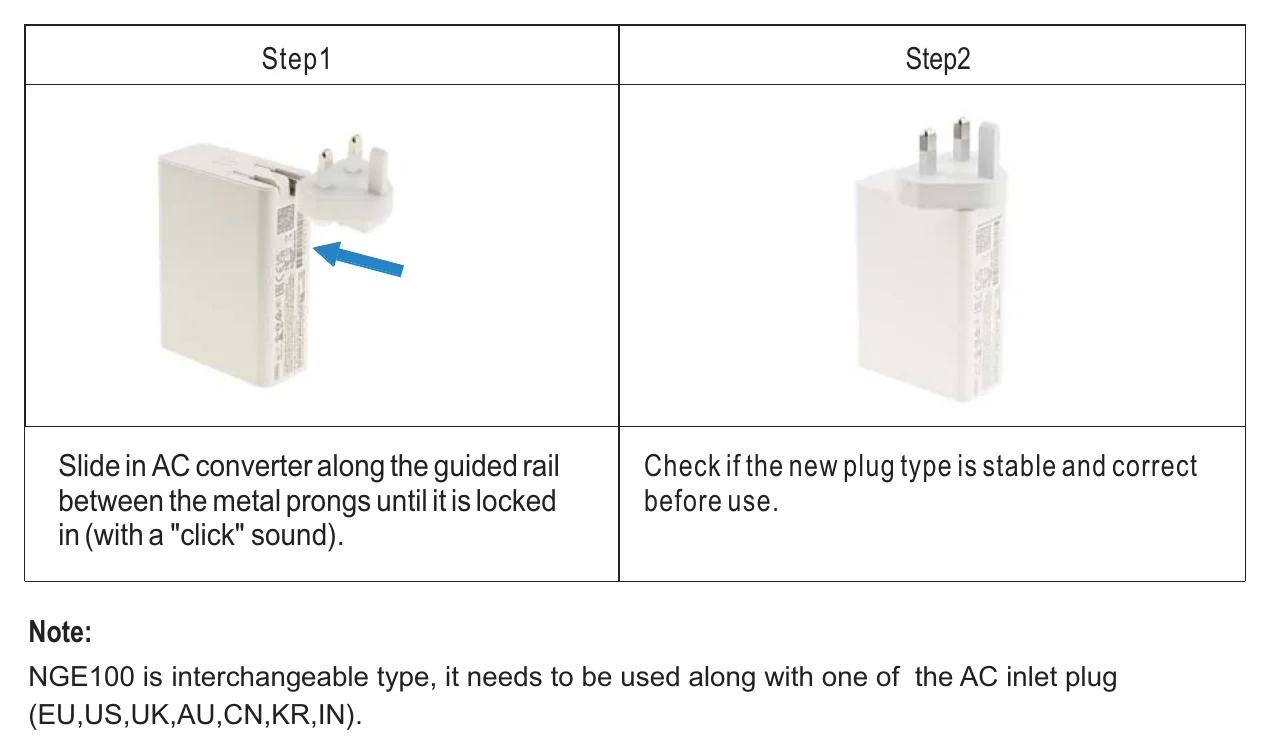

NGE100U Interchangeable AC Plug Installation — Interchangeable AC Plug Installation

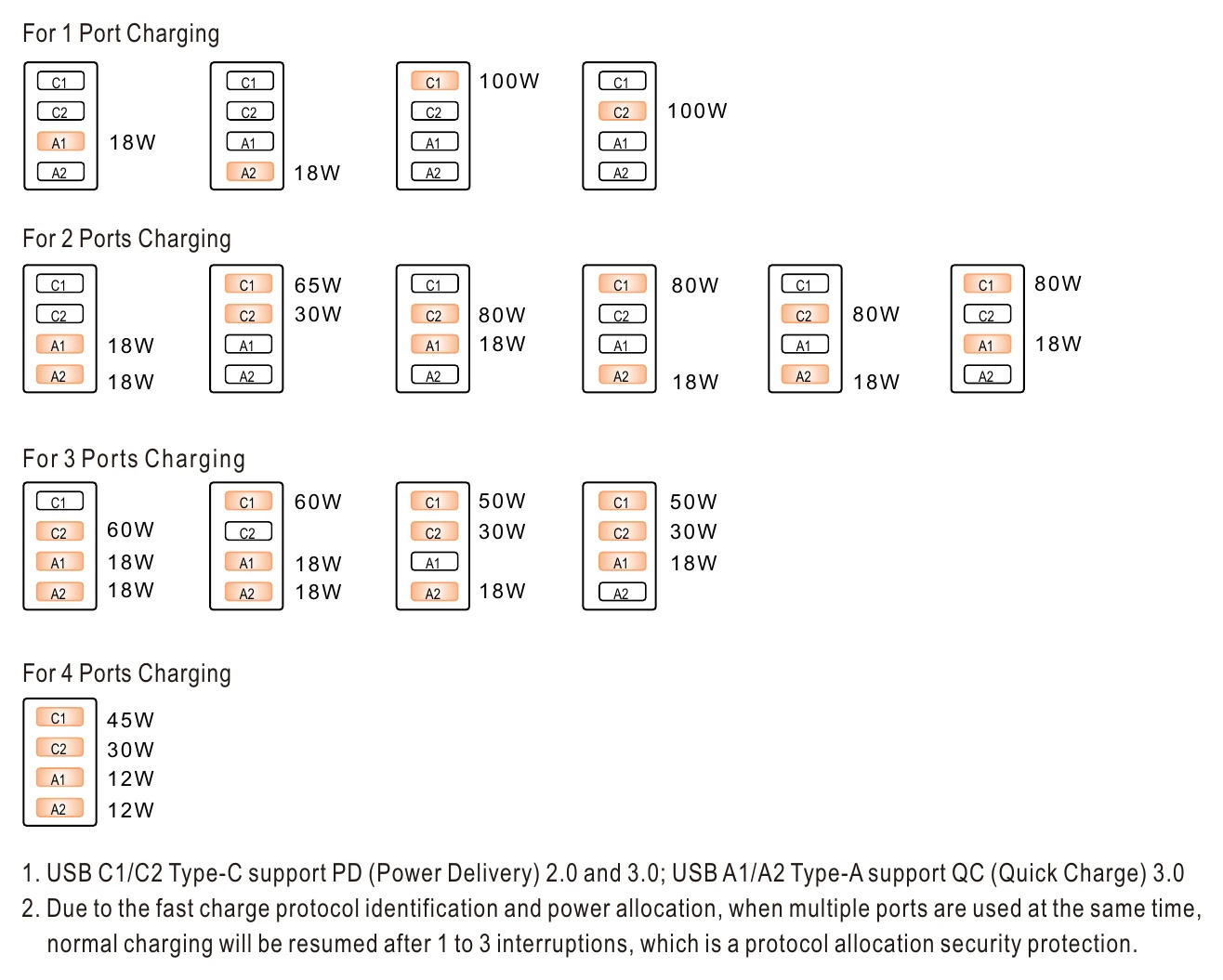

NGE100U Recommended Configuration — Recommended Configuration

NGE100U Mechanical Specification — Mechanical Specification

Downloads

Datasheet1

NGE100U datasheetNGE100_spec_sheet.pdf · 2026-04-03 edition PDF Download

FAQ

What is the Mean Well NGE100U designed for?

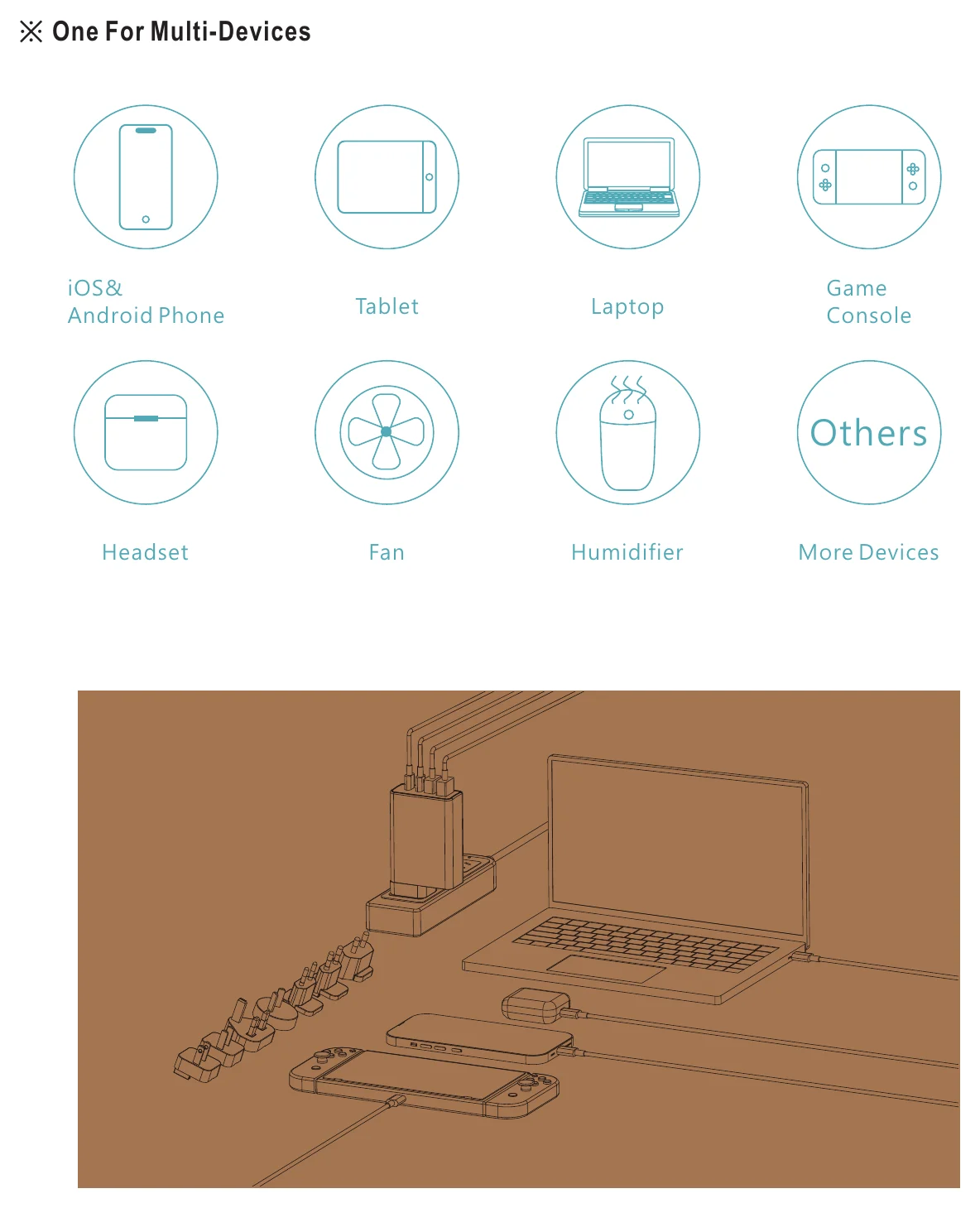

The Mean Well NGE100U is a 100W 4-port USB GaN fast charger built for charging multiple USB-powered devices from one compact unit. It is suited to business, office, travel, and bench-top use where a single charger needs to support several devices at once.

How many charging ports does the NGE100U have?

This model provides four independent charging ports in a USB-2C2A configuration. That means it includes two USB-C ports and two USB-A ports for charging multiple devices from the same charger.

What fast-charging standards does the NGE100U support?

The NGE100U supports QC3.0 and PD3.0 fast-charging protocols. It also supports automatic detection of 5V, 9V, 12V, 15V, and 20V output levels depending on the connected device and charging negotiation.

What makes the NGE100U different from a basic USB charger?

Compared with a basic single-port charger, the NGE100U offers four independent ports, up to 100W output, and GaN-based compact design. It is also built with global safety approvals, DoE Level VII energy efficiency, and protection against overload and over temperature.

Can the NGE100U be used internationally?

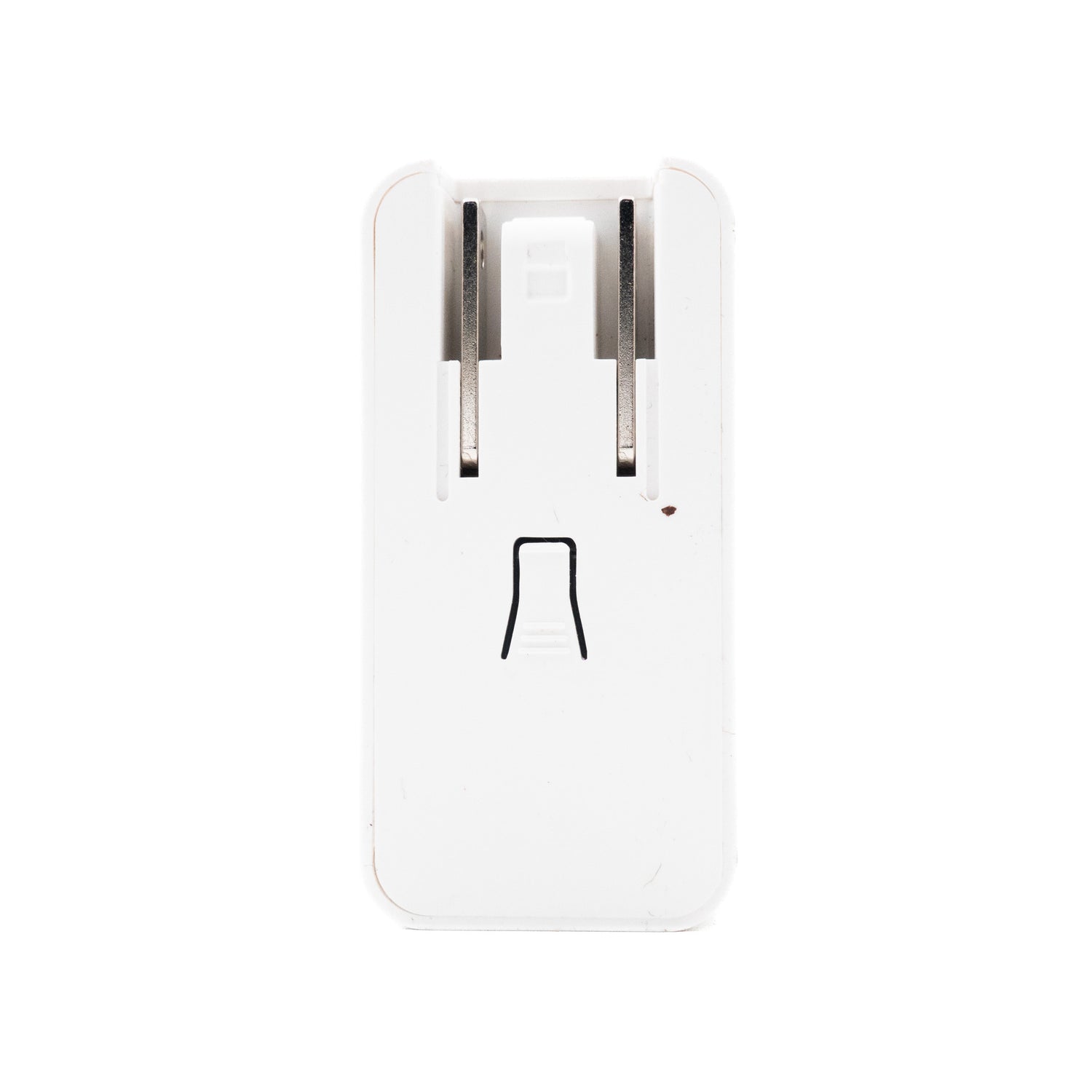

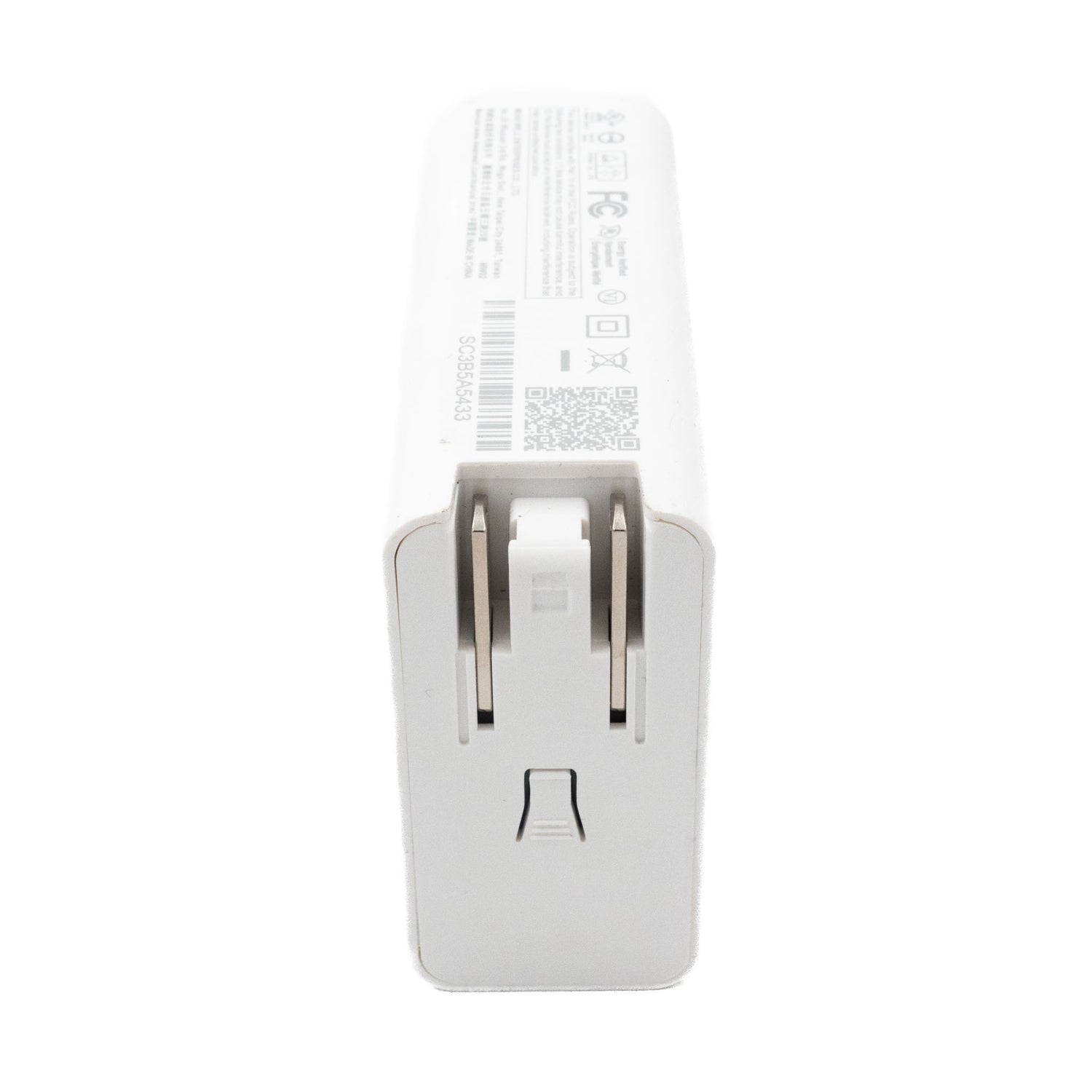

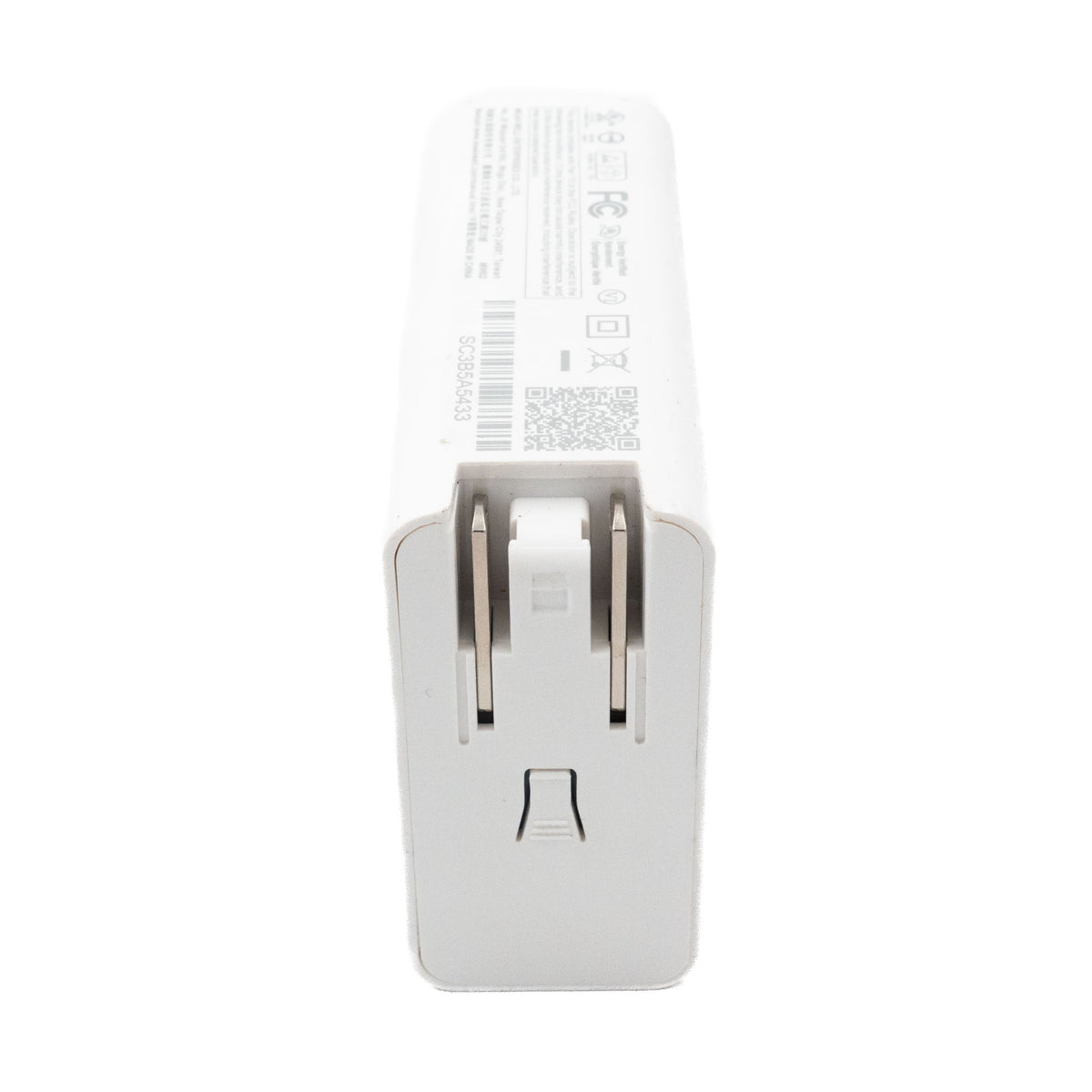

Yes. The charger accepts a universal AC input range of 90 to 264VAC, which makes it suitable for use across many regional power systems. This NGE100U version uses a non-interchangeable folding US plug format.

Is the NGE100U suitable for demanding environments?

The NGE100U is rated for operation from -30°C to +70°C, which supports use across a wide temperature range. Buyers should still consider the published derating guidance when evaluating performance at higher temperatures.

What protection and efficiency features does the NGE100U include?

This model includes protection for overload and over temperature conditions. It also meets US DoE Level VII energy efficiency requirements.

What is included with the Mean Well NGE100U?

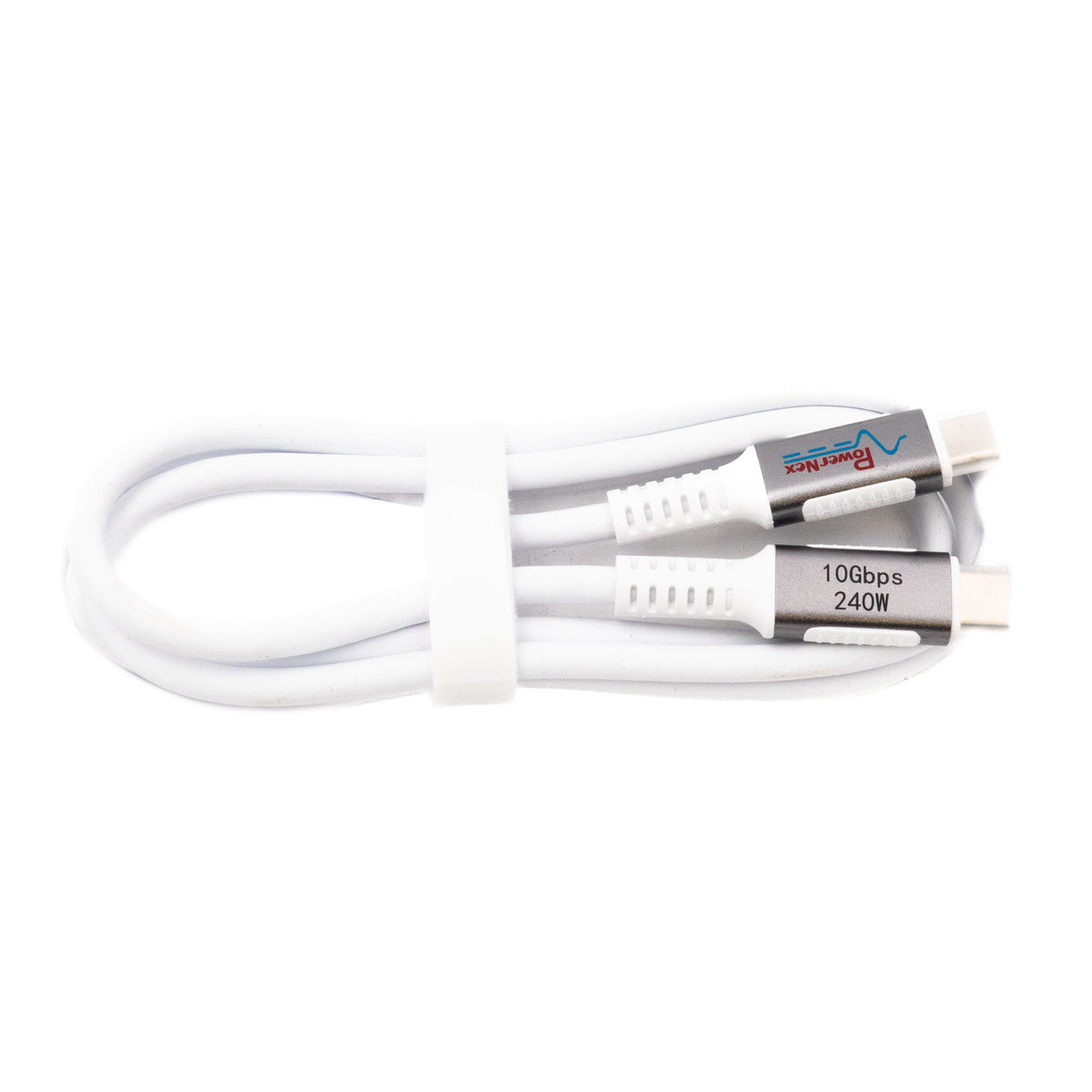

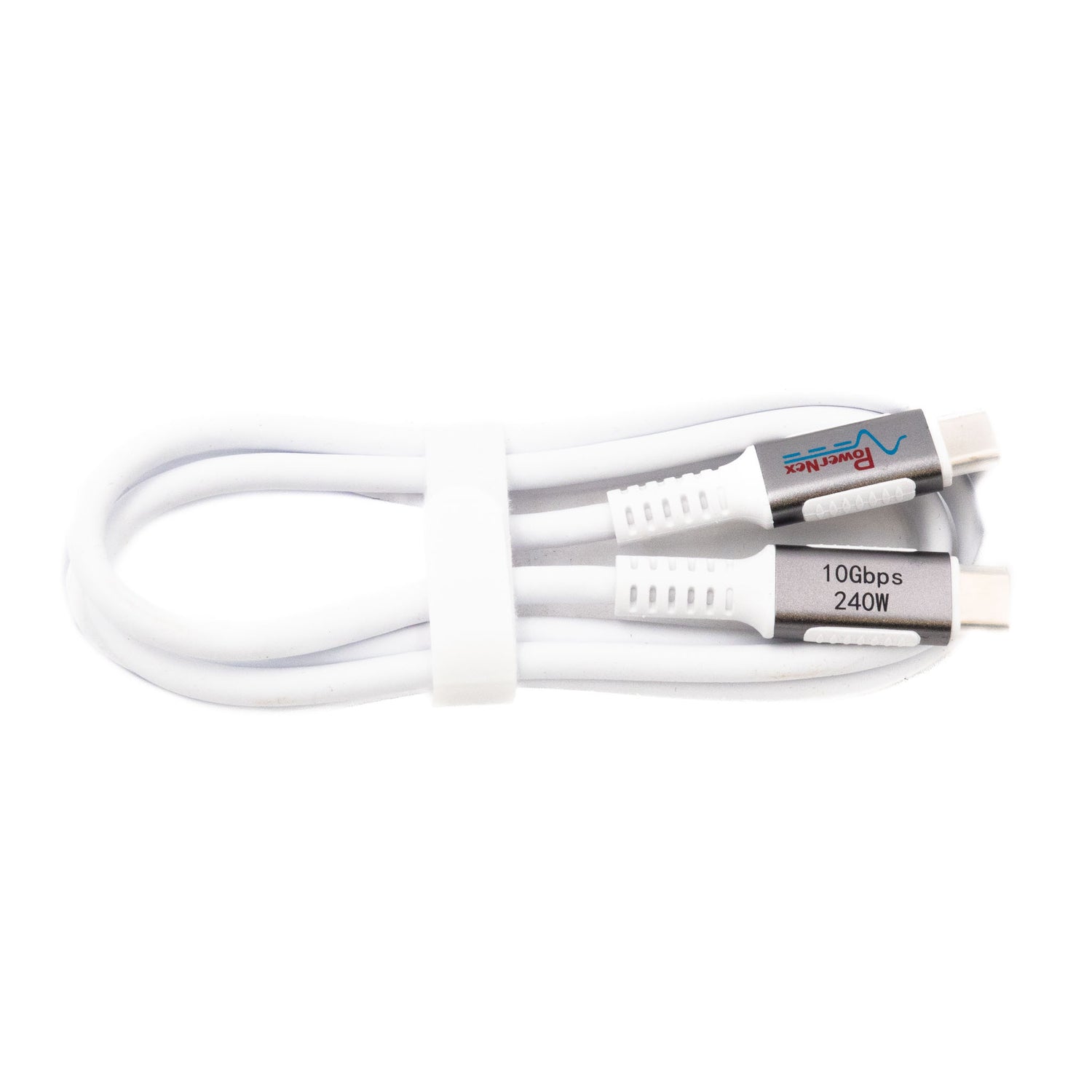

The NGE100U includes a 100cm USB Type-C cable that supports both charging and data transmission.
