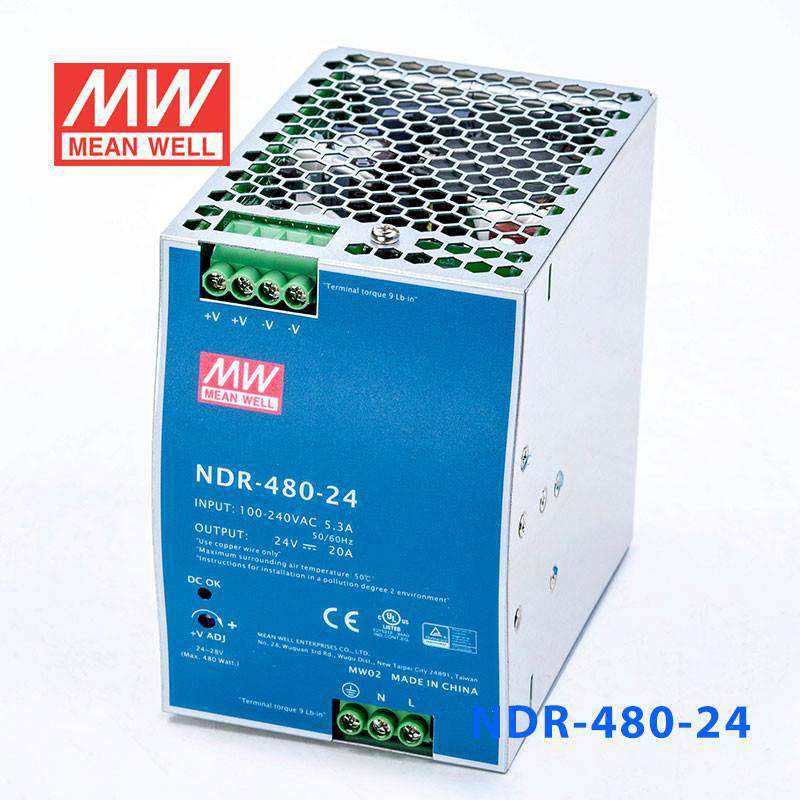

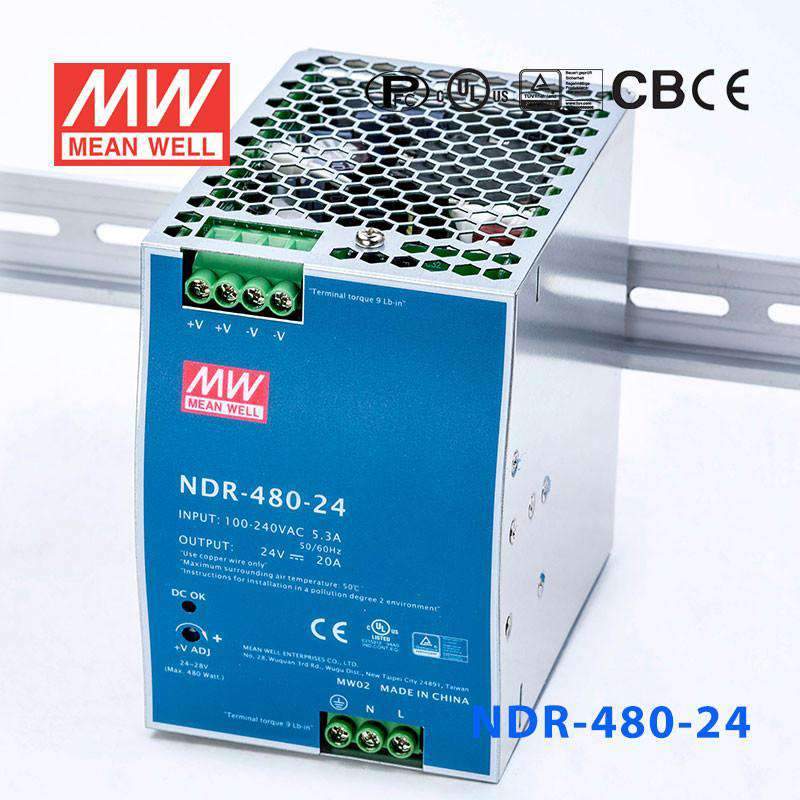

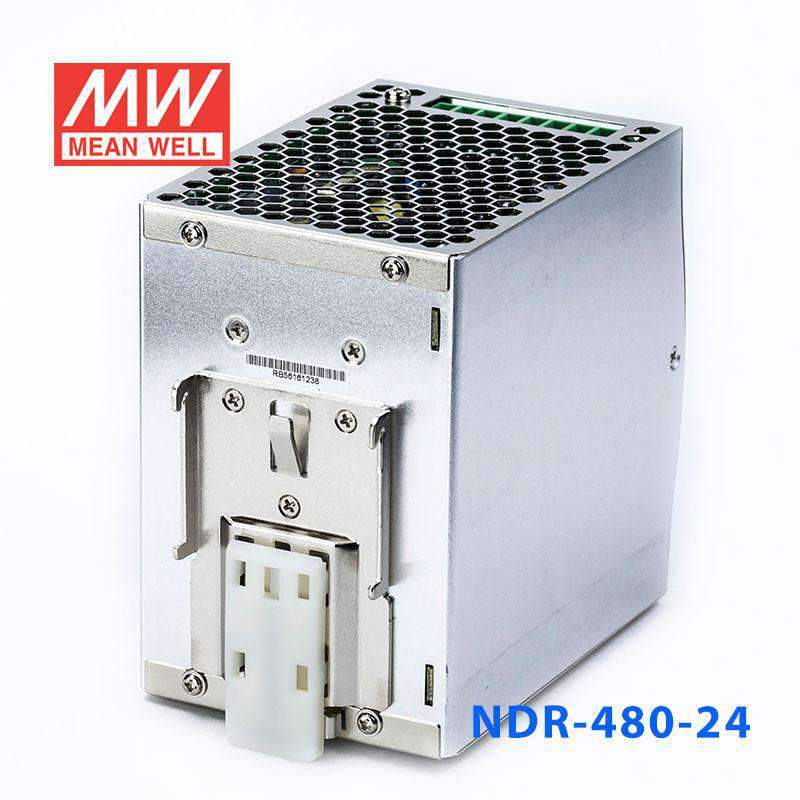

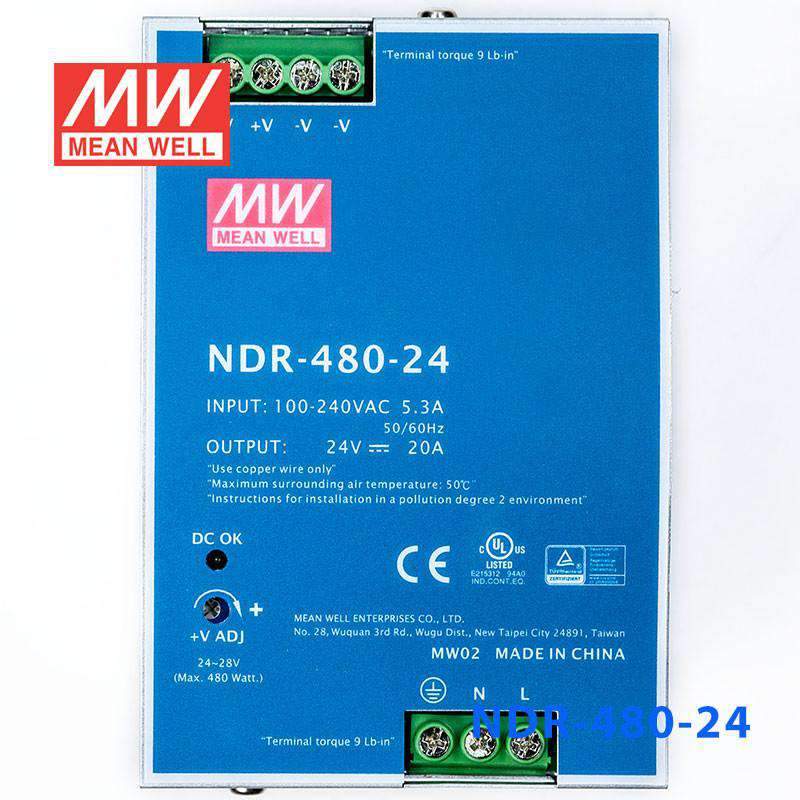

Mean Well NDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail

$123.54 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

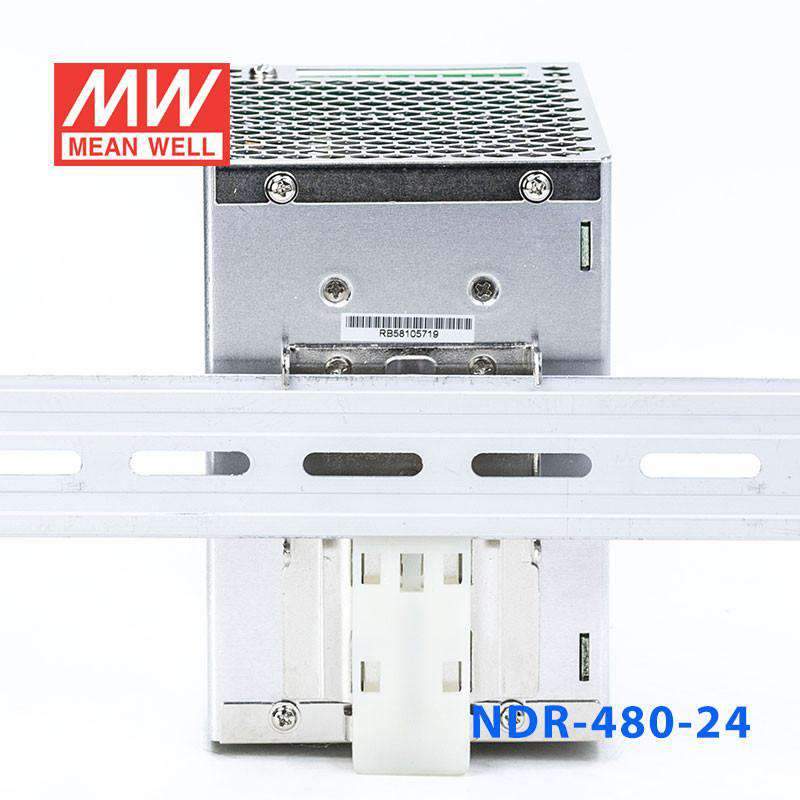

Can be installed on DIN rail TS-35 / 7.5 or 15
UL508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Low cost
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload protection 105%~130% Constant current limiting, auto-recovery
Over voltage protection 14V: 14~17V, 24V: 29~33V, 48V: 56~65V
Over temperature protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+70°C(refer to output derating curve)
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55022(CISPR22), EN61204-3 Class B,EN61000-3-2,-3 , EN61000-4-2,3,4,5,6,8,11,EN55024, EN61000-6-2(EN50082-2), EN61204-3
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm) 85.5x 125.2x 128.5mm
Packing 8pcs / 13kg

Specifications

  • Brand
    Mean Well
  • Series
    NDR Series
  • Power Rating
    480 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CE,cUL,EAC,RCM,TUV
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    5.06 in
  • Width
    4.93 in
  • Height
    3.37 in
  • Weight
    3.31 lb

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8649468707136, "variants" :[{ "context":"default", "variant_id": 46610394218816, "sku":"NDR-480-24", "inventory_qty" : 1155, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$123.54\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

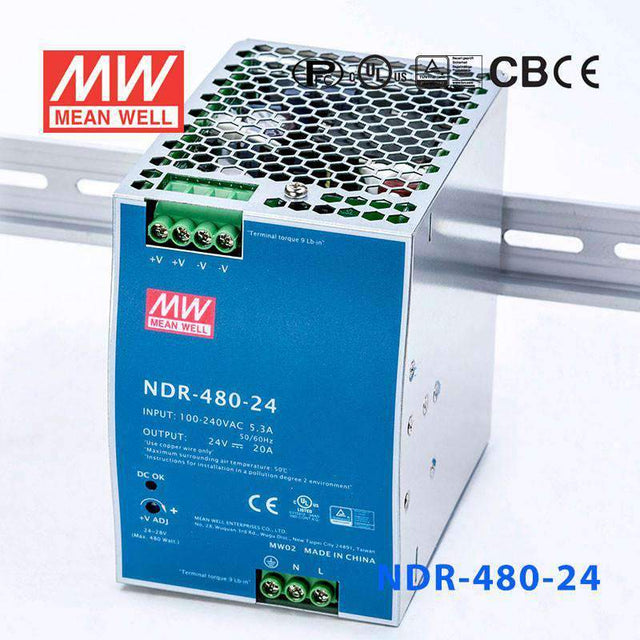

Mean Well NDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail
