Over 15 years experience of providing support of MEAN WELL Power Supplies
Description
Description
Features
Universal AC input / Full range |
Protections: Short circuit / Overload / Over voltage / Over temperature |
Cooling by free air convection |

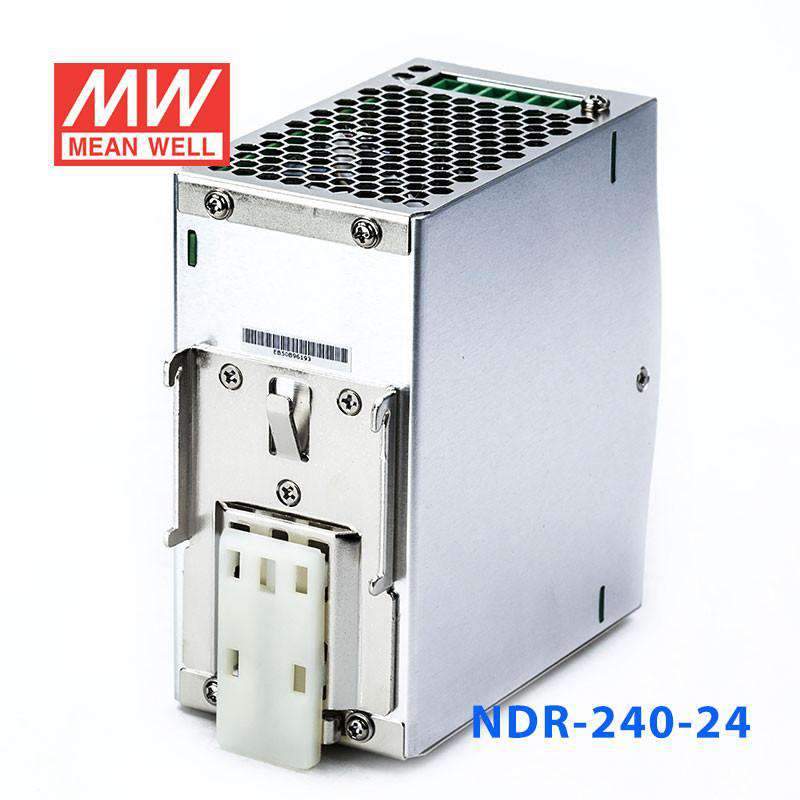

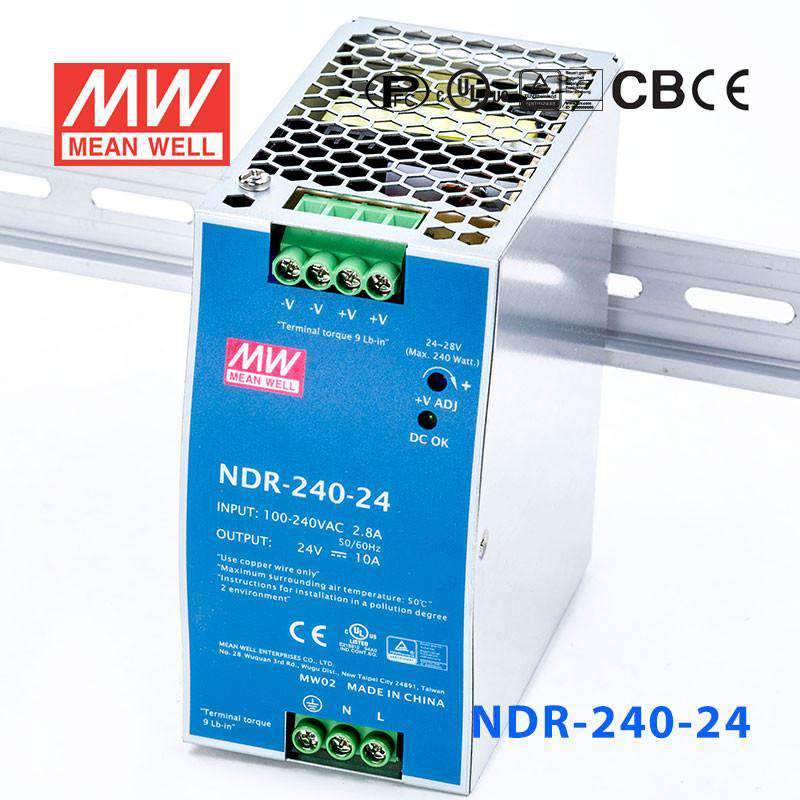

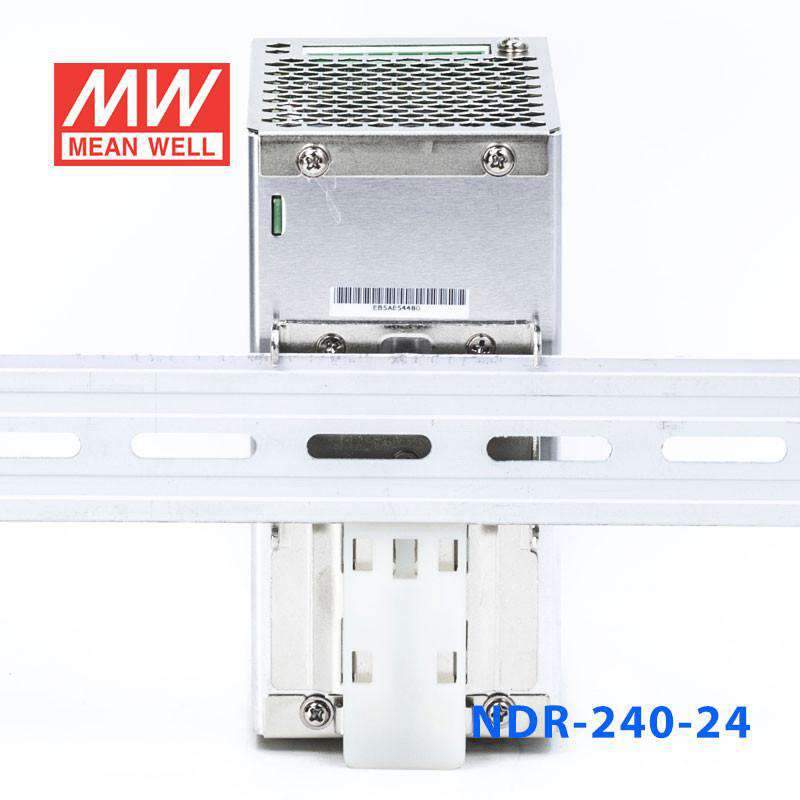

Can be installed on DIN rail TS35 / 7.5 or 15 |
UL508 (industrial control equipment) listed |
EN61000-6-2 (EN50082-2) industrial immunity level |
100% full load burn-in test |
Low cost |
3 years warranty for NDR series 2 years warranty for EDR series |
General Specification
AC input voltage range | 90~264VAC; 127~370VDC |
AC inrush current (max.) | Cold start, 35A at 230VAC |
DC adjustment range | 12V: 12~14V, 24V: 24~28V, 48V: 48~55V |
Current adjustment range | 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance |
Overload protection | 105%~130% Constant current limiting, auto-recovery |
Over voltage protection | 14V: 14~17V, 24V: 29~33V, 48V: 56~65V |
Over temperature protection | Shut down o/p voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -20~+70!aC (refer to output derating curve |
Safety standards | UL60950-1, TUV EN60950-1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), EN61204-3 |
Connection (screw DIN terminal) | I/P: 3 poles, O/P: 4 poles |
Dimension (LxWxH) (mm) | 40x 125.2x 113.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNDR Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height2.56 in
-
Weight2.2 lb
