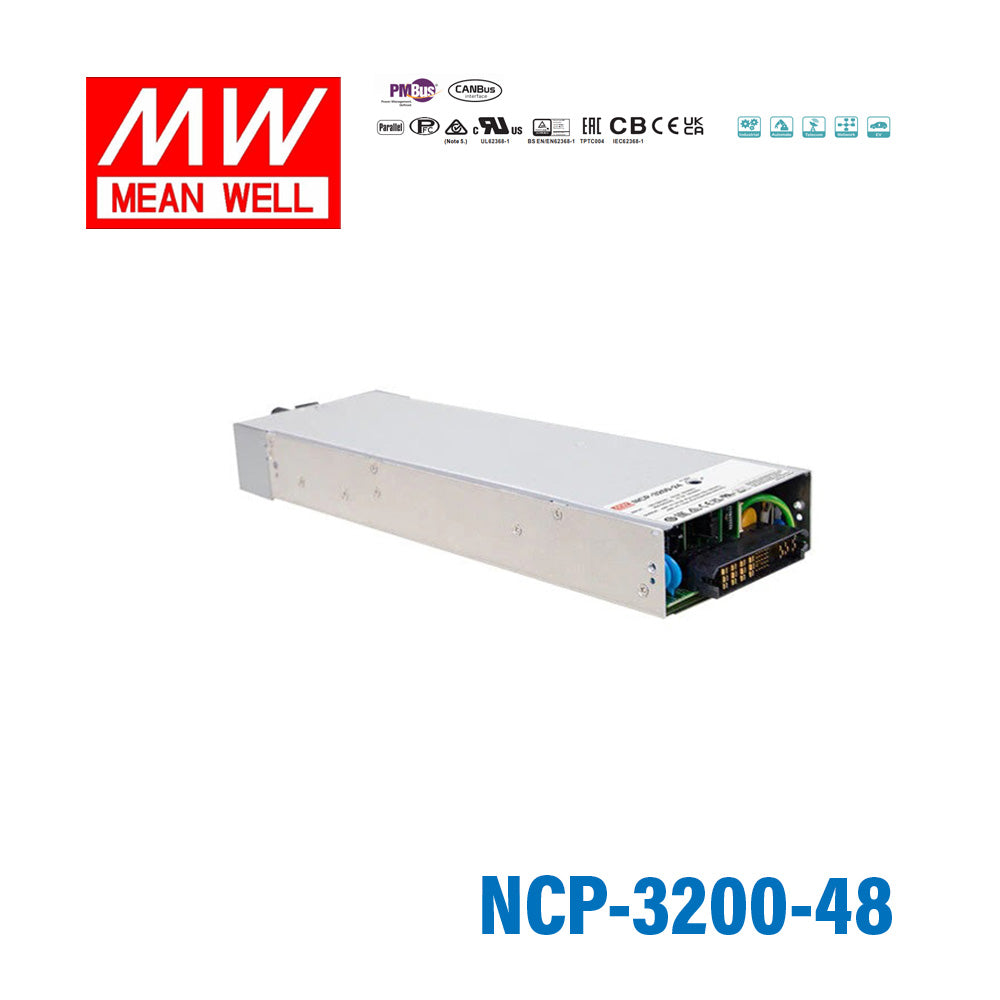

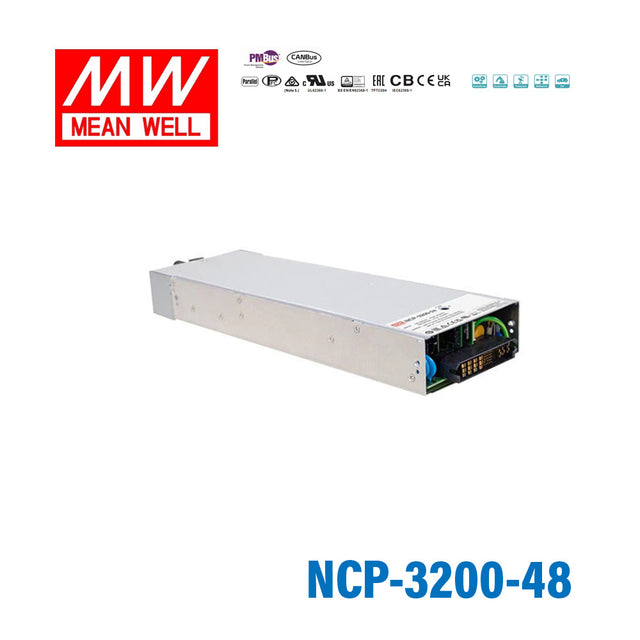

Mean Well NCP-3200-48 2-in-1 Rack Power Supply and Charger, 3192W 48V

$735.91 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Power supply or charger mode selectable by PMBus, CANBus or SBP-001(only for 24V/48V models)
Built-in 2/3 stage charging curves and programmable curve(Only for 24V/48V models)
High efficiency up to 94%
Built-in programmable output voltage and output current
Built-in OR-ing FET or Diode, support hot swap (hot plug)
Active current sharing up to 10 rack shelves and the maximum power supply that can be connected in parallel is 40 units
Support PMBus/CANBus protocol
Built-in intelligent fan speed control
Protections: Short circuit / Overload / Over voltage / Over temperature
Design refer to SEMI F47 standard specification
5 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    NCP Series
  • Power Rating
    3200 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    133 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    12.83 in
  • Width
    4.21 in
  • Height
    1.61 in
  • Weight
    5.07 lb
