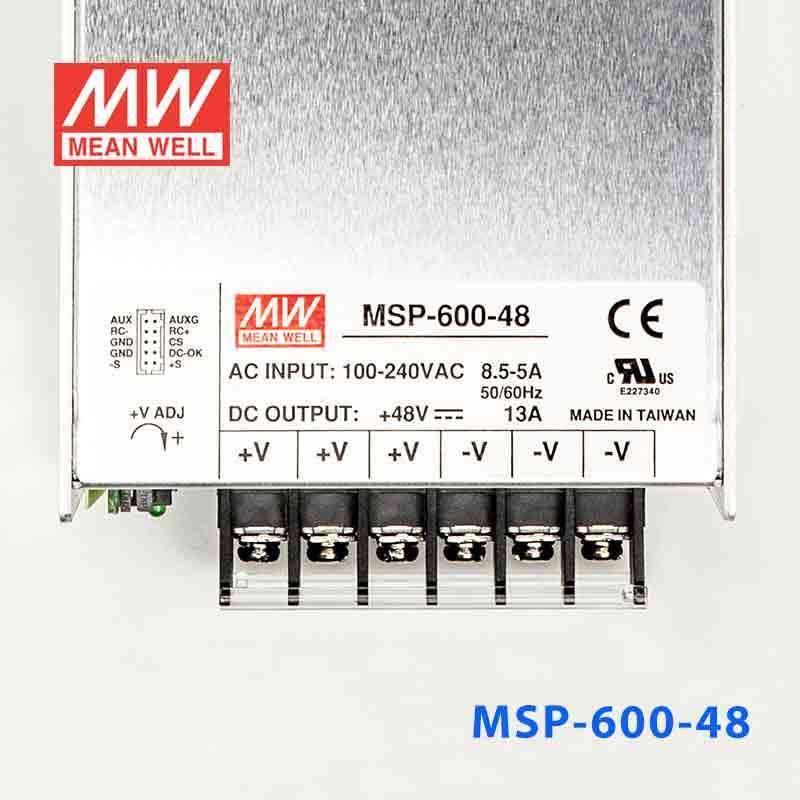

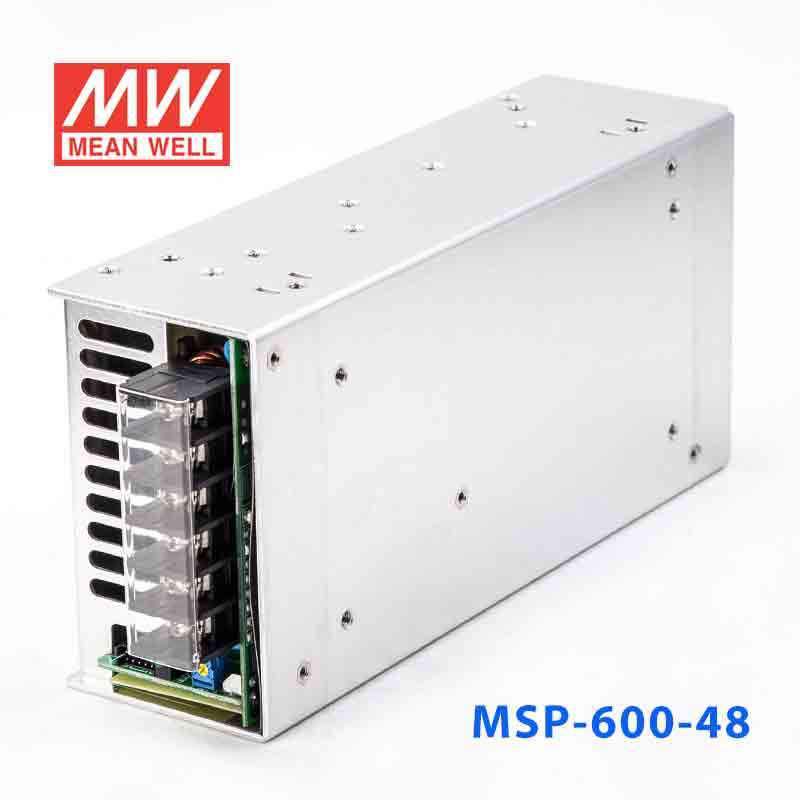

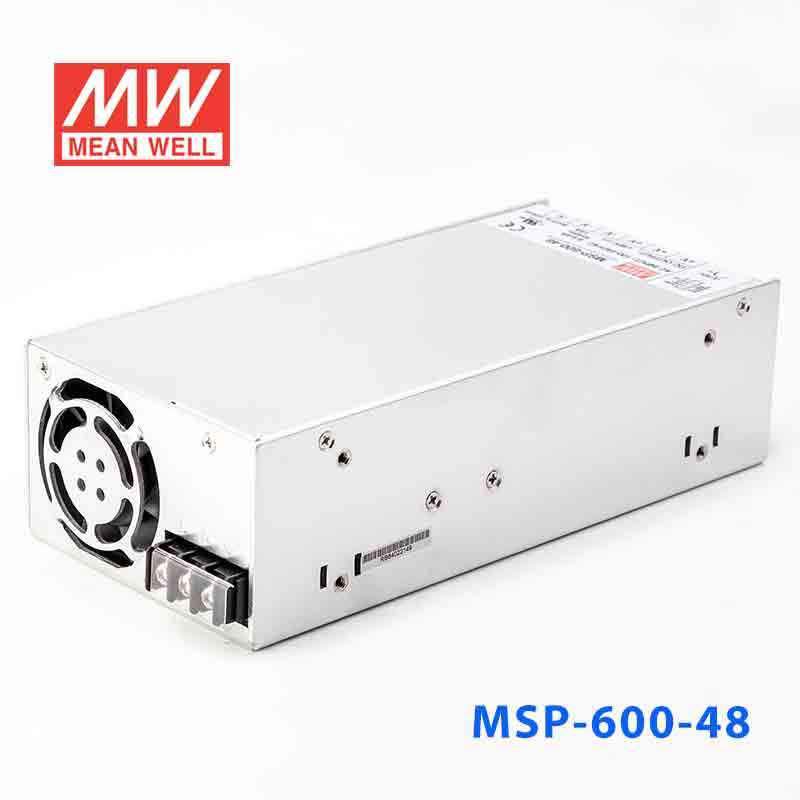

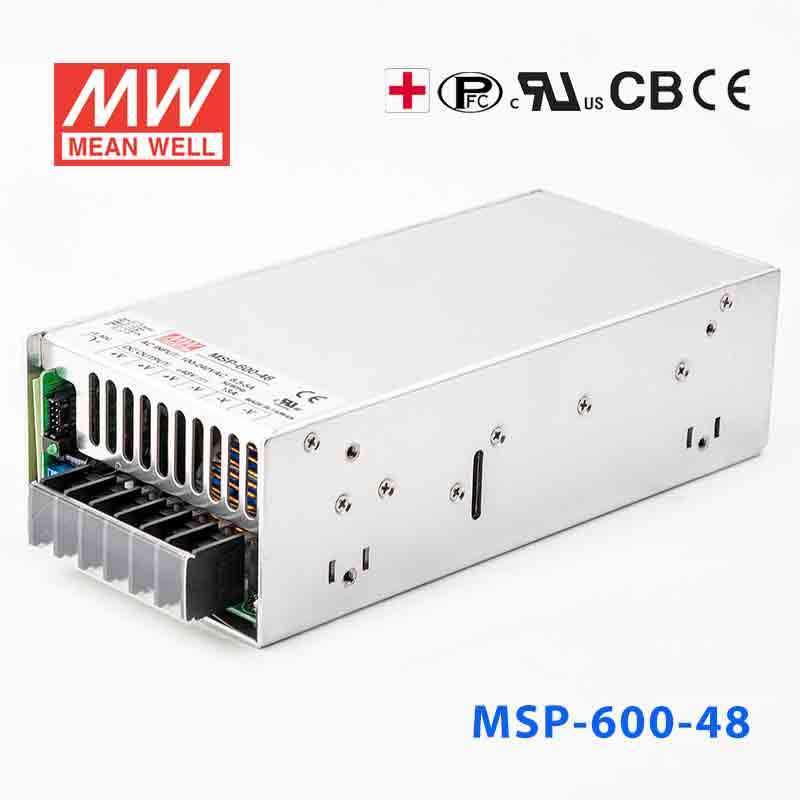

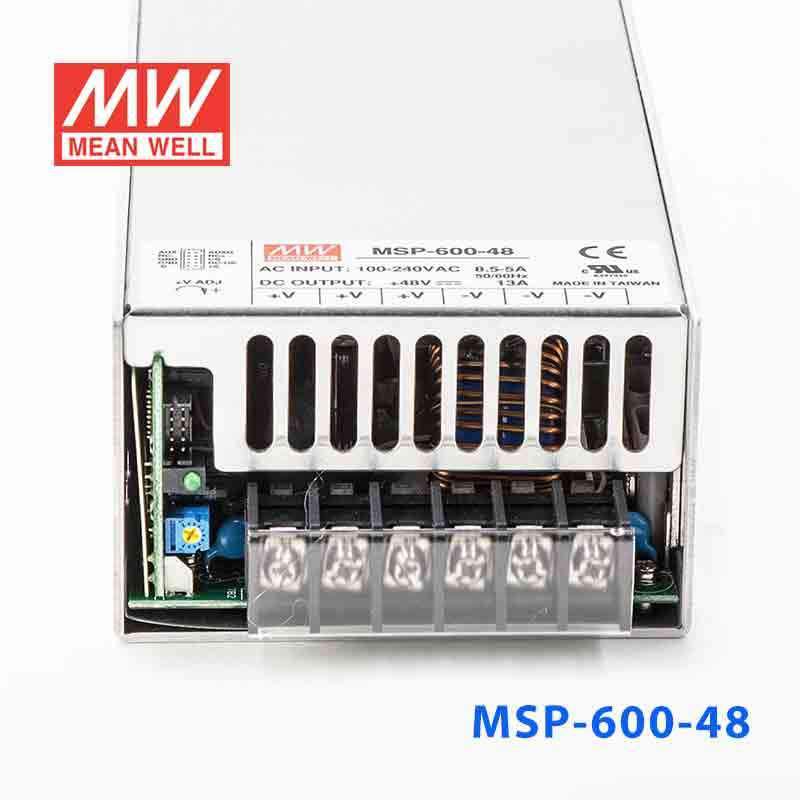

Mean Well MSP-600-48 Power Supply 624W 48V 13A

Name: Mean Well MSP-600-48 Power Supply 624W 48V 13A
Brand: Mean Well
SKU: MSP-600-48
Price: 210.75 USD
Availability: InStock

built-in active PFCmedical safety approvedhigh efficiencyno load power consumption < 0.5~0.8W

SKU MSP-600-48

$210.75 USD

Shipping calculated at checkout.

Select model — 6 in this family

MSP-600-48

MSP-100-48 100W 48V Backorder$62.05 USD

MSP-200-48 200W 48V Backorder$100.89 USD

MSP-300-48 300W 48V Backorder$138.78 USD

MSP-450-48 450W 48V In stock$188.46 USD

MSP-600-48 600W 48V Low stock$210.75 USD

MSP-1000-48 1000W 48V In stock$259.39 USD

Product variants

In stock

Overview

MSP-600-48 is the 48V output model of this series: rated current 13A, rated power 624W, typical efficiency 89%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.94
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Medical safety approved (MOOP level)
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.8W (Note.7)
Current sharing up to 2400W (3+1) (24V,36V,48V)
5 years warranty

Specifications

MSP-600-48Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 13A
CURRENT RANGE: 0 ~ 13A
RATED POWER: 624W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 40.8 ~ 55.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.2%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 8.5A/115VAC 5A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 80A/230VAC
LEAKAGE CURRENT: Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

5V STANDBY: 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
REMOTE CONTROL: RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN60601-1-2 , EAC TP TC 020

OTHERS

MTBF: 138.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.57Kg;8pcs/13.6Kg/1.34CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. No load power consumption<0.8W when RC+ & RC- (CN100 pin3,4) 0 ~ 0.8V or short.
8. When the input voltage is less than 40VAC, the SPS may exhibit degradation of performance. The final product manufacturers must re-confirm this deviation that does not affect basic safety or essential performance.
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MSP-600-48 Mechanical Specification — Mechanical Specification

MSP-600-48 Block Diagram — Block Diagram

MSP-600-48 Derating Curve — Derating Curve

MSP-600-48 Function Manual — Function Manual

MSP-600-48 M S P - 6 0 0 series — M S P - 6 0 0 series

Downloads

Datasheet1

MSP-600-48 datasheetMSP-600-SPEC.PDF · 2024-10-30 edition PDF Download

Certificates3

UL Certificate (MSP-600)(EN) PDF Download

CB Certificate (MSP-600)(EN) PDF Download

EMC Certificate (MSP-600)(EN) PDF Download

Test reports1

Test Report(MSP-600-48)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the MSP-600-48 for a 48V industrial control or automation system?

It is built for constant-voltage 48V output and can supply up to 13A with 624W total power. That makes it a fit for 48V industrial control, automation, or embedded equipment that needs a stable 48V DC bus within those limits.

Is the MSP-600-48 suitable for 48V communications or network equipment that needs higher power?

This model provides a constant 48V output with 624W available, so it suits 48V communications or network equipment that needs more power than lower-output 48V models. Buyers should match the load to the unit's 13A maximum output current and 624W power rating.

Can the MSP-600-48 power a 48V embedded system or test bench load?

Yes, if the equipment requires constant 48V DC and stays within 13A and 624W. The wide 85-264VAC input also helps in lab, factory, or OEM environments where AC input conditions can vary.

Is the MSP-600-48 a good choice when a 48V load needs more than mid-range power capacity?

It delivers up to 624W and 13A at 48V as the 48V model of the MSP-600 series. If a load needs more, the 48V version supports active current sharing for parallel operation of up to 4 units, with total current limited to rated current x units x 0.9.

How does the MSP-600-48 compare with the other MSP-600 voltage options?

Within the MSP-600 group, the series includes MSP-600-3.3 at 396W and 120A, MSP-600-5 at 600W and 120A, MSP-600-7.5 at 600W and 80A, MSP-600-12 at 636W and 53A, MSP-600-15 at 645W and 43A, MSP-600-24 at 648W and 27A, MSP-600-36 at 630W and 17.5A, and MSP-600-48 at 624W and 13A. The main difference is the output voltage and corresponding current rating for each model.

Can the MSP-600-48 be used in harsh temperature conditions or exposed outdoor locations?

The specified operating temperature range is -40°C to +70°C, with output derating required at higher ambient temperatures (see the derating curve). No IP rating is listed in the provided specs, so exposed outdoor or washdown use should not be assumed from this data alone.
